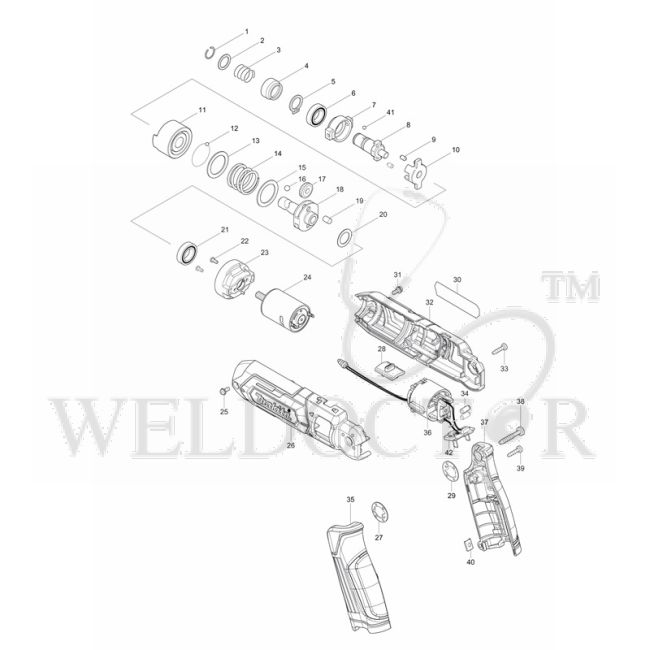

MAKITA TD022D CORDLESS IMPACT DRIVER SPARE PARTS

Spare Parts of Makita TD022D Cordless Impact Driver Ref. No. Part Name & Number Price 001 MAKITA RING SPRING 10 FOR TD020DW P/N:231965-7 Part No.: 231965-7 $0.22 Add To Cart 002 MAKITA FLAT WASHER 11 FOR TD020DW P/N:267143-3 Part No.: 267143-3 $0.33 Add To Cart 003 MAKITA COMPRESSION SPRING 13 FOR BTD120 6903VD P/N:233005-7 Part No.: 233005-7 $0.11 Add To Cart 004 MAKITA BIT SLEEVE FOR TD020SW P/N:324711-6 Part No.: 324711-6 $1.64 Add To Cart 005 MAKITA RETAINING RING S-12 FOR DT0600 P/N:961072-9 Part No.: 961072-9 $0.44 Add To Cart 009 MAKITA PIN 3.5 FOR TD021D P/N:268160-6 Part No.: 268160-6 $0.22 Add To Cart 010 MAKITA ANVIL FOR TD020D P/N:324713-2 Part No.: 324713-2 $11.55 Add To Cart 012 MAKITA STEEL BALL 3 FOR TD020SW P/N:216019-1 Part No.: 216019-1 $0.11 Add To Cart 016 MAKITA STEEL BALL 4.8 FOR 6910 P/N:216002-8 Part No.: 216002-8 $0.11 Add To Cart 018 MAKITA SPINDLE FOR TD020D P/N:324715-8 Part No.: 324715-8 $9.70 Add To Cart 019 MAKITA PIN 5.0 FOR TD021D P/N:268161-4 Part No.: 268161-4 $0.22 Add To Cart 020 MAKITA FLAT WASHER 12 FOR 2702 P/N:253052-2 Part No.: 253052-2 $0.33 Add To Cart 023 MAKITA INTERNAL GEAR CASE FOR TD021D P/N:451522-7 Part No.: 451522-7 $1.31 Add To Cart 024 MAKITA DC MOTOR FOR TD022D P/N:629235-0 Part No.: 629235-0 $7.85 Add To Cart 026 MAKITA MOTOR HOUSING SET FOR TD022D P/N:183F00-2 Part No.: 183F00-2 $7.09 Add To Cart 028 MAKITA LOCK LEVER FOR TD021D P/N:451523-5 Part No.: 451523-5 $0.55 Add To Cart 032 MAKITA MOTOR HOUSING SET FOR TD022D P/N:183F00-2 Part No.: 183F00-2 $7.09 Add To Cart 035 MAKITA HANDLE SET FOR TD022D P/N:183E72-1 Part No.: 183E72-1 $4.36 Add To Cart 036 MAKITA SWITCH FOR TD022D P/N:650783-8 Part No.: 650783-8 $32.92 Add To Cart 037 MAKITA HANDLE SET FOR TD022D P/N:183E72-1 Part No.: 183E72-1 $4.36 Add To Cart 038 MAKITA TAPPING SCREW 4X25 FOR GA7020 Part No.: 266374-1 $0.11 Add To Cart 040 MAKITA SET PLATE FOR TD020SW P/N:345749-8 Part No.: 345749-8 $0.33 Add To Cart 041 MAKITA STEEL BALL 3 FOR TD020SW P/N:216019-1 Part No.: 216019-1 $0.11 Add To Cart 042 MAKITA TERMINAL FOR DF010D P/N:643817-4 Part No.: 643817-4 $1.20 Add To Cart

Brand: Makita

Specifications:

• Ref. No.: Part Name & Number
• 001: MAKITA RING SPRING 10 FOR TD020DW P/N:231965-7 Part No.: 231965-7
• 002: MAKITA FLAT WASHER 11 FOR TD020DW P/N:267143-3 Part No.: 267143-3
• 003: MAKITA COMPRESSION SPRING 13 FOR BTD120 6903VD P/N:233005-7 Part No.: 233005-7
• 004: MAKITA BIT SLEEVE FOR TD020SW P/N:324711-6 Part No.: 324711-6
• 005: MAKITA RETAINING RING S-12 FOR DT0600 P/N:961072-9 Part No.: 961072-9
• 009: MAKITA PIN 3.5 FOR TD021D P/N:268160-6 Part No.: 268160-6
• 010: MAKITA ANVIL FOR TD020D P/N:324713-2 Part No.: 324713-2
• 012: MAKITA STEEL BALL 3 FOR TD020SW P/N:216019-1 Part No.: 216019-1
• 016: MAKITA STEEL BALL 4.8 FOR 6910 P/N:216002-8 Part No.: 216002-8
• 018: MAKITA SPINDLE FOR TD020D P/N:324715-8 Part No.: 324715-8
• 019: MAKITA PIN 5.0 FOR TD021D P/N:268161-4 Part No.: 268161-4
• 020: MAKITA FLAT WASHER 12 FOR 2702 P/N:253052-2 Part No.: 253052-2
• 023: MAKITA INTERNAL GEAR CASE FOR TD021D P/N:451522-7 Part No.: 451522-7
• 024: MAKITA DC MOTOR FOR TD022D P/N:629235-0 Part No.: 629235-0
• 026: MAKITA MOTOR HOUSING SET FOR TD022D P/N:183F00-2 Part No.: 183F00-2
• 028: MAKITA LOCK LEVER FOR TD021D P/N:451523-5 Part No.: 451523-5
• 032: MAKITA MOTOR HOUSING SET FOR TD022D P/N:183F00-2 Part No.: 183F00-2
• 035: MAKITA HANDLE SET FOR TD022D P/N:183E72-1 Part No.: 183E72-1
• 036: MAKITA SWITCH FOR TD022D P/N:650783-8 Part No.: 650783-8
• 037: MAKITA HANDLE SET FOR TD022D P/N:183E72-1 Part No.: 183E72-1
• 038: MAKITA TAPPING SCREW 4X25 FOR GA7020 Part No.: 266374-1
• 040: MAKITA SET PLATE FOR TD020SW P/N:345749-8 Part No.: 345749-8
• 041: MAKITA STEEL BALL 3 FOR TD020SW P/N:216019-1 Part No.: 216019-1
• 042: MAKITA TERMINAL FOR DF010D P/N:643817-4 Part No.: 643817-4
