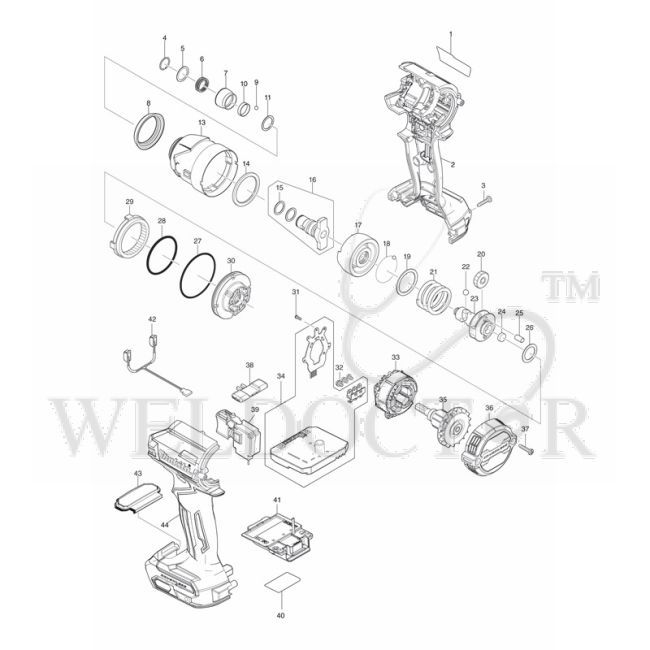

MAKITA TD003G CORDLESS IMPACT DRIVER SPARE PARTS

Spare Parts of Makita TD003G Cordless Impact Driver Ref. No. Part Name & Number Price 002 MAKITA HOUSING SET FOR TD003G P/N:183X95-3 Part No.: 183X95-3 $14.61 Add To Cart 003 MAKITA TAPPING SCREW PT M3X16 P/N:266429-2 Part No.: 266429-2 $0.22 Add To Cart 004 MAKITA RING SPRING 12 FOR WR100D P/N:231952-6 Part No.: 231952-6 $1.53 Add To Cart 005 MAKITA FLAT WASHER 13 FOR TD003G P/N:253575-0 Part No.: 253575-0 $0.22 Add To Cart 006 MAKITA SPRING 14 FOR TD001G P/N:232592-3 Part No.: 232592-3 $0.33 Add To Cart 007 MAKITA BIT SLEEVE P/N:327B23-8 Part No.: 327B23-8 $1.96 Add To Cart 008 MAKITA BUMPER FOR TD003G P/N:422A03-4 Part No.: 422A03-4 $0.44 Add To Cart 009 MAKITA STEEL BALL 3.5 FOR TD146D P/N:216040-0 Part No.: 216040-0 $0.11 Add To Cart 010 MAKITA LEAF SPRING TD003G P/N:232800-2 Part No.: 232800-2 $0.44 Add To Cart 011 MAKITA FLAT WASHER 13 FOR TD003G P/N:253575-0 Part No.: 253575-0 $0.22 Add To Cart 013 MAKITA HAMMER CASE COMPLETE FOR TD003G P/N:141M85-6 Part No.: 141M85-6 $16.68 Add To Cart 014 MAKITA NYLON WASHER 30 FOR DC-TW/TD P/N:261160-5 Part No.: 261160-5 $0.65 Add To Cart 015 MAKITA O RING 12.5 P/N:213166-9 Part No.: 213166-9 $0.33 Add To Cart 016 MAKITA ANVIL N ASSEMBLY FOR TD003G P/N:136854-0 Part No.: 136854-0 $8.39 Add To Cart 017 MAKITA HAMMER FOR TD003G P/N:327B60-2 Part No.: 327B60-2 $8.61 Add To Cart 018 MAKITA STEEL BALL 3.5 FOR TD146D P/N:216040-0 Part No.: 216040-0 $0.11 Add To Cart 019 MAKITA FLAT WASHER 24 P/N:267175-0 Part No.: 267175-0 $0.33 Add To Cart 020 MAKITA SPUR GEAR 22 FOR BTD125 P/N:227362-3 Part No.: 227362-3 $2.18 Add To Cart 021 MAKITA COMPRESSION SPRING 24 FOR TD003G P/N:232789-4 Part No.: 232789-4 $3.38 Add To Cart 022 MAKITA STEEL BALL 5.6 FOR HK1800 P/N : 216011-7 Part No.: 216011-7 $0.11 Add To Cart 023 MAKITA SPINDLE FOR TD003G P/N:327C18-7 Part No.: 327C18-7 $11.01 Add To Cart 024 MAKITA FELT FOR TD003G P/N:422994-3 Part No.: 422994-3 $0.33 Add To Cart 025 MAKITA PIN 5 FOR BTW121 BTD120 6916FD P/N:256253-1 Part No.: 256253-1 $0.33 Add To Cart 026 MAKITA FLAT WASHER 15 P/N:267194-6 Part No.: 267194-6 $0.76 Add To Cart 027 MAKITA O RING 48 FOR HM0810 P/N:213606-7 Part No.: 213606-7 $0.65 Add To Cart 028 MAKITA O RING 40 FOR HR3520 P/N:213507-9 Part No.: 213507-9 $0.33 Add To Cart 029 MAKITA INTERNAL GEAR 51 FOR TD003G P/N:227A92-2 Part No.: 227A92-2 $1.53 Add To Cart 030 MAKITA BEARING BOX COMPLETE FOR TD003G P/N:141M87-2 Part No.: 141M87-2 $4.14 Add To Cart 031 MAKITA TAPPING SCREW PT 2X6 FOR DDF083 P/N:266490-9 Part No.: 266490-9 $0.33 Add To Cart 032 MAKITA FLAT HEAD SCREW M3X6 P/N:652069-6 Part No.: 652069-6 $0.22 Add To Cart 033 MAKITA STATOR FOR TD003G P/N:629C08-9 Part No.: 629C08-9 $8.94 Add To Cart 034 MAKITA CONTROLLER FOR TD003G P/N:620L00-2 Part No.: 620L00-2 $126.00 Add To Cart 035 MAKITA ROTOR FOR TD003G P/N:619808-7 Part No.: 619808-7 $18.20 Add To Cart 036 MAKITA REAR COVER FOR TD003G P/N:413L86-1 Part No.: 413L86-1 $2.51 Add To Cart 037 MAKITA TAPPING SCREW PT M3X16 P/N:266429-2 Part No.: 266429-2 $0.22 Add To Cart 038 MAKITA F/R CHANGE LEVER FOR DC-TD/TW P/N:455053-8 Part No.: 455053-8 $0.55 Add To Cart 039 MAKITA SWITCH C3JR-1A-1 FOR DC-TD/TW P/N:651442-7 Part No.: 651442-7 $17.44 Add To Cart 041 MAKITA TERMINAL UNIT FOR JR001G P/N:632P49-4 Part No.: 632P49-4 $8.61 Add To Cart 042 MAKITA LED CIRCUIT FOR TD001G P/N:620B97-1 Part No.: 620B97-1 $6.87 Add To Cart 043 MAKITA SWITCH PLATE COMPLETE FOR TD003G P/N:141M86-4 Part No.: 141M86-4 $1.85 Add To Cart 044 MAKITA HOUSING SET FOR TD003G P/N:183X95-3 Part No.: 183X95-3 $14.61 Add To Cart

Brand: Makita

Specifications:

• Ref. No.: Part Name & Number
• 002: MAKITA HOUSING SET FOR TD003G P/N:183X95-3 Part No.: 183X95-3
• 003: MAKITA TAPPING SCREW PT M3X16 P/N:266429-2 Part No.: 266429-2
• 004: MAKITA RING SPRING 12 FOR WR100D P/N:231952-6 Part No.: 231952-6
• 005: MAKITA FLAT WASHER 13 FOR TD003G P/N:253575-0 Part No.: 253575-0
• 006: MAKITA SPRING 14 FOR TD001G P/N:232592-3 Part No.: 232592-3
• 007: MAKITA BIT SLEEVE P/N:327B23-8 Part No.: 327B23-8
• 008: MAKITA BUMPER FOR TD003G P/N:422A03-4 Part No.: 422A03-4
• 009: MAKITA STEEL BALL 3.5 FOR TD146D P/N:216040-0 Part No.: 216040-0
• 010: MAKITA LEAF SPRING TD003G P/N:232800-2 Part No.: 232800-2
• 011: MAKITA FLAT WASHER 13 FOR TD003G P/N:253575-0 Part No.: 253575-0
• 013: MAKITA HAMMER CASE COMPLETE FOR TD003G P/N:141M85-6 Part No.: 141M85-6
• 014: MAKITA NYLON WASHER 30 FOR DC-TW/TD P/N:261160-5 Part No.: 261160-5
• 015: MAKITA O RING 12.5 P/N:213166-9 Part No.: 213166-9
• 016: MAKITA ANVIL N ASSEMBLY FOR TD003G P/N:136854-0 Part No.: 136854-0
• 017: MAKITA HAMMER FOR TD003G P/N:327B60-2 Part No.: 327B60-2
• 018: MAKITA STEEL BALL 3.5 FOR TD146D P/N:216040-0 Part No.: 216040-0
• 019: MAKITA FLAT WASHER 24 P/N:267175-0 Part No.: 267175-0
• 020: MAKITA SPUR GEAR 22 FOR BTD125 P/N:227362-3 Part No.: 227362-3
• 021: MAKITA COMPRESSION SPRING 24 FOR TD003G P/N:232789-4 Part No.: 232789-4
• 022: MAKITA STEEL BALL 5.6 FOR HK1800 P/N : 216011-7 Part No.: 216011-7
• 023: MAKITA SPINDLE FOR TD003G P/N:327C18-7 Part No.: 327C18-7
• 024: MAKITA FELT FOR TD003G P/N:422994-3 Part No.: 422994-3
• 025: MAKITA PIN 5 FOR BTW121 BTD120 6916FD P/N:256253-1 Part No.: 256253-1
• 026: MAKITA FLAT WASHER 15 P/N:267194-6 Part No.: 267194-6
• 027: MAKITA O RING 48 FOR HM0810 P/N:213606-7 Part No.: 213606-7
• 028: MAKITA O RING 40 FOR HR3520 P/N:213507-9 Part No.: 213507-9
• 029: MAKITA INTERNAL GEAR 51 FOR TD003G P/N:227A92-2 Part No.: 227A92-2
• 030: MAKITA BEARING BOX COMPLETE FOR TD003G P/N:141M87-2 Part No.: 141M87-2
• 031: MAKITA TAPPING SCREW PT 2X6 FOR DDF083 P/N:266490-9 Part No.: 266490-9
• 032: MAKITA FLAT HEAD SCREW M3X6 P/N:652069-6 Part No.: 652069-6
• 033: MAKITA STATOR FOR TD003G P/N:629C08-9 Part No.: 629C08-9
• 034: MAKITA CONTROLLER FOR TD003G P/N:620L00-2 Part No.: 620L00-2
• 035: MAKITA ROTOR FOR TD003G P/N:619808-7 Part No.: 619808-7
• 036: MAKITA REAR COVER FOR TD003G P/N:413L86-1 Part No.: 413L86-1
• 037: MAKITA TAPPING SCREW PT M3X16 P/N:266429-2 Part No.: 266429-2
• 038: MAKITA F/R CHANGE LEVER FOR DC-TD/TW P/N:455053-8 Part No.: 455053-8
• 039: MAKITA SWITCH C3JR-1A-1 FOR DC-TD/TW P/N:651442-7 Part No.: 651442-7
• 041: MAKITA TERMINAL UNIT FOR JR001G P/N:632P49-4 Part No.: 632P49-4
• 042: MAKITA LED CIRCUIT FOR TD001G P/N:620B97-1 Part No.: 620B97-1
