MAKITA TD090D CORDLESS IMPACT DRIVER SPARE PARTS

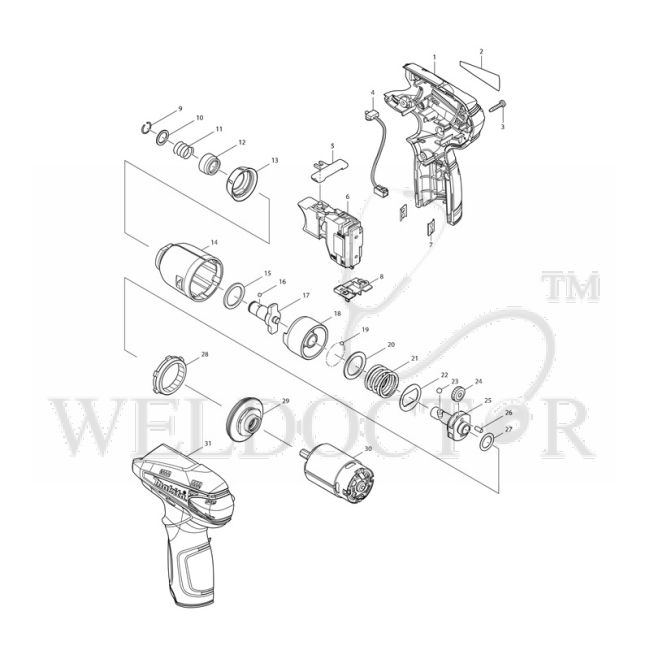

Spare Parts of Makita TD090D Cordless Impact Driver Ref. No. Part Name & Number Price 003 MAKITA TAPPING SCREW BIND PT 3X16 FOR 6226DWE P/N:266130-9 Part No.: 266130-9 $0.11 Add To Cart 005 MAKITA F/R CHANGE LEVER FOR DF030DWE Part No.: 450504-6 $0.44 Add To Cart 007 MAKITA SET PLATE FOR TD090 P/N:345998-7 Part No.: 345998-7 $0.33 Add To Cart 008 MAKITA TERMINAL FOR DF030 P/N:643830-2 Part No.: 643830-2 $1.20 Add To Cart 009 MAKITA RING SPRING 10 FOR TD020DW P/N:231965-7 Part No.: 231965-7 $0.22 Add To Cart 010 MAKITA FLAT WASHER 11 FOR TD020DW P/N:267143-3 Part No.: 267143-3 $0.33 Add To Cart 011 MAKITA COMPRESSION SPRING 13 FOR BTD120 6903VD P/N:233005-7 Part No.: 233005-7 $0.11 Add To Cart 012 MAKITA BIT SLEEVE FOR TD020SW P/N:324711-6 Part No.: 324711-6 $1.64 Add To Cart 013 MAKITA BUMPER FOR TD090 P/N:424109-8 Part No.: 424109-8 $1.42 Add To Cart 014 MAKITA HAMMER CASE CPL FOR TD090 P/N:158670-0 Part No.: 158670-0 $6.98 Add To Cart 015 MAKITA NYLON WASHER 20 FOR TD090 P/N:261140-1 Part No.: 261140-1 $0.33 Add To Cart 016 MAKITA STEEL BALL 3 FOR TD020SW P/N:216019-1 Part No.: 216019-1 $0.11 Add To Cart 017 MAKITA ANVIL N FOR TD090 P/N:324896-8 Part No.: 324896-8 $5.78 Add To Cart 018 MAKITA HAMMER FOR TD090 P/N:324894-2 Part No.: 324894-2 $7.63 Add To Cart 019 MAKITA STEEL BALL 3 FOR TD020SW P/N:216019-1 Part No.: 216019-1 $0.11 Add To Cart 020 MAKITA FLAT WASHER 20 FOR TD090 P/N:267380-9 Part No.: 267380-9 $0.33 Add To Cart 021 MAKITA COMPRESSION SPRING 21 FOR TD090 P/N:234064-4 Part No.: 234064-4 $0.44 Add To Cart 022 MAKITA WASHER 21 FOR TD090 P/N:267813-4 Part No.: 267813-4 $0.33 Add To Cart 023 MAKITA STEEL BALL 4.8 FOR 6910 P/N:216002-8 Part No.: 216002-8 $0.11 Add To Cart 024 MAKITA SPUR GEAR 17 FOR TD090 P/N:227213-0 Part No.: 227213-0 $0.55 Add To Cart 025 MAKITA SPINDLE FOR TD090 P/N:324897-6 Part No.: 324897-6 $5.78 Add To Cart 026 MAKITA PIN 3.5 FOR TD090 P/N:268217-3 Part No.: 268217-3 $0.33 Add To Cart 027 MAKITA FLAT WASHER 12 FOR 2702 P/N:253052-2 Part No.: 253052-2 $0.33 Add To Cart 028 MAKITA INTERNAL GEAR 43 FOR TD090DWE Part No.: 227215-6 $2.83 Add To Cart 029 MAKITA BEARING BOX CPL FOR TD090 P/N:158671-8 Part No.: 158671-8 $5.45 Add To Cart 030 MAKITA DC MOTOR FOR TD090D P/N:629851-8 Part No.: 629851-8 $11.34 Add To Cart

Brand: Makita

Specifications:

• Ref. No.: Part Name & Number
• 003: MAKITA TAPPING SCREW BIND PT 3X16 FOR 6226DWE P/N:266130-9 Part No.: 266130-9
• 005: MAKITA F/R CHANGE LEVER FOR DF030DWE Part No.: 450504-6
• 007: MAKITA SET PLATE FOR TD090 P/N:345998-7 Part No.: 345998-7
• 008: MAKITA TERMINAL FOR DF030 P/N:643830-2 Part No.: 643830-2
• 009: MAKITA RING SPRING 10 FOR TD020DW P/N:231965-7 Part No.: 231965-7
• 010: MAKITA FLAT WASHER 11 FOR TD020DW P/N:267143-3 Part No.: 267143-3
• 011: MAKITA COMPRESSION SPRING 13 FOR BTD120 6903VD P/N:233005-7 Part No.: 233005-7
• 012: MAKITA BIT SLEEVE FOR TD020SW P/N:324711-6 Part No.: 324711-6
• 013: MAKITA BUMPER FOR TD090 P/N:424109-8 Part No.: 424109-8
• 014: MAKITA HAMMER CASE CPL FOR TD090 P/N:158670-0 Part No.: 158670-0
• 015: MAKITA NYLON WASHER 20 FOR TD090 P/N:261140-1 Part No.: 261140-1
• 016: MAKITA STEEL BALL 3 FOR TD020SW P/N:216019-1 Part No.: 216019-1
• 017: MAKITA ANVIL N FOR TD090 P/N:324896-8 Part No.: 324896-8
• 018: MAKITA HAMMER FOR TD090 P/N:324894-2 Part No.: 324894-2
• 019: MAKITA STEEL BALL 3 FOR TD020SW P/N:216019-1 Part No.: 216019-1
• 020: MAKITA FLAT WASHER 20 FOR TD090 P/N:267380-9 Part No.: 267380-9
• 021: MAKITA COMPRESSION SPRING 21 FOR TD090 P/N:234064-4 Part No.: 234064-4
• 022: MAKITA WASHER 21 FOR TD090 P/N:267813-4 Part No.: 267813-4
• 023: MAKITA STEEL BALL 4.8 FOR 6910 P/N:216002-8 Part No.: 216002-8
• 024: MAKITA SPUR GEAR 17 FOR TD090 P/N:227213-0 Part No.: 227213-0
• 025: MAKITA SPINDLE FOR TD090 P/N:324897-6 Part No.: 324897-6
• 026: MAKITA PIN 3.5 FOR TD090 P/N:268217-3 Part No.: 268217-3
• 027: MAKITA FLAT WASHER 12 FOR 2702 P/N:253052-2 Part No.: 253052-2
• 028: MAKITA INTERNAL GEAR 43 FOR TD090DWE Part No.: 227215-6
• 029: MAKITA BEARING BOX CPL FOR TD090 P/N:158671-8 Part No.: 158671-8
• 030: MAKITA DC MOTOR FOR TD090D P/N:629851-8 Part No.: 629851-8
