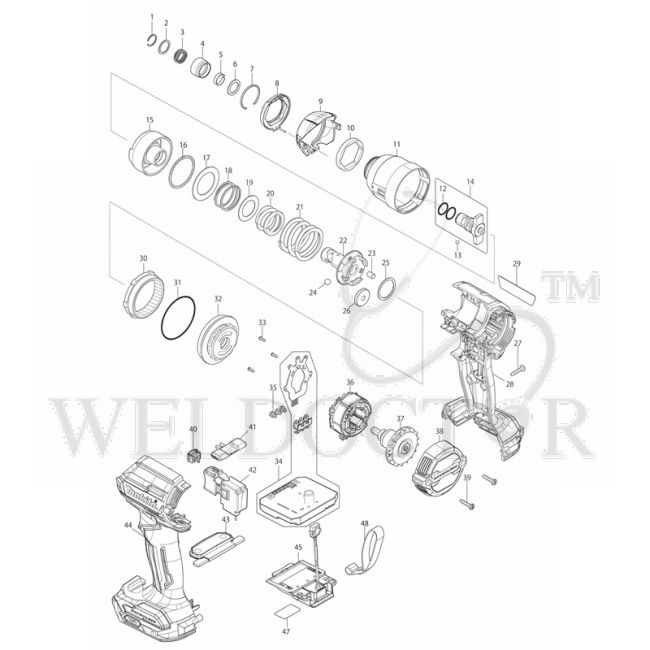

MAKITA TD002G CORDLESS IMPACT DRIVER SPARE PARTS

Spare Parts of Makita TD002G Cordless Impact Driver Ref. No. Part Name & Number Price 001 MAKITA RING SPRING 12 FOR WR100D P/N:231952-6 Part No.: 231952-6 $1.53 Add To Cart 002 MAKITA FLAT WASHER 14 P/N:267101-9 Part No.: 267101-9 $0.55 Add To Cart 003 MAKITA SPRING 14 FOR TD001G P/N:232592-3 Part No.: 232592-3 $0.33 Add To Cart 004 MAKITA BIT SLEEVE FOR TD002G P/N:327989-0 Part No.: 327989-0 $5.12 Add To Cart 007 MAKITA RING SPRING 27 FOR TD002G P/N:232751-9 Part No.: 232751-9 $0.98 Add To Cart 008 MAKITA LED CURCUIT FOR TD002G P/N:620H90-1 Part No.: 620H90-1 $16.79 Add To Cart 009 MAKITA HAMMER CASE COVER FOR TD002G P/N:413L58-6 Part No.: 413L58-6 $2.40 Add To Cart 010 MAKITA SPONGE SHEET FOR TD002G P/N:422874-3 Part No.: 422874-3 $0.44 Add To Cart 011 MAKITA HAMMER CASE COMPLETE FOR TD002G P/N:141J66-2 Part No.: 141J66-2 $35.43 Add To Cart 012 MAKITA O RING 12.5 P/N:213166-9 Part No.: 213166-9 $0.33 Add To Cart 013 MAKITA STEEL BALL 3.5 FOR 6409 P/N : 216001-0 Part No.: 216001-0 $0.11 Add To Cart 014 MAKITA ANVIL N ASSEMBLY FOR TD002G P/N:136626-3 Part No.: 136626-3 $34.44 Add To Cart 015 MAKITA HAMMER FOR TD002G P/N:327985-8 Part No.: 327985-8 $34.66 Add To Cart 016 MAKITA STEEL BALL 2.4 P/N:216015-9 Part No.: 216015-9 $0.22 Add To Cart 017 MAKITA FLAT WASHER 26 FOR TD002G P/N:253559-8 Part No.: 253559-8 $0.76 Add To Cart 018 MAKITA COMPRESSION SPRING 26 FOR TD002G P/N:232750-1 Part No.: 232750-1 $0.87 Add To Cart 019 MAKITA FLAT WASHER 19 FOR TD002G P/N:253560-3 Part No.: 253560-3 $0.55 Add To Cart 020 MAKITA COMPRESSION SPRING 20 FOR TD002G P/N:232749-6 Part No.: 232749-6 $2.07 Add To Cart 021 MAKITA COMPRESSION SPRING 31 FOR TD002G P/N:232748-8 Part No.: 232748-8 $2.83 Add To Cart 022 MAKITA SPINDLE FOR TD002G P/N:327984-0 Part No.: 327984-0 $63.98 Add To Cart 023 MAKITA PIN 5 FOR TD002G P/N:256A12-9 Part No.: 256A12-9 $0.55 Add To Cart 024 MAKITA STEEL BALL 6 FOR 4302C P/N:216013-3 Part No.: 216013-3 $0.33 Add To Cart 026 MAKITA SPUR GEAR 24 FOR TD002G P/N:227956-4 Part No.: 227956-4 $2.94 Add To Cart 027 MAKITA TAPPING SCREW BIND PT 3X16 FOR 6226DWE P/N:266130-9 Part No.: 266130-9 $0.11 Add To Cart 028 MAKITA HOUSING SET FOR TD002G P/N:183V61-8 Part No.: 183V61-8 $26.71 Add To Cart 030 MAKITA INTERNAL SPUR GEAR 56 FOR TD002G P/N:227957-2 Part No.: 227957-2 $2.18 Add To Cart 031 MAKITA O-RING 45 FOR TD002G P/N:213A18-0 Part No.: 213A18-0 $0.33 Add To Cart 032 MAKITA BEARING BOX COMPLETE FOR TD002G P/N:141J65-4 Part No.: 141J65-4 $14.93 Add To Cart 033 MAKITA TAPPING SCREW PT 2X6 FOR DDF083 P/N:266490-9 Part No.: 266490-9 $0.33 Add To Cart 034 MAKITA CONTROLLER FOR TD002G P/N:620H91-9 Part No.: 620H91-9 $176.04 Add To Cart 035 MAKITA FLAT HEAD SCREW M3X6 P/N:652069-6 Part No.: 652069-6 $0.22 Add To Cart 036 MAKITA STATOR FOR XGT DC-TD/FN P/N:629464-5 Part No.: 629464-5 $9.37 Add To Cart 037 MAKITA ROTOR FOR TD002G P/N:619748-9 Part No.: 619748-9 $48.72 Add To Cart 038 MAKITA REAR COVER FOR TD002G P/N:413G19-6 Part No.: 413G19-6 $3.27 Add To Cart 039 MAKITA TAPPING SCREW BIND PT 3X16 FOR 6226DWE P/N:266130-9 Part No.: 266130-9 $0.11 Add To Cart 040 MAKITA SWITCH UNIT FOR TD002G P/N:632T17-1 Part No.: 632T17-1 $13.84 Add To Cart 041 MAKITA F/R CHANGE LEVER FOR DC-TD/TW P/N:455053-8 Part No.: 455053-8 $0.55 Add To Cart 042 MAKITA SWITCH C3JR-1A-1 FOR DC-TD/TW P/N:651442-7 Part No.: 651442-7 $17.44 Add To Cart 043 MAKITA SWITCH PLATE COMPLETE FOR TD002G P/N:141L82-6 Part No.: 141L82-6 $3.92 Add To Cart 044 MAKITA HOUSING SET FOR TD002G P/N:183V61-8 Part No.: 183V61-8 $26.71 Add To Cart 045 MAKITA TERMINAL UNIT FOR JR001G P/N:632P49-4 Part No.: 632P49-4 $8.61 Add To Cart

Brand: Makita

Specifications:

• Ref. No.: Part Name & Number
• 001: MAKITA RING SPRING 12 FOR WR100D P/N:231952-6 Part No.: 231952-6
• 002: MAKITA FLAT WASHER 14 P/N:267101-9 Part No.: 267101-9
• 003: MAKITA SPRING 14 FOR TD001G P/N:232592-3 Part No.: 232592-3
• 004: MAKITA BIT SLEEVE FOR TD002G P/N:327989-0 Part No.: 327989-0
• 007: MAKITA RING SPRING 27 FOR TD002G P/N:232751-9 Part No.: 232751-9
• 008: MAKITA LED CURCUIT FOR TD002G P/N:620H90-1 Part No.: 620H90-1
• 009: MAKITA HAMMER CASE COVER FOR TD002G P/N:413L58-6 Part No.: 413L58-6
• 010: MAKITA SPONGE SHEET FOR TD002G P/N:422874-3 Part No.: 422874-3
• 011: MAKITA HAMMER CASE COMPLETE FOR TD002G P/N:141J66-2 Part No.: 141J66-2
• 012: MAKITA O RING 12.5 P/N:213166-9 Part No.: 213166-9
• 013: MAKITA STEEL BALL 3.5 FOR 6409 P/N : 216001-0 Part No.: 216001-0
• 014: MAKITA ANVIL N ASSEMBLY FOR TD002G P/N:136626-3 Part No.: 136626-3
• 015: MAKITA HAMMER FOR TD002G P/N:327985-8 Part No.: 327985-8
• 016: MAKITA STEEL BALL 2.4 P/N:216015-9 Part No.: 216015-9
• 017: MAKITA FLAT WASHER 26 FOR TD002G P/N:253559-8 Part No.: 253559-8
• 018: MAKITA COMPRESSION SPRING 26 FOR TD002G P/N:232750-1 Part No.: 232750-1
• 019: MAKITA FLAT WASHER 19 FOR TD002G P/N:253560-3 Part No.: 253560-3
• 020: MAKITA COMPRESSION SPRING 20 FOR TD002G P/N:232749-6 Part No.: 232749-6
• 021: MAKITA COMPRESSION SPRING 31 FOR TD002G P/N:232748-8 Part No.: 232748-8
• 022: MAKITA SPINDLE FOR TD002G P/N:327984-0 Part No.: 327984-0
• 023: MAKITA PIN 5 FOR TD002G P/N:256A12-9 Part No.: 256A12-9
• 024: MAKITA STEEL BALL 6 FOR 4302C P/N:216013-3 Part No.: 216013-3
• 026: MAKITA SPUR GEAR 24 FOR TD002G P/N:227956-4 Part No.: 227956-4
• 027: MAKITA TAPPING SCREW BIND PT 3X16 FOR 6226DWE P/N:266130-9 Part No.: 266130-9
• 028: MAKITA HOUSING SET FOR TD002G P/N:183V61-8 Part No.: 183V61-8
• 030: MAKITA INTERNAL SPUR GEAR 56 FOR TD002G P/N:227957-2 Part No.: 227957-2
• 031: MAKITA O-RING 45 FOR TD002G P/N:213A18-0 Part No.: 213A18-0
• 032: MAKITA BEARING BOX COMPLETE FOR TD002G P/N:141J65-4 Part No.: 141J65-4
• 033: MAKITA TAPPING SCREW PT 2X6 FOR DDF083 P/N:266490-9 Part No.: 266490-9
• 034: MAKITA CONTROLLER FOR TD002G P/N:620H91-9 Part No.: 620H91-9
• 035: MAKITA FLAT HEAD SCREW M3X6 P/N:652069-6 Part No.: 652069-6
• 036: MAKITA STATOR FOR XGT DC-TD/FN P/N:629464-5 Part No.: 629464-5
• 037: MAKITA ROTOR FOR TD002G P/N:619748-9 Part No.: 619748-9
• 038: MAKITA REAR COVER FOR TD002G P/N:413G19-6 Part No.: 413G19-6
• 039: MAKITA TAPPING SCREW BIND PT 3X16 FOR 6226DWE P/N:266130-9 Part No.: 266130-9
• 040: MAKITA SWITCH UNIT FOR TD002G P/N:632T17-1 Part No.: 632T17-1
• 041: MAKITA F/R CHANGE LEVER FOR DC-TD/TW P/N:455053-8 Part No.: 455053-8
• 042: MAKITA SWITCH C3JR-1A-1 FOR DC-TD/TW P/N:651442-7 Part No.: 651442-7
• 043: MAKITA SWITCH PLATE COMPLETE FOR TD002G P/N:141L82-6 Part No.: 141L82-6
