MAKITA DCS553 150MM CORDLESS METAL CUTTER SPARE PARTS

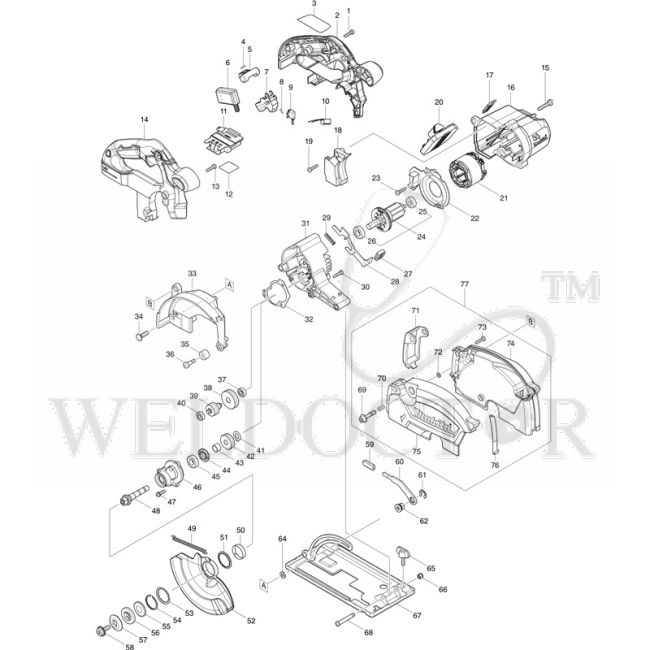

Spare Parts of Makita DCS553 Cordless Metal Cutter Ref. No. Part Name & Number Price 001 MAKITA TAPPING SCREW 4X18 P/N:265995-6 Part No.: 265995-6 $0.33 Add To Cart 002 MAKITA HANDLE COMPLETE L/R P/N:183K13-3 Part No.: 183K13-3 $22.67 Add To Cart 004 MAKITA COMPRESSION SPRING 4 FOR 6019DWE P/N:231433-0 Part No.: 231433-0 $0.22 Add To Cart 005 MAKITA LOCK OFF BUTTON FOR DC TOOL P/N:419704-7 Part No.: 419704-7 $1.09 Add To Cart 006 MAKITA SWITCH C3XA-1PSPM FOR DKP181 P/N:651083-9 Part No.: 651083-9 $18.42 Add To Cart 007 MAKITA SWITCH LEVER FOR DC-HS/CS P/N:458594-3 Part No.: 458594-3 $0.76 Add To Cart 008 MAKITA COMPRESSION SPRING 4 FOR 6019DWE P/N:231433-0 Part No.: 231433-0 $0.22 Add To Cart 009 MAKITA SWITCH UNIT FOR DCS553 P/N:632M68-2 Part No.: 632M68-2 $9.48 Add To Cart 010 MAKITA LED CIRCUIT FOR DC TOOL P/N:620936-3 Part No.: 620936-3 $8.72 Add To Cart 011 MAKITA TERMINAL FOR DTP/DDF/DHP484 P/N:643874-2 Part No.: 643874-2 $3.92 Add To Cart 013 MAKITA TAPPING SCREW 4X18 P/N:265995-6 Part No.: 265995-6 $0.33 Add To Cart 014 MAKITA HANDLE COMPLETE L/R P/N:183K13-3 Part No.: 183K13-3 $22.67 Add To Cart 015 MAKITA PAN HEAD SCREW M5X30 FOR 2416S P/N:911253-5 Part No.: 911253-5 $0.33 Add To Cart 016 MAKITA MOTOR HOUSING FOR DCS553 P/N:458656-7 Part No.: 458656-7 $9.05 Add To Cart 017 MAKITA INDICATION PLATE COMPLETE P/N:144251-6 Part No.: 144251-6 $3.60 Add To Cart 018 MAKITA MOTOR HOUSING COVER FOR DCS553 P/N:458657-5 Part No.: 458657-5 $1.85 Add To Cart 019 MAKITA TAPPING SCREW 4X18 P/N:265995-6 Part No.: 265995-6 $0.33 Add To Cart 020 MAKITA CONTROLLER FOR DCS553 P/N:620938-9 Part No.: 620938-9 $97.12 Add To Cart 021 MAKITA STATOR FOR DCS553 P/N:629368-1 Part No.: 629368-1 $38.70 Add To Cart 022 MAKITA BAFFLE PLATE P/N:458658-3 Part No.: 458658-3 $1.85 Add To Cart 023 MAKITA TAPPING SCREW 4X18 P/N:265995-6 Part No.: 265995-6 $0.33 Add To Cart 025 MAKITA BALL BEARING 6260DW FOR BHR200SF P/N:210022-4 Part No.: 210022-4 $2.73 Add To Cart 026 MAKITA BALL BEARING 6900DW P/N:210069-8 Part No.: 210069-8 $3.27 Add To Cart 027 MAKITA CAP FOR HS003G P/N:286039-9 Part No.: 286039-9 $0.33 Add To Cart 028 MAKITA SHAFT LOCK FOR CS551D P/N:346885-3 Part No.: 346885-3 $1.31 Add To Cart 029 MAKITA COMPRESSION SPRING 6 FOR GA7010C P/N:233117-6 Part No.: 233117-6 $0.22 Add To Cart 030 MAKITA TAPPING SCREW 4X18 P/N:265995-6 Part No.: 265995-6 $0.33 Add To Cart 031 MAKITA GEAR HOUSING FOR DCS553 P/N:140D79-4 Part No.: 140D79-4 $36.19 Add To Cart 032 MAKITA GASKET FOR CS551D P/N:424715-9 Part No.: 424715-9 $1.42 Add To Cart 033 MAKITA BLADE CASE P/N:458661-4 Part No.: 458661-4 $5.01 Add To Cart 034 MAKITA FLAT HEAD SQUARE NECK BOLT M6* PJ7000 P/N:266737-1 Part No.: 266737-1 $0.33 Add To Cart 035 MAKITA RUBBER SLEEVE 6 FOR LS1040 P/N:262511-5 Part No.: 262511-5 $0.44 Add To Cart 036 MAKITA '+ PAN HEAD SCREW M5 FOR BHS630 P/N:265115-2 Part No.: 265115-2 $0.76 Add To Cart 037 MAKITA BALL BEARING 625ZZ FOR HP451D P/N:210065-6 Part No.: 210065-6 $2.18 Add To Cart 038 MAKITA HELICAL GEAR 30 FOR CS551D P/N:227809-7 Part No.: 227809-7 $5.01 Add To Cart 039 MAKITA HELICAL GEAR 17 FOR CS551D P/N:227807-1 Part No.: 227807-1 $5.34 Add To Cart 041 MAKITA RETAINING RING S-15 FOR 9067 P/N: 961005-4 Part No.: 961005-4 $0.33 Add To Cart 042 MAKITA HELICAL GEAR 24 FOR DCS551/553 P/N:227808-9 Part No.: 227808-9 $4.80 Add To Cart 043 MAKITA SLEEVE 10 FOR 5240L P/N:257728-3 Part No.: 257728-3 $0.98 Add To Cart 044 MAKITA BEARING RETAINER 14-23 FOR CS540D P/N:285847-5 Part No.: 285847-5 $1.20 Add To Cart 045 MAKITA BALL BEARING 6900DW P/N:210069-8 Part No.: 210069-8 $3.27 Add To Cart 046 MAKITA BEARING BOX FOR DCS551/553 P/N:143228-8 Part No.: 143228-8 $13.63 Add To Cart 047 MAKITA PAN HEAD SCREW M4X16 P/N:911128-8 Part No.: 911128-8 $0.11 Add To Cart 048 MAKITA SPINDLE FOR DCS551/553 P/N:326540-3 Part No.: 326540-3 $4.03 Add To Cart 049 MAKITA TENSION SPRING 3 FOR BCS550 P/N:231792-2 Part No.: 231792-2 $2.07 Add To Cart 050 MAKITA THICKNESS RING FOR CS550D P/N:345470-9 Part No.: 345470-9 $0.33 Add To Cart 051 MAKITA SPACER FOR CS540D P/N:345739-1 Part No.: 345739-1 $0.44 Add To Cart 052 MAKITA SAFETY COVER COMPLETE FOR DCS553 P/N:140C92-6 Part No.: 140C92-6 $6.43 Add To Cart 053 MAKITA SPACER FOR CS540D P/N:345739-1 Part No.: 345739-1 $0.44 Add To Cart 054 MAKITA RETAINING RING (EXT WR-26 FOR BCS550 P/N:257938-2 Part No.: 257938-2 $0.65 Add To Cart 055 MAKITA CUP WASHER 13 FOR CSS550D P/N:267802-9 Part No.: 267802-9 $0.55 Add To Cart 056 MAKITA INNER FLANGE 30 FOR BCS550 P/N:224391-7 Part No.: 224391-7 $1.53 Add To Cart 057 MAKITA OUTER FLANGE 30 FOR BCS550 P/N:224404-4 Part No.: 224404-4 $3.38 Add To Cart 058 MAKITA HEX SOCKET HEAD BOLT M6X18 FOR HS710D P/N:266925-0 Part No.: 266925-0 $0.76 Add To Cart 059 MAKITA CAP P/N:286036-5 Part No.: 286036-5 $0.44 Add To Cart 060 MAKITA LEVER PLATE P/N:347418-7 Part No.: 347418-7 $1.31 Add To Cart 061 MAKITA BOW STOP RING E-8 P/N:257982-9 Part No.: 257982-9 $0.55 Add To Cart 062 MAKITA COLLERED HEX NUT M6 P/N:252265-2 Part No.: 252265-2 $0.87 Add To Cart 064 MAKITA FLAT WASHER 6 FOR HM0810 P/N:941151-9 Part No.: 941151-9 $0.11 Add To Cart 065 MAKITA SCREW M5X20 FOR LS1011 P/N:251896-4 Part No.: 251896-4 $0.98 Add To Cart 066 MAKITA HEX. LOCK NUT M5-8 P/N:252103-8 Part No.: 252103-8 $0.33 Add To Cart 067 MAKITA BASE P/N:162468-9 Part No.: 162468-9 $25.83 Add To Cart 068 MAKITA '+PAN HEAD SCREW M5 FOR 4140 P/N:265056-2 Part No.: 265056-2 $0.33 Add To Cart 070 MAKITA COMPRESSION SPRING 7 LS1016 P/N:233267-7 Part No.: 233267-7 $0.33 Add To Cart 072 MAKITA O RING 5 FOR 5277NB P/N:213005-3 Part No.: 213005-3 $0.22 Add To Cart 073 MAKITA TAPPING SCREW 4X18 P/N:265995-6 Part No.: 265995-6 $0.33 Add To Cart

Brand: Makita

Specifications:

• Ref. No.: Part Name & Number
• 001: MAKITA TAPPING SCREW 4X18 P/N:265995-6 Part No.: 265995-6
• 002: MAKITA HANDLE COMPLETE L/R P/N:183K13-3 Part No.: 183K13-3
• 004: MAKITA COMPRESSION SPRING 4 FOR 6019DWE P/N:231433-0 Part No.: 231433-0
• 005: MAKITA LOCK OFF BUTTON FOR DC TOOL P/N:419704-7 Part No.: 419704-7
• 006: MAKITA SWITCH C3XA-1PSPM FOR DKP181 P/N:651083-9 Part No.: 651083-9
• 007: MAKITA SWITCH LEVER FOR DC-HS/CS P/N:458594-3 Part No.: 458594-3
• 008: MAKITA COMPRESSION SPRING 4 FOR 6019DWE P/N:231433-0 Part No.: 231433-0
• 009: MAKITA SWITCH UNIT FOR DCS553 P/N:632M68-2 Part No.: 632M68-2
• 010: MAKITA LED CIRCUIT FOR DC TOOL P/N:620936-3 Part No.: 620936-3
• 011: MAKITA TERMINAL FOR DTP/DDF/DHP484 P/N:643874-2 Part No.: 643874-2
• 013: MAKITA TAPPING SCREW 4X18 P/N:265995-6 Part No.: 265995-6
• 014: MAKITA HANDLE COMPLETE L/R P/N:183K13-3 Part No.: 183K13-3
• 015: MAKITA PAN HEAD SCREW M5X30 FOR 2416S P/N:911253-5 Part No.: 911253-5
• 016: MAKITA MOTOR HOUSING FOR DCS553 P/N:458656-7 Part No.: 458656-7
• 017: MAKITA INDICATION PLATE COMPLETE P/N:144251-6 Part No.: 144251-6
• 018: MAKITA MOTOR HOUSING COVER FOR DCS553 P/N:458657-5 Part No.: 458657-5
• 019: MAKITA TAPPING SCREW 4X18 P/N:265995-6 Part No.: 265995-6
• 020: MAKITA CONTROLLER FOR DCS553 P/N:620938-9 Part No.: 620938-9
• 021: MAKITA STATOR FOR DCS553 P/N:629368-1 Part No.: 629368-1
• 022: MAKITA BAFFLE PLATE P/N:458658-3 Part No.: 458658-3
• 023: MAKITA TAPPING SCREW 4X18 P/N:265995-6 Part No.: 265995-6
• 025: MAKITA BALL BEARING 6260DW FOR BHR200SF P/N:210022-4 Part No.: 210022-4
• 026: MAKITA BALL BEARING 6900DW P/N:210069-8 Part No.: 210069-8
• 027: MAKITA CAP FOR HS003G P/N:286039-9 Part No.: 286039-9
• 028: MAKITA SHAFT LOCK FOR CS551D P/N:346885-3 Part No.: 346885-3
• 029: MAKITA COMPRESSION SPRING 6 FOR GA7010C P/N:233117-6 Part No.: 233117-6
• 030: MAKITA TAPPING SCREW 4X18 P/N:265995-6 Part No.: 265995-6
• 031: MAKITA GEAR HOUSING FOR DCS553 P/N:140D79-4 Part No.: 140D79-4
• 032: MAKITA GASKET FOR CS551D P/N:424715-9 Part No.: 424715-9
• 033: MAKITA BLADE CASE P/N:458661-4 Part No.: 458661-4
• 034: MAKITA FLAT HEAD SQUARE NECK BOLT M6* PJ7000 P/N:266737-1 Part No.: 266737-1
• 035: MAKITA RUBBER SLEEVE 6 FOR LS1040 P/N:262511-5 Part No.: 262511-5
• 036: MAKITA '+ PAN HEAD SCREW M5 FOR BHS630 P/N:265115-2 Part No.: 265115-2
• 037: MAKITA BALL BEARING 625ZZ FOR HP451D P/N:210065-6 Part No.: 210065-6
• 038: MAKITA HELICAL GEAR 30 FOR CS551D P/N:227809-7 Part No.: 227809-7
• 039: MAKITA HELICAL GEAR 17 FOR CS551D P/N:227807-1 Part No.: 227807-1
• 041: MAKITA RETAINING RING S-15 FOR 9067 P/N: 961005-4 Part No.: 961005-4
• 042: MAKITA HELICAL GEAR 24 FOR DCS551/553 P/N:227808-9 Part No.: 227808-9
• 043: MAKITA SLEEVE 10 FOR 5240L P/N:257728-3 Part No.: 257728-3
