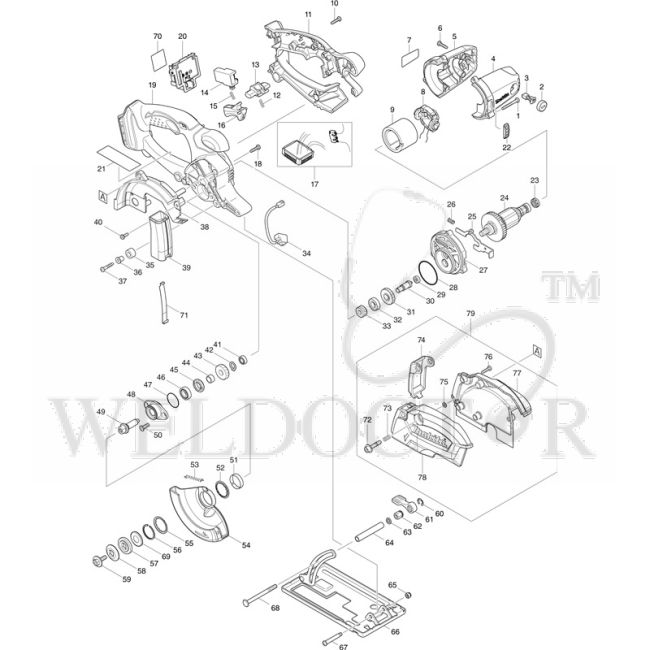

MAKITA DCS552 136MM CORDLESS METAL CUTTER SPARE PARTS

Spare Parts of Makita DCS552 Cordless Metal Cutter Ref. No. Part Name & Number Price 001 MAKITA TAPPING SCREW FLANGE PT 4X35 FOR 4323M P/N:266053-1 Part No.: 266053-1 $0.44 Add To Cart 002 MAKITA BRUSH HOLDER CAP FOR DJV180/DCS552 P/N:643807-7 Part No.: 643807-7 $0.87 Add To Cart 003 MAKITA CARBON BRUSH CB-430 Part No.: 191971-3 $3.30 Add To Cart 004 MAKITA HOUSING SET FOR CS550D P/N:188209-5 Part No.: 188209-5 $10.03 Add To Cart 005 MAKITA HOUSING SET FOR CS550D P/N:188209-5 Part No.: 188209-5 $10.03 Add To Cart 006 MAKITA TAPPING SCREW 4X18 P/N:265995-6 Part No.: 265995-6 $0.33 Add To Cart 008 MAKITA ENDBELL CPL FOR BCS550 P/N:638502-2 Part No.: 638502-2 $3.92 Add To Cart 009 MAKITA YOKE UNIT FOR DPB180/DCS552 P/N:638420-4 Part No.: 638420-4 $26.71 Add To Cart 010 MAKITA TAPPING SCREW 4X18 P/N:265995-6 Part No.: 265995-6 $0.33 Add To Cart 011 MAKITA HANDLE L FOR CS550D P/N:453426-9 Part No.: 453426-9 $18.42 Add To Cart 012 MAKITA COMPRESSION SPRING 4 FOR DSS610 P/N:231469-9 Part No.: 231469-9 $0.22 Add To Cart 013 MAKITA LOCK OFF LEVER P/N:419664-3 Part No.: 419664-3 $0.76 Add To Cart 015 MAKITA COMPRESSION SPRING 4 FOR DSS610 P/N:231469-9 Part No.: 231469-9 $0.22 Add To Cart 016 MAKITA SWITCH LEVER FOR DCS552/DKP180/DSS501 P/N:419665-1 Part No.: 419665-1 $0.65 Add To Cart 018 MAKITA TAPPING SCREW 4X18 P/N:265995-6 Part No.: 265995-6 $0.33 Add To Cart 020 MAKITA TERMINAL FOR HR244D P/N:644808-8 Part No.: 644808-8 $3.71 Add To Cart 023 MAKITA RUBBER RING 13 FOR CS540D P/N:421977-0 Part No.: 421977-0 $0.87 Add To Cart 024 MAKITA ARMATURE FOR DCS550/552 P/N:619290-0 Part No.: 619290-0 $42.07 Add To Cart 025 MAKITA SHAFT LOCK FOR SS540D P/N:345643-4 Part No.: 345643-4 $0.98 Add To Cart 026 MAKITA COMPRESSION SPRING 6 FOR GA7010C P/N:233117-6 Part No.: 233117-6 $0.22 Add To Cart 027 MAKITA GEAR HOUSING FOR CS550D P/N:419656-2 Part No.: 419656-2 $3.27 Add To Cart 028 MAKITA O RING 44 FOR HK0500 P/N:213560-5 Part No.: 213560-5 $0.33 Add To Cart 029 MAKITA BALL BEARING 604ZZ P/N:210036-3 Part No.: 210036-3 $2.07 Add To Cart 030 MAKITA GEAR SHAFT FOR CS550D FOR CS550D P/N:324729-7 Part No.: 324729-7 $1.85 Add To Cart 031 MAKITA HELICAL GEAR 27 P/N:227752-0 Part No.: 227752-0 $4.69 Add To Cart 032 MAKITA BALL BEARING 6900ZZ FOR CS550D P/N:210080-0 Part No.: 210080-0 $4.03 Add To Cart 033 MAKITA HELICAL GEAR 15 FOR BCS550 P/N:226635-1 Part No.: 226635-1 $4.69 Add To Cart 034 MAKITA POWER SUPPLY CIRCUIT P/N:631550-0 Part No.: 631550-0 $8.50 Add To Cart 037 MAKITA TAPPING SCREW FLANGE M4X25 P/N:265999-8 Part No.: 265999-8 $0.33 Add To Cart 038 MAKITA BLADE CASE P/N:458647-8 Part No.: 458647-8 $4.80 Add To Cart 039 MAKITA BLADE COVER P/N:458648-6 Part No.: 458648-6 $3.27 Add To Cart 040 MAKITA TAPPING SCREW 4X18 P/N:265995-6 Part No.: 265995-6 $0.33 Add To Cart 042 MAKITA RETAINING RING S-10 FOR HR3000C HR2810 P/N:961006-2 Part No.: 961006-2 $0.33 Add To Cart 043 MAKITA HELICAL GEAR 23 FOR BCS550 P/N:226640-8 Part No.: 226640-8 $4.80 Add To Cart 044 MAKITA SLEEVE 10 FOR CS550D P/N:257760-7 Part No.: 257760-7 $0.98 Add To Cart 045 MAKITA BEARING RETAINER 14-23 FOR CS540D P/N:285847-5 Part No.: 285847-5 $1.20 Add To Cart 046 MAKITA BALL BEARING 6900DW P/N:210069-8 Part No.: 210069-8 $3.27 Add To Cart 047 MAKITA O RING 26 FOR HR3000C HR2810 P/N:213435-8 Part No.: 213435-8 $0.33 Add To Cart 048 MAKITA BEARING BOX FOR CS540D P/N:318087-1 Part No.: 318087-1 $3.82 Add To Cart 049 MAKITA SPINDLE FOR BCS550 P/N:324730-2 Part No.: 324730-2 $3.49 Add To Cart 050 MAKITA COUNTERSUNK HEAD SCREW M5X16 P/N:265034-2 Part No.: 265034-2 $0.33 Add To Cart 051 MAKITA THICKNESS RING FOR CS550D P/N:345470-9 Part No.: 345470-9 $0.33 Add To Cart 052 MAKITA SPACER FOR CS540D P/N:345739-1 Part No.: 345739-1 $0.44 Add To Cart 053 MAKITA TENSION SPRING 3 FOR BCS550 P/N:231792-2 Part No.: 231792-2 $2.07 Add To Cart 054 MAKITA SAFETY COVER COMPLETE FOR DCS552 P/N:140C85-3 Part No.: 140C85-3 $5.23 Add To Cart 055 MAKITA SPACER FOR CS540D P/N:345739-1 Part No.: 345739-1 $0.44 Add To Cart 056 MAKITA RETAINING RING (EXT WR-26 FOR BCS550 P/N:257938-2 Part No.: 257938-2 $0.65 Add To Cart 057 MAKITA INNER FLANGE 30 FOR BCS550 P/N:224391-7 Part No.: 224391-7 $1.53 Add To Cart 058 MAKITA OUTER FLANGE 30 FOR BCS550 P/N:224404-4 Part No.: 224404-4 $3.38 Add To Cart 059 MAKITA HEX SOCKET HEAD BOLT FOR BCS550 P/N:266458-5 Part No.: 266458-5 $0.44 Add To Cart 060 MAKITA STOP RING E-8 FOR LC1210 P/N:961014-3 Part No.: 961014-3 $0.33 Add To Cart 061 MAKITA LEVER 40 FOR SS610D P/N:272229-0 Part No.: 272229-0 $1.53 Add To Cart 062 MAKITA HEX NUT M6 FOR CS550D P/N:252159-1 Part No.: 252159-1 $0.55 Add To Cart 063 MAKITA FLAT WASHER 6 FOR HM0810 P/N:941151-9 Part No.: 941151-9 $0.11 Add To Cart 064 MAKITA PIPE 6 FOR CS550D P/N:331733-9 Part No.: 331733-9 $1.20 Add To Cart 065 MAKITA HEX. LOCK NUT M5-8 P/N:252103-8 Part No.: 252103-8 $0.33 Add To Cart 066 MAKITA BASE FOR DCS550/552 P/N:163471-3 Part No.: 163471-3 $12.64 Add To Cart 067 MAKITA '+PAN HEAD SCREW M5 FOR 4140 P/N:265056-2 Part No.: 265056-2 $0.33 Add To Cart 069 MAKITA CUP WASHER 13 FOR CSS550D P/N:267802-9 Part No.: 267802-9 $0.55 Add To Cart 071 MAKITA PLATE P/N:347416-1 Part No.: 347416-1 $1.31 Add To Cart 073 MAKITA COMPRESSION SPRING 7 LS1016 P/N:233267-7 Part No.: 233267-7 $0.33 Add To Cart 075 MAKITA O RING 5 FOR 5277NB P/N:213005-3 Part No.: 213005-3 $0.22 Add To Cart 076 MAKITA TAPPING SCREW 4X18 P/N:265995-6 Part No.: 265995-6 $0.33 Add To Cart

Brand: Makita

Specifications:

• Ref. No.: Part Name & Number
• 001: MAKITA TAPPING SCREW FLANGE PT 4X35 FOR 4323M P/N:266053-1 Part No.: 266053-1
• 002: MAKITA BRUSH HOLDER CAP FOR DJV180/DCS552 P/N:643807-7 Part No.: 643807-7
• 003: MAKITA CARBON BRUSH CB-430 Part No.: 191971-3
• 004: MAKITA HOUSING SET FOR CS550D P/N:188209-5 Part No.: 188209-5
• 005: MAKITA HOUSING SET FOR CS550D P/N:188209-5 Part No.: 188209-5
• 006: MAKITA TAPPING SCREW 4X18 P/N:265995-6 Part No.: 265995-6
• 008: MAKITA ENDBELL CPL FOR BCS550 P/N:638502-2 Part No.: 638502-2
• 009: MAKITA YOKE UNIT FOR DPB180/DCS552 P/N:638420-4 Part No.: 638420-4
• 010: MAKITA TAPPING SCREW 4X18 P/N:265995-6 Part No.: 265995-6
• 011: MAKITA HANDLE L FOR CS550D P/N:453426-9 Part No.: 453426-9
• 012: MAKITA COMPRESSION SPRING 4 FOR DSS610 P/N:231469-9 Part No.: 231469-9
• 013: MAKITA LOCK OFF LEVER P/N:419664-3 Part No.: 419664-3
• 015: MAKITA COMPRESSION SPRING 4 FOR DSS610 P/N:231469-9 Part No.: 231469-9
• 016: MAKITA SWITCH LEVER FOR DCS552/DKP180/DSS501 P/N:419665-1 Part No.: 419665-1
• 018: MAKITA TAPPING SCREW 4X18 P/N:265995-6 Part No.: 265995-6
• 020: MAKITA TERMINAL FOR HR244D P/N:644808-8 Part No.: 644808-8
• 023: MAKITA RUBBER RING 13 FOR CS540D P/N:421977-0 Part No.: 421977-0
• 024: MAKITA ARMATURE FOR DCS550/552 P/N:619290-0 Part No.: 619290-0
• 025: MAKITA SHAFT LOCK FOR SS540D P/N:345643-4 Part No.: 345643-4
• 026: MAKITA COMPRESSION SPRING 6 FOR GA7010C P/N:233117-6 Part No.: 233117-6
• 027: MAKITA GEAR HOUSING FOR CS550D P/N:419656-2 Part No.: 419656-2
• 028: MAKITA O RING 44 FOR HK0500 P/N:213560-5 Part No.: 213560-5
• 029: MAKITA BALL BEARING 604ZZ P/N:210036-3 Part No.: 210036-3
• 030: MAKITA GEAR SHAFT FOR CS550D FOR CS550D P/N:324729-7 Part No.: 324729-7
• 031: MAKITA HELICAL GEAR 27 P/N:227752-0 Part No.: 227752-0
• 032: MAKITA BALL BEARING 6900ZZ FOR CS550D P/N:210080-0 Part No.: 210080-0
• 033: MAKITA HELICAL GEAR 15 FOR BCS550 P/N:226635-1 Part No.: 226635-1
• 034: MAKITA POWER SUPPLY CIRCUIT P/N:631550-0 Part No.: 631550-0
• 037: MAKITA TAPPING SCREW FLANGE M4X25 P/N:265999-8 Part No.: 265999-8
• 038: MAKITA BLADE CASE P/N:458647-8 Part No.: 458647-8
• 039: MAKITA BLADE COVER P/N:458648-6 Part No.: 458648-6
• 040: MAKITA TAPPING SCREW 4X18 P/N:265995-6 Part No.: 265995-6
• 042: MAKITA RETAINING RING S-10 FOR HR3000C HR2810 P/N:961006-2 Part No.: 961006-2
• 043: MAKITA HELICAL GEAR 23 FOR BCS550 P/N:226640-8 Part No.: 226640-8
• 044: MAKITA SLEEVE 10 FOR CS550D P/N:257760-7 Part No.: 257760-7
• 045: MAKITA BEARING RETAINER 14-23 FOR CS540D P/N:285847-5 Part No.: 285847-5
• 046: MAKITA BALL BEARING 6900DW P/N:210069-8 Part No.: 210069-8
• 047: MAKITA O RING 26 FOR HR3000C HR2810 P/N:213435-8 Part No.: 213435-8
• 048: MAKITA BEARING BOX FOR CS540D P/N:318087-1 Part No.: 318087-1
