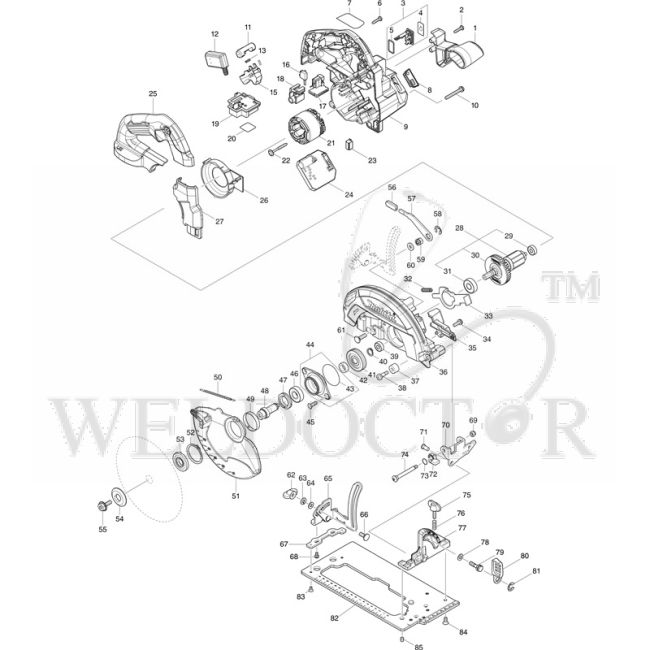

MAKITA DHS661 165MM CORDLESS CIRCULAR SAW SPARE PARTS

Spare Parts of Makita DHS661 Circular Saw Ref. No. Part Name & Number Price 001 MAKITA FRONT GRIP P/N:458590-1 Part No.: 458590-1 $3.71 Add To Cart 002 MAKITA TAPPING SCREW 4X18 P/N:265995-6 Part No.: 265995-6 $0.33 Add To Cart 003 MAKITA CAP SET P/N:183J85-2 Part No.: 183J85-2 $2.62 Add To Cart 005 MAKITA O RING 16 FOR 2412N HR2810 P/N:213218-6 Part No.: 213218-6 $0.33 Add To Cart 006 MAKITA TAPPING SCREW 4X18 P/N:265995-6 Part No.: 265995-6 $0.33 Add To Cart 008 MAKITA INDICATION PLATE COMPLETE P/N:144251-6 Part No.: 144251-6 $3.60 Add To Cart 009 MAKITA MOTOR HOUSING FOR DHS661 P/N:140C49-7 Part No.: 140C49-7 $13.84 Add To Cart 010 MAKITA PAN HEAD SCREW M5X40 FOR 4140 P/N:911263-2 Part No.: 911263-2 $0.33 Add To Cart 011 MAKITA LOCK OFF BUTTON FOR DC TOOL P/N:419704-7 Part No.: 419704-7 $1.09 Add To Cart 012 MAKITA SWITCH C3XA-1PSPM FOR DKP181 P/N:651083-9 Part No.: 651083-9 $18.42 Add To Cart 013 MAKITA COMPRESSION SPRING 4 FOR 6019DWE P/N:231433-0 Part No.: 231433-0 $0.22 Add To Cart 015 MAKITA SWITCH LEVER FOR DC-HS/CS P/N:458594-3 Part No.: 458594-3 $0.76 Add To Cart 016 MAKITA SWITCH UNIT FOR DUHS660/661 P/N:632L80-6 Part No.: 632L80-6 $9.37 Add To Cart 017 MAKITA SUB CONTROLLER FOR DHS661 P/N:620754-9 Part No.: 620754-9 $33.90 Add To Cart 018 MAKITA HOLDER P/N:458588-8 Part No.: 458588-8 $5.89 Add To Cart 019 MAKITA TERMINAL FOR DLM330 P/N:644809-6 Part No.: 644809-6 $3.60 Add To Cart 021 MAKITA STATOR FOR DHS660/661 P/N:629362-3 Part No.: 629362-3 $36.84 Add To Cart 022 MAKITA TAPPING SCREW 4X40 P/N:251517-8 Part No.: 251517-8 $0.87 Add To Cart 023 MAKITA LED CIRCUIT FOR DC TOOL P/N:620936-3 Part No.: 620936-3 $8.72 Add To Cart 025 MAKITA HANDLE COCER P/N:458584-6 Part No.: 458584-6 $5.56 Add To Cart 026 MAKITA BAFFLE PLATE P/N:458586-2 Part No.: 458586-2 $0.87 Add To Cart 027 MAKITA COVER P/N:458592-7 Part No.: 458592-7 $1.09 Add To Cart 028 MAKITA ROTOR ASS'Y FOR DHS660/661 P/N:519527-4 Part No.: 519527-4 $33.25 Add To Cart 029 MAKITA BALL BEARING 606ZZ FOR 9523NB P/N:211012-0 Part No.: 211012-0 $1.74 Add To Cart 032 MAKITA COMPRESSION SPRING 6 FOR GA7010C P/N:233117-6 Part No.: 233117-6 $0.22 Add To Cart 033 MAKITA SHAFT LOCK P/N:347400-6 Part No.: 347400-6 $1.20 Add To Cart 034 MAKITA PAN HEAD SCREW M5X16 FOR LS1040 P/N:911223-4 Part No.: 911223-4 $0.33 Add To Cart 035 MAKITA DUCT P/N:458589-6 Part No.: 458589-6 $0.76 Add To Cart 036 MAKITA BLADE CASE COMPLETE P/N:140D07-9 Part No.: 140D07-9 $49.92 Add To Cart 037 MAKITA RUBBER SLEEVE 6 FOR LS1040 P/N:262511-5 Part No.: 262511-5 $0.44 Add To Cart 038 MAKITA '+ PAN HEAD SCREW M5 FOR BHS630 P/N:265115-2 Part No.: 265115-2 $0.76 Add To Cart 039 MAKITA BALL BEARING 606ZZ FOR 9523NB P/N:211012-0 Part No.: 211012-0 $1.74 Add To Cart 040 MAKITA RETAINING RING S-12 P/N:961052-5 Part No.: 961052-5 $0.33 Add To Cart 041 MAKITA HELICAL GEAR 49 P/N:226192-9 Part No.: 226192-9 $3.82 Add To Cart 042 MAKITA RING 12 FOR 5806B P/N:257173-2 Part No.: 257173-2 $0.33 Add To Cart 043 MAKITA O RING 39 FOR HK1800 P/N:213512-6 Part No.: 213512-6 $1.09 Add To Cart 044 MAKITA BEARING BOX FOR DHS660/661 P/N:135993-3 Part No.: 135993-3 $3.92 Add To Cart 045 MAKITA COUNTERSUNK HEAD SCREW M5X16 P/N:265034-2 Part No.: 265034-2 $0.33 Add To Cart 046 MAKITA BALL BEARING 6001DDW FOR 9016B BO4556 P/N:211131-2 Part No.: 211131-2 $3.27 Add To Cart 047 MAKITA BEARING RETAINER 19-29 P/N:285843-3 Part No.: 285843-3 $2.40 Add To Cart 050 MAKITA TENSION SPRING 3 P/N:231832-6 Part No.: 231832-6 $1.20 Add To Cart 051 MAKITA SAFETY COVER FOR DHS660/661 P/N:458680-0 Part No.: 458680-0 $5.01 Add To Cart 052 MAKITA RETAINING RING (EXT) S-34 FOR BSS610 P/N:961152-1 Part No.: 961152-1 $0.87 Add To Cart 053 MAKITA INNER FLANGE 35 FOR SP/DHS/HS/DLS P/N:224593-5 Part No.: 224593-5 $1.74 Add To Cart 054 MAKITA OUTER FLANGE 35 FOR 5008MG P/N:224409-4 Part No.: 224409-4 $1.64 Add To Cart 055 MAKITA HEX SOCKET HEAD BOLT M6X18 FOR HS710D P/N:266925-0 Part No.: 266925-0 $0.76 Add To Cart 056 MAKITA CAP P/N:286036-5 Part No.: 286036-5 $0.44 Add To Cart 057 MAKITA LEVER PLATE P/N:347399-5 Part No.: 347399-5 $0.98 Add To Cart 058 MAKITA BOW STOP RING E-8 P/N:257982-9 Part No.: 257982-9 $0.55 Add To Cart 059 MAKITA HEX .NUT M6 P/N:264096-7 Part No.: 264096-7 $0.55 Add To Cart 061 MAKITA FLAT HEAD SQUARE NECK BOLT M6* PJ7000 P/N:266737-1 Part No.: 266737-1 $0.33 Add To Cart 063 MAKITA SPRING WASHER 6 FOR HM0810 P/N:942151-2 Part No.: 942151-2 $0.11 Add To Cart 064 MAKITA FLAT WASHER 6 FOR HM0810 P/N:941151-9 Part No.: 941151-9 $0.11 Add To Cart 065 MAKITA DEPTH GUIDE COMPLETE P/N:161899-9 Part No.: 161899-9 $4.25 Add To Cart 067 MAKITA REAR GUIDE PLATE P/N:347401-4 Part No.: 347401-4 $0.76 Add To Cart 068 MAKITA PAN HEAD SCREW M4X8 P/N:265648-7 Part No.: 265648-7 $0.33 Add To Cart 069 MAKITA HEX. LOCK NUT M5-8 P/N:252103-8 Part No.: 252103-8 $0.33 Add To Cart 070 MAKITA ANGULAR GUIDE FOR BHS630 P/N:345590-9 Part No.: 345590-9 $2.51 Add To Cart 073 MAKITA O RING 7 FOR GA5010 P/N:213977-2 Part No.: 213977-2 $0.11 Add To Cart 075 MAKITA SCREW M5X20 FOR LS1011 P/N:251896-4 Part No.: 251896-4 $0.98 Add To Cart 076 MAKITA COMPRESSION SPRING 6 FOR 4402 P/N:231007-7 Part No.: 231007-7 $0.22 Add To Cart 077 MAKITA ANGULAR PLATE P/N:319715-1 Part No.: 319715-1 $11.99 Add To Cart 078 MAKITA FLAT WASHER 6 FOR HM0810 P/N:941151-9 Part No.: 941151-9 $0.11 Add To Cart 080 MAKITA LEVER 45 P/N:271446-9 Part No.: 271446-9 $1.42 Add To Cart 081 MAKITA BOW STOP RING E-8 P/N:257982-9 Part No.: 257982-9 $0.55 Add To Cart 082 MAKITA BASE P/N:347398-7 Part No.: 347398-7 $10.14 Add To Cart 083 MAKITA COUNTERSUNK HEAD SCREW M4X8 P/N:265085-5 Part No.: 265085-5 $0.76 Add To Cart 084 MAKITA CSK HEAD SCREW M5X12 FOR 9045B Part No.: 912212-2 $0.22 Add To Cart 085 MAKITA H.S.SET SCREW M5X8 P/N:266436-5 Part No.: 266436-5 $0.44 Add To Cart

Brand: Makita

Specifications:

• Ref. No.: Part Name & Number
• 001: MAKITA FRONT GRIP P/N:458590-1 Part No.: 458590-1
• 002: MAKITA TAPPING SCREW 4X18 P/N:265995-6 Part No.: 265995-6
• 003: MAKITA CAP SET P/N:183J85-2 Part No.: 183J85-2
• 005: MAKITA O RING 16 FOR 2412N HR2810 P/N:213218-6 Part No.: 213218-6
• 006: MAKITA TAPPING SCREW 4X18 P/N:265995-6 Part No.: 265995-6
• 008: MAKITA INDICATION PLATE COMPLETE P/N:144251-6 Part No.: 144251-6
• 009: MAKITA MOTOR HOUSING FOR DHS661 P/N:140C49-7 Part No.: 140C49-7
• 010: MAKITA PAN HEAD SCREW M5X40 FOR 4140 P/N:911263-2 Part No.: 911263-2
• 011: MAKITA LOCK OFF BUTTON FOR DC TOOL P/N:419704-7 Part No.: 419704-7
• 012: MAKITA SWITCH C3XA-1PSPM FOR DKP181 P/N:651083-9 Part No.: 651083-9
• 013: MAKITA COMPRESSION SPRING 4 FOR 6019DWE P/N:231433-0 Part No.: 231433-0
• 015: MAKITA SWITCH LEVER FOR DC-HS/CS P/N:458594-3 Part No.: 458594-3
• 016: MAKITA SWITCH UNIT FOR DUHS660/661 P/N:632L80-6 Part No.: 632L80-6
• 017: MAKITA SUB CONTROLLER FOR DHS661 P/N:620754-9 Part No.: 620754-9
• 018: MAKITA HOLDER P/N:458588-8 Part No.: 458588-8
• 019: MAKITA TERMINAL FOR DLM330 P/N:644809-6 Part No.: 644809-6
• 021: MAKITA STATOR FOR DHS660/661 P/N:629362-3 Part No.: 629362-3
• 022: MAKITA TAPPING SCREW 4X40 P/N:251517-8 Part No.: 251517-8
• 023: MAKITA LED CIRCUIT FOR DC TOOL P/N:620936-3 Part No.: 620936-3
• 025: MAKITA HANDLE COCER P/N:458584-6 Part No.: 458584-6
• 026: MAKITA BAFFLE PLATE P/N:458586-2 Part No.: 458586-2
• 027: MAKITA COVER P/N:458592-7 Part No.: 458592-7
• 028: MAKITA ROTOR ASS'Y FOR DHS660/661 P/N:519527-4 Part No.: 519527-4
• 029: MAKITA BALL BEARING 606ZZ FOR 9523NB P/N:211012-0 Part No.: 211012-0
• 032: MAKITA COMPRESSION SPRING 6 FOR GA7010C P/N:233117-6 Part No.: 233117-6
• 033: MAKITA SHAFT LOCK P/N:347400-6 Part No.: 347400-6
• 034: MAKITA PAN HEAD SCREW M5X16 FOR LS1040 P/N:911223-4 Part No.: 911223-4
• 035: MAKITA DUCT P/N:458589-6 Part No.: 458589-6
• 036: MAKITA BLADE CASE COMPLETE P/N:140D07-9 Part No.: 140D07-9
• 037: MAKITA RUBBER SLEEVE 6 FOR LS1040 P/N:262511-5 Part No.: 262511-5
• 038: MAKITA '+ PAN HEAD SCREW M5 FOR BHS630 P/N:265115-2 Part No.: 265115-2
• 039: MAKITA BALL BEARING 606ZZ FOR 9523NB P/N:211012-0 Part No.: 211012-0
• 040: MAKITA RETAINING RING S-12 P/N:961052-5 Part No.: 961052-5
• 041: MAKITA HELICAL GEAR 49 P/N:226192-9 Part No.: 226192-9
• 042: MAKITA RING 12 FOR 5806B P/N:257173-2 Part No.: 257173-2
• 043: MAKITA O RING 39 FOR HK1800 P/N:213512-6 Part No.: 213512-6
• 044: MAKITA BEARING BOX FOR DHS660/661 P/N:135993-3 Part No.: 135993-3
• 045: MAKITA COUNTERSUNK HEAD SCREW M5X16 P/N:265034-2 Part No.: 265034-2
• 046: MAKITA BALL BEARING 6001DDW FOR 9016B BO4556 P/N:211131-2 Part No.: 211131-2
