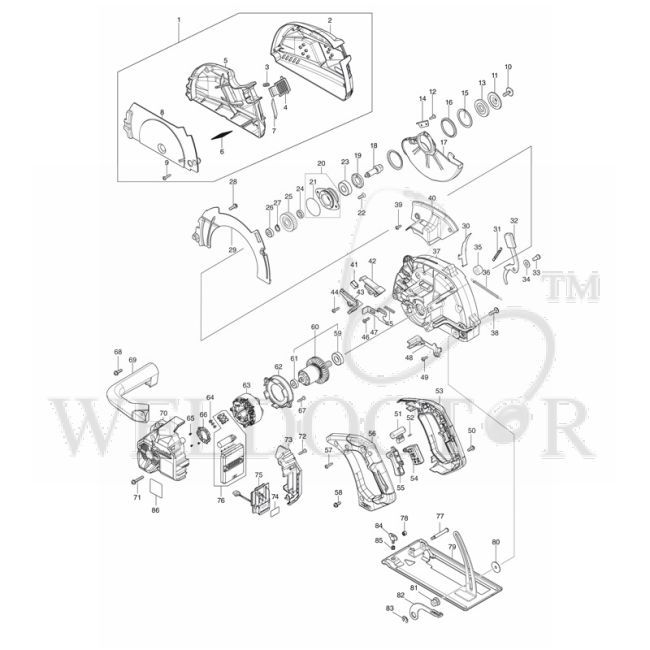

MAKITA CS002G 185MM CORDLESS METAL CUTTER SPARE PARTS

Spare Parts of Makita CS002G Metal Cutter Ref. No. Part Name & Number Price 001 MAKITA DUST CASE ASS'Y FOR CS002G P/N:136729-3 Part No.: 136729-3 $142.46 Add To Cart 002 MAKITA DUST CASE COVER SET FOR CS002G P/N:183W40-2 Part No.: 183W40-2 $28.12 Add To Cart 005 MAKITA DUST CASE FOR CS001G P/N:312C66-9 Part No.: 312C66-9 $28.45 Add To Cart 006 MAKITA PUNCHING METAL COVER FOR CS002G P/N:347996-7 Part No.: 347996-7 $5.34 Add To Cart 008 MAKITA DUST PLATE FOR CS001G P/N:312C67-7 Part No.: 312C67-7 $23.33 Add To Cart 009 MAKITA TAPPING SCREW 4X18 P/N:265995-6 Part No.: 265995-6 $0.33 Add To Cart 010 MAKITA HEX SOCKET HEAD BOLT FOR BCS550 P/N:266458-5 Part No.: 266458-5 $0.44 Add To Cart 011 MAKITA OUTER FLANGE FOR 5026D P/N:224366-6 Part No.: 224366-6 $3.82 Add To Cart 012 MAKITA TAPPING SCREW BIND CT 4X12 FOR 5806B P/N:266026-4 Part No.: 266026-4 $0.33 Add To Cart 014 MAKITA SUB PLATE FOR 4131 P/N:344944-7 Part No.: 344944-7 $2.73 Add To Cart 015 MAKITA RETAINING RING WR-40 P/N:961186-4 Part No.: 961186-4 $1.42 Add To Cart 016 MAKITA SPACER FOR CS001G P/N:347964-0 Part No.: 347964-0 $0.98 Add To Cart 017 MAKITA SAFETY COVER FOR CS002G P/N:312C69-3 Part No.: 312C69-3 $34.23 Add To Cart 018 MAKITA SPINDLE FOR CS001G P/N:327957-3 Part No.: 327957-3 $3.60 Add To Cart 019 MAKITA BEARING RETAINER 19-33 FOR 5806B P/N:285802-7 Part No.: 285802-7 $1.85 Add To Cart 020 MAKITA BEARING BOX ASS'Y FOR CS002G P/N:136703-1 Part No.: 136703-1 $11.66 Add To Cart 021 MAKITA O RING 42 FOR LS0714 P/N:213565-5 Part No.: 213565-5 $0.65 Add To Cart 022 MAKITA COUNTERSUNK HEAD SCREW M5X16 P/N:265034-2 Part No.: 265034-2 $0.33 Add To Cart 024 MAKITA RING 12 FOR 6010B-KD P/N:257011-8 Part No.: 257011-8 $0.65 Add To Cart 025 MAKITA HELICAL GEAR 29 FOR CS001G P/N:227944-1 Part No.: 227944-1 $5.12 Add To Cart 026 MAKITA BALL BEARING 6260DW FOR BHR200SF P/N:210022-4 Part No.: 210022-4 $2.73 Add To Cart 027 MAKITA RETAINING RING S-12 P/N:961052-5 Part No.: 961052-5 $0.33 Add To Cart 028 MAKITA PAN HEAD SCREW M5X18 FOR 1100 P/N:911228-4 Part No.: 911228-4 $0.33 Add To Cart 029 MAKITA BLADE COVER FOR CS001G P/N:312C68-5 Part No.: 312C68-5 $19.08 Add To Cart 031 MAKITA TENSION SPRING 4 FOR 4131 P/N:231823-7 Part No.: 231823-7 $1.20 Add To Cart 032 MAKITA LEVER FOR CS002G P/N:162B55-6 Part No.: 162B55-6 $5.56 Add To Cart 033 MAKITA '+PAN HEAD SCREW M6 FOR 3501N P/N:251267-5 Part No.: 251267-5 $0.44 Add To Cart 034 MAKITA FLAT WASHER 8 P/N:941201-0 Part No.: 941201-0 $0.11 Add To Cart 035 MAKITA RUBBER SLEEVE 6 FOR N5900B(SG) P/N:262552-1 Part No.: 262552-1 $1.09 Add To Cart 037 MAKITA GEAR HOUSING COMPLETE FOR CS002G P/N:141H36-9 Part No.: 141H36-9 $76.52 Add To Cart 038 MAKITA FLAT HEAD SQUARE NECK BOLT M6* PJ7000 P/N:266737-1 Part No.: 266737-1 $0.33 Add To Cart 039 MAKITA TAPPING SCREW BIND CT 4X12 FOR 5806B P/N:266026-4 Part No.: 266026-4 $0.33 Add To Cart 040 MAKITA GEAR HOUSING COVER FOR CS002G P/N:413E82-7 Part No.: 413E82-7 $4.47 Add To Cart 041 MAKITA LED CIRCUIT FOR DC TOOL P/N:620936-3 Part No.: 620936-3 $8.72 Add To Cart 042 MAKITA LED CASE FOR CS002G P/N:413E86-9 Part No.: 413E86-9 $2.07 Add To Cart 043 MAKITA LED COVER FOR CS002G P/N:413E85-1 Part No.: 413E85-1 $1.96 Add To Cart 044 MAKITA TAPPING SCREW CT M4X16 P/N : 266034-5 FOR 9520B Part No.: 266034-5 $0.33 Add To Cart 045 MAKITA COMPRESSION SPRING 6 FOR CA5000 P/N:233084-5 Part No.: 233084-5 $0.33 Add To Cart 046 MAKITA '+ PAN HEAD SCREW M4X14 P/N:251529-1 Part No.: 251529-1 $0.22 Add To Cart 047 MAKITA SHAFT LOCK FOR CS002G P/N:347963-2 Part No.: 347963-2 $3.38 Add To Cart 048 MAKITA LEAD COVER FOR CS002G P/N:413E79-6 Part No.: 413E79-6 $1.74 Add To Cart 049 MAKITA TAPPING SCREW BIND CT 4X12 FOR 5806B P/N:266026-4 Part No.: 266026-4 $0.33 Add To Cart 050 MAKITA PAN HEAD SCREW M5X14 FOR 2702 P/N:911218-7 Part No.: 911218-7 $0.33 Add To Cart 051 MAKITA LOCK OFF BUTTON FOR DC TOOL P/N:419704-7 Part No.: 419704-7 $1.09 Add To Cart 052 MAKITA COMPRESSION SPRING 4 FOR 6019DWE P/N:231433-0 Part No.: 231433-0 $0.22 Add To Cart 053 MAKITA HANDLE SET FOR CS002G P/N:183V81-2 Part No.: 183V81-2 $20.06 Add To Cart 054 MAKITA SWITCH C3XB-1LPSPM FOR HS009G P/N:650008-0 Part No.: 650008-0 $36.73 Add To Cart 055 MAKITA SWITCH LEVER FOR HS009G P/N:413C24-9 Part No.: 413C24-9 $0.87 Add To Cart 056 MAKITA HANDLE SET FOR CS002G P/N:183V81-2 Part No.: 183V81-2 $20.06 Add To Cart 057 MAKITA TAPPING SCREW 4X18 P/N:265995-6 Part No.: 265995-6 $0.33 Add To Cart 058 MAKITA PAN HEAD SCREW M5X14 FOR 2702 P/N:911218-7 Part No.: 911218-7 $0.33 Add To Cart 059 MAKITA BALL BEARING 6001DDW FOR 9016B BO4556 P/N:211131-2 Part No.: 211131-2 $3.27 Add To Cart 060 MAKITA ROTOR ASS'Y FOR CS002G P/N:519749-6 Part No.: 519749-6 $123.50 Add To Cart 061 MAKITA BALL BEARING 6260DW FOR BHR200SF P/N:210022-4 Part No.: 210022-4 $2.73 Add To Cart 062 MAKITA BAFFLE PLATE FOR CS002G P/N:413E81-9 Part No.: 413E81-9 $2.51 Add To Cart 063 MAKITA STATOR FOR UC001G P/N:629A85-9 Part No.: 629A85-9 $24.31 Add To Cart 064 MAKITA FLAT HEAD SCREW M3X6 P/N:652069-6 Part No.: 652069-6 $0.22 Add To Cart 067 MAKITA TAPPING SCREW 4X18 P/N:265995-6 Part No.: 265995-6 $0.33 Add To Cart 068 MAKITA PAN HEAD SCREW M5X18 FOR 1100 P/N:911228-4 Part No.: 911228-4 $0.33 Add To Cart 069 MAKITA GRIP FOR CS002G P/N:413E78-8 Part No.: 413E78-8 $11.12 Add To Cart 070 MAKITA MOTOR HOUSING COMPLETE FOR CS002G P/N:141H38-5 Part No.: 141H38-5 $19.51 Add To Cart 071 MAKITA PAN HEAD SCREW M5X30 FOR 2416S P/N:911253-5 Part No.: 911253-5 $0.33 Add To Cart 072 MAKITA TAPPING SCREW 4X18 P/N:265995-6 Part No.: 265995-6 $0.33 Add To Cart 073 MAKITA TERMINAL HOUSING COMPLETE FOR CS002G P/N:141H41-6 Part No.: 141H41-6 $6.87 Add To Cart 075 MAKITA TERMINAL UNIT FOR JR001G P/N:632P49-4 Part No.: 632P49-4 $8.61 Add To Cart 076 MAKITA CONTROLLER FOR CS002G P/N:620H98-5 Part No.: 620H98-5 $180.29 Add To Cart 078 MAKITA HEX. LOCK NUT M5-8 P/N:252103-8 Part No.: 252103-8 $0.33 Add To Cart 079 MAKITA BASE FOR CS002G P/N:162B41-7 Part No.: 162B41-7 $57.99 Add To Cart 080 MAKITA FLAT WASHER 6 FOR 6924 P/N:253196-8 Part No.: 253196-8 $0.76 Add To Cart 081 MAKITA COLLERED HEX. NUT M6-13 FOR CS002G P/N:252312-9 Part No.: 252312-9 $8.50 Add To Cart 082 MAKITA LEVER 90 FOR DC-CS/HS P/N:271460-5 Part No.: 271460-5 $1.64 Add To Cart 083 MAKITA BOW STOP RING E-12 FOR 5008MG P/N:257953-6 Part No.: 257953-6 $0.44 Add To Cart 084 MAKITA SCREW M6X14 P/N:265701-9 Part No.: 265701-9 $0.76 Add To Cart 085 MAKITA COMPRESSION SPRING 7 FOR 5806B P/N:231316-4 Part No.: 231316-4 $0.44 Add To Cart

Brand: Makita

Specifications:

• Ref. No.: Part Name & Number
• 001: MAKITA DUST CASE ASS'Y FOR CS002G P/N:136729-3 Part No.: 136729-3
• 002: MAKITA DUST CASE COVER SET FOR CS002G P/N:183W40-2 Part No.: 183W40-2
• 005: MAKITA DUST CASE FOR CS001G P/N:312C66-9 Part No.: 312C66-9
• 006: MAKITA PUNCHING METAL COVER FOR CS002G P/N:347996-7 Part No.: 347996-7
• 008: MAKITA DUST PLATE FOR CS001G P/N:312C67-7 Part No.: 312C67-7
• 009: MAKITA TAPPING SCREW 4X18 P/N:265995-6 Part No.: 265995-6
• 010: MAKITA HEX SOCKET HEAD BOLT FOR BCS550 P/N:266458-5 Part No.: 266458-5
• 011: MAKITA OUTER FLANGE FOR 5026D P/N:224366-6 Part No.: 224366-6
• 012: MAKITA TAPPING SCREW BIND CT 4X12 FOR 5806B P/N:266026-4 Part No.: 266026-4
• 014: MAKITA SUB PLATE FOR 4131 P/N:344944-7 Part No.: 344944-7
• 015: MAKITA RETAINING RING WR-40 P/N:961186-4 Part No.: 961186-4
• 016: MAKITA SPACER FOR CS001G P/N:347964-0 Part No.: 347964-0
• 017: MAKITA SAFETY COVER FOR CS002G P/N:312C69-3 Part No.: 312C69-3
• 018: MAKITA SPINDLE FOR CS001G P/N:327957-3 Part No.: 327957-3
• 019: MAKITA BEARING RETAINER 19-33 FOR 5806B P/N:285802-7 Part No.: 285802-7
• 020: MAKITA BEARING BOX ASS'Y FOR CS002G P/N:136703-1 Part No.: 136703-1
• 021: MAKITA O RING 42 FOR LS0714 P/N:213565-5 Part No.: 213565-5
• 022: MAKITA COUNTERSUNK HEAD SCREW M5X16 P/N:265034-2 Part No.: 265034-2
• 024: MAKITA RING 12 FOR 6010B-KD P/N:257011-8 Part No.: 257011-8
• 025: MAKITA HELICAL GEAR 29 FOR CS001G P/N:227944-1 Part No.: 227944-1
• 026: MAKITA BALL BEARING 6260DW FOR BHR200SF P/N:210022-4 Part No.: 210022-4
• 027: MAKITA RETAINING RING S-12 P/N:961052-5 Part No.: 961052-5
• 028: MAKITA PAN HEAD SCREW M5X18 FOR 1100 P/N:911228-4 Part No.: 911228-4
• 029: MAKITA BLADE COVER FOR CS001G P/N:312C68-5 Part No.: 312C68-5
• 031: MAKITA TENSION SPRING 4 FOR 4131 P/N:231823-7 Part No.: 231823-7
• 032: MAKITA LEVER FOR CS002G P/N:162B55-6 Part No.: 162B55-6
• 033: MAKITA '+PAN HEAD SCREW M6 FOR 3501N P/N:251267-5 Part No.: 251267-5
• 034: MAKITA FLAT WASHER 8 P/N:941201-0 Part No.: 941201-0
• 035: MAKITA RUBBER SLEEVE 6 FOR N5900B(SG) P/N:262552-1 Part No.: 262552-1
• 037: MAKITA GEAR HOUSING COMPLETE FOR CS002G P/N:141H36-9 Part No.: 141H36-9
• 038: MAKITA FLAT HEAD SQUARE NECK BOLT M6* PJ7000 P/N:266737-1 Part No.: 266737-1
• 039: MAKITA TAPPING SCREW BIND CT 4X12 FOR 5806B P/N:266026-4 Part No.: 266026-4
• 040: MAKITA GEAR HOUSING COVER FOR CS002G P/N:413E82-7 Part No.: 413E82-7
• 041: MAKITA LED CIRCUIT FOR DC TOOL P/N:620936-3 Part No.: 620936-3
• 042: MAKITA LED CASE FOR CS002G P/N:413E86-9 Part No.: 413E86-9
• 043: MAKITA LED COVER FOR CS002G P/N:413E85-1 Part No.: 413E85-1
• 044: MAKITA TAPPING SCREW CT M4X16 P/N : 266034-5 FOR 9520B Part No.: 266034-5
• 045: MAKITA COMPRESSION SPRING 6 FOR CA5000 P/N:233084-5 Part No.: 233084-5
• 046: MAKITA '+ PAN HEAD SCREW M4X14 P/N:251529-1 Part No.: 251529-1
