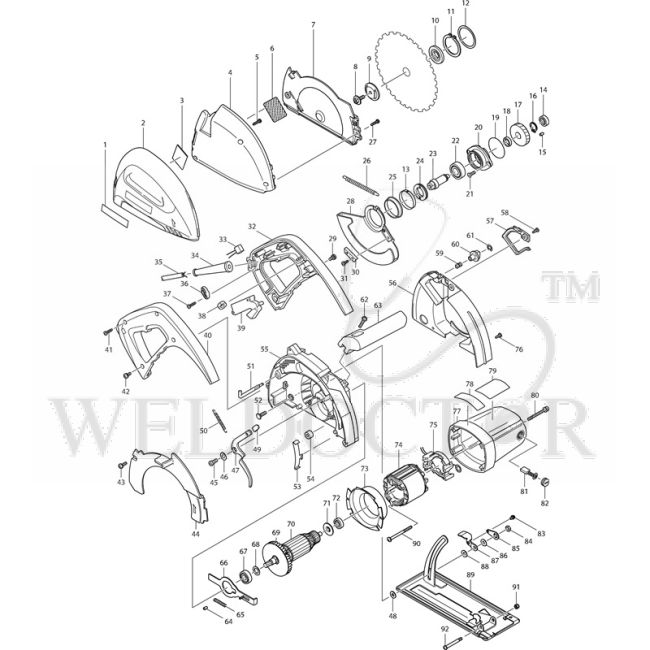

MAKITA 4131 METAL CUTTER 185MM SPARE PARTS

Spare Parts of Makita 4131 Metal Cutting Saw Ref. No. Part Name & Number Price 005 MAKITA TAPPING SCREW 4X18 P/N:265995-6 Part No.: 265995-6 $0.33 Add To Cart 009 MAKITA OUTER FLANGE FOR 5026D P/N:224366-6 Part No.: 224366-6 $3.82 Add To Cart 011 MAKITA RETAINING RING S-42 FOR 5008MG P/N:961201-4 Part No.: 961201-4 $1.09 Add To Cart 012 MAKITA WASHER 42 FOR 4131 P/N:267784-5 Part No.: 267784-5 $1.42 Add To Cart 013 MAKITA THICKNESS RING FOR 4131 P/N:343759-9 Part No.: 343759-9 $2.40 Add To Cart 015 MAKITA RUBBER PIN 4 P/N:263002-9 Part No.: 263002-9 $0.11 Add To Cart 016 MAKITA RETAINING RING S-15 FOR 5008B HR2810 P/N:961055-9 Part No.: 961055-9 $0.33 Add To Cart 017 MAKITA HELICAL GEAR 48 FOR 4131 P/N:226591-5 Part No.: 226591-5 $23.33 Add To Cart 018 MAKITA RING 15 FOR 6510LVR P/N:257053-2 Part No.: 257053-2 $1.64 Add To Cart 019 MAKITA O-RING 46 FOR LH1040 P/N:213621-1 Part No.: 213621-1 $0.76 Add To Cart 020 MAKITA BEARING BOX FOR 4131 P/N:316579-4 Part No.: 316579-4 $12.10 Add To Cart 021 MAKITA '+COUNTERSUNK HEAD SCREW M5X12 FOR 9035 P/N:251372-8 Part No.: 251372-8 $0.44 Add To Cart 023 MAKITA SPINDLE FOR 4130N P/N:324475-2 Part No.: 324475-2 $27.58 Add To Cart 024 MAKITA BEARING RETAINER 22-36 FOR 5008B P/N:285807-7 Part No.: 285807-7 $1.85 Add To Cart 027 MAKITA TAPPING SCREW 4X18 P/N:265995-6 Part No.: 265995-6 $0.33 Add To Cart 028 MAKITA SAFETY COVER FOR 4131 P/N:317775-7 Part No.: 317775-7 $20.06 Add To Cart 029 MAKITA PAN HEAD SCREW M5X12 FOR LS1040 P/N:911213-7 Part No.: 911213-7 $0.33 Add To Cart 030 MAKITA SUB PLATE FOR 4131 P/N:344944-7 Part No.: 344944-7 $2.73 Add To Cart 031 MAKITA TAPPING SCREW BIND CT 4X12 FOR 5806B P/N:266026-4 Part No.: 266026-4 $0.33 Add To Cart 037 MAKITA TAPPING SCREW 4X18 P/N:265995-6 Part No.: 265995-6 $0.33 Add To Cart 039 MAKITA SWITCH TG71C-2 FOR 4131 P/N:651054-6 Part No.: 651054-6 $24.31 Add To Cart 041 MAKITA TAPPING SCREW 4X18 P/N:265995-6 Part No.: 265995-6 $0.33 Add To Cart 042 MAKITA PAN HEAD SCREW M5X12 FOR LS1040 P/N:911213-7 Part No.: 911213-7 $0.33 Add To Cart 043 MAKITA PAN HEAD SCREW M5X16 FOR LS1040 P/N:911223-4 Part No.: 911223-4 $0.33 Add To Cart 045 MAKITA '+PAN HEAD SCREW M6 FOR 3501N P/N:251267-5 Part No.: 251267-5 $0.44 Add To Cart 046 MAKITA FLAT WASHER 8 P/N:941201-0 Part No.: 941201-0 $0.11 Add To Cart 048 MAKITA FLAT WASHER 6 FOR 5703R P/N:253783-3 Part No.: 253783-3 $0.44 Add To Cart 050 MAKITA TENSION SPRING 4 FOR 4131 P/N:231823-7 Part No.: 231823-7 $1.20 Add To Cart 051 MAKITA HOOK FOR 4131 P/N:324476-0 Part No.: 324476-0 $9.81 Add To Cart 052 MAKITA CAP SQUARE NECK BOLT M6X20 FOR 4131 P/N:266031-1 Part No.: 266031-1 $1.42 Add To Cart 053 MAKITA PROTECTOR FOR 4131 P/N:343758-1 Part No.: 343758-1 $2.94 Add To Cart 054 MAKITA RUBBER SLEEVE 6 FOR LS1040 P/N:262511-5 Part No.: 262511-5 $0.44 Add To Cart 055 MAKITA GEAR HOUSING COMPLETE FOR 4131 P/N:153924-0 Part No.: 153924-0 $77.28 Add To Cart 056 MAKITA GEAR HOUSING COVER FOR 4131 P/N:418612-9 Part No.: 418612-9 $10.14 Add To Cart 058 MAKITA TAPPING SCREW BIND CT 4X12 FOR 5806B P/N:266026-4 Part No.: 266026-4 $0.33 Add To Cart 059 MAKITA COMPRESSION SPRING 7 FOR LS1045 P/N:231402-1 Part No.: 231402-1 $0.44 Add To Cart 060 MAKITA THUMB PIPE 23 FOR 4131 P/N:271421-5 Part No.: 271421-5 $2.40 Add To Cart 061 MAKITA STOP RING E-3 FOR 4304 P/N:961017-7 Part No.: 961017-7 $0.11 Add To Cart 062 MAKITA PAN HEAD SCREW M5X25 P/N:911243-8 Part No.: 911243-8 $0.33 Add To Cart 063 MAKITA GRIP FOR 4131 P/N:415469-9 Part No.: 415469-9 $7.74 Add To Cart 064 MAKITA RUBBER PIN 4 P/N:263002-9 Part No.: 263002-9 $0.11 Add To Cart 065 MAKITA COMPRESSION SPRING 5 FOR 5806B P/N:233092-6 Part No.: 233092-6 $0.22 Add To Cart 066 MAKITA SHAFT LOCK FOR 4130N P/N:343832-5 Part No.: 343832-5 $4.14 Add To Cart 067 MAKITA BALL BEARING 6001DDW FOR 9016B BO4556 P/N:211131-2 Part No.: 211131-2 $3.27 Add To Cart 068 MAKITA FLAT WASHER 12 P/N:253744-3 Part No.: 253744-3 $0.33 Add To Cart 069 MAKITA FAN 76 FOR HR4000C P/N:241876-8 Part No.: 241876-8 $2.73 Add To Cart 073 MAKITA BAFFLE PLATE FOR 4131 P/N:415467-3 Part No.: 415467-3 $2.07 Add To Cart 075 MAKITA SUPPORT COMPLETE FOR 4131 P/N:638358-3 Part No.: 638358-3 $7.19 Add To Cart 076 MAKITA TAPPING SCREW BIND CT 4X12 FOR 5806B P/N:266026-4 Part No.: 266026-4 $0.33 Add To Cart 077 MAKITA MOTOR HOUSING COMPLETE FOR 4131 P/N:159685-0 Part No.: 159685-0 $30.52 Add To Cart 080 MAKITA PAN HEAD SCREW M5X40 FOR 4140 P/N:911263-2 Part No.: 911263-2 $0.33 Add To Cart 082 MAKITA BRUSH HOLDER CAP FOR 4100NH/PV7000C P/N:643750-0 Part No.: 643750-0 $0.44 Add To Cart 083 MAKITA PAN HEAD SCREW M4X8 FOR 2012NB P/N:911108-4 Part No.: 911108-4 $0.22 Add To Cart 085 MAKITA LOCK PLATE FOR 4131 P/N:341718-7 Part No.: 341718-7 $0.98 Add To Cart 086 MAKITA FLAT WASHER 6 FOR 6095DWE P/N:253804-1 Part No.: 253804-1 $0.33 Add To Cart 087 MAKITA LEVER PLATE FOR 4131 P/N:342907-7 Part No.: 342907-7 $1.96 Add To Cart 088 MAKITA FLAT WASHER 6 FOR 6095DWE P/N:253804-1 Part No.: 253804-1 $0.33 Add To Cart 089 MAKITA BASE FOR 4131 P/N:165387-8 Part No.: 165387-8 $51.78 Add To Cart 090 MAKITA TAPPING SCREW FLANGE PT 5X65 FOR 4100NH P/N:266029-8 Part No.: 266029-8 $0.87 Add To Cart 091 MAKITA HEX. LOCK NUT M5-8 P/N:252103-8 Part No.: 252103-8 $0.33 Add To Cart

Brand: Makita

Specifications:

• Ref. No.: Part Name & Number
• 005: MAKITA TAPPING SCREW 4X18 P/N:265995-6 Part No.: 265995-6
• 009: MAKITA OUTER FLANGE FOR 5026D P/N:224366-6 Part No.: 224366-6
• 011: MAKITA RETAINING RING S-42 FOR 5008MG P/N:961201-4 Part No.: 961201-4
• 012: MAKITA WASHER 42 FOR 4131 P/N:267784-5 Part No.: 267784-5
• 013: MAKITA THICKNESS RING FOR 4131 P/N:343759-9 Part No.: 343759-9
• 015: MAKITA RUBBER PIN 4 P/N:263002-9 Part No.: 263002-9
• 016: MAKITA RETAINING RING S-15 FOR 5008B HR2810 P/N:961055-9 Part No.: 961055-9
• 017: MAKITA HELICAL GEAR 48 FOR 4131 P/N:226591-5 Part No.: 226591-5
• 018: MAKITA RING 15 FOR 6510LVR P/N:257053-2 Part No.: 257053-2
• 019: MAKITA O-RING 46 FOR LH1040 P/N:213621-1 Part No.: 213621-1
• 020: MAKITA BEARING BOX FOR 4131 P/N:316579-4 Part No.: 316579-4
• 021: MAKITA '+COUNTERSUNK HEAD SCREW M5X12 FOR 9035 P/N:251372-8 Part No.: 251372-8
• 023: MAKITA SPINDLE FOR 4130N P/N:324475-2 Part No.: 324475-2
• 024: MAKITA BEARING RETAINER 22-36 FOR 5008B P/N:285807-7 Part No.: 285807-7
• 027: MAKITA TAPPING SCREW 4X18 P/N:265995-6 Part No.: 265995-6
• 028: MAKITA SAFETY COVER FOR 4131 P/N:317775-7 Part No.: 317775-7
• 029: MAKITA PAN HEAD SCREW M5X12 FOR LS1040 P/N:911213-7 Part No.: 911213-7
• 030: MAKITA SUB PLATE FOR 4131 P/N:344944-7 Part No.: 344944-7
• 031: MAKITA TAPPING SCREW BIND CT 4X12 FOR 5806B P/N:266026-4 Part No.: 266026-4
• 037: MAKITA TAPPING SCREW 4X18 P/N:265995-6 Part No.: 265995-6
• 039: MAKITA SWITCH TG71C-2 FOR 4131 P/N:651054-6 Part No.: 651054-6
• 041: MAKITA TAPPING SCREW 4X18 P/N:265995-6 Part No.: 265995-6
• 042: MAKITA PAN HEAD SCREW M5X12 FOR LS1040 P/N:911213-7 Part No.: 911213-7
• 043: MAKITA PAN HEAD SCREW M5X16 FOR LS1040 P/N:911223-4 Part No.: 911223-4
• 045: MAKITA '+PAN HEAD SCREW M6 FOR 3501N P/N:251267-5 Part No.: 251267-5
• 046: MAKITA FLAT WASHER 8 P/N:941201-0 Part No.: 941201-0
• 048: MAKITA FLAT WASHER 6 FOR 5703R P/N:253783-3 Part No.: 253783-3
• 050: MAKITA TENSION SPRING 4 FOR 4131 P/N:231823-7 Part No.: 231823-7
• 051: MAKITA HOOK FOR 4131 P/N:324476-0 Part No.: 324476-0
• 052: MAKITA CAP SQUARE NECK BOLT M6X20 FOR 4131 P/N:266031-1 Part No.: 266031-1
• 053: MAKITA PROTECTOR FOR 4131 P/N:343758-1 Part No.: 343758-1
• 054: MAKITA RUBBER SLEEVE 6 FOR LS1040 P/N:262511-5 Part No.: 262511-5
• 055: MAKITA GEAR HOUSING COMPLETE FOR 4131 P/N:153924-0 Part No.: 153924-0
• 056: MAKITA GEAR HOUSING COVER FOR 4131 P/N:418612-9 Part No.: 418612-9
• 058: MAKITA TAPPING SCREW BIND CT 4X12 FOR 5806B P/N:266026-4 Part No.: 266026-4
• 059: MAKITA COMPRESSION SPRING 7 FOR LS1045 P/N:231402-1 Part No.: 231402-1
• 060: MAKITA THUMB PIPE 23 FOR 4131 P/N:271421-5 Part No.: 271421-5
• 061: MAKITA STOP RING E-3 FOR 4304 P/N:961017-7 Part No.: 961017-7
• 062: MAKITA PAN HEAD SCREW M5X25 P/N:911243-8 Part No.: 911243-8
