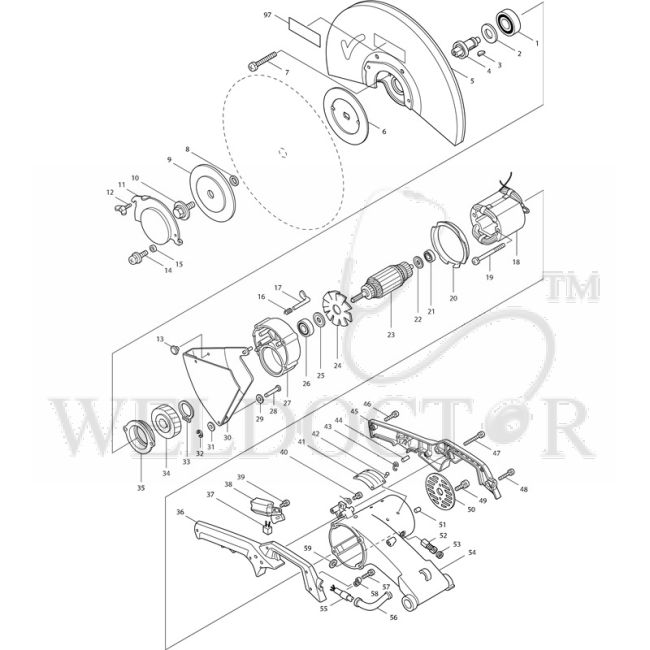

MAKITA 2416S CUT-OFF SAW 405MM SPARE PARTS

Spare Parts of Makita 2416S Cut-Off Saw Ref. No. Part Name & Number Price 001 MAKITA BALL BEARING 6305LLB FOR 2416S P/N:211361-5 Part No.: 211361-5 $16.90 Add To Cart 003 MAKITA WOODRUFF KEY 5 FOR 5008B P/N:254032-1 Part No.: 254032-1 $0.98 Add To Cart 004 MAKITA SPINDLE FOR 2416S P/N:321645-4 Part No.: 321645-4 $43.49 Add To Cart 005 MAKITA SAFETY COVER FOR 2416S P/N:164700-7 Part No.: 164700-7 $98.54 Add To Cart 007 MAKITA PAN HEAD SCREW M6X60 FOR 2416S P/N:911381-6 Part No.: 911381-6 $0.76 Add To Cart 008 MAKITA RING 22 FOR 2416S P/N : 257104-1 Part No.: 257104-1 $2.94 Add To Cart 009 MAKITA OUTER FLANGE 140 FOR 2416S P/N:224208-4 Part No.: 224208-4 $28.12 Add To Cart 010 MAKITA HEX. BOLT M10X25 FOR 2416S P/N:251680-7 Part No.: 251680-7 $1.64 Add To Cart 011 MAKITA CENTER CAP FOR 2416S P/N : 342666-3 Part No.: 342666-3 $10.57 Add To Cart 012 MAKITA WING BOLT M6X10 FOR 2416S P/N:924306-1 Part No.: 924306-1 $0.98 Add To Cart 014 MAKITA PAN HEAD SCREW M6X10 FOR 2416S P/N:911309-4 Part No.: 911309-4 $0.55 Add To Cart 015 MAKITA RING 6 FOR 2416S P/ N : 257105-9 Part No.: 257105-9 $1.09 Add To Cart 016 MAKITA COMPRESSION SPRING 7 FOR DSP600 P/N:231240-1 Part No.: 231240-1 $0.11 Add To Cart 017 MAKITA STOPPER FOR 2416S P/N : 321682-8 Part No.: 321682-8 $2.40 Add To Cart 020 MAKITA BAFFLE PLATE FOR 2416S P/N:343299-7 Part No.: 343299-7 $2.62 Add To Cart 021 MAKITA BALL BEARING 6200LLB FOR 1911B/5900B P/N:211066-7 Part No.: 211066-7 $2.94 Add To Cart 022 MAKITA DUST SEAL 10 FOR 3600H/1911B P/N:213051-6 Part No.: 213051-6 $1.20 Add To Cart 025 MAKITA FLAT WASHER 15 FOR 2416S P/N:253887-1 Part No.: 253887-1 $0.87 Add To Cart 026 MAKITA BALL BEARING 6302LLB FOR 2416S P/N:211211-4 Part No.: 211211-4 $9.27 Add To Cart 028 MAKITA PIN 7 FOR 2416S P/N:256643-8 Part No.: 256643-8 $4.47 Add To Cart 029 MAKITA FLAT WASHER 8 FOR 2416S P/N:253022-1 Part No.: 253022-1 $0.44 Add To Cart 031 MAKITA FLAT WASHER 8 FOR 2416S P/N:253022-1 Part No.: 253022-1 $0.44 Add To Cart 032 MAKITA STOP RING E-5 FOR 4300BV P/N:961018-5 Part No.: 961018-5 $0.11 Add To Cart 034 MAKITA HELICAL GEAR 53 FOR 2416S P/N : 221730-2 Part No.: 221730-2 $53.74 Add To Cart 035 MAKITA BEARING HOUSING FOR 2416S P/N:315636-5 Part No.: 315636-5 $14.28 Add To Cart 039 MAKITA PAN HEAD SCREW M4X10 FOR 3700B P/N:911113-1 Part No.: 911113-1 $0.22 Add To Cart 040 MAKITA PAN HEAD SCREW M4X8 FOR N3701 P/N:652014-1 Part No.: 652014-1 $0.33 Add To Cart 042 MAKITA RIVET 0-5 (SET) FOR 3501N P/N:953106-2 Part No.: 953106-2 $0.22 Add To Cart 046 MAKITA PAN HEAD SCREW M4X25 FOR N1900B P/N:911148-2 Part No.: 911148-2 $0.33 Add To Cart 047 MAKITA PAN HEAD SCREW M5X50 FOR 2414B P/N:911273-9 Part No.: 911273-9 $0.33 Add To Cart 048 MAKITA PAN HEAD SCREW M5X30 FOR 2416S P/N:911253-5 Part No.: 911253-5 $0.33 Add To Cart 049 MAKITA PAN HEAD SCREW M5X14MM 911211-1 Part No.: 911211-1 $0.33 Add To Cart 050 MAKITA REAR COVER FOR 2416S P/N:284010-7 Part No.: 284010-7 $3.92 Add To Cart 051 MAKITA RUBBER PIN 4 P/N:263002-9 Part No.: 263002-9 $0.11 Add To Cart 053 MAKITA BRUSH HOLDER CAP 6.5-13.5 FOR 3612BR P/N:643650-4 Part No.: 643650-4 $0.44 Add To Cart 056 MAKITA CORD GUARD 12-200 FOR 2412N/2416S P/N:682507-4 Part No.: 682507-4 $2.18 Add To Cart 059 MAKITA INSULATION WASHER FOR 2416S/HM1201 P/N:681002-1 Part No.: 681002-1 $0.33 Add To Cart 060 MAKITA SPRING PIN 5-20 FOR 2414B P/N:951163-4 Part No.: 951163-4 $0.33 Add To Cart 061 MAKITA HANDLE 120 FOR 2416S P/N:272019-1 Part No.: 272019-1 $4.91 Add To Cart 066 MAKITA HEX. BOLT M10X25 FOR 2414NB/MT110 P/N:265201-9 Part No.: 265201-9 $0.65 Add To Cart 068 MAKITA HEX. BOLT M10X25 FOR 2414NB/MT110 P/N:265201-9 Part No.: 265201-9 $0.65 Add To Cart 072 MAKITA RETAINER FOR 2416S P/N:342759-6 Part No.: 342759-6 $4.36 Add To Cart 073 MAKITA RETAINING RING S-24 FOR HP2040/2416S P/N:961104-2 Part No.: 961104-2 $0.55 Add To Cart 075 MAKITA HEX NUT M6 FOR HM0810 P/N: 931302-2 Part No.: 931302-2 $0.22 Add To Cart 076 MAKITA SPRING WASHER 6 FOR HM0810 P/N:942151-2 Part No.: 942151-2 $0.11 Add To Cart 077 MAKITA HEX. SOCKET HEAD BOLT M6X14 FOR HM1201 P/N:922317-0 Part No.: 922317-0 $0.44 Add To Cart 078 MAKITA TORSION SPRING 30 FOR 2416S P/N:231569-5 Part No.: 231569-5 $7.96 Add To Cart 079 MAKITA CUSHION FOR 2416S P/N:421277-8 Part No.: 421277-8 $1.42 Add To Cart 080 MAKITA PAN HEAD SCREW M6X28 FOR 2416S P/N:911349-2 Part No.: 911349-2 $0.65 Add To Cart 082 MAKITA RETAINING RING S-24 FOR HP2040/2416S P/N:961104-2 Part No.: 961104-2 $0.55 Add To Cart 084 MAKITA SPARK CHUTE FOR 2416S P/N:342678-6 Part No.: 342678-6 $6.32 Add To Cart 085 MAKITA VISE PLATE FOR 2416S/2414NB P/N:342679-4 Part No.: 342679-4 $3.60 Add To Cart 087 MAKITA SPRING WASHER 8 FOR 2414NB P/N:942201-3 Part No.: 942201-3 $0.33 Add To Cart 088 MAKITA FLAT WASHER 8 FOR 2414B/2414NB P/N:253752-4 Part No.: 253752-4 $0.44 Add To Cart 089 MAKITA SPRING PIN 3-18 FOR 2414B P/N:951066-2 Part No.: 951066-2 $0.33 Add To Cart 090 MAKITA SCREW M8 FOR 2414B/2414NB P/N:321680-2 Part No.: 321680-2 $2.40 Add To Cart 091 MAKITA FLAT WASHER 8 FOR 2414B P/N:253731-2 Part No.: 253731-2 $0.33 Add To Cart 092 MAKITA FLAT WASHER 8 FOR 2414B P/N:253731-2 Part No.: 253731-2 $0.33 Add To Cart 093 MAKITA BASE FOR 2416S P/N:164710-4 Part No.: 164710-4 $187.70 Add To Cart 094 MAKITA VISE NUT FOR 2416S P/N:311714-9 Part No.: 311714-9 $17.55 Add To Cart 096 MAKITA VISE SCREW FOR 2416S P/N:321681-0 Part No.: 321681-0 $15.04 Add To Cart

Brand: Makita

Specifications:

• Ref. No.: Part Name & Number
• 001: MAKITA BALL BEARING 6305LLB FOR 2416S P/N:211361-5 Part No.: 211361-5
• 003: MAKITA WOODRUFF KEY 5 FOR 5008B P/N:254032-1 Part No.: 254032-1
• 004: MAKITA SPINDLE FOR 2416S P/N:321645-4 Part No.: 321645-4
• 005: MAKITA SAFETY COVER FOR 2416S P/N:164700-7 Part No.: 164700-7
• 007: MAKITA PAN HEAD SCREW M6X60 FOR 2416S P/N:911381-6 Part No.: 911381-6
• 008: MAKITA RING 22 FOR 2416S P/N : 257104-1 Part No.: 257104-1
• 009: MAKITA OUTER FLANGE 140 FOR 2416S P/N:224208-4 Part No.: 224208-4
• 010: MAKITA HEX. BOLT M10X25 FOR 2416S P/N:251680-7 Part No.: 251680-7
• 011: MAKITA CENTER CAP FOR 2416S P/N : 342666-3 Part No.: 342666-3
• 012: MAKITA WING BOLT M6X10 FOR 2416S P/N:924306-1 Part No.: 924306-1
• 014: MAKITA PAN HEAD SCREW M6X10 FOR 2416S P/N:911309-4 Part No.: 911309-4
• 015: MAKITA RING 6 FOR 2416S P/ N : 257105-9 Part No.: 257105-9
• 016: MAKITA COMPRESSION SPRING 7 FOR DSP600 P/N:231240-1 Part No.: 231240-1
• 017: MAKITA STOPPER FOR 2416S P/N : 321682-8 Part No.: 321682-8
• 020: MAKITA BAFFLE PLATE FOR 2416S P/N:343299-7 Part No.: 343299-7
• 021: MAKITA BALL BEARING 6200LLB FOR 1911B/5900B P/N:211066-7 Part No.: 211066-7
• 022: MAKITA DUST SEAL 10 FOR 3600H/1911B P/N:213051-6 Part No.: 213051-6
• 025: MAKITA FLAT WASHER 15 FOR 2416S P/N:253887-1 Part No.: 253887-1
• 026: MAKITA BALL BEARING 6302LLB FOR 2416S P/N:211211-4 Part No.: 211211-4
• 028: MAKITA PIN 7 FOR 2416S P/N:256643-8 Part No.: 256643-8
• 029: MAKITA FLAT WASHER 8 FOR 2416S P/N:253022-1 Part No.: 253022-1
• 031: MAKITA FLAT WASHER 8 FOR 2416S P/N:253022-1 Part No.: 253022-1
• 032: MAKITA STOP RING E-5 FOR 4300BV P/N:961018-5 Part No.: 961018-5
• 034: MAKITA HELICAL GEAR 53 FOR 2416S P/N : 221730-2 Part No.: 221730-2
• 035: MAKITA BEARING HOUSING FOR 2416S P/N:315636-5 Part No.: 315636-5
• 039: MAKITA PAN HEAD SCREW M4X10 FOR 3700B P/N:911113-1 Part No.: 911113-1
• 040: MAKITA PAN HEAD SCREW M4X8 FOR N3701 P/N:652014-1 Part No.: 652014-1
• 042: MAKITA RIVET 0-5 (SET) FOR 3501N P/N:953106-2 Part No.: 953106-2
• 046: MAKITA PAN HEAD SCREW M4X25 FOR N1900B P/N:911148-2 Part No.: 911148-2
• 047: MAKITA PAN HEAD SCREW M5X50 FOR 2414B P/N:911273-9 Part No.: 911273-9
• 048: MAKITA PAN HEAD SCREW M5X30 FOR 2416S P/N:911253-5 Part No.: 911253-5
• 049: MAKITA PAN HEAD SCREW M5X14MM 911211-1 Part No.: 911211-1
• 050: MAKITA REAR COVER FOR 2416S P/N:284010-7 Part No.: 284010-7
• 051: MAKITA RUBBER PIN 4 P/N:263002-9 Part No.: 263002-9
• 053: MAKITA BRUSH HOLDER CAP 6.5-13.5 FOR 3612BR P/N:643650-4 Part No.: 643650-4
• 056: MAKITA CORD GUARD 12-200 FOR 2412N/2416S P/N:682507-4 Part No.: 682507-4
• 059: MAKITA INSULATION WASHER FOR 2416S/HM1201 P/N:681002-1 Part No.: 681002-1
• 060: MAKITA SPRING PIN 5-20 FOR 2414B P/N:951163-4 Part No.: 951163-4
• 061: MAKITA HANDLE 120 FOR 2416S P/N:272019-1 Part No.: 272019-1
