MAKITA 4327M JIG SAW SPARE PARTS

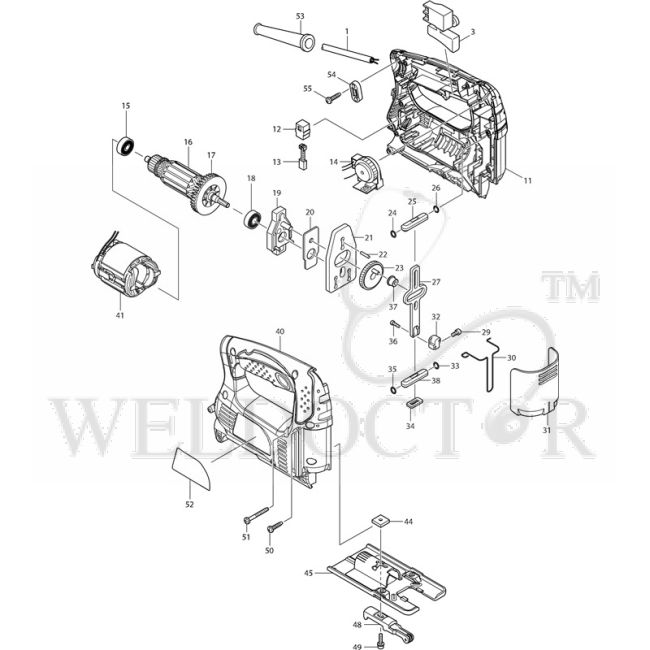

Spare Parts of Makita 4327M Jigsaw Ref. No. Part Name & Number Price 001 MAKITA POWER SUPPLY CORD 1.0-2-2.0 P/N:692006-8 Part No.: 692006-8 $7.85 Add To Cart 003 MAKITA SWITCH SGEL206C-5 FOR 4323M P/N:651286-5 Part No.: 651286-5 $5.78 Add To Cart 011 MAKITA HOUSING SET FOR 4327M P/N:188342-3 Part No.: 188342-3 $21.04 Add To Cart 015 MAKITA BALL BEARING 627LLB FOR 4323M P/N:210025-8 Part No.: 210025-8 $2.18 Add To Cart 016 MAKITA ARMATURE ASS'Y 240V FOR 4327M P/N:515719-3 Part No.: 515719-3 $24.42 Add To Cart 017 MAKITA FAN 52 FOR 6821 P/N:241881-5 Part No.: 241881-5 $0.76 Add To Cart 018 MAKITA BALL BEARING 608DDW FOR HR4000C/PV7000C P/N:210005-4 Part No.: 210005-4 $1.53 Add To Cart 019 MAKITA BEARING CASE COMPLETE FOR 4323M P/N:152577-2 Part No.: 152577-2 $9.81 Add To Cart 020 MAKITA THRUST PLATE FOR 4323M P/N:344615-6 Part No.: 344615-6 $0.44 Add To Cart 021 MAKITA BALANCE PLATE FOR 4323M P/N:344614-8 Part No.: 344614-8 $3.71 Add To Cart 022 MAKITA PIN 3 FOR 4323M P/N:256254-9 Part No.: 256254-9 $0.33 Add To Cart 023 MAKITA GEAR COMPLETE FOR 4323M P/N:153254-9 Part No.: 153254-9 $9.16 Add To Cart 024 MAKITA O RING 5 FOR 4323M P/N:213038-8 Part No.: 213038-8 $0.11 Add To Cart 025 MAKITA SLIDER GUIDE FOR 4323M P/N:313082-6 Part No.: 313082-6 $0.87 Add To Cart 026 MAKITA O RING 5 FOR 4323M P/N:213038-8 Part No.: 213038-8 $0.11 Add To Cart 027 MAKITA SLIDER FOR 4323M P/N:344613-0 Part No.: 344613-0 $3.05 Add To Cart 029 MAKITA HEX. SOCKET HEAD BOLT M4X8 FOR 4323M P/N:922107-1 Part No.: 922107-1 $0.11 Add To Cart 030 MAKITA SAFETY WIRE FOR 4323M P/N:323748-0 Part No.: 323748-0 $0.55 Add To Cart 031 MAKITA DUST COVER FOR 4323M P/N:416476-5 Part No.: 416476-5 $1.31 Add To Cart 032 MAKITA BLADE CLAMP FOR 4323M P/N:313084-2 Part No.: 313084-2 $4.36 Add To Cart 033 MAKITA O RING 5 FOR 4323M P/N:213038-8 Part No.: 213038-8 $0.11 Add To Cart 034 MAKITA POLY URETANE SPONGE SEAL FOR 4323M P/N:423307-1 Part No.: 423307-1 $0.22 Add To Cart 035 MAKITA O RING 5 FOR 4323M P/N:213038-8 Part No.: 213038-8 $0.11 Add To Cart 036 MAKITA HEX. SOCKET HEAD BOLT M3X10 FOR 4323M P/N:266177-3 Part No.: 266177-3 $0.33 Add To Cart 037 MAKITA COLLAR SLEEVE FOR 4323M P/N:257683-9 Part No.: 257683-9 $0.33 Add To Cart 038 MAKITA SLIDER GUIDE FOR 4323M P/N:313082-6 Part No.: 313082-6 $0.87 Add To Cart 040 MAKITA HOUSING SET FOR 4327M P/N:188342-3 Part No.: 188342-3 $21.04 Add To Cart 041 MAKITA FIELD 220-240V FOR 4327M P/N:633658-6 Part No.: 633658-6 $11.55 Add To Cart 044 MAKITA HOLDER FOR 4323M/4320 P/N:343540-8 Part No.: 343540-8 $0.33 Add To Cart 045 MAKITA BASE FOR 4323M P/N:163397-9 Part No.: 163397-9 $3.92 Add To Cart 048 MAKITA RETAINER COMPLETE FOR 4327M P/N:158393-0 Part No.: 158393-0 $2.83 Add To Cart 049 MAKITA HEX. SOCKET HEAD BOLT M4X16 P/N:922128-3 Part No.: 922128-3 $0.33 Add To Cart 050 MAKITA TAPPING SCREW 4X18 P/N:265995-6 Part No.: 265995-6 $0.33 Add To Cart 051 MAKITA TAPPING SCREW FLANGE PT 4X35 FOR 4323M P/N:266053-1 Part No.: 266053-1 $0.44 Add To Cart 053 MAKITA CORD GUARD FOR MT410 BO4556 P/N:682569-2 Part No.: 682569-2 $0.65 Add To Cart 054 MAKITA CORD CLAMP FOR MT410 BO4556 P/N:687123-7 Part No.: 687123-7 $0.33 Add To Cart 055 MAKITA TAPPING SCREW 4X18 P/N:265995-6 Part No.: 265995-6 $0.33 Add To Cart

Brand: Makita

Specifications:

• Ref. No.: Part Name & Number
• 001: MAKITA POWER SUPPLY CORD 1.0-2-2.0 P/N:692006-8 Part No.: 692006-8
• 003: MAKITA SWITCH SGEL206C-5 FOR 4323M P/N:651286-5 Part No.: 651286-5
• 011: MAKITA HOUSING SET FOR 4327M P/N:188342-3 Part No.: 188342-3
• 015: MAKITA BALL BEARING 627LLB FOR 4323M P/N:210025-8 Part No.: 210025-8
• 016: MAKITA ARMATURE ASS'Y 240V FOR 4327M P/N:515719-3 Part No.: 515719-3
• 017: MAKITA FAN 52 FOR 6821 P/N:241881-5 Part No.: 241881-5
• 018: MAKITA BALL BEARING 608DDW FOR HR4000C/PV7000C P/N:210005-4 Part No.: 210005-4
• 019: MAKITA BEARING CASE COMPLETE FOR 4323M P/N:152577-2 Part No.: 152577-2
• 020: MAKITA THRUST PLATE FOR 4323M P/N:344615-6 Part No.: 344615-6
• 021: MAKITA BALANCE PLATE FOR 4323M P/N:344614-8 Part No.: 344614-8
• 022: MAKITA PIN 3 FOR 4323M P/N:256254-9 Part No.: 256254-9
• 023: MAKITA GEAR COMPLETE FOR 4323M P/N:153254-9 Part No.: 153254-9
• 024: MAKITA O RING 5 FOR 4323M P/N:213038-8 Part No.: 213038-8
• 025: MAKITA SLIDER GUIDE FOR 4323M P/N:313082-6 Part No.: 313082-6
• 026: MAKITA O RING 5 FOR 4323M P/N:213038-8 Part No.: 213038-8
• 027: MAKITA SLIDER FOR 4323M P/N:344613-0 Part No.: 344613-0
• 029: MAKITA HEX. SOCKET HEAD BOLT M4X8 FOR 4323M P/N:922107-1 Part No.: 922107-1
• 030: MAKITA SAFETY WIRE FOR 4323M P/N:323748-0 Part No.: 323748-0
• 031: MAKITA DUST COVER FOR 4323M P/N:416476-5 Part No.: 416476-5
• 032: MAKITA BLADE CLAMP FOR 4323M P/N:313084-2 Part No.: 313084-2
• 033: MAKITA O RING 5 FOR 4323M P/N:213038-8 Part No.: 213038-8
• 034: MAKITA POLY URETANE SPONGE SEAL FOR 4323M P/N:423307-1 Part No.: 423307-1
• 035: MAKITA O RING 5 FOR 4323M P/N:213038-8 Part No.: 213038-8
• 036: MAKITA HEX. SOCKET HEAD BOLT M3X10 FOR 4323M P/N:266177-3 Part No.: 266177-3
• 037: MAKITA COLLAR SLEEVE FOR 4323M P/N:257683-9 Part No.: 257683-9
• 038: MAKITA SLIDER GUIDE FOR 4323M P/N:313082-6 Part No.: 313082-6
• 040: MAKITA HOUSING SET FOR 4327M P/N:188342-3 Part No.: 188342-3
• 041: MAKITA FIELD 220-240V FOR 4327M P/N:633658-6 Part No.: 633658-6
• 044: MAKITA HOLDER FOR 4323M/4320 P/N:343540-8 Part No.: 343540-8
• 045: MAKITA BASE FOR 4323M P/N:163397-9 Part No.: 163397-9
• 048: MAKITA RETAINER COMPLETE FOR 4327M P/N:158393-0 Part No.: 158393-0
• 049: MAKITA HEX. SOCKET HEAD BOLT M4X16 P/N:922128-3 Part No.: 922128-3
• 050: MAKITA TAPPING SCREW 4X18 P/N:265995-6 Part No.: 265995-6
• 051: MAKITA TAPPING SCREW FLANGE PT 4X35 FOR 4323M P/N:266053-1 Part No.: 266053-1
• 053: MAKITA CORD GUARD FOR MT410 BO4556 P/N:682569-2 Part No.: 682569-2
• 054: MAKITA CORD CLAMP FOR MT410 BO4556 P/N:687123-7 Part No.: 687123-7
• 055: MAKITA TAPPING SCREW 4X18 P/N:265995-6 Part No.: 265995-6
