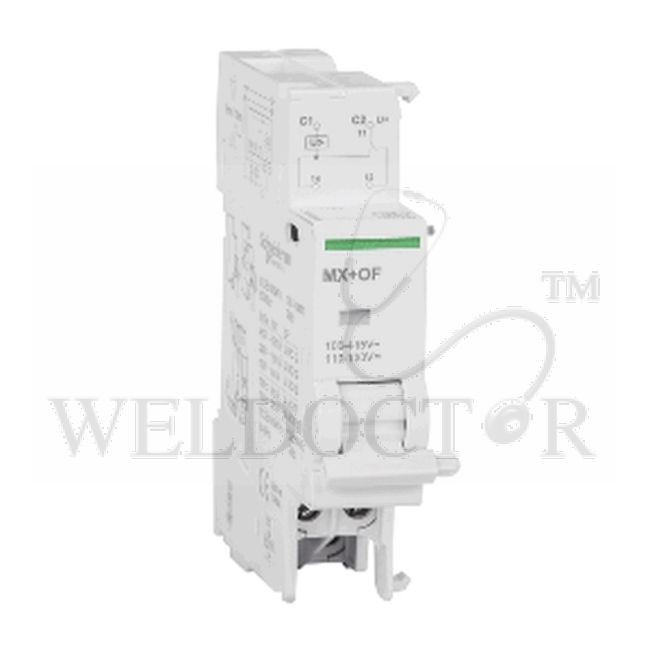

SCHNEIDER MX SHUNT TRIP MX PLUS 1 OF 220-415VAC DC.

Range of product : ProdisActi 9ClarioLibrio Product or component type : Shunt trip release with OC contact Device short name : MX + OF Signal contacts composition : 1 C/O [Ie] rated operational current : 3 A at 415 V AC6 A at - [Uc] control circuit voltage : 100...415 V AC 50/60 Hz110...130 V DC 9 mm pitches : 2

Specifications:

• Product Or Component Type: shunt trip release with OC contact
• Range Of Product: C120
• [Ie] Rated Operational Current: 3 A at 415 V AC
• [Uc] Control Circuit Voltage: 100...415 V AC 50/60 Hz
• [Ue] Rated Operational Voltage: 3 A at 415 V AC
• Device Short Name: MX + OF
• Mounting Support: 35 mm symmetrical DIN rail
• Range: Acti 9
• Range Compatibility: Acti 9 C120
• Range Name: Acti 9 C120
• Signal Contacts Composition: 1 C/O
• 9 Mm Pitches: 2
• Colour: white
• Compatibility Code: MX + OF
• Connections - Terminals: screw clamp terminal (bottom) - 1 cable(s) 0.5-2.5 mm² - rigid
• Depth: 73.5 mm
• Height: 82.5 mm
• Local Signalling: action indicator
• Market Segment: residential
• Mounting Mode: fixed
• Net Weight: 65 g
• Product Compatibility: C120
• Tightening Torque: 1-1 N.m bottom
• Width: 18 mm
• Wire Stripping Length: 9 mm for bottom connection
• Ambient Air Temperature For Operation: -25-50 °C
• Ambient Air Temperature For Storage: -40-85 °C
• Product Certifications: ASEFA
• Relative Humidity: 95-95 % at 55-55 °C
• Standards: EN/IEC 60947-5-1
• Tropicalisation: 2 conforming to EN/IEC 60947-5-1
• Poles Description: shunt trip release with OC contact
• [Us] Rated Supply Voltage: C120
