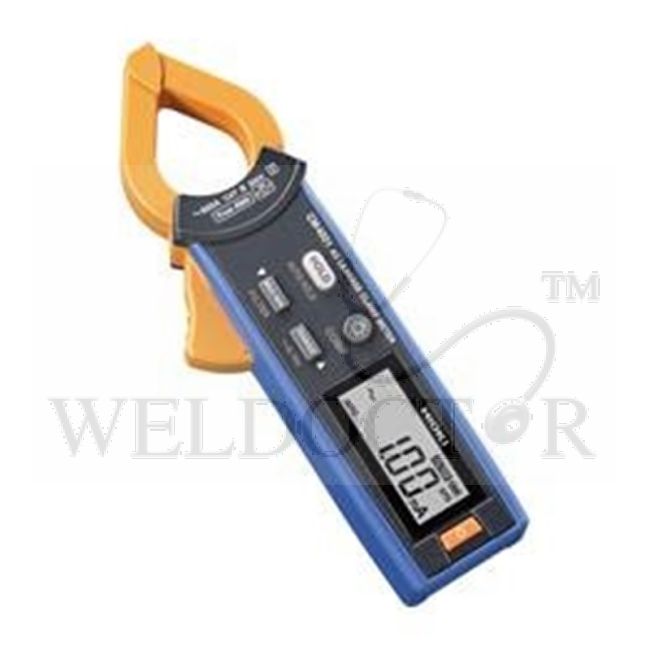

HIOKI TRUE RMS AC LEAKAGE CLAMP METER CM4001

Leakage Current Meter with Remarkable Ease of Use Double Your Work Speed with Innovative Jaw Design

Specifications:

• AC Current range: 60.00 mA/ 600.0 mA/ 6.000 A/ 60.00 A/ 600.0 A, 5 ranges (40 Hz to 1 kHz, True RMS)
• AC Voltage range: N/A
• Frequency range: 40.0 Hz to 999.9 Hz
• Crest factor: 4.5 (4000 counts or less)
• Filter function: Cut off frequency: 180 Hz ±30 Hz at filter ON (-3 dB)
• Output function: N/A
• Harmonic levels: [With Z3210 installed] Current harmonic levels up to 30th, Content factor, Total harmonic distortion ratio
• Other functions: Comparator function, record Max/Min/Avg value, backlight, data hold, auto power off, AC inrush function
• Display: Display refresh rate: 5 times/s
• Power supply: LR03 alkaline battery × 1; Continuous operating time: 32 hr. (without Z3210 installed), 16 hr. (with Z3210 installed and using wireless communications)
• Core jaw diameter: φ 24 mm (0.94 in)
• Dimensions and mass: 37 mm (1.46 in) W × 160 mm (6.30 in) H × 27 mm (1.06 in) D, 115 g (4.1 oz.)
• Included accessories: Carrying case × 1, Strap × 1, Instruction manual × 1, Operating Precautions × 1, LR03 alkaline battery × 1
