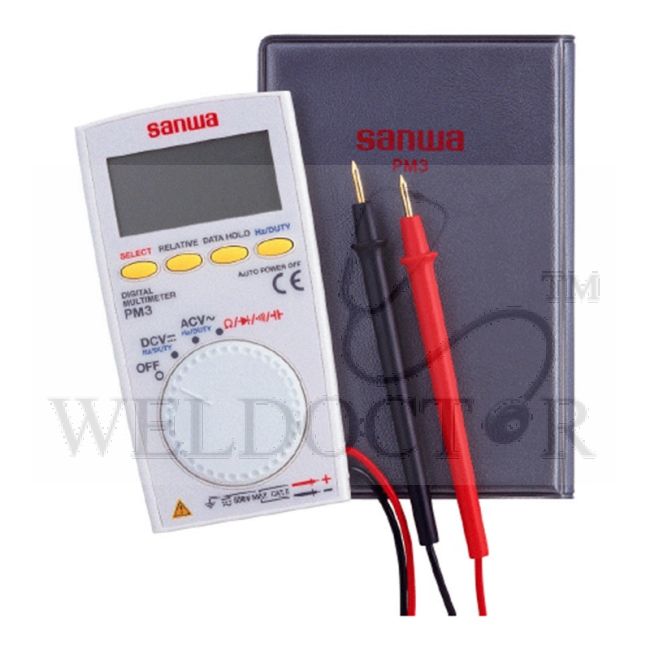

SANWA DIGITAL MULTIMETER PM3
3-3 / 4 digits 4000 count 0.7% best accuracy Capacitance measurement 8.5mm Thick body Not suitable for measuring condensers with large leak current Frequency measurement (AC sine wave only) Duty cycle Data hold Relative value
Availability:
In stock
SKU
WOW-2877
3-3 / 4 digits 4000 count 0.7% best accuracy Capacitance measurement 8.5mm Thick body Not suitable for measuring condensers with large leak current Frequency measurement (AC sine wave only) Duty cycle Data hold Relative value
Specifications:
- DCV: 400m/4/40/450V
- ACV: 4/40/400/500V
- Resistance: 400/4k/40k/400k/4M/40MO
- Capacitance:4n/40n/400n/4µ/40µ/200 µF: < 90% @ 10 to 30 ºC, < 75% @ 30 to 40ºC
- Frequency: 9.999Hz~70.00kHz
- Duty: 0.1~99%
- Continuity: Open Voltage 0.4V Buzzer sounds at less than 10~120 O
- Diode test: Open Voltage 1.5V
- Battery: CR2032 (3V) x 1
- Dimension&Weight:: 108 (H) X 56 (W) x 11.5(D) mm, 85g
- Safety: IEC61010-1 CAT.III 300V CAT.II DC/AC 500V
- Name: File Type
- SANWA PM3 MANUAL: .pdf
