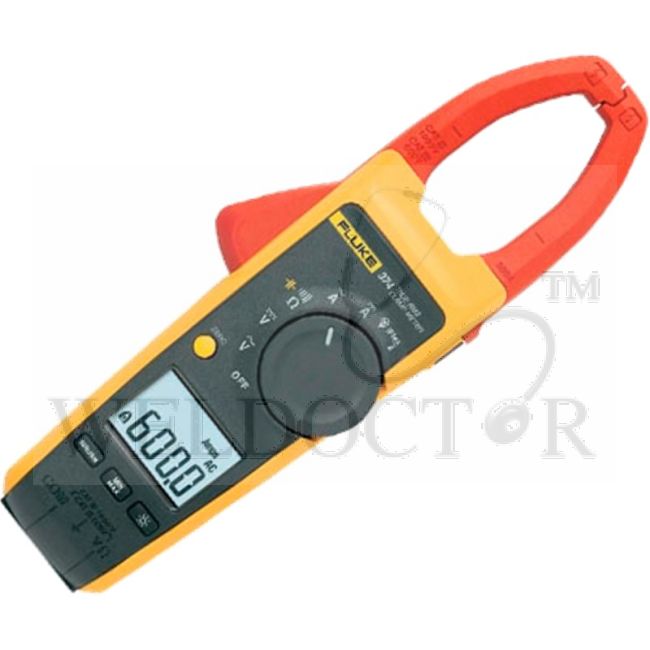

FLUKE CLAMP METER 600A-AC/DC 374

The Fluke 374 True RMS Clamp Meter can read up to 600 V and 600 A in both AC and DC modes. Additionally, the 374 is compatible with the new iFlex flexible current probe (sold separately), which increases the measurement range to 2500 A AC and provides increased display flexibility, and improved wire access.

Specifications:

• Range: 600.0 A
• Resolution: 0.1 A
• Accuracy: 2% ± 5 digits (10-100 Hz)
• Crest Factor (50/60 Hz): 3 @ 500 A (375 and 376 only)
• Range: 2500 A
• Resolution: 0.1 A (≤ 600 A)
• Accuracy: 3% ±5 digits (5 – 500 Hz)
• Crest Factor (50/60Hz): 3.0 at 1100 A (375 and 376 only)
• Distance from Optimum: i2500-10 Flex
• Flexible Current probe: A 0.5 in (12.7 mm)
• Accuracy: 2% ± 5 digits
• Range: 600.0 V
• Resolution: 0.1 V
• Accuracy: 1.5% ± 5 digits (20 – 500 Hz)
• Accuracy: 1% ± 5 digits
• Resolution: 0.1 mV
• Resolution: 0.1 Hz
• Accuracy: 0.5% ± 5 digits
• Trigger Level: 5 – 10 Hz, ≥10 A
• Trigger Level: 5 – 20 Hz, ≥ 25 A
• Range: 6000 Ω
• Resolution: 0.1 Ω (≤ 600 Ω)
• Range: 1000 μF
• Resolution: 0.1 μF (≤ 100 μF)
• Accuracy: 1% ± 4 digits
• Size (L x W x H): 246 mm x 83 m x 43 mm
• Weight: 388 g
• Jaw Opening: 34 mm
• Flexible Current Probe Diameter: 7.5 mm
• Flexible Current Probe Cable Length: 1.8 m
• Operating Temperature: 10°C – +50°C
• Storage Temp: -40°C – +60°C
• Operating Humidity: Non condensing (< 10 –°C)
• Operating Altitude: 3000 meters
• Storage Altitude: 12,000 meters
• EMC: EN 61326-1:2006
• Temperature Coefficients: Add 0.1 x specified accuracy For each
• Safety Compliance: CAN/CSA-C22.2 No. 61010-1-04
• Batteries: 2 AA, NEDA 15A, IEC LR6
