RAVEN RP60 AUTOMATIC DOOR BOTTOM SEAL 920MM

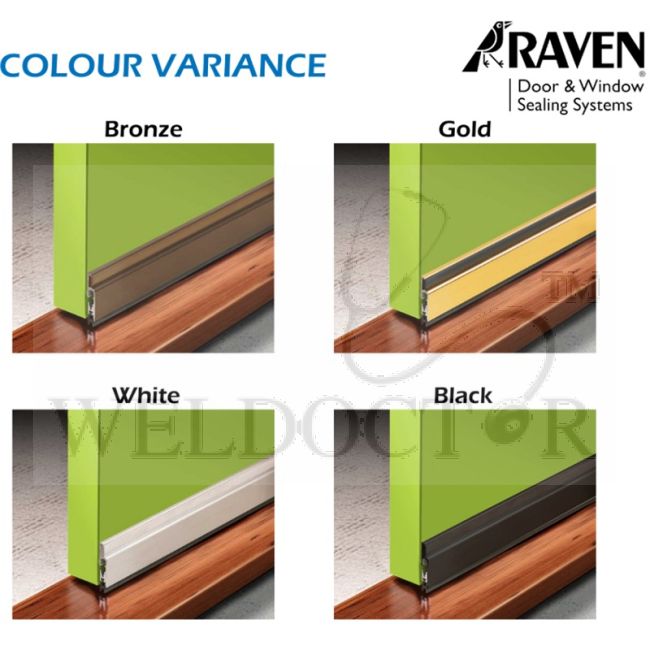

AUTOMATIC DOOR BOTTOM SEAL – RP60 An adjustable, automatic door bottom seal which is spring loaded to lift clear of the floor when the door is opened. Operated automatically by pressure against the door stop on its adjusting screw and incorporates concealed fixings. The RP60 is self levelling and can be used in conjunction with Raven threshold plates such as the RP13 and RP82. Location: Face mounted on the bottom of single and double butt hinged doors. Min/Max Gap: 3mm to 15mm Finish: Satin clear (silver), bronze, black or bright gold anodised aluminium (15µm). Fixing: Concealed screw fix. Zinc plated, cross recess head S.T. screws and cover strip supplied. Fixing holes are pre-slotted. Sizes: 915mm maximum (between door stops). Unit cuts back to 450mm (min). Approvals Fire AUS/NZ: NCC Spec. C3.4. AS1530.4 & AS/NZS 1905.1. NZ BC Compliance Doc. C/AS1 6.19.2 & App. C6.1.1. UK/EU: Approved Document B. BS 476 Pt. 20 & 22 (similar to BS EN 1634-1). FRL & FRR-/240/30 and FD240. Energy NCC Pt. 3.12.3.3 & J3.4. Durability Tested to over 500,000 operating cycles without failure. Insects/Vermin AS4674, 2.1.5(iv), 2.1.7 Patented.

Brand: RP60B RAVEN RP60 AUTOMATIC DOOR BOTTOM SEAL 920MM

Specifications:

• NO BRAND: RP60B
