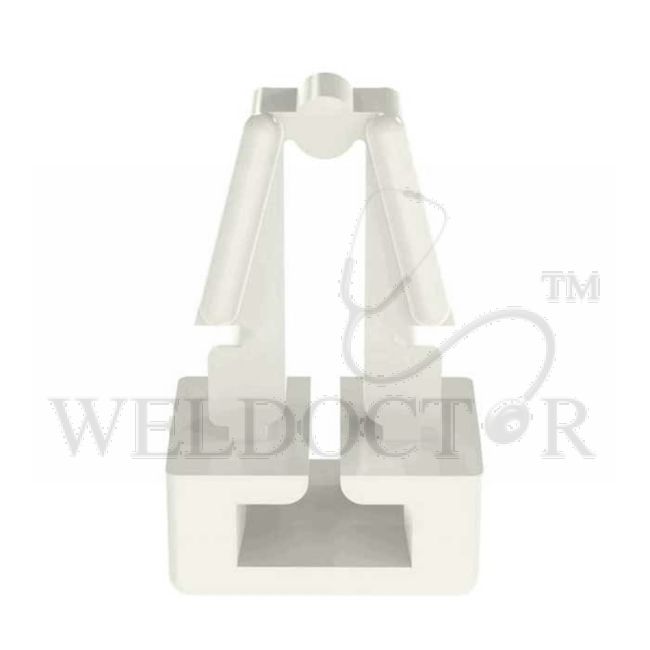

PANDUIT PUSH CABLE TIE MOUNT PM2H25-M, NYLON 6.6, 0.13” 100PCS/PKT

Panduit PM2H25-M Push Cable Mounts can be used where only one side of the panel is accessible and require no adhesive or additional mounting hardware. They have a maximum panel thickness limit of 0.13” (3.2mm) and require a panel hole of 0.25” (6.4mm) for mounting. For use in indoor environments and with miniature, intermediate and standard cable ties. Made of Nylon 6.6, are natural in color and come in packages of 100.

Specifications:

• Color: Natural
• Environment: Indoor
• Material: Nylon 6.6
• Mount Method: Push Barb
• Product Type: Cable Tie Mount
• Application: Push Mounts for use where Only One Side of the Panel is Accessible
• For Use With: Miniature, Intermediate, Standard Cross-Section Ties
• Maximum Compatible Panel Thickness (In.): 0.13
• Maximum Compatible Panel Thickness (mm): 3.3
• Maximum Operating Temperature (°C): 85
• Maximum Operating Temperature (°F): 185
• Minimum Operating Temperature (°C): -60
• Minimum Operating Temperature (°F): -76
• Standards Met: CE Compliant, UL Recognized: E56854, RoHS Compliant
• Package 1 Height (cm): 5.33
• Package 1 Length (cm): 22.86
• Package 1 Width (cm): 19.05
• Package Weight (KG): 0.45
• Status: MATURE
• UPC: 07498358361
• Volume Of Package 1: 0.08
