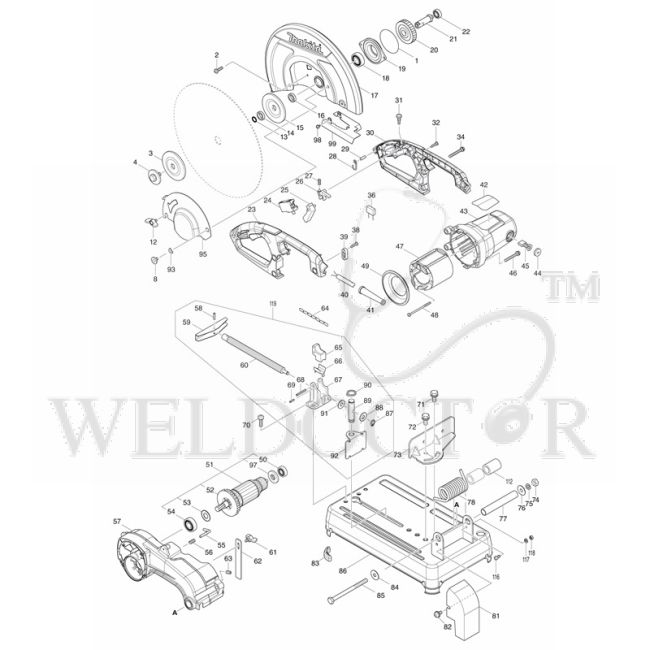

MAKITA LW1401 355MM PORTABLE CUT-OFF SPARE PARTS

Spare Parts of Makita LW1401 Cut-Off Saw Ref. No. Part Name & Number Price 002 MAKITA PAN HEAD SCREW M5X20 FOR MT190 P/N:265122-5 Part No.: 265122-5 $0.33 Add To Cart 003 MAKITA FLANGE 90 FOR PORTABLE CUT-OFF P/N:224299-5 Part No.: 224299-5 $2.73 Add To Cart 004 MAKITA HEX. BOLT M10X25 FOR 2416S P/N:251680-7 Part No.: 251680-7 $1.64 Add To Cart 008 MAKITA FLAT HEAD SCREW M6 FOR MT240 P/N:265121-7 Part No.: 265121-7 $0.44 Add To Cart 013 MAKITA O RING 14 FOR MT240 P/N:213180-5 Part No.: 213180-5 $0.22 Add To Cart 014 MAKITA RING 17 FOR MT240 P/N:257255-0 Part No.: 257255-0 $0.44 Add To Cart 015 MAKITA FLANGE 90 FOR PORTABLE CUT-OFF P/N:224299-5 Part No.: 224299-5 $2.73 Add To Cart 016 MAKITA RING 17 FOR MT240 P/N:257255-0 Part No.: 257255-0 $0.44 Add To Cart 017 MAKITA SAFETY COVER FOR LW1400 P/N:161400-0 Part No.: 161400-0 $30.74 Add To Cart 018 MAKITA BALL BEARING 6203ZZ FOR MT240 P/N:211282-1 Part No.: 211282-1 $2.40 Add To Cart 019 MAKITA BEARING BOX FOR LW1400 P/N:319393-7 Part No.: 319393-7 $4.03 Add To Cart 020 MAKITA HELICAL GEAR 50 FOR LW1400 P/N:227811-0 Part No.: 227811-0 $11.45 Add To Cart 021 MAKITA SPINDLE FOR MT240 P/N:324321-9 Part No.: 324321-9 $3.05 Add To Cart 022 MAKITA BALL BEARING 6000ZZ FOR MT240 P/N:210067-2 Part No.: 210067-2 $1.31 Add To Cart 023 MAKITA HANDLE SET FOR LW1400 P/N:183C14-3 Part No.: 183C14-3 $12.64 Add To Cart 024 MAKITA SWITCH TGC31B FOR UC3040A P/N:650716-3 Part No.: 650716-3 $9.16 Add To Cart 025 MAKITA SWITCH LEVER FOR MT240 P/N:418141-2 Part No.: 418141-2 $0.44 Add To Cart 026 MAKITA SWITCH LOCK FOR MT240 P/N:418139-9 Part No.: 418139-9 $0.33 Add To Cart 027 MAKITA COMPRESSION SPRING 4 FOR 2414NB P/N:231397-8 Part No.: 231397-8 $0.11 Add To Cart 028 MAKITA HANGER FOR MT240 P/N:281216-8 Part No.: 281216-8 $0.11 Add To Cart 029 MAKITA PIN 6 FOR MT240 P/N:268101-2 Part No.: 268101-2 $0.33 Add To Cart 030 MAKITA HANDLE SET FOR LW1400 P/N:183C14-3 Part No.: 183C14-3 $12.64 Add To Cart 034 MAKITA PAN HEAD SCREW M5X40 FOR MT410 P/N:265104-7 Part No.: 265104-7 $0.33 Add To Cart 039 MAKITA STRAIN RELIEF FOR DLM480/LM001G P/N:687124-5 Part No.: 687124-5 $0.33 Add To Cart 043 MAKITA MOTOR HOUSING COMPLETE FOR LW1400 P/N:143463-8 Part No.: 143463-8 $20.71 Add To Cart 044 MAKITA BRUSH HOLDER CAP 7-18 FOR 9047/2414NB P/N:643700-5 Part No.: 643700-5 $0.76 Add To Cart 046 MAKITA PAN HEAD SCREW M5X40 FOR MT410 P/N:265104-7 Part No.: 265104-7 $0.33 Add To Cart 049 MAKITA BAFFLE PLATE FOR MT240 P/N:418143-8 Part No.: 418143-8 $0.87 Add To Cart 050 MAKITA BALL BEARING 6200ZZ P/N:210070-3 Part No.: 210070-3 $1.53 Add To Cart 053 MAKITA WASHER 15 FOR 2414B P/N:267714-6 Part No.: 267714-6 $0.44 Add To Cart 054 MAKITA BALL BEARING 6202ZZ P/N:211240-7 Part No.: 211240-7 $1.85 Add To Cart 055 MAKITA STOPPER FOR MT240 P/N:324322-7 Part No.: 324322-7 $0.55 Add To Cart 056 MAKITA COMPRESSION SPRING 7 FOR MT240 P/N:233372-0 Part No.: 233372-0 $0.22 Add To Cart 058 MAKITA SPRING PIN 5-20 FOR 2414B P/N:951163-4 Part No.: 951163-4 $0.33 Add To Cart 059 MAKITA HANDLE 120 FOR MT240 P/N:272027-2 Part No.: 272027-2 $0.87 Add To Cart 060 MAKITA VICE SCREW FOR MT240 P/N:324323-5 Part No.: 324323-5 $8.61 Add To Cart 061 MAKITA THUMB SCREW M6X12 FOR MT580 P/N:265754-8 Part No.: 265754-8 $0.44 Add To Cart 062 MAKITA STOPPER PLATE FOR MT240 P/N:345310-1 Part No.: 345310-1 $0.65 Add To Cart 064 MAKITA CHAIN FOR MT240 P/N:282015-1 Part No.: 282015-1 $0.98 Add To Cart 065 MAKITA VICE NUT FOR MT240 P/N:313114-9 Part No.: 313114-9 $2.94 Add To Cart 066 MAKITA PLATE FOR MT240 P/N:345311-9 Part No.: 345311-9 $0.55 Add To Cart 067 MAKITA SCREW GUIDE FOR MT240 P/N:317662-0 Part No.: 317662-0 $2.73 Add To Cart 068 MAKITA SPRING PIN 5-36 FOR MT240 P/N:951175-7 Part No.: 951175-7 $0.44 Add To Cart 069 MAKITA SPRING PIN 4-16 FOR MT240 P/N:951110-5 Part No.: 951110-5 $0.33 Add To Cart 070 MAKITA PAN HEAD SCREW M8X30 FOR MT240 P/N:265125-9 Part No.: 265125-9 $0.65 Add To Cart 071 MAKITA HEX. BOT M10X25 FOR MT240 P/N:265508-3 Part No.: 265508-3 $0.87 Add To Cart 072 MAKITA HEX. BOT M10X25 FOR MT240 P/N:265508-3 Part No.: 265508-3 $0.87 Add To Cart 073 MAKITA GUIDE PLATE FOR MT240 P/N:345315-1 Part No.: 345315-1 $4.91 Add To Cart 074 MAKITA HEX. NUT M10-17 FOR MT240 P/N:252183-4 Part No.: 252183-4 $0.33 Add To Cart 075 MAKITA SPRING WASHER FOR HM1302 Part No.: 942251-8 $0.33 Add To Cart 076 MAKITA FLAT WASHER 10 FOR HR3200C P/N:253197-6 Part No.: 253197-6 $0.33 Add To Cart 077 MAKITA PIPE 2O-218 FOR MT240 P/N:331648-0 Part No.: 331648-0 $2.62 Add To Cart 078 MAKITA TORSION SPRING 33 P/N:233633-8 Part No.: 233633-8 $10.90 Add To Cart 081 MAKITA SPARK GUARD FOR MT240 P/N:345313-5 Part No.: 345313-5 $0.76 Add To Cart 082 MAKITA PAN HEAD SCREW M6X12 FOR MT240 P/N:265144-5 Part No.: 265144-5 $0.33 Add To Cart 083 MAKITA CUSHION FOR MT240 P/N:421834-2 Part No.: 421834-2 $0.55 Add To Cart 084 MAKITA FLAT WASHER 10 FOR HR3200C P/N:253197-6 Part No.: 253197-6 $0.33 Add To Cart 085 MAKITA HEX. BOLT M10X140 FOR MT240 P/N:265509-1 Part No.: 265509-1 $1.64 Add To Cart 086 MAKITA BASE FOR MT240 P/N:165352-7 Part No.: 165352-7 $36.08 Add To Cart 087 MAKITA RETAINING RING S-8 P/N:961004-6 Part No.: 961004-6 $0.11 Add To Cart 088 MAKITA FLAT WASHER 8 FOR MT240 P/N:267257-8 Part No.: 267257-8 $0.33 Add To Cart 089 MAKITA SHOULDER PIN 10-16 FOR MT240 P/N:256474-5 Part No.: 256474-5 $1.53 Add To Cart 090 MAKITA RETAINING RING S-16 FOR MT240 P/N:961056-7 Part No.: 961056-7 $0.44 Add To Cart 091 MAKITA FLAT WASHER 8 FOR MT240 P/N:267257-8 Part No.: 267257-8 $0.33 Add To Cart 092 MAKITA VISE PLATE FOR MT240 P/N:345312-7 Part No.: 345312-7 $1.74 Add To Cart 093 MAKITA WAVE WASHER 6 FOR N3701 Part No.: 253903-9 $0.33 Add To Cart 097 MAKITA INSULATION WASHER FOR 9047 P/N:681630-2 Part No.: 681630-2 $0.44 Add To Cart 117 MAKITA SPRING WASHER 6 FOR HM0810 P/N:942151-2 Part No.: 942151-2 $0.11 Add To Cart 118 MAKITA HEX NUT M6 FOR HM0810 P/N: 931302-2 Part No.: 931302-2 $0.22 Add To Cart 119 MAKITA VISE ASS'Y FOR MT240 P/N:135509-4 Part No.: 135509-4 $22.13 Add To Cart

Brand: Makita

Specifications:

• Ref. No.: Part Name & Number
• 002: MAKITA PAN HEAD SCREW M5X20 FOR MT190 P/N:265122-5 Part No.: 265122-5
• 003: MAKITA FLANGE 90 FOR PORTABLE CUT-OFF P/N:224299-5 Part No.: 224299-5
• 004: MAKITA HEX. BOLT M10X25 FOR 2416S P/N:251680-7 Part No.: 251680-7
• 008: MAKITA FLAT HEAD SCREW M6 FOR MT240 P/N:265121-7 Part No.: 265121-7
• 013: MAKITA O RING 14 FOR MT240 P/N:213180-5 Part No.: 213180-5
• 014: MAKITA RING 17 FOR MT240 P/N:257255-0 Part No.: 257255-0
• 015: MAKITA FLANGE 90 FOR PORTABLE CUT-OFF P/N:224299-5 Part No.: 224299-5
• 016: MAKITA RING 17 FOR MT240 P/N:257255-0 Part No.: 257255-0
• 017: MAKITA SAFETY COVER FOR LW1400 P/N:161400-0 Part No.: 161400-0
• 018: MAKITA BALL BEARING 6203ZZ FOR MT240 P/N:211282-1 Part No.: 211282-1
• 019: MAKITA BEARING BOX FOR LW1400 P/N:319393-7 Part No.: 319393-7
• 020: MAKITA HELICAL GEAR 50 FOR LW1400 P/N:227811-0 Part No.: 227811-0
• 021: MAKITA SPINDLE FOR MT240 P/N:324321-9 Part No.: 324321-9
• 022: MAKITA BALL BEARING 6000ZZ FOR MT240 P/N:210067-2 Part No.: 210067-2
• 023: MAKITA HANDLE SET FOR LW1400 P/N:183C14-3 Part No.: 183C14-3
• 024: MAKITA SWITCH TGC31B FOR UC3040A P/N:650716-3 Part No.: 650716-3
• 025: MAKITA SWITCH LEVER FOR MT240 P/N:418141-2 Part No.: 418141-2
• 026: MAKITA SWITCH LOCK FOR MT240 P/N:418139-9 Part No.: 418139-9
• 027: MAKITA COMPRESSION SPRING 4 FOR 2414NB P/N:231397-8 Part No.: 231397-8
• 028: MAKITA HANGER FOR MT240 P/N:281216-8 Part No.: 281216-8
• 029: MAKITA PIN 6 FOR MT240 P/N:268101-2 Part No.: 268101-2
• 030: MAKITA HANDLE SET FOR LW1400 P/N:183C14-3 Part No.: 183C14-3
• 034: MAKITA PAN HEAD SCREW M5X40 FOR MT410 P/N:265104-7 Part No.: 265104-7
• 039: MAKITA STRAIN RELIEF FOR DLM480/LM001G P/N:687124-5 Part No.: 687124-5
• 043: MAKITA MOTOR HOUSING COMPLETE FOR LW1400 P/N:143463-8 Part No.: 143463-8
• 044: MAKITA BRUSH HOLDER CAP 7-18 FOR 9047/2414NB P/N:643700-5 Part No.: 643700-5
• 046: MAKITA PAN HEAD SCREW M5X40 FOR MT410 P/N:265104-7 Part No.: 265104-7
• 049: MAKITA BAFFLE PLATE FOR MT240 P/N:418143-8 Part No.: 418143-8
• 050: MAKITA BALL BEARING 6200ZZ P/N:210070-3 Part No.: 210070-3
• 053: MAKITA WASHER 15 FOR 2414B P/N:267714-6 Part No.: 267714-6
• 054: MAKITA BALL BEARING 6202ZZ P/N:211240-7 Part No.: 211240-7
• 055: MAKITA STOPPER FOR MT240 P/N:324322-7 Part No.: 324322-7
• 056: MAKITA COMPRESSION SPRING 7 FOR MT240 P/N:233372-0 Part No.: 233372-0
• 058: MAKITA SPRING PIN 5-20 FOR 2414B P/N:951163-4 Part No.: 951163-4
• 059: MAKITA HANDLE 120 FOR MT240 P/N:272027-2 Part No.: 272027-2
• 060: MAKITA VICE SCREW FOR MT240 P/N:324323-5 Part No.: 324323-5
• 061: MAKITA THUMB SCREW M6X12 FOR MT580 P/N:265754-8 Part No.: 265754-8
• 062: MAKITA STOPPER PLATE FOR MT240 P/N:345310-1 Part No.: 345310-1
• 064: MAKITA CHAIN FOR MT240 P/N:282015-1 Part No.: 282015-1
