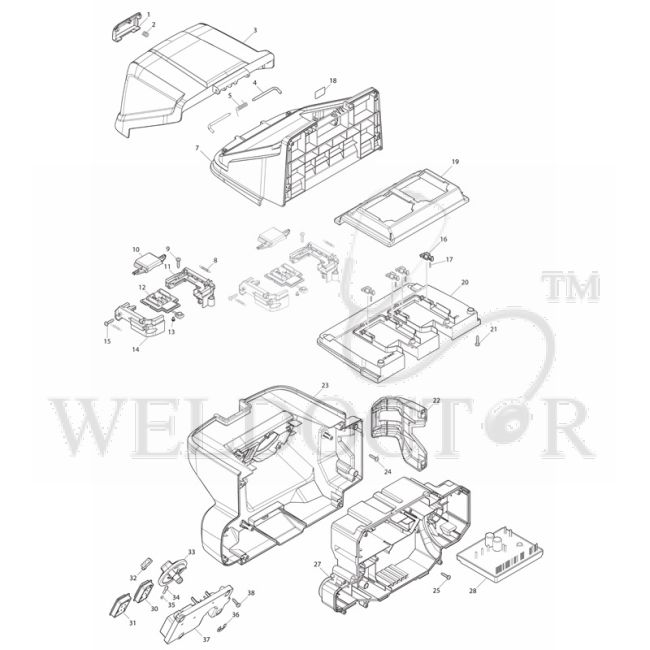

MAKITA HW001G CORDLESS HIGH PRESSURE WASHER SPARE PARTS

Spare Parts of Makita HW001G High Pressure Washer Ref. No. Part Name & Number Price 001 MAKITA LOCK LEVER FOR HW001G P/N:413T26-7 Part No.: 413T26-7 $1.53 Add To Cart 003 MAKITA BATTERY BOX COVER FOR HW001G P/N:413T25-9 Part No.: 413T25-9 $14.17 Add To Cart 007 MAKITA BATTERY BOX ASSEMBLY FOR HW001G P/N:137021-0 Part No.: 137021-0 $9.05 Add To Cart 008 MAKITA TENSION SPRING 4 FOR VC001G P/N:232722-6 Part No.: 232722-6 $0.33 Add To Cart 010 MAKITA TERMINAL COVER FOR VC001G P/N:413B40-5 Part No.: 413B40-5 $1.53 Add To Cart 011 MAKITA GRIP SET FOR HW001G P/N:183Y95-9 Part No.: 183Y95-9 $3.92 Add To Cart 012 MAKITA TERMINAL UNIT FOR VC001G P/N:632T08-2 Part No.: 632T08-2 $7.63 Add To Cart 013 MAKITA PAN HEAD SCREW M3X6 P/N:652031-1 Part No.: 652031-1 $0.11 Add To Cart 014 MAKITA GRIP SET FOR HW001G P/N:183Y95-9 Part No.: 183Y95-9 $3.92 Add To Cart 016 MAKITA LOCK LEVER FOR VC001G P/N:413B41-3 Part No.: 413B41-3 $0.65 Add To Cart 017 MAKITA COMPRESSION SPRING 2 FOR DJR188 P/N:232472-3 Part No.: 232472-3 $0.76 Add To Cart 019 MAKITA TERMINAL PLATE COVER FOR HW001G P/N:413T33-0 Part No.: 413T33-0 $2.94 Add To Cart 020 MAKITA TERMINAL PLATE FOR HW001G P/N:413T30-6 Part No.: 413T30-6 $6.54 Add To Cart 022 MAKITA ACCESSORY HOLDER S FOR HW001G P/N:413T29-1 Part No.: 413T29-1 $3.05 Add To Cart 023 MAKITA FRONT HOUSING ASS'Y FOR HW001G P/N:137026-0 Part No.: 137026-0 $15.48 Add To Cart 027 MAKITA INNER HOUSING ASSEMBLY FOR HW001G P/N:137019-7 Part No.: 137019-7 $8.72 Add To Cart 028 MAKITA CONTROLLER FOR HW001G P/N:620M65-0 Part No.: 620M65-0 $276.64 Add To Cart 030 MAKITA SWITCH CIRCUIT COMPLETE FOR HW001G P/N:620M67-6 Part No.: 620M67-6 $23.00 Add To Cart 031 MAKITA INDICATION CIRCUIT COMPLETE FOR HW001G P/N:620M68-4 Part No.: 620M68-4 $18.53 Add To Cart 032 MAKITA SWITCH UNIT FOR HW001G P/N:632V07-6 Part No.: 632V07-6 $14.72 Add To Cart 033 MAKITA SWITCH DIAL 55 FOR HW001G P/N:413T27-5 Part No.: 413T27-5 $2.07 Add To Cart 036 MAKITA STOP RING E-10 FOR 2702 P/N:961016-9 Part No.: 961016-9 $0.33 Add To Cart 037 MAKITA SWITCH PANEL FOR HW001G P/N:413T37-2 Part No.: 413T37-2 $2.62 Add To Cart 040 MAKITA TERMINAL CASE SET FOR HW001G P/N:1830A1-1 Part No.: 1830A1-1 $7.52 Add To Cart 041 MAKITA TERMINAL CASE SET FOR HW001G P/N:1830A1-1 Part No.: 1830A1-1 $7.52 Add To Cart 045 MAKITA UPPER PIPE L FOR HW001G P/N:327C41-2 Part No.: 327C41-2 $7.41 Add To Cart 050 MAKITA LOWER PIPE L FOR HW001G P/N:327C43-8 Part No.: 327C43-8 $7.30 Add To Cart 054 MAKITA PIPE HOLDER FOR HW001G P/N:413T19-4 Part No.: 413T19-4 $1.96 Add To Cart 055 MAKITA UPPER PIPE L FOR HW001G P/N:327C42-0 Part No.: 327C42-0 $7.41 Add To Cart 060 MAKITA LOWER PIPE L FOR HW001G P/N:327C44-6 Part No.: 327C44-6 $7.30 Add To Cart 062 MAKITA O RING 5 FOR 5277NB P/N:213005-3 Part No.: 213005-3 $0.22 Add To Cart 065 MAKITA REAR HOUSING ASSEMBLY FOR HW001G P/N:137020-2 Part No.: 137020-2 $16.24 Add To Cart 067 MAKITA LOCK BUTTON FOR HW001G P/N:413T18-6 Part No.: 413T18-6 $1.85 Add To Cart 068 MAKITA COMPRESSION SPRING 6 FOR LM2300 P/N:233068-3 Part No.: 233068-3 $0.22 Add To Cart 069 MAKITA LOCK PIN FOR HW001G P/N:413T34-8 Part No.: 413T34-8 $2.62 Add To Cart 071 MAKITA REAR COVER FOR HW001G P/N:413T15-2 Part No.: 413T15-2 $8.50 Add To Cart 073 MAKITA ACCESSORY HOLDER R COMPLETE FOR HW001G P/N:141T09-4 Part No.: 141T09-4 $5.78 Add To Cart 075 MAKITA RECEIVE RUBBER P/N:422250-1 Part No.: 422250-1 $1.09 Add To Cart 076 MAKITA MOTOR HOUSING FOR DHW080/HW001G P/N:458326-8 Part No.: 458326-8 $7.30 Add To Cart 077 MAKITA RUBBER CUSHION P/N:422409-0 Part No.: 422409-0 $0.65 Add To Cart 078 MAKITA STATOR FOR HW001G P/N:629C40-3 Part No.: 629C40-3 $40.66 Add To Cart 079 MAKITA BAFFLE PLATE P/N:458327-6 Part No.: 458327-6 $1.09 Add To Cart 081 MAKITA BALL BEARING 607ZZ FOR MT950 P/N:210062-2 Part No.: 210062-2 $0.98 Add To Cart 082 MAKITA ROTOR ASS'Y FOR HW001G P/N:519830-3 Part No.: 519830-3 $39.02 Add To Cart 083 MAKITA BALL BEARING 6001DDW FOR 9016B BO4556 P/N:211131-2 Part No.: 211131-2 $3.27 Add To Cart 084 MAKITA H.S.H.BOLT M5X20 WITH WR P/N:922233-6 Part No.: 922233-6 $0.22 Add To Cart 085 MAKITA GEAR HOUSING FOR DHW080/HW001G P/N:161823-2 Part No.: 161823-2 $12.21 Add To Cart 086 MAKITA H.S.H.BOLT M5X20 WITH WR P/N:922233-6 Part No.: 922233-6 $0.22 Add To Cart 087 MAKITA PUMP ASSEMBLY FOR HW001G P/N:122F16-2 Part No.: 122F16-2 $227.27 Add To Cart 090 MAKITA WHEEL 140 FOR HW001G P/N:413T32-2 Part No.: 413T32-2 $9.81 Add To Cart 091 MAKITA PLATE FOR HW001G P/N:327C28-4 Part No.: 327C28-4 $1.64 Add To Cart 092 MAKITA BOTTOM PLATE FOR HW001G P/N:413T23-3 Part No.: 413T23-3 $11.34 Add To Cart 096 MAKITA TAPPING SCREW 4*18 WITH W P/N:252274-1 Part No.: 252274-1 $0.33 Add To Cart 101 MAKITA BALL BEARING 628DDW FOR 9533BL P/N:210032-1 Part No.: 210032-1 $5.12 Add To Cart 102 MAKITA HELICAL GEAR 47 P/N:221597-8 Part No.: 221597-8 $8.07 Add To Cart 103 MAKITA SPINDLE P/N:327076-5 Part No.: 327076-5 $3.05 Add To Cart 104 MAKITA PUMP HOUSING FOR DHW080/HW001G P/N:161821-6 Part No.: 161821-6 $28.67 Add To Cart 108 MAKITA RETAINING RING S-12 P/N:961052-5 Part No.: 961052-5 $0.33 Add To Cart 111 MAKITA PISTON PIN 12 P/N:327075-7 Part No.: 327075-7 $27.90 Add To Cart 112 MAKITA SPRING RETAINER C P/N:347340-8 Part No.: 347340-8 $0.55 Add To Cart 113 MAKITA COMPRESSION SPRING 22 P/N:232434-1 Part No.: 232434-1 $0.44 Add To Cart 115 MAKITA H.S.H.BOLT M5X20 WITH WR P/N:922233-6 Part No.: 922233-6 $0.22 Add To Cart 116 MAKITA PISTON CYLINDER P/N:319670-7 Part No.: 319670-7 $10.90 Add To Cart 117 MAKITA OIL SEAL 12 P/N:213861-1 Part No.: 213861-1 $3.82 Add To Cart 121 MAKITA O RING 53 FOR HM1201 P/N:213656-2 Part No.: 213656-2 $0.33 Add To Cart 127 MAKITA O RING 5 FOR 5277NB P/N:213005-3 Part No.: 213005-3 $0.22 Add To Cart 128 MAKITA COMPRESSION SPRING 6 P/N:232433-3 Part No.: 232433-3 $0.22 Add To Cart 129 MAKITA SPRING RETAINER A P/N:458322-6 Part No.: 458322-6 $0.76 Add To Cart 130 MAKITA O RING 10 FOR HW001G P/N:213055-8 Part No.: 213055-8 $0.22 Add To Cart 132 MAKITA O RING 7 FOR LS1212 P/N:213011-8 Part No.: 213011-8 $0.22 Add To Cart 136 MAKITA RUBBER CUSHION P/N:422409-0 Part No.: 422409-0 $0.65 Add To Cart 137 MAKITA O RING 14 FOR 484P P/N:213176-6 Part No.: 213176-6 $0.33 Add To Cart 147 MAKITA H.S.H BOLT M5*50 WITH WR P/N:265A33-0 Part No.: 265A33-0 $0.44 Add To Cart 148 MAKITA TAPPING SCREW BIND PT 3X16 FOR 6226DWE P/N:266130-9 Part No.: 266130-9 $0.11 Add To Cart 150 MAKITA O RING 14 FOR 484P P/N:213176-6 Part No.: 213176-6 $0.33 Add To Cart 152 MAKITA O RING 14 FOR 484P P/N:213176-6 Part No.: 213176-6 $0.33 Add To Cart 156 MAKITA COMPRESSION SPRING 11 P/N:232429-4 Part No.: 232429-4 $0.33 Add To Cart 159 MAKITA O RING 14 for DHW P/N:213922-7 Part No.: 213922-7 $0.33 Add To Cart 160 MAKITA O RING 16 FOR HR3200C P/N:213223-3 Part No.: 213223-3 $0.33 Add To Cart 161 MAKITA PUMP HEAD CAP P/N:458310-3 Part No.: 458310-3 $1.53 Add To Cart 166 MAKITA RUBBER CUSHION P/N:422409-0 Part No.: 422409-0 $0.65 Add To Cart 167 MAKITA RUBBER CUSHION P/N:422409-0 Part No.: 422409-0 $0.65 Add To Cart

Brand: Makita

Specifications:

• Ref. No.: Part Name & Number
• 001: MAKITA LOCK LEVER FOR HW001G P/N:413T26-7 Part No.: 413T26-7
• 003: MAKITA BATTERY BOX COVER FOR HW001G P/N:413T25-9 Part No.: 413T25-9
• 007: MAKITA BATTERY BOX ASSEMBLY FOR HW001G P/N:137021-0 Part No.: 137021-0
• 008: MAKITA TENSION SPRING 4 FOR VC001G P/N:232722-6 Part No.: 232722-6
• 010: MAKITA TERMINAL COVER FOR VC001G P/N:413B40-5 Part No.: 413B40-5
• 011: MAKITA GRIP SET FOR HW001G P/N:183Y95-9 Part No.: 183Y95-9
• 012: MAKITA TERMINAL UNIT FOR VC001G P/N:632T08-2 Part No.: 632T08-2
• 013: MAKITA PAN HEAD SCREW M3X6 P/N:652031-1 Part No.: 652031-1
• 014: MAKITA GRIP SET FOR HW001G P/N:183Y95-9 Part No.: 183Y95-9
• 016: MAKITA LOCK LEVER FOR VC001G P/N:413B41-3 Part No.: 413B41-3
• 017: MAKITA COMPRESSION SPRING 2 FOR DJR188 P/N:232472-3 Part No.: 232472-3
• 019: MAKITA TERMINAL PLATE COVER FOR HW001G P/N:413T33-0 Part No.: 413T33-0
• 020: MAKITA TERMINAL PLATE FOR HW001G P/N:413T30-6 Part No.: 413T30-6
• 022: MAKITA ACCESSORY HOLDER S FOR HW001G P/N:413T29-1 Part No.: 413T29-1
• 023: MAKITA FRONT HOUSING ASS'Y FOR HW001G P/N:137026-0 Part No.: 137026-0
• 027: MAKITA INNER HOUSING ASSEMBLY FOR HW001G P/N:137019-7 Part No.: 137019-7
• 028: MAKITA CONTROLLER FOR HW001G P/N:620M65-0 Part No.: 620M65-0
• 030: MAKITA SWITCH CIRCUIT COMPLETE FOR HW001G P/N:620M67-6 Part No.: 620M67-6
• 031: MAKITA INDICATION CIRCUIT COMPLETE FOR HW001G P/N:620M68-4 Part No.: 620M68-4
• 032: MAKITA SWITCH UNIT FOR HW001G P/N:632V07-6 Part No.: 632V07-6
• 033: MAKITA SWITCH DIAL 55 FOR HW001G P/N:413T27-5 Part No.: 413T27-5
• 036: MAKITA STOP RING E-10 FOR 2702 P/N:961016-9 Part No.: 961016-9
• 037: MAKITA SWITCH PANEL FOR HW001G P/N:413T37-2 Part No.: 413T37-2
• 040: MAKITA TERMINAL CASE SET FOR HW001G P/N:1830A1-1 Part No.: 1830A1-1
• 041: MAKITA TERMINAL CASE SET FOR HW001G P/N:1830A1-1 Part No.: 1830A1-1
• 045: MAKITA UPPER PIPE L FOR HW001G P/N:327C41-2 Part No.: 327C41-2
• 050: MAKITA LOWER PIPE L FOR HW001G P/N:327C43-8 Part No.: 327C43-8
• 054: MAKITA PIPE HOLDER FOR HW001G P/N:413T19-4 Part No.: 413T19-4
• 055: MAKITA UPPER PIPE L FOR HW001G P/N:327C42-0 Part No.: 327C42-0
• 060: MAKITA LOWER PIPE L FOR HW001G P/N:327C44-6 Part No.: 327C44-6
• 062: MAKITA O RING 5 FOR 5277NB P/N:213005-3 Part No.: 213005-3
• 065: MAKITA REAR HOUSING ASSEMBLY FOR HW001G P/N:137020-2 Part No.: 137020-2
• 067: MAKITA LOCK BUTTON FOR HW001G P/N:413T18-6 Part No.: 413T18-6
• 068: MAKITA COMPRESSION SPRING 6 FOR LM2300 P/N:233068-3 Part No.: 233068-3
• 069: MAKITA LOCK PIN FOR HW001G P/N:413T34-8 Part No.: 413T34-8
• 071: MAKITA REAR COVER FOR HW001G P/N:413T15-2 Part No.: 413T15-2
• 073: MAKITA ACCESSORY HOLDER R COMPLETE FOR HW001G P/N:141T09-4 Part No.: 141T09-4
• 075: MAKITA RECEIVE RUBBER P/N:422250-1 Part No.: 422250-1
• 076: MAKITA MOTOR HOUSING FOR DHW080/HW001G P/N:458326-8 Part No.: 458326-8
