MAKITA HS012G 165MM CORDLESS CIRCULAR SAW SPARE PARTS

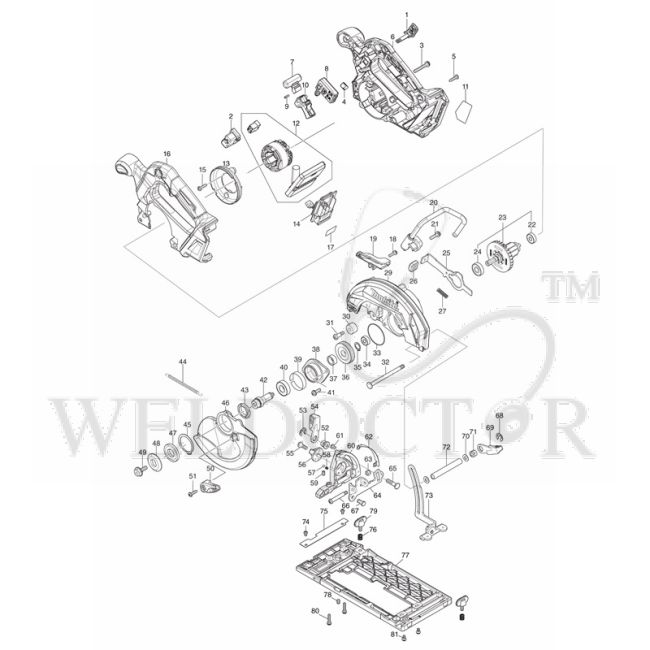

Spare Parts of Makita HS012G Cordless Circular Saw Ref. No. Part Name & Number Price 001 MAKITA CAP COMPLETE FOR DSP601 P/N:140G30-2 Part No.: 140G30-2 $1.96 Add To Cart 003 MAKITA PAN HEAD SCREW M5X35 P/N:911258-5 Part No.: 911258-5 $0.33 Add To Cart 004 MAKITA LED CIRCUIT FOR DC TOOL P/N:620936-3 Part No.: 620936-3 $8.72 Add To Cart 005 MAKITA TAPPING SCREW 4X18 P/N:265995-6 Part No.: 265995-6 $0.33 Add To Cart 006 MAKITA MOTOR HOUSING ASSEMBLY FOR HS012G P/N:136839-6 Part No.: 136839-6 $14.28 Add To Cart 007 MAKITA LOCK OFF BUTTON FOR DC TOOL P/N:419704-7 Part No.: 419704-7 $1.09 Add To Cart 008 MAKITA SWITCH C3XB-1LPSPM FOR HS009G P/N:650008-0 Part No.: 650008-0 $36.73 Add To Cart 009 MAKITA COMPRESSION SPRING 4 FOR 6019DWE P/N:231433-0 Part No.: 231433-0 $0.22 Add To Cart 010 MAKITA SWITCH LEVER FOR HS012G P/N:413N46-5 Part No.: 413N46-5 $0.65 Add To Cart 012 MAKITA STATOR ASS’Y FOR HS012G P/N:629B81-3 Part No.: 629B81-3 $178.76 Add To Cart 013 MAKITA BAFFLE PLATE FOR HS012G P/N:413N45-7 Part No.: 413N45-7 $1.09 Add To Cart 014 MAKITA TERMINAL UNIT FOR XGT P/N:632P65-6 Part No.: 632P65-6 $8.50 Add To Cart 015 MAKITA TAPPING SCREW 4X18 P/N:265995-6 Part No.: 265995-6 $0.33 Add To Cart 016 MAKITA HANDLE COVER ASSEMBLY FOR HS012G P/N:136840-1 Part No.: 136840-1 $8.61 Add To Cart 018 MAKITA PAN HEAD SCREW M4X16 P/N:911128-8 Part No.: 911128-8 $0.11 Add To Cart 020 MAKITA HOOK ASSEMBLY FOR HS012G P/N:122D67-3 Part No.: 122D67-3 $5.56 Add To Cart 021 MAKITA PAN HEAD SCREW M5X20 P/N:911233-1 Part No.: 911233-1 $0.33 Add To Cart 022 MAKITA BALL BEARING 6260DW FOR BHR200SF P/N:210022-4 Part No.: 210022-4 $2.73 Add To Cart 023 MAKITA ROTOR ASS’Y FOR HS012G P/N:519778-9 Part No.: 519778-9 $30.30 Add To Cart 024 MAKITA BALL BEARING 609DDW FOR UB1102 P/N:211491-2 Part No.: 211491-2 $2.73 Add To Cart 026 MAKITA CAP FOR HS003G P/N:286039-9 Part No.: 286039-9 $0.33 Add To Cart 027 MAKITA COMPRESSION SPRING 6 FOR GA7010C P/N:233117-6 Part No.: 233117-6 $0.22 Add To Cart 029 MAKITA BLADE CASE SET FOR HS012G P/N:183Y42-0 Part No.: 183Y42-0 $31.28 Add To Cart 030 MAKITA RUBBER SLEEVE 6 FOR N5900B(SG) P/N:262552-1 Part No.: 262552-1 $1.09 Add To Cart 031 MAKITA '+ PAN HEAD SCREW M5 FOR BHS630 P/N:265115-2 Part No.: 265115-2 $0.76 Add To Cart 032 MAKITA FLAT HEAD SQUARE NECK BOLT M6 P/N:266194-3 Part No.: 266194-3 $0.55 Add To Cart 033 MAKITA O RING 42 FOR LS0714 P/N:213565-5 Part No.: 213565-5 $0.65 Add To Cart 035 MAKITA RETAINING RING S-12 P/N:961052-5 Part No.: 961052-5 $0.33 Add To Cart 036 MAKITA HELICAL GEAR 52 FOR HS012G P/N:227A40-1 Part No.: 227A40-1 $5.01 Add To Cart 037 MAKITA SLEEVE 12 P/N:257349-1 Part No.: 257349-1 $1.64 Add To Cart 038 MAKITA BEARING BOX FOR DHS680/HS012G P/N:319212-7 Part No.: 319212-7 $3.49 Add To Cart 039 MAKITA THICKNESS RING 34 FOR HS012G P/N:347B30-5 Part No.: 347B30-5 $0.22 Add To Cart 040 MAKITA BALL BEARING 6001DDW FOR 9016B BO4556 P/N:211131-2 Part No.: 211131-2 $3.27 Add To Cart 041 MAKITA PAN HEAD SCREW M5X16 FOR LS1040 P/N:911223-4 Part No.: 911223-4 $0.33 Add To Cart 042 MAKITA SPINDLE FOR HS680D P/N:326459-6 Part No.: 326459-6 $3.05 Add To Cart 045 MAKITA RETAINING RING (EXT) S-34 FOR BSS610 P/N:961152-1 Part No.: 961152-1 $0.87 Add To Cart 046 MAKITA SAFETY COVER FOR HS012G P/N:312D77-0 Part No.: 312D77-0 $15.04 Add To Cart 047 MAKITA INNER FLANGE 35 FOR SP/DHS/HS/DLS P/N:224593-5 Part No.: 224593-5 $1.74 Add To Cart 048 MAKITA OUTER FLANGE 35 FOR 5008MG P/N:224409-4 Part No.: 224409-4 $1.64 Add To Cart 049 MAKITA HEX.SOCKET BOLT M6*18 P/N:266924-2 Part No.: 266924-2 $0.65 Add To Cart 050 MAKITA LEVER 37 FOR HS012G P/N:271474-4 Part No.: 271474-4 $0.65 Add To Cart 051 MAKITA TAPPING SCREW CT M4X16 P/N : 266034-5 FOR 9520B Part No.: 266034-5 $0.33 Add To Cart 052 MAKITA HEX. NUT M6 FOR HS012G P/N:252320-0 Part No.: 252320-0 $0.76 Add To Cart 053 MAKITA BOW STOP RING E-8 P/N:257982-9 Part No.: 257982-9 $0.55 Add To Cart 054 MAKITA LEVER 45 P/N:271446-9 Part No.: 271446-9 $1.42 Add To Cart 055 MAKITA PAN HEAD SCREW M5 P/N:251370-2 Part No.: 251370-2 $0.33 Add To Cart 056 MAKITA DIAL 27 FOR HS012G P/N:413N47-3 Part No.: 413N47-3 $0.98 Add To Cart 057 MAKITA STEEL BALL 4 FOR BTW201 / 4304 P/N:216008-6 Part No.: 216008-6 $0.22 Add To Cart 058 MAKITA SPRING 4 FOR DC/AC- SAW P/N:233314-4 Part No.: 233314-4 $0.22 Add To Cart 059 MAKITA H.S.SET SCREW M5X8 P/N:266436-5 Part No.: 266436-5 $0.44 Add To Cart 060 MAKITA ANGULAR PLATE FOR HS012G P/N:312D78-8 Part No.: 312D78-8 $5.89 Add To Cart 061 MAKITA '+PAN HEAD SCREW M4*8 P/N:251358-2 Part No.: 251358-2 $0.11 Add To Cart 062 MAKITA BEVEL GUIDE FOR HS012G P/N:347A92-7 Part No.: 347A92-7 $1.96 Add To Cart 063 MAKITA HEX. LOCK NUT M5-8 P/N:252103-8 Part No.: 252103-8 $0.33 Add To Cart 064 MAKITA ANGULAR GUIDE FOR HS012G P/N:347A90-1 Part No.: 347A90-1 $2.29 Add To Cart 065 MAKITA CAP SQUARE NECK BOLT M6X26 FOR MT580 P/N:266309-2 Part No.: 266309-2 $0.33 Add To Cart 066 MAKITA '+PAN HEAD SCREW M5 FOR 4140 P/N:265056-2 Part No.: 265056-2 $0.33 Add To Cart 067 MAKITA SHOULDER PIN 6-7 FOR MT581 P/N:256511-5 Part No.: 256511-5 $0.33 Add To Cart 068 MAKITA BOW STOP RING E-8 P/N:257982-9 Part No.: 257982-9 $0.55 Add To Cart 069 MAKITA LEVER 45 P/N:271446-9 Part No.: 271446-9 $1.42 Add To Cart 070 MAKITA FLAT WASHER 6 FOR HM0810 P/N:941151-9 Part No.: 941151-9 $0.11 Add To Cart 071 MAKITA HEX NUT M6 FOR HS680D P/N:264103-6 Part No.: 264103-6 $0.65 Add To Cart 072 MAKITA PIPE 6 FOR DHS680 P/N:332126-3 Part No.: 332126-3 $1.53 Add To Cart 073 MAKITA DEPTH GUIDE COMPLETE FOR HS012G P/N:162C19-6 Part No.: 162C19-6 $3.92 Add To Cart 075 MAKITA TOP GUIDE FOR HS012G P/N:347A93-5 Part No.: 347A93-5 $1.09 Add To Cart 077 MAKITA BASE FOR HS012G P/N:312D76-2 Part No.: 312D76-2 $33.68 Add To Cart 078 MAKITA H.S.SET SCREW M5X8 P/N:266436-5 Part No.: 266436-5 $0.44 Add To Cart 079 MAKITA THUMB SCREW M5X14 FOR HR2410 P/N:265720-5 Part No.: 265720-5 $0.76 Add To Cart 080 MAKITA PAN HEAD SCREW M4X20 P/N:911138-5 Part No.: 911138-5 $0.33 Add To Cart 081 MAKITA PAN HEAD SCREW M4X8 P/N:265648-7 Part No.: 265648-7 $0.33 Add To Cart

Brand: Makita

Specifications:

• Ref. No.: Part Name & Number
• 001: MAKITA CAP COMPLETE FOR DSP601 P/N:140G30-2 Part No.: 140G30-2
• 003: MAKITA PAN HEAD SCREW M5X35 P/N:911258-5 Part No.: 911258-5
• 004: MAKITA LED CIRCUIT FOR DC TOOL P/N:620936-3 Part No.: 620936-3
• 005: MAKITA TAPPING SCREW 4X18 P/N:265995-6 Part No.: 265995-6
• 006: MAKITA MOTOR HOUSING ASSEMBLY FOR HS012G P/N:136839-6 Part No.: 136839-6
• 007: MAKITA LOCK OFF BUTTON FOR DC TOOL P/N:419704-7 Part No.: 419704-7
• 008: MAKITA SWITCH C3XB-1LPSPM FOR HS009G P/N:650008-0 Part No.: 650008-0
• 009: MAKITA COMPRESSION SPRING 4 FOR 6019DWE P/N:231433-0 Part No.: 231433-0
• 010: MAKITA SWITCH LEVER FOR HS012G P/N:413N46-5 Part No.: 413N46-5
• 012: MAKITA STATOR ASS’Y FOR HS012G P/N:629B81-3 Part No.: 629B81-3
• 013: MAKITA BAFFLE PLATE FOR HS012G P/N:413N45-7 Part No.: 413N45-7
• 014: MAKITA TERMINAL UNIT FOR XGT P/N:632P65-6 Part No.: 632P65-6
• 015: MAKITA TAPPING SCREW 4X18 P/N:265995-6 Part No.: 265995-6
• 016: MAKITA HANDLE COVER ASSEMBLY FOR HS012G P/N:136840-1 Part No.: 136840-1
• 018: MAKITA PAN HEAD SCREW M4X16 P/N:911128-8 Part No.: 911128-8
• 020: MAKITA HOOK ASSEMBLY FOR HS012G P/N:122D67-3 Part No.: 122D67-3
• 021: MAKITA PAN HEAD SCREW M5X20 P/N:911233-1 Part No.: 911233-1
• 022: MAKITA BALL BEARING 6260DW FOR BHR200SF P/N:210022-4 Part No.: 210022-4
• 023: MAKITA ROTOR ASS’Y FOR HS012G P/N:519778-9 Part No.: 519778-9
• 024: MAKITA BALL BEARING 609DDW FOR UB1102 P/N:211491-2 Part No.: 211491-2
• 026: MAKITA CAP FOR HS003G P/N:286039-9 Part No.: 286039-9
• 027: MAKITA COMPRESSION SPRING 6 FOR GA7010C P/N:233117-6 Part No.: 233117-6
• 029: MAKITA BLADE CASE SET FOR HS012G P/N:183Y42-0 Part No.: 183Y42-0
• 030: MAKITA RUBBER SLEEVE 6 FOR N5900B(SG) P/N:262552-1 Part No.: 262552-1
• 031: MAKITA '+ PAN HEAD SCREW M5 FOR BHS630 P/N:265115-2 Part No.: 265115-2
• 032: MAKITA FLAT HEAD SQUARE NECK BOLT M6 P/N:266194-3 Part No.: 266194-3
• 033: MAKITA O RING 42 FOR LS0714 P/N:213565-5 Part No.: 213565-5
• 035: MAKITA RETAINING RING S-12 P/N:961052-5 Part No.: 961052-5
• 036: MAKITA HELICAL GEAR 52 FOR HS012G P/N:227A40-1 Part No.: 227A40-1
• 037: MAKITA SLEEVE 12 P/N:257349-1 Part No.: 257349-1
• 038: MAKITA BEARING BOX FOR DHS680/HS012G P/N:319212-7 Part No.: 319212-7
• 039: MAKITA THICKNESS RING 34 FOR HS012G P/N:347B30-5 Part No.: 347B30-5
• 040: MAKITA BALL BEARING 6001DDW FOR 9016B BO4556 P/N:211131-2 Part No.: 211131-2
• 041: MAKITA PAN HEAD SCREW M5X16 FOR LS1040 P/N:911223-4 Part No.: 911223-4
• 042: MAKITA SPINDLE FOR HS680D P/N:326459-6 Part No.: 326459-6
• 045: MAKITA RETAINING RING (EXT) S-34 FOR BSS610 P/N:961152-1 Part No.: 961152-1
• 046: MAKITA SAFETY COVER FOR HS012G P/N:312D77-0 Part No.: 312D77-0
• 047: MAKITA INNER FLANGE 35 FOR SP/DHS/HS/DLS P/N:224593-5 Part No.: 224593-5
• 048: MAKITA OUTER FLANGE 35 FOR 5008MG P/N:224409-4 Part No.: 224409-4
