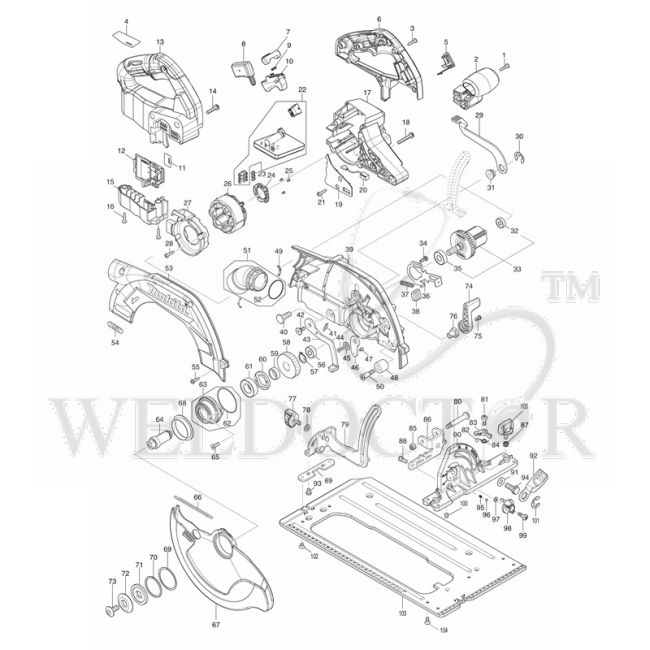

MAKITA HS010G CORDLESS CIRCULAR SAW SPARE PARTS

Spare Parts of Makita HS010G Circular Saw Ref. No. Part Name & Number Price 002 MAKITA FRONT GRIP FOR HS009G P/N:413C21-5 Part No.: 413C21-5 $8.50 Add To Cart 005 MAKITA CAP COMPLETE P/N:140F99-0 Part No.: 140F99-0 $2.07 Add To Cart 006 MAKITA HANDLE SET FOR HS009G P/N:183U47-6 Part No.: 183U47-6 $23.54 Add To Cart 007 MAKITA LOCK OFF BUTTON FOR DC TOOL P/N:419704-7 Part No.: 419704-7 $1.09 Add To Cart 008 MAKITA SWITCH C3XB-1LPSPM FOR HS009G P/N:650008-0 Part No.: 650008-0 $36.73 Add To Cart 009 MAKITA COMPRESSION SPRING 4 FOR 6019DWE P/N:231433-0 Part No.: 231433-0 $0.22 Add To Cart 010 MAKITA SWITCH LEVER FOR HS009G P/N:413C24-9 Part No.: 413C24-9 $0.87 Add To Cart 012 MAKITA TERMINAL UNIT FOR XGT P/N:632P65-6 Part No.: 632P65-6 $8.50 Add To Cart 013 MAKITA HANDLE SET FOR HS009G P/N:183U47-6 Part No.: 183U47-6 $23.54 Add To Cart 014 MAKITA PAN HEAD SCREW M5X25 P/N:911243-8 Part No.: 911243-8 $0.33 Add To Cart 015 MAKITA TERMINAL HOUSING FOR HS009G P/N:141G16-9 Part No.: 141G16-9 $4.14 Add To Cart 017 MAKITA MOTOR HOUSING FOR HS009G P/N:413C17-6 Part No.: 413C17-6 $16.02 Add To Cart 018 MAKITA PAN HEAD SCREW M5X35 P/N:911258-5 Part No.: 911258-5 $0.33 Add To Cart 019 MAKITA LIGHT COVER FOR HS009G P/N:413C23-1 Part No.: 413C23-1 $0.98 Add To Cart 020 MAKITA LED CIRCUIT FOR DC TOOL P/N:620936-3 Part No.: 620936-3 $8.72 Add To Cart 022 MAKITA CONTROLLER FOR HS009G P/N:620H80-4 Part No.: 620H80-4 $142.46 Add To Cart 023 MAKITA FLAT HEAD SCREW M3X6 P/N:652069-6 Part No.: 652069-6 $0.22 Add To Cart 027 MAKITA BAFFLE PLATE FOR HS009G P/N:413C22-3 Part No.: 413C22-3 $1.85 Add To Cart 029 MAKITA LEVER 132 P/N:271453-2 Part No.: 271453-2 $1.74 Add To Cart 030 MAKITA BOW STOP RING E-12 FOR 5008MG P/N:257953-6 Part No.: 257953-6 $0.44 Add To Cart 031 MAKITA COLLERED HEX. NUT M8 P/N:252262-8 Part No.: 252262-8 $0.98 Add To Cart 032 MAKITA BALL BEARING 6260DW FOR BHR200SF P/N:210022-4 Part No.: 210022-4 $2.73 Add To Cart 033 MAKITA ROTOR ASS'Y FOR HS009G P/N:519721-8 Part No.: 519721-8 $38.37 Add To Cart 034 MAKITA '+ PAN HEAD SCREW M4X14 P/N:251529-1 Part No.: 251529-1 $0.22 Add To Cart 036 MAKITA SHAFT LOCK FOR DC-HS P/N:347676-5 Part No.: 347676-5 $1.42 Add To Cart 037 MAKITA COMPRESSION SPRING 6 FOR CA5000 P/N:233084-5 Part No.: 233084-5 $0.33 Add To Cart 038 MAKITA CAP FOR HS003G P/N:286039-9 Part No.: 286039-9 $0.33 Add To Cart 039 MAKITA BLADE CASE COMPLETE FOR HS009G P/N:141G17-7 Part No.: 141G17-7 $54.61 Add To Cart 040 MAKITA F.HEAD SQUARE NECK BOLT M8X24 P/N:266396-1 Part No.: 266396-1 $0.44 Add To Cart 041 MAKITA TENSION SPRING 4 P/N:232563-0 Part No.: 232563-0 $0.22 Add To Cart 042 MAKITA '+ PAN HEAD SCREW M5*14 P/N:265A60-7 Part No.: 265A60-7 $0.76 Add To Cart 043 MAKITA OPEN LEVER P/N:162686-9 Part No.: 162686-9 $3.38 Add To Cart 044 MAKITA '+COUNTERSUNK HEAD SCREW M4X10 FOR MT360 P/N:265135-6 Part No.: 265135-6 $0.33 Add To Cart 045 MAKITA WASHER 6 P/N:347577-7 Part No.: 347577-7 $0.44 Add To Cart 046 MAKITA OPEN PLATE P/N:347576-9 Part No.: 347576-9 $0.98 Add To Cart 047 MAKITA HEX.SOCKET HEAD SCREW M3*4 P/N:265A82-7 Part No.: 265A82-7 $0.55 Add To Cart 048 MAKITA RUBBER SLEEVE 8 FOR HS003G P/N:262185-2 Part No.: 262185-2 $1.85 Add To Cart 050 MAKITA '+ COUNTERSUNK HEAD SCREW M6*30 P/N:251572-0 Part No.: 251572-0 $0.65 Add To Cart 051 MAKITA DUST NOZZLE ASS'Y P/N:136173-4 Part No.: 136173-4 $2.62 Add To Cart 052 MAKITA O-RING 30 FOR 9530B P/N:213444-7 Part No.: 213444-7 $0.33 Add To Cart 053 MAKITA BLADE CASE COVER FOR HS009G P/N:312C12-2 Part No.: 312C12-2 $32.16 Add To Cart 055 MAKITA TAPPING SCREW CT M4X16 P/N : 266034-5 FOR 9520B Part No.: 266034-5 $0.33 Add To Cart 056 MAKITA BALL BEARING 608ZZ P/N:210029-0 Part No.: 210029-0 $1.20 Add To Cart 057 MAKITA RETAINING RING S-17 P/N:961057-5 Part No.: 961057-5 $0.33 Add To Cart 058 MAKITA HELICAL GEAR 46 P/N:226934-1 Part No.: 226934-1 $4.91 Add To Cart 059 MAKITA RING 17 FOR HS003G P/N:257451-0 Part No.: 257451-0 $1.09 Add To Cart 060 MAKITA BEARING RETAINER 23-36 P/N:285809-3 Part No.: 285809-3 $1.20 Add To Cart 061 MAKITA BALL BEARING 6003DDW P/N:210301-0 Part No.: 210301-0 $5.34 Add To Cart 062 MAKITA O RING 46 FOR 5008MG P/N:213623-7 Part No.: 213623-7 $0.33 Add To Cart 063 MAKITA BEARING BOX FOR HS009-010G/DHS900 P/N:136192-0 Part No.: 136192-0 $4.58 Add To Cart 064 MAKITA SPINDLE FOR HS009G P/N:327192-3 Part No.: 327192-3 $3.27 Add To Cart 065 MAKITA COUNTERSUNK HEAD SCREW M5X16 P/N:265034-2 Part No.: 265034-2 $0.33 Add To Cart 066 MAKITA TENSION SPRING 6 P/N:232562-2 Part No.: 232562-2 $1.31 Add To Cart 067 MAKITA SAFETY COVER FOR HS009G P/N:312C14-8 Part No.: 312C14-8 $28.67 Add To Cart 068 MAKITA SPACER P/N:459830-0 Part No.: 459830-0 $1.09 Add To Cart 069 MAKITA FLAT WASHER 40 P/N:267337-0 Part No.: 267337-0 $0.87 Add To Cart 070 MAKITA RETAINING RING (EXT) WR-40 P/N:257452-8 Part No.: 257452-8 $0.98 Add To Cart 071 MAKITA INNER FLANGE 40 P/N:224609-6 Part No.: 224609-6 $5.34 Add To Cart 072 MAKITA OUTER FLANGE 40 P/N:224600-4 Part No.: 224600-4 $1.74 Add To Cart 073 MAKITA HEX.SOCKET HEAD BOLT M8 P/N:265A59-2 Part No.: 265A59-2 $0.44 Add To Cart 074 MAKITA LEVER 55 P/N:271451-6 Part No.: 271451-6 $1.53 Add To Cart 075 MAKITA PAN HEAD SCREW M4X10 FOR 3700B P/N:911113-1 Part No.: 911113-1 $0.22 Add To Cart 076 MAKITA HEX.NUT M4 16 P/N:252275-9 Part No.: 252275-9 $1.42 Add To Cart 078 MAKITA FLAT WASHER 6 FOR HM0810 P/N:941151-9 Part No.: 941151-9 $0.11 Add To Cart 081 MAKITA PAN HEAD SCREW M5 P/N:251370-2 Part No.: 251370-2 $0.33 Add To Cart 082 MAKITA HEX.SOCKET SET SCREW M5*6 FOR SS610D P/N:266264-8 Part No.: 266264-8 $0.33 Add To Cart 085 MAKITA HEX. LOCK NUT M6-10 FOR LS1013 P/N:252014-7 Part No.: 252014-7 $0.33 Add To Cart 087 MAKITA SPRING 8 FOR DC/AC-GA/HS P/N:233376-2 Part No.: 233376-2 $0.11 Add To Cart 090 MAKITA ANGULAR PLATE FOR HS009G P/N:312C19-8 Part No.: 312C19-8 $23.54 Add To Cart 091 MAKITA FLAT WASHER 8 P/N:941201-0 Part No.: 941201-0 $0.11 Add To Cart 095 MAKITA SPRING 4 FOR DC/AC- SAW P/N:233314-4 Part No.: 233314-4 $0.22 Add To Cart 096 MAKITA STEEL BALL 4 FOR BTW201 / 4304 P/N:216008-6 Part No.: 216008-6 $0.22 Add To Cart 097 MAKITA FLAT WASHER 5 FOR 5016B Part No.: 253811-4 $0.33 Add To Cart 099 MAKITA PAN HEAD SCREW M5 P/N:251370-2 Part No.: 251370-2 $0.33 Add To Cart 100 MAKITA HEX.SOCKET HEAD BOLT M6X8 FOR LS0714 P/N:266208-8 Part No.: 266208-8 $0.65 Add To Cart 101 MAKITA BOW STOP RING E-12 FOR 5008MG P/N:257953-6 Part No.: 257953-6 $0.44 Add To Cart 102 MAKITA COUNTERSUNK HEAD SCREW M5X8 FOR 4110C P/N:912202-5 Part No.: 912202-5 $0.22 Add To Cart 104 MAKITA CSK HEAD SCREW M5X12 FOR 9045B Part No.: 912212-2 $0.22 Add To Cart

Brand: Makita

Specifications:

• Ref. No.: Part Name & Number
• 002: MAKITA FRONT GRIP FOR HS009G P/N:413C21-5 Part No.: 413C21-5
• 005: MAKITA CAP COMPLETE P/N:140F99-0 Part No.: 140F99-0
• 006: MAKITA HANDLE SET FOR HS009G P/N:183U47-6 Part No.: 183U47-6
• 007: MAKITA LOCK OFF BUTTON FOR DC TOOL P/N:419704-7 Part No.: 419704-7
• 008: MAKITA SWITCH C3XB-1LPSPM FOR HS009G P/N:650008-0 Part No.: 650008-0
• 009: MAKITA COMPRESSION SPRING 4 FOR 6019DWE P/N:231433-0 Part No.: 231433-0
• 010: MAKITA SWITCH LEVER FOR HS009G P/N:413C24-9 Part No.: 413C24-9
• 012: MAKITA TERMINAL UNIT FOR XGT P/N:632P65-6 Part No.: 632P65-6
• 013: MAKITA HANDLE SET FOR HS009G P/N:183U47-6 Part No.: 183U47-6
• 014: MAKITA PAN HEAD SCREW M5X25 P/N:911243-8 Part No.: 911243-8
• 015: MAKITA TERMINAL HOUSING FOR HS009G P/N:141G16-9 Part No.: 141G16-9
• 017: MAKITA MOTOR HOUSING FOR HS009G P/N:413C17-6 Part No.: 413C17-6
• 018: MAKITA PAN HEAD SCREW M5X35 P/N:911258-5 Part No.: 911258-5
• 019: MAKITA LIGHT COVER FOR HS009G P/N:413C23-1 Part No.: 413C23-1
• 020: MAKITA LED CIRCUIT FOR DC TOOL P/N:620936-3 Part No.: 620936-3
• 022: MAKITA CONTROLLER FOR HS009G P/N:620H80-4 Part No.: 620H80-4
• 023: MAKITA FLAT HEAD SCREW M3X6 P/N:652069-6 Part No.: 652069-6
• 027: MAKITA BAFFLE PLATE FOR HS009G P/N:413C22-3 Part No.: 413C22-3
• 029: MAKITA LEVER 132 P/N:271453-2 Part No.: 271453-2
• 030: MAKITA BOW STOP RING E-12 FOR 5008MG P/N:257953-6 Part No.: 257953-6
• 031: MAKITA COLLERED HEX. NUT M8 P/N:252262-8 Part No.: 252262-8
• 032: MAKITA BALL BEARING 6260DW FOR BHR200SF P/N:210022-4 Part No.: 210022-4
• 033: MAKITA ROTOR ASS'Y FOR HS009G P/N:519721-8 Part No.: 519721-8
• 034: MAKITA '+ PAN HEAD SCREW M4X14 P/N:251529-1 Part No.: 251529-1
• 036: MAKITA SHAFT LOCK FOR DC-HS P/N:347676-5 Part No.: 347676-5
• 037: MAKITA COMPRESSION SPRING 6 FOR CA5000 P/N:233084-5 Part No.: 233084-5
• 038: MAKITA CAP FOR HS003G P/N:286039-9 Part No.: 286039-9
• 039: MAKITA BLADE CASE COMPLETE FOR HS009G P/N:141G17-7 Part No.: 141G17-7
• 040: MAKITA F.HEAD SQUARE NECK BOLT M8X24 P/N:266396-1 Part No.: 266396-1
• 041: MAKITA TENSION SPRING 4 P/N:232563-0 Part No.: 232563-0
• 042: MAKITA '+ PAN HEAD SCREW M5*14 P/N:265A60-7 Part No.: 265A60-7
• 043: MAKITA OPEN LEVER P/N:162686-9 Part No.: 162686-9
• 044: MAKITA '+COUNTERSUNK HEAD SCREW M4X10 FOR MT360 P/N:265135-6 Part No.: 265135-6
• 045: MAKITA WASHER 6 P/N:347577-7 Part No.: 347577-7
• 046: MAKITA OPEN PLATE P/N:347576-9 Part No.: 347576-9
• 047: MAKITA HEX.SOCKET HEAD SCREW M3*4 P/N:265A82-7 Part No.: 265A82-7
• 048: MAKITA RUBBER SLEEVE 8 FOR HS003G P/N:262185-2 Part No.: 262185-2
• 050: MAKITA '+ COUNTERSUNK HEAD SCREW M6*30 P/N:251572-0 Part No.: 251572-0
• 051: MAKITA DUST NOZZLE ASS'Y P/N:136173-4 Part No.: 136173-4
