MAKITA HR4013C 40MM ROTARY HAMMER SPARE PARTS

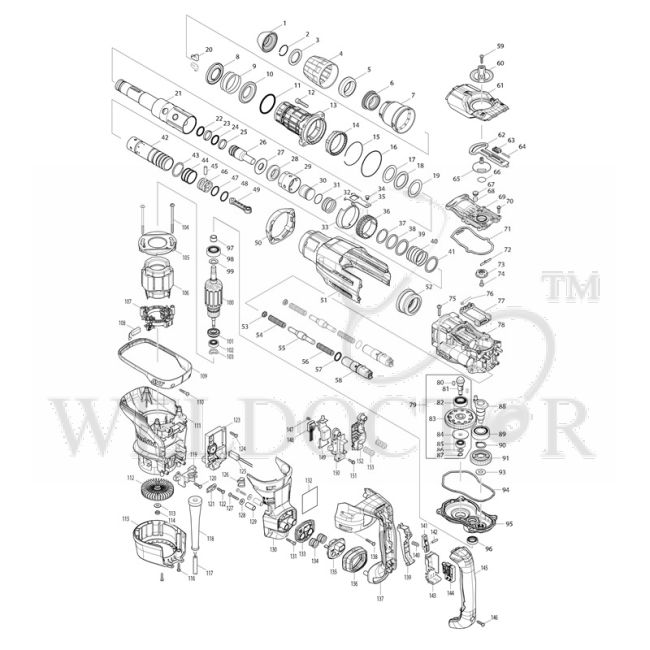

Spare Parts of Makita HR4013C Rotary Hammer Ref. No. Part Name & Number Price 001 MAKITA TOOL HOLDER CAP FOR HR5202C P/N:286292-7 Part No.: 286292-7 $1.74 Add To Cart 002 MAKITA RING SPRING 25 FOR DC/AC-HR/HM P/N:233948-3 Part No.: 233948-3 $0.87 Add To Cart 003 MAKITA RING 28 FOR DC/AC-HR P/N:257308-5 Part No.: 257308-5 $1.31 Add To Cart 004 MAKITA CHUCK COVER FOR DC/AC-HR P/N:454330-5 Part No.: 454330-5 $2.07 Add To Cart 005 MAKITA RUBBER RING 30 FOR DC/AC-HR P/N:262167-4 Part No.: 262167-4 $5.12 Add To Cart 006 MAKITA CHUCK RING FOR DC/AC-HR P/N:326272-2 Part No.: 326272-2 $5.67 Add To Cart 007 MAKITA RELEASE COVER FOR DC/AC-HR P/N:454331-3 Part No.: 454331-3 $2.62 Add To Cart 008 MAKITA SPRING GUIDE FOR DC/AC-HR P/N:346670-4 Part No.: 346670-4 $0.76 Add To Cart 009 MAKITA SPRING 46 FOR DC/AC-HR P/N:234288-2 Part No.: 234288-2 $0.44 Add To Cart 010 MAKITA SPRING GUIDE FOR DC/AC-HR P/N:346670-4 Part No.: 346670-4 $0.76 Add To Cart 011 MAKITA O RING 46 FOR HR3000C P/N:213615-6 Part No.: 213615-6 $0.65 Add To Cart 012 MAKITA HEX BOLT BOLT FOR HM1130 Part No.: 922351-0 $0.55 Add To Cart 013 MAKITA BARREL COM FOR DC/AC-HR P/N:141956-9 Part No.: 141956-9 $54.50 Add To Cart 014 MAKITA LOCK SLEEVE FOR DC/AC-HR P/N:454337-1 Part No.: 454337-1 $1.42 Add To Cart 015 MAKITA RING SPRING 59 FOR DC/AC-HR P/N:234290-5 Part No.: 234290-5 $0.33 Add To Cart 016 MAKITA O RING 65 FOR HM1302 P/N:213707-1 Part No.: 213707-1 $0.76 Add To Cart 017 MAKITA FLAT WASHER 32 P/N:267469-3 Part No.: 267469-3 $0.44 Add To Cart 018 MAKITA RUBBER RING 32 FOR DC/AC-HR P/N:262168-2 Part No.: 262168-2 $2.40 Add To Cart 019 MAKITA FLAT WASHER 32 P/N:267469-3 Part No.: 267469-3 $0.44 Add To Cart 020 MAKITA TOOL RETAINER FOR HR005G/HR4013C P/N:310257-8 Part No.: 310257-8 $7.85 Add To Cart 021 MAKITA TOOL HOLDER FOR DC/AC-HR P/N:326268-3 Part No.: 326268-3 $134.94 Add To Cart 022 MAKITA O RING 20 FOR HR4000C P/N : 213317-4 Part No.: 213317-4 $0.55 Add To Cart 023 MAKITA FLUORIDE RING 25 FOR HR4000C P/N:213392-0 Part No.: 213392-0 $12.86 Add To Cart 024 MAKITA O RING 20 FOR HR4000C P/N : 213317-4 Part No.: 213317-4 $0.55 Add To Cart 025 MAKITA FLUORIDE RING 25 FOR HR4000C P/N:213392-0 Part No.: 213392-0 $12.86 Add To Cart 026 MAKITA IMPACT BOLT P/N:326269-1 Part No.: 326269-1 $5.34 Add To Cart 027 MAKITA RING 17 FOR DC/AC-HR P/N:326274-8 Part No.: 326274-8 $2.51 Add To Cart 028 MAKITA RUBBER RING 18 FOR DC/AC-HR P/N:262166-6 Part No.: 262166-6 $5.45 Add To Cart 029 MAKITA SLIDE SLEEVE FOR HR005G/4013G P/N:454347-8 Part No.: 454347-8 $1.74 Add To Cart 030 MAKITA STRIKER FOR DC/AC-HR P/N:326270-6 Part No.: 326270-6 $3.27 Add To Cart 031 MAKITA O RING 22 FOR HR4013C P/N:213695-2 Part No.: 213695-2 $4.58 Add To Cart 032 MAKITA SPRING 33 FOR DC/AC-HR P/N:234289-0 Part No.: 234289-0 $0.33 Add To Cart 033 MAKITA GUIDE RING FOR DC/AC-HR P/N:346673-8 Part No.: 346673-8 $5.12 Add To Cart 034 MAKITA FH FILLISTER PIN 6 FOR DC/AC-HR P/N:256548-2 Part No.: 256548-2 $0.76 Add To Cart 035 MAKITA LINK PLATE FOR DC/AC-HR P/N:346671-2 Part No.: 346671-2 $1.09 Add To Cart 036 MAKITA DRIVING SLEEVE FOR DC-HR P/N:313255-1 Part No.: 313255-1 $12.86 Add To Cart 037 MAKITA R. RING(EXT)WR-32.5 FOR DC/AC-HR P/N:257991-8 Part No.: 257991-8 $0.87 Add To Cart 038 MAKITA RING 33 FOR DC/AC-HR P/N:257340-9 Part No.: 257340-9 $1.20 Add To Cart 039 MAKITA FLAT WASHER 33 P/N:267470-8 Part No.: 267470-8 $1.20 Add To Cart 040 MAKITA SPRING 34 FOR DC/AC-HR P/N:234287-4 Part No.: 234287-4 $0.76 Add To Cart 041 MAKITA FLAT WASHER 33 P/N:267470-8 Part No.: 267470-8 $1.20 Add To Cart 042 MAKITA CYLINDER 28.5 P/N:332063-1 Part No.: 332063-1 $29.54 Add To Cart 043 MAKITA R. RING(EXT)WR-32.5 FOR DC/AC-HR P/N:257991-8 Part No.: 257991-8 $0.87 Add To Cart 044 MAKITA O RING 30 FOR HM1201 P/N:213406-5 Part No.: 213406-5 $0.33 Add To Cart 045 MAKITA PIN 7 FOR DC/AC-HR P/N:256197-5 Part No.: 256197-5 $0.55 Add To Cart 046 MAKITA PISTON FOR DC/AC-HR P/N:419004-5 Part No.: 419004-5 $1.64 Add To Cart 047 MAKITA O RING 21 FOR HR4013C P/N:213379-2 Part No.: 213379-2 $0.33 Add To Cart 048 MAKITA O RING 22 FOR HR4013C P/N:213695-2 Part No.: 213695-2 $4.58 Add To Cart 049 MAKITA CONNECTING ROD FOR DC/AC-HR P/N:454317-7 Part No.: 454317-7 $5.89 Add To Cart 050 MAKITA HOUSING CAP FOR HR4013C P/N:424560-2 Part No.: 424560-2 $1.53 Add To Cart 052 MAKITA SPIRAL BEVEL GEAR 26 FOR DC/AC-HR P/N:227613-4 Part No.: 227613-4 $18.86 Add To Cart 053 MAKITA SPRING PLATE FOR HR005G P/N:454342-8 Part No.: 454342-8 $0.65 Add To Cart 054 MAKITA COMPRESSION SPRING 11 FOR HR4013 P/N:234286-6 Part No.: 234286-6 $0.33 Add To Cart 055 MAKITA COUNTER WEIGHT FOR HR4013C P/N:326273-0 Part No.: 326273-0 $2.83 Add To Cart 056 MAKITA COMPRESSION SPRING 11 FOR HR4013 P/N:234286-6 Part No.: 234286-6 $0.33 Add To Cart 057 MAKITA O RING 19 FOR TD0101F P/N:213325-5 Part No.: 213325-5 $0.33 Add To Cart 059 MAKITA TAPPING SCREW 4X18 P/N:265995-6 Part No.: 265995-6 $0.33 Add To Cart 060 MAKITA CHANGE LEVER FOR DC/AC-HR P/N:454326-6 Part No.: 454326-6 $2.18 Add To Cart 061 MAKITA CRANK CAP COVER P/N:318988-3 Part No.: 318988-3 $7.96 Add To Cart 062 MAKITA CONTROL PLATE P/N:454339-7 Part No.: 454339-7 $2.18 Add To Cart 063 MAKITA SLIDE PLATE P/N:454340-2 Part No.: 454340-2 $0.87 Add To Cart 064 MAKITA COMPRESSION SPRING 4 P/N:234284-0 Part No.: 234284-0 $0.22 Add To Cart 065 MAKITA CRANK LEVER FOR DC/AC-HR P/N:454345-2 Part No.: 454345-2 $1.53 Add To Cart 066 MAKITA O RING 18 FOR 4100NH HR2810 P/N:213262-3 Part No.: 213262-3 $0.33 Add To Cart 067 MAKITA FILTER CAP FOR DC/AC-HR P/N:424556-3 Part No.: 424556-3 $0.44 Add To Cart 068 MAKITA FILTER FOR DC/AC-HR P/N:443182-9 Part No.: 443182-9 $0.55 Add To Cart 069 MAKITA CRANK CAP FOR DC/AC-HR P/N:454319-3 Part No.: 454319-3 $4.03 Add To Cart 070 MAKITA PAN HEAD SCREW M4X16 P/N:911128-8 Part No.: 911128-8 $0.11 Add To Cart 071 MAKITA SEAL RING B FOR DC/AC-HR P/N:424559-7 Part No.: 424559-7 $0.98 Add To Cart 072 MAKITA LEAF SPRING FOR HR005G P/N:232280-2 Part No.: 232280-2 $0.55 Add To Cart 073 MAKITA LINK LEVER P/N:454318-5 Part No.: 454318-5 $1.20 Add To Cart 075 MAKITA TAPPING SCREW M5X25 FOR GA5010 Part No.: 266041-8 $0.44 Add To Cart 076 MAKITA TORSION SPRING 7 FOR DC/AC-HR P/N:233603-7 Part No.: 233603-7 $0.33 Add To Cart 077 MAKITA LINK GUIDE FOR DC/AC-HR P/N:454338-9 Part No.: 454338-9 $2.62 Add To Cart 079 MAKITA TORQUE LIMITER ASS'Y FOR DC/AC-HR P/N:126290-8 Part No.: 126290-8 $120.12 Add To Cart 080 MAKITA KEY 4 FOR DC/AC-HR P/N:254239-9 Part No.: 254239-9 $1.09 Add To Cart 081 MAKITA SPIRAL BEVEL GEAR 7 FOR DC/AC-HR P/N:227612-6 Part No.: 227612-6 $8.39 Add To Cart 082 MAKITA BALL BEARING 6002LLU FOR HK0500 HR2810 P/N:211232-6 Part No.: 211232-6 $3.82 Add To Cart 083 MAKITA TORQUE LIMITTER COMPLETE FOR HR4003C P/N:141959-3 Part No.: 141959-3 $71.83 Add To Cart 084 MAKITA SHOULDER WASHER 8 FOR DC/AC-HR P/N:324727-1 Part No.: 324727-1 $5.23 Add To Cart 085 MAKITA BALL BEARING 608DDW FOR HR4000C/PV7000C P/N:210005-4 Part No.: 210005-4 $1.53 Add To Cart 086 MAKITA FLAT WASHER 8 P/N:253215-0 Part No.: 253215-0 $0.33 Add To Cart 087 MAKITA RETAINING RING S-8 P/N:961004-6 Part No.: 961004-6 $0.11 Add To Cart 088 MAKITA CRANK SHAFT P/N:326271-4 Part No.: 326271-4 $11.66 Add To Cart 089 MAKITA BALL BEARING 6004LLU FOR HR3000C P/N:211332-2 Part No.: 211332-2 $6.00 Add To Cart 090 MAKITA RETAINING RING S-20 P/N:961060-6 Part No.: 961060-6 $0.44 Add To Cart 091 MAKITA HELICAL GEAR 37 FOR HR4013C P/N:227772-4 Part No.: 227772-4 $7.85 Add To Cart 093 MAKITA FLAT WASHER 10 P/N:253180-3 Part No.: 253180-3 $0.44 Add To Cart 094 MAKITA SEAL RING A FOR DC/AC-HR P/N:424558-9 Part No.: 424558-9 $0.98 Add To Cart 095 MAKITA GEAR HOUSING COM FOR DC/AC-HR P/N:141955-1 Part No.: 141955-1 $46.33 Add To Cart 096 MAKITA OIL SEAL FOR HR4001C Part No.: 213231-4 $3.38 Add To Cart 097 MAKITA SLEEVE 12 FOR DC/AC-HR/HM P/N:331596-3 Part No.: 331596-3 $1.20 Add To Cart 098 MAKITA BALL BEARING 6201LLU FOR 4140 P/N:211137-0 Part No.: 211137-0 $4.14 Add To Cart 099 MAKITA FLAT WASHER 12 P/N:253744-3 Part No.: 253744-3 $0.33 Add To Cart 100 MAKITA ARMATURE 240V FOR HR4013C P/N:513888-4 Part No.: 513888-4 $80.33 Add To Cart 101 MAKITA INSULATION WASHER FOR HR4000C P/N:681650-6 Part No.: 681650-6 $6.00 Add To Cart 102 MAKITA BALL BEARING 608DDW FOR HR4000C/PV7000C P/N:210005-4 Part No.: 210005-4 $1.53 Add To Cart 103 MAKITA WAVE WASHER 15 P/N:267721-9 Part No.: 267721-9 $0.33 Add To Cart 105 MAKITA BAFFLE PLATE P/N:454329-0 Part No.: 454329-0 $1.96 Add To Cart 106 MAKITA FIELD 220-240V FOR HR4030C P/N:625758-6 Part No.: 625758-6 $27.03 Add To Cart 107 MAKITA BRUSH HOLDE UNIT P/N:632A84-2 Part No.: 632A84-2 $12.21 Add To Cart 108 MAKITA CARBON BRUSH CB-350 Part No.: 194160-9 $5.50 Add To Cart 109 MAKITA GUARD 40 FOR DHR400 P/N:454348-6 Part No.: 454348-6 $9.27 Add To Cart 110 MAKITA TAPPING SCREW FLANGE M4X25 P/N:265999-8 Part No.: 265999-8 $0.33 Add To Cart 111 MAKITA MOTOR HOUSING FOR HR4003/4013C P/N:454316-9 Part No.: 454316-9 $22.56 Add To Cart 112 MAKITA FAN 76 P/N:240146-2 Part No.: 240146-2 $8.07 Add To Cart 113 MAKITA FLAT WASHER 6 FOR HR3000C P/N:253047-5 Part No.: 253047-5 $0.33 Add To Cart 114 MAKITA HEX. NUT M6 FOR LS1510 P/N:931303-0 Part No.: 931303-0 $0.33 Add To Cart 115 MAKITA REAR COVER P/N:454328-2 Part No.: 454328-2 $9.37 Add To Cart 116 MAKITA TAPPING SCREW 4X18 P/N:265995-6 Part No.: 265995-6 $0.33 Add To Cart 118 MAKITA CORD GUARD 10 FOR HR3000C P/N:682560-0 Part No.: 682560-0 $1.64 Add To Cart 119 MAKITA CORD CLAMP BASE FOR HR4001C P/N:419024-9 Part No.: 419024-9 $1.09 Add To Cart 120 MAKITA TAPPING SCREW 4X18 P/N:265995-6 Part No.: 265995-6 $0.33 Add To Cart 121 MAKITA STRAIN RELIEF FOR HP1620 HR2810 P/N:687169-3 Part No.: 687169-3 $0.44 Add To Cart 122 MAKITA TAPPING SCREW 4X18 P/N:265995-6 Part No.: 265995-6 $0.33 Add To Cart 123 MAKITA CONTROLLER FOR HR4013C P/N:620200-2 Part No.: 620200-2 $121.10 Add To Cart 124 MAKITA TAPPING SCREW 4X18 P/N:265995-6 Part No.: 265995-6 $0.33 Add To Cart 125 MAKITA LEAD UNIT P/N:632B52-1 Part No.: 632B52-1 $2.40 Add To Cart 126 MAKITA LENS P/N:454346-0 Part No.: 454346-0 $0.87 Add To Cart 127 MAKITA TAPPING SCREW FLANGE M4X25 P/N:265999-8 Part No.: 265999-8 $0.33 Add To Cart 128 MAKITA FLAT WASHER 5 FOR UB120D/2012NB P/N:253194-2 Part No.: 253194-2 $0.33 Add To Cart 131 MAKITA TAPPING SCREW M5X25 FOR GA5010 Part No.: 266041-8 $0.44 Add To Cart 134 MAKITA COMPRESSION SPRING 18.5 FOR HR4013C P/N:234283-2 Part No.: 234283-2 $0.33 Add To Cart 138 MAKITA TAPPING SCREW FLANGE M4X25 P/N:265999-8 Part No.: 265999-8 $0.33 Add To Cart 143 MAKITA SWITCH HOLDER CPL FOR HR4001C P/N:154626-1 Part No.: 154626-1 $1.64 Add To Cart 144 MAKITA SWITCH C3PA-1121 FOR HR4003C P/N:650678-5 Part No.: 650678-5 $10.90 Add To Cart 145 MAKITA HANDLE COVER P/N:454323-2 Part No.: 454323-2 $12.86 Add To Cart 146 MAKITA TAPPING SCREW 4X18 P/N:265995-6 Part No.: 265995-6 $0.33 Add To Cart 147 MAKITA COMPRESSION SPRING 6 P/N:234281-6 Part No.: 234281-6 $0.22 Add To Cart 148 MAKITA SWITCH UNIT FOR HR4003C/5212C P/N:632A83-4 Part No.: 632A83-4 $27.14 Add To Cart 149 MAKITA SWITCH LEVER C FOR HR4013C/5212C P/N:454336-3 Part No.: 454336-3 $1.85 Add To Cart 150 MAKITA SWITCH CASE SET FOR HR4003C/4013C P/N:187692-3 Part No.: 187692-3 $3.05 Add To Cart 151 MAKITA PAN HEAD SCREW M4X16 P/N:911128-8 Part No.: 911128-8 $0.11 Add To Cart 152 MAKITA SWITCH CASE SET FOR HR4003C/4013C P/N:187692-3 Part No.: 187692-3 $3.05 Add To Cart

Brand: Makita

Specifications:

• Ref. No.: Part Name & Number
• 001: MAKITA TOOL HOLDER CAP FOR HR5202C P/N:286292-7 Part No.: 286292-7
• 002: MAKITA RING SPRING 25 FOR DC/AC-HR/HM P/N:233948-3 Part No.: 233948-3
• 003: MAKITA RING 28 FOR DC/AC-HR P/N:257308-5 Part No.: 257308-5
• 004: MAKITA CHUCK COVER FOR DC/AC-HR P/N:454330-5 Part No.: 454330-5
• 005: MAKITA RUBBER RING 30 FOR DC/AC-HR P/N:262167-4 Part No.: 262167-4
• 006: MAKITA CHUCK RING FOR DC/AC-HR P/N:326272-2 Part No.: 326272-2
• 007: MAKITA RELEASE COVER FOR DC/AC-HR P/N:454331-3 Part No.: 454331-3
• 008: MAKITA SPRING GUIDE FOR DC/AC-HR P/N:346670-4 Part No.: 346670-4
• 009: MAKITA SPRING 46 FOR DC/AC-HR P/N:234288-2 Part No.: 234288-2
• 010: MAKITA SPRING GUIDE FOR DC/AC-HR P/N:346670-4 Part No.: 346670-4
• 011: MAKITA O RING 46 FOR HR3000C P/N:213615-6 Part No.: 213615-6
• 012: MAKITA HEX BOLT BOLT FOR HM1130 Part No.: 922351-0
• 013: MAKITA BARREL COM FOR DC/AC-HR P/N:141956-9 Part No.: 141956-9
• 014: MAKITA LOCK SLEEVE FOR DC/AC-HR P/N:454337-1 Part No.: 454337-1
• 015: MAKITA RING SPRING 59 FOR DC/AC-HR P/N:234290-5 Part No.: 234290-5
• 016: MAKITA O RING 65 FOR HM1302 P/N:213707-1 Part No.: 213707-1
• 017: MAKITA FLAT WASHER 32 P/N:267469-3 Part No.: 267469-3
• 018: MAKITA RUBBER RING 32 FOR DC/AC-HR P/N:262168-2 Part No.: 262168-2
• 019: MAKITA FLAT WASHER 32 P/N:267469-3 Part No.: 267469-3
• 020: MAKITA TOOL RETAINER FOR HR005G/HR4013C P/N:310257-8 Part No.: 310257-8
• 021: MAKITA TOOL HOLDER FOR DC/AC-HR P/N:326268-3 Part No.: 326268-3
• 022: MAKITA O RING 20 FOR HR4000C P/N : 213317-4 Part No.: 213317-4
• 023: MAKITA FLUORIDE RING 25 FOR HR4000C P/N:213392-0 Part No.: 213392-0
• 024: MAKITA O RING 20 FOR HR4000C P/N : 213317-4 Part No.: 213317-4
• 025: MAKITA FLUORIDE RING 25 FOR HR4000C P/N:213392-0 Part No.: 213392-0
• 026: MAKITA IMPACT BOLT P/N:326269-1 Part No.: 326269-1
• 027: MAKITA RING 17 FOR DC/AC-HR P/N:326274-8 Part No.: 326274-8
• 028: MAKITA RUBBER RING 18 FOR DC/AC-HR P/N:262166-6 Part No.: 262166-6
• 029: MAKITA SLIDE SLEEVE FOR HR005G/4013G P/N:454347-8 Part No.: 454347-8
• 030: MAKITA STRIKER FOR DC/AC-HR P/N:326270-6 Part No.: 326270-6
• 031: MAKITA O RING 22 FOR HR4013C P/N:213695-2 Part No.: 213695-2
• 032: MAKITA SPRING 33 FOR DC/AC-HR P/N:234289-0 Part No.: 234289-0
• 033: MAKITA GUIDE RING FOR DC/AC-HR P/N:346673-8 Part No.: 346673-8
• 034: MAKITA FH FILLISTER PIN 6 FOR DC/AC-HR P/N:256548-2 Part No.: 256548-2
• 035: MAKITA LINK PLATE FOR DC/AC-HR P/N:346671-2 Part No.: 346671-2
• 036: MAKITA DRIVING SLEEVE FOR DC-HR P/N:313255-1 Part No.: 313255-1
• 037: MAKITA R. RING(EXT)WR-32.5 FOR DC/AC-HR P/N:257991-8 Part No.: 257991-8
• 038: MAKITA RING 33 FOR DC/AC-HR P/N:257340-9 Part No.: 257340-9
• 039: MAKITA FLAT WASHER 33 P/N:267470-8 Part No.: 267470-8
