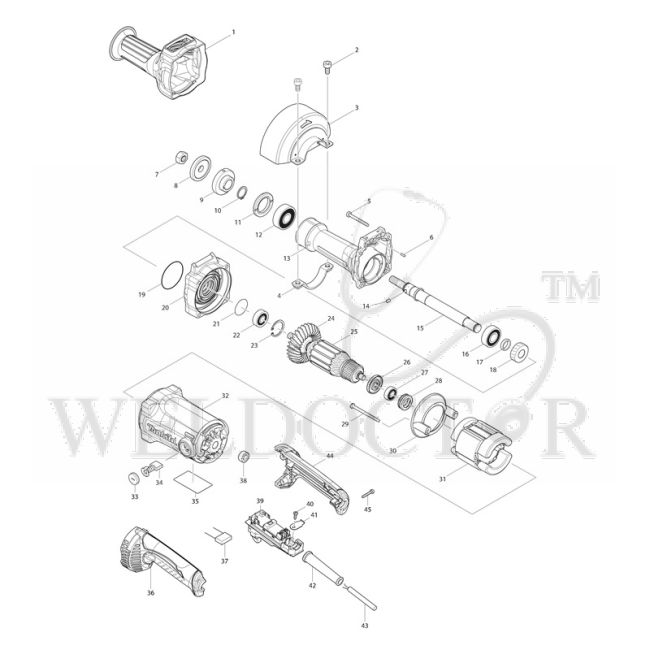

MAKITA GS5000 125MM STRAIGHT GRINDER SPARE PARTS

Spare Parts of Makita GS5000 Straight Grinder Ref. No. Part Name & Number Price 001 MAKITA INSULATION COVER FOR GS5000 P/N:424549-0 Part No.: 424549-0 $15.81 Add To Cart 002 MAKITA CAP HEAD BOLT M8 X 16 P/N:922422-3 Part No.: 922422-3 $0.55 Add To Cart 003 MAKITA WHEEL COVER 125 P/N:165714-9 Part No.: 165714-9 $8.61 Add To Cart 004 MAKITA TIGHT BAND FOR GS5000 P/N:346656-8 Part No.: 346656-8 $1.42 Add To Cart 005 MAKITA TAPPING SCREW FLANGE PT 5X50 FOR HR3000C P/N:266046-8 Part No.: 266046-8 $0.55 Add To Cart 007 MAKITA HEX NUT W1/2"-21 FOR 9105 Part No.: 252007-4 $1.64 Add To Cart 008 MAKITA OUTER FLANGE 50 FOR 9105 P/N:224019-7 Part No.: 224019-7 $14.72 Add To Cart 009 MAKITA INNER FLANGE 50 FOR GS5000 P/N:224457-3 Part No.: 224457-3 $18.97 Add To Cart 010 MAKITA RETAINING RING S-20 P/N:961060-6 Part No.: 961060-6 $0.44 Add To Cart 012 MAKITA BALL BEARING 6204LLB FOR 2412N P/N:211306-3 Part No.: 211306-3 $9.81 Add To Cart 013 MAKITA GEAR HOUSING FOR GS5000 P/N:318961-3 Part No.: 318961-3 $60.39 Add To Cart 014 MAKITA PIN 5.0 FOR TD021D P/N:268161-4 Part No.: 268161-4 $0.22 Add To Cart 015 MAKITA SPINDLE B FOR GS5000 P/N:326251-0 Part No.: 326251-0 $61.59 Add To Cart 016 MAKITA BALL BEARING 6203LLB FOR HM1214C P/N:211256-2 Part No.: 211256-2 $4.36 Add To Cart 017 MAKITA RING 17 FOR GS5000 P/N:257253-4 Part No.: 257253-4 $0.65 Add To Cart 018 MAKITA HELICAL GEAR 47 FOR GS5000 P/N:227766-9 Part No.: 227766-9 $20.49 Add To Cart 019 MAKITA O RING 53 FOR HM1201 P/N:213656-2 Part No.: 213656-2 $0.33 Add To Cart 020 MAKITA GEAR HOUSING COVER FOR GS5000 P/N:318962-1 Part No.: 318962-1 $52.87 Add To Cart 021 MAKITA O-RING 31 P/N:213487-9 Part No.: 213487-9 $0.87 Add To Cart 023 MAKITA RETAINING RING R-32 P/N:962151-6 Part No.: 962151-6 $0.55 Add To Cart 024 MAKITA FAN 80 FOR GS5000 P/N:240143-8 Part No.: 240143-8 $8.50 Add To Cart 025 MAKITA ARMATURE ASS'Y 240V FOR GS5000 P/N:517889-4 Part No.: 517889-4 $104.20 Add To Cart 028 MAKITA RUBBER RING FOR 4110C Part No.: 421490-8 $6.43 Add To Cart 029 MAKITA TAPPING SCREW FLANGE PT 5X70 FOR HP2030 P/N:266038-7 Part No.: 266038-7 $1.20 Add To Cart 030 MAKITA BAFFLE PLATE P/N:451480-7 Part No.: 451480-7 $1.09 Add To Cart 031 MAKITA FIELD ASSY 240V FOR GS5000 P/N:523424-8 Part No.: 523424-8 $52.87 Add To Cart 032 MAKITA MOTOR HOUSING FOR GA7050/GS5000 P/N:140222-1 Part No.: 140222-1 $15.26 Add To Cart 033 MAKITA BRUSH HOLDER CAP 7-18 FOR 9047/2414NB P/N:643700-5 Part No.: 643700-5 $0.76 Add To Cart 036 MAKITA HOUSING SET FOR GA7050/9050/GS5000 P/N:188848-1 Part No.: 188848-1 $8.28 Add To Cart 039 MAKITA SWITCH FOR GA7020 P/N:650101-0 Part No.: 650101-0 $15.26 Add To Cart 040 MAKITA TAPPING SCREW 4X14 FOR 2012NB P/N:266192-7 Part No.: 266192-7 $0.33 Add To Cart 041 MAKITA STRAIN RELIEF FOR HP1620 HR2810 P/N:687169-3 Part No.: 687169-3 $0.44 Add To Cart 042 MAKITA CORD GUARD 9.3-90 FOR LS1040 P/N:682540-6 Part No.: 682540-6 $0.76 Add To Cart 043 MAKITA POWER S.CORD BS 1.0-2-2.5 P/N:692527-0 Part No.: 692527-0 $12.21 Add To Cart 044 MAKITA HOUSING SET FOR GA7050/9050/GS5000 P/N:188848-1 Part No.: 188848-1 $8.28 Add To Cart 045 MAKITA TAPPING SCREW FLANGE M4X25 P/N:265999-8 Part No.: 265999-8 $0.33 Add To Cart

Brand: Makita

Specifications:

• Ref. No.: Part Name & Number
• 001: MAKITA INSULATION COVER FOR GS5000 P/N:424549-0 Part No.: 424549-0
• 002: MAKITA CAP HEAD BOLT M8 X 16 P/N:922422-3 Part No.: 922422-3
• 003: MAKITA WHEEL COVER 125 P/N:165714-9 Part No.: 165714-9
• 004: MAKITA TIGHT BAND FOR GS5000 P/N:346656-8 Part No.: 346656-8
• 005: MAKITA TAPPING SCREW FLANGE PT 5X50 FOR HR3000C P/N:266046-8 Part No.: 266046-8
• 007: MAKITA HEX NUT W1/2"-21 FOR 9105 Part No.: 252007-4
• 008: MAKITA OUTER FLANGE 50 FOR 9105 P/N:224019-7 Part No.: 224019-7
• 009: MAKITA INNER FLANGE 50 FOR GS5000 P/N:224457-3 Part No.: 224457-3
• 010: MAKITA RETAINING RING S-20 P/N:961060-6 Part No.: 961060-6
• 012: MAKITA BALL BEARING 6204LLB FOR 2412N P/N:211306-3 Part No.: 211306-3
• 013: MAKITA GEAR HOUSING FOR GS5000 P/N:318961-3 Part No.: 318961-3
• 014: MAKITA PIN 5.0 FOR TD021D P/N:268161-4 Part No.: 268161-4
• 015: MAKITA SPINDLE B FOR GS5000 P/N:326251-0 Part No.: 326251-0
• 016: MAKITA BALL BEARING 6203LLB FOR HM1214C P/N:211256-2 Part No.: 211256-2
• 017: MAKITA RING 17 FOR GS5000 P/N:257253-4 Part No.: 257253-4
• 018: MAKITA HELICAL GEAR 47 FOR GS5000 P/N:227766-9 Part No.: 227766-9
• 019: MAKITA O RING 53 FOR HM1201 P/N:213656-2 Part No.: 213656-2
• 020: MAKITA GEAR HOUSING COVER FOR GS5000 P/N:318962-1 Part No.: 318962-1
• 021: MAKITA O-RING 31 P/N:213487-9 Part No.: 213487-9
• 023: MAKITA RETAINING RING R-32 P/N:962151-6 Part No.: 962151-6
• 024: MAKITA FAN 80 FOR GS5000 P/N:240143-8 Part No.: 240143-8
• 025: MAKITA ARMATURE ASS'Y 240V FOR GS5000 P/N:517889-4 Part No.: 517889-4
• 028: MAKITA RUBBER RING FOR 4110C Part No.: 421490-8
• 029: MAKITA TAPPING SCREW FLANGE PT 5X70 FOR HP2030 P/N:266038-7 Part No.: 266038-7
• 030: MAKITA BAFFLE PLATE P/N:451480-7 Part No.: 451480-7
• 031: MAKITA FIELD ASSY 240V FOR GS5000 P/N:523424-8 Part No.: 523424-8
• 032: MAKITA MOTOR HOUSING FOR GA7050/GS5000 P/N:140222-1 Part No.: 140222-1
• 033: MAKITA BRUSH HOLDER CAP 7-18 FOR 9047/2414NB P/N:643700-5 Part No.: 643700-5
• 036: MAKITA HOUSING SET FOR GA7050/9050/GS5000 P/N:188848-1 Part No.: 188848-1
• 039: MAKITA SWITCH FOR GA7020 P/N:650101-0 Part No.: 650101-0
• 040: MAKITA TAPPING SCREW 4X14 FOR 2012NB P/N:266192-7 Part No.: 266192-7
• 041: MAKITA STRAIN RELIEF FOR HP1620 HR2810 P/N:687169-3 Part No.: 687169-3
• 042: MAKITA CORD GUARD 9.3-90 FOR LS1040 P/N:682540-6 Part No.: 682540-6
• 043: MAKITA POWER S.CORD BS 1.0-2-2.5 P/N:692527-0 Part No.: 692527-0
• 044: MAKITA HOUSING SET FOR GA7050/9050/GS5000 P/N:188848-1 Part No.: 188848-1
• 045: MAKITA TAPPING SCREW FLANGE M4X25 P/N:265999-8 Part No.: 265999-8
