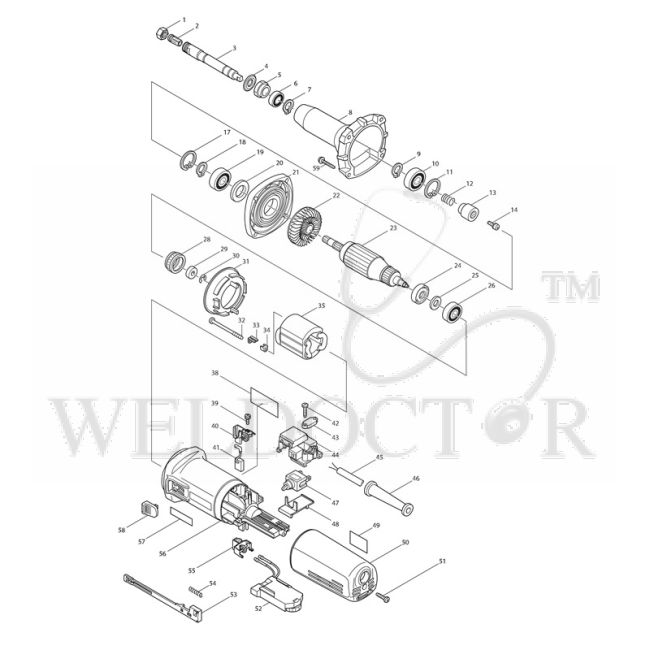

MAKITA GD0800C DIE GRINDER SPARE PARTS

Spare Parts of Makita GD0800C Die Grinder Ref. No. Part Name & Number Price 003 MAKITA SPINDLE FOR GD0800C P/N:324042-3 Part No.: 324042-3 $33.35 Add To Cart 004 MAKITA OIL SEAL 16 FOR PV7000C P/N:213209-7 Part No.: 213209-7 $3.05 Add To Cart 005 MAKITA BEARING RETAINER FOR GD0800C P/N:285700-5 Part No.: 285700-5 $11.23 Add To Cart 006 MAKITA BALL BEARING 6901LLB FOR GD0800C P/N:211141-9 Part No.: 211141-9 $7.41 Add To Cart 007 MAKITA RETAINING RING S-12 P/N:961052-5 Part No.: 961052-5 $0.33 Add To Cart 008 MAKITA BARREL FOR GD0800C P/N:317368-0 Part No.: 317368-0 $50.58 Add To Cart 009 MAKITA RETAINING RING S-12 P/N:961052-5 Part No.: 961052-5 $0.33 Add To Cart 010 MAKITA *BALL BEARING 6001LLB F/GD0800C(211148-5 P/N:211142-7 Part No.: 211142-7 $3.60 Add To Cart 011 MAKITA RETAINING RING R-28 FOR GD0800C P/N:962106-1 Part No.: 962106-1 $0.55 Add To Cart 012 MAKITA LOCK SPRING 12 FOR GD0800C P/N:233901-9 Part No.: 233901-9 $2.83 Add To Cart 013 MAKITA COUPLING FOR GD0800C P/N:323989-8 Part No.: 323989-8 $19.18 Add To Cart 014 MAKITA PAN HEAD SCREW M4X8 FOR GD0800C P/N:265082-1 Part No.: 265082-1 $0.44 Add To Cart 017 MAKITA RETAINING RING R-28 FOR GD0800C P/N:962106-1 Part No.: 962106-1 $0.55 Add To Cart 018 MAKITA RETAINING RING S-12 P/N:961052-5 Part No.: 961052-5 $0.33 Add To Cart 019 MAKITA *BALL BEARING 6001LLB F/GD0800C(211148-5 P/N:211142-7 Part No.: 211142-7 $3.60 Add To Cart 020 MAKITA FLAT WASHER FOR HR4001C Part No.: 253084-9 $0.33 Add To Cart 021 MAKITA BEARING BOX FOR GD0800C Part No.: 317367-2 $16.13 Add To Cart 024 MAKITA INSULATION WASHER FOR GD0800C HR2810 P/N:681656-4 Part No.: 681656-4 $0.55 Add To Cart 025 MAKITA FLAT WASHER 7 FOR LS1040 Part No.: 253823-7 $0.33 Add To Cart 026 MAKITA BALL BEARING 627DDW FOR GD0800C HR2810 P/N:210023-2 Part No.: 210023-2 $2.07 Add To Cart 028 MAKITA LABYRINTH RUBBER RING 22 FOR GD0800C P/N:421770-2 Part No.: 421770-2 $7.41 Add To Cart 029 MAKITA MAGNET SLEEVE FOR GD0800C P/N:688117-5 Part No.: 688117-5 $2.18 Add To Cart 030 MAKITA STOP RING E-4 FOR HR3850 P/N:961011-9 Part No.: 961011-9 $0.11 Add To Cart 031 MAKITA BAFFLE PLATE FOR GD0800C P/N:413076-2 Part No.: 413076-2 $1.64 Add To Cart 033 MAKITA RETAINER FOR HR2470 Part No.: 344871-8 $0.33 Add To Cart 034 MAKITA INSULATION COVER FOR GD0800C P/N:417237-6 Part No.: 417237-6 $0.33 Add To Cart 039 MAKITA TAPPING SCREW PT3X10 FOR GD0800C P/N:266256-7 Part No.: 266256-7 $0.33 Add To Cart 042 MAKITA TAPPING SCREW 4X18 P/N:265995-6 Part No.: 265995-6 $0.33 Add To Cart 043 MAKITA STRAIN RELIEF FOR 5806B P/N:687063-9 Part No.: 687063-9 $0.44 Add To Cart 044 MAKITA SWITCH BLOCK FOR GD0800C P/N:632999-7 Part No.: 632999-7 $9.05 Add To Cart 047 MAKITA SWITCH ST115A-40 FOR HR4001C/9526B P/N:651418-4 Part No.: 651418-4 $2.73 Add To Cart 048 MAKITA COVER FOR GD0800C P/N:687113-0 Part No.: 687113-0 $0.87 Add To Cart 050 MAKITA REAR COVER FOR GD0800C P/N:417185-9 Part No.: 417185-9 $8.61 Add To Cart 051 MAKITA TAPPING SCREW 4X18 P/N:265995-6 Part No.: 265995-6 $0.33 Add To Cart 053 MAKITA SWITCH LEVER FOR GD0800C P/N:417187-5 Part No.: 417187-5 $1.74 Add To Cart 054 MAKITA COMPRESSION SPRING 4 FOR JN1601 P/N:233071-4 Part No.: 233071-4 $0.33 Add To Cart 059 MAKITA TAPPING SCREW FLANGE M4X25 P/N:265999-8 Part No.: 265999-8 $0.33 Add To Cart

Brand: Makita

Specifications:

• Ref. No.: Part Name & Number
• 003: MAKITA SPINDLE FOR GD0800C P/N:324042-3 Part No.: 324042-3
• 004: MAKITA OIL SEAL 16 FOR PV7000C P/N:213209-7 Part No.: 213209-7
• 005: MAKITA BEARING RETAINER FOR GD0800C P/N:285700-5 Part No.: 285700-5
• 006: MAKITA BALL BEARING 6901LLB FOR GD0800C P/N:211141-9 Part No.: 211141-9
• 007: MAKITA RETAINING RING S-12 P/N:961052-5 Part No.: 961052-5
• 008: MAKITA BARREL FOR GD0800C P/N:317368-0 Part No.: 317368-0
• 009: MAKITA RETAINING RING S-12 P/N:961052-5 Part No.: 961052-5
• 010: MAKITA *BALL BEARING 6001LLB F/GD0800C(211148-5 P/N:211142-7 Part No.: 211142-7
• 011: MAKITA RETAINING RING R-28 FOR GD0800C P/N:962106-1 Part No.: 962106-1
• 012: MAKITA LOCK SPRING 12 FOR GD0800C P/N:233901-9 Part No.: 233901-9
• 013: MAKITA COUPLING FOR GD0800C P/N:323989-8 Part No.: 323989-8
• 014: MAKITA PAN HEAD SCREW M4X8 FOR GD0800C P/N:265082-1 Part No.: 265082-1
• 017: MAKITA RETAINING RING R-28 FOR GD0800C P/N:962106-1 Part No.: 962106-1
• 018: MAKITA RETAINING RING S-12 P/N:961052-5 Part No.: 961052-5
• 019: MAKITA *BALL BEARING 6001LLB F/GD0800C(211148-5 P/N:211142-7 Part No.: 211142-7
• 020: MAKITA FLAT WASHER FOR HR4001C Part No.: 253084-9
• 021: MAKITA BEARING BOX FOR GD0800C Part No.: 317367-2
• 024: MAKITA INSULATION WASHER FOR GD0800C HR2810 P/N:681656-4 Part No.: 681656-4
• 025: MAKITA FLAT WASHER 7 FOR LS1040 Part No.: 253823-7
• 026: MAKITA BALL BEARING 627DDW FOR GD0800C HR2810 P/N:210023-2 Part No.: 210023-2
• 028: MAKITA LABYRINTH RUBBER RING 22 FOR GD0800C P/N:421770-2 Part No.: 421770-2
• 029: MAKITA MAGNET SLEEVE FOR GD0800C P/N:688117-5 Part No.: 688117-5
• 030: MAKITA STOP RING E-4 FOR HR3850 P/N:961011-9 Part No.: 961011-9
• 031: MAKITA BAFFLE PLATE FOR GD0800C P/N:413076-2 Part No.: 413076-2
• 033: MAKITA RETAINER FOR HR2470 Part No.: 344871-8
• 034: MAKITA INSULATION COVER FOR GD0800C P/N:417237-6 Part No.: 417237-6
• 039: MAKITA TAPPING SCREW PT3X10 FOR GD0800C P/N:266256-7 Part No.: 266256-7
• 042: MAKITA TAPPING SCREW 4X18 P/N:265995-6 Part No.: 265995-6
• 043: MAKITA STRAIN RELIEF FOR 5806B P/N:687063-9 Part No.: 687063-9
• 044: MAKITA SWITCH BLOCK FOR GD0800C P/N:632999-7 Part No.: 632999-7
• 047: MAKITA SWITCH ST115A-40 FOR HR4001C/9526B P/N:651418-4 Part No.: 651418-4
• 048: MAKITA COVER FOR GD0800C P/N:687113-0 Part No.: 687113-0
• 050: MAKITA REAR COVER FOR GD0800C P/N:417185-9 Part No.: 417185-9
• 051: MAKITA TAPPING SCREW 4X18 P/N:265995-6 Part No.: 265995-6
• 053: MAKITA SWITCH LEVER FOR GD0800C P/N:417187-5 Part No.: 417187-5
• 054: MAKITA COMPRESSION SPRING 4 FOR JN1601 P/N:233071-4 Part No.: 233071-4
• 059: MAKITA TAPPING SCREW FLANGE M4X25 P/N:265999-8 Part No.: 265999-8
