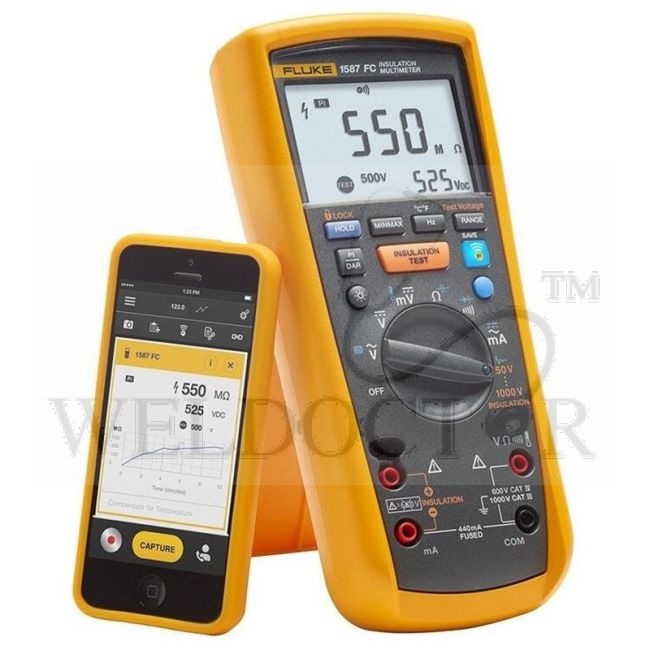

FLUKE INSULATION MULTIMETER 1587FC

The Fluke 1587 FC is Fluke Connect-enabled so you can download the free Fluke Connect® Measurements app to your smartphone and gain additional functions, including: Safety first. Keep yourself out of harm’s way by monitoring your test measurements remotely. Prove your job is done right by quickly seeing and sharing measurement results wirelessly with your smartphone. Quickly find problems by saving and comparing measurements over time on a wireless device. PI/DAR timed ratio tests with TrendIt™ graphs to identify moisture and contaminated insulation problems faster Memory storage through Fluke Connect that saves measurements to your phone or the cloud and eliminates the need to write down results. Reduces errors and saves data for historical tracking over time Temperature compensation to establish accurate baselines and relevant historical comparisons Historical tracking and trending of assets to identify insulation degradation over time and allow real-time decisions to be made in the field with Fluke Connect® Assets (sold separately) Provides memory storage through Fluke Connect Measurements to eliminate the need to write down results Includes live circuit detection to prevent insulation test if voltage >30 V is detected Provides automated temperature compensation to establish accurate baselines Supports historical tracking and asset trending of assets to identify degradation over time with Fluke Connect® Assets (sold separately) Incorporates VFD low-pass filter for accurate variable frequency motor drive measurements Includes auto-discharge of capacitive voltage for added user protection Measures ac/dc voltage, dc millivolts, ac/dc milliamps, resistance, and continuity Includes capacitance, diode test, temperature, min/max, frequency measurements and insulation test smoothing reading Automatically powers off to save battery power Comes with remote probe, test leads, alligator clips, K-type thermocouple, hard case, and three-year warranty. Useful resources and rugged tools for Solar professionals

Specifications:

• 600.0 mV: Resolution
• 6.000 V: Resolution
• 60.00 V: Resolution
• 600.0 V: Resolution
• 1000 V: Resolution
• Range: Resolution
• 6.000 V dc: 0.001 V
• 60.00 V dc: 0.01 V
• 600.0 V dc: 0.1 V
• 1000 V dc: 1 V
• Input impedance: 10 MΩ (nominal), <100 pF
• Normal mode rejection ratio: >60 dB @ 50 Hz or 60 Hz
• Common mode rejection ratio: >120 dB @ dc, 50 Hz or 60 Hz (1 k unbalance)
• 600.0 mVdc: 0.1 mV
• Range: 400 mA
• Resolution: 0.1 mA
• Accuracy ±(% of Rdg+Counts): ±(1.5% + 2)¹
• Burden voltage (Typical): 2 mV/mA
• Range: 60 mA
• Resolution: 0.01 mA
• Accuracy ±(% of Rdg+Counts): ±(0.2% + 2)
• Overload: 600 mA for 2 minutes maximum
• Fuse protection for mA input: 0.44 mA, 1000 V, IR 10 kA
• AC conversion: Inputs are ac-coupled and calibrated to the rms value of sine wave input
• 600.0 Ω: 0.1 Ω
• 6.000 kΩ: 0.001 kΩ
• 60.00 kΩ: 0.01 kΩ
• 600.0 kΩ: 0.1 KΩ
• 6.000 MΩ: 0.001 MΩ
• 50.0 MΩ ²: 0.01 MΩ
• Overload protection: 1000 V rms or dc
• Open circuit test voltage: <8.0 V dc
• Short circuit current: <1.1 mA
• Diode test indication: Display voltage drop: 0.6 V at1.0 mA nominal test current:
• Accuracy: ±(2% + 3)
• Continuity indication: Continuous audible tone for testresistance below 25 Ω and off above 100 Ω. Maximum Reading; 1000 Ω
• Open circuit voltage: <8.0 V
• Short circuit current: 1.0 mA typical
• Overload protection: 1000 V rms
• Response time: >1 m sec
