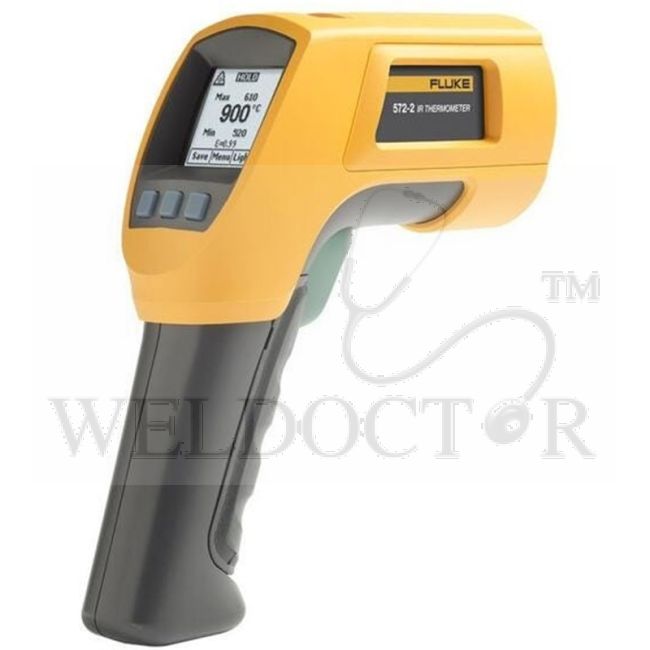

FLUKE 572-2 HIGH TEMPERATURE INFRARED THERMOMETER

The Fluke 572-2 High-Temperature Infrared Thermometer is the ideal tool for high-temperature industrial environments all around the world. Whether you work in power utility, metal refining and smelting, glass, cement or petrochemical environments, the 572-2 offers the rugged performance accuracy you need to get the job done, backed by the most trusted name in test tools. The simple, three-button on-screen menu interface saves time and makes even complex measurements easy. With just a few pushes of a button you can adjust emissivity, start data logging, or turn on and off alarms. The 60:1 distance-to-spot ratio with dual laser sighting helps pinpoint the target fast, making it easier to measure small objects from a long distance.

Specifications:

• Infrared temperature range: -30°C to 900°C (-22°F to 1652°F)
• IR accuracy (calibration geometry with ambient temperature 23°C ± 2°C): ≥ 0°C: ± 1°C or ± 1% of the reading, whichever is greater
• IR repeatability: ±0.5% of reading or ±0.5°C (±1°F), whichever is greater
• Display resolution: 0.1°C / 0.1°F
• Distance: Spot: 60:1 (calculated at 90% energy)
• Minimum spot size: 19 mm
• Laser sighting: Offset dual laser, output < 1 mW
• Spectral response: 8 μm to 14 μm
• Response time (95%): < 500 ms
• Emissivity: Digitally adjustable from 0.10 to 1.00 by 0.01 or via built-in table of common materials
• K-type thermocouple input temperature range: -270°C to 1372°C (-454°F to 2501°F)
• K-type thermocouple input accuracy (with ambient temperature 23°C ± 2°C): < -40°C: ±(1°C + 0.2° / 1°C)
• K-type thermocouple: 0.1°C / 0.1°F
• K-type thermocouple repeatability: ±0.5% of reading or ±0.5°C (±1°F), whichever is greater
• Hi/Low alarms: Audible and two-color visual
• Min/Max/Avg/Dif: Yes
• Switchable celsius and fahrenheit: Yes
• Backlight: Two levels, normal and extra bright for darker environments
• Probe input: K-type thermocouple simultaneous display of probe and IR temperature
• Trigger lock: Yes
• Data storage: 99 points
• Display: Dot matrix 98 x 96 pixels with function menus
• Communication: USB 2.0
• Measurement range (bead probe): -40°C to 260°C (-40°F to 500°F)
• Accuracy: ±1.1°C (±2.0°F) from 0°C to 260°C (32°F to 500°F). Typically within 1.1°C (2.0°F) from -40°C to 0°C (-40°F to 32°F)
• Cable length: 1 m (40 in) K-type thermocouple cable with standard miniature thermocouple connector and bead termination
• Safety and compliance: IEC 60825-1
• Operating temperature: 0°C to 50°C (32°F to 122°F)
• Storage temperature: -20°C to 60°C (-4°F to 140°F)
• Relative humidity: 10% to 90% RH non-condensing up to 30°C (86°F)
• Operating altitude: 2000 meters above mean sea level
• Weight: 0.322 kg (0.7099 lb)
• Power: 2 AA batteries
• Battery life: 8 hours with laser and backlight on; 100 hours with laser and backlight off, at 100% duty cycle (thermometer continuously on)
