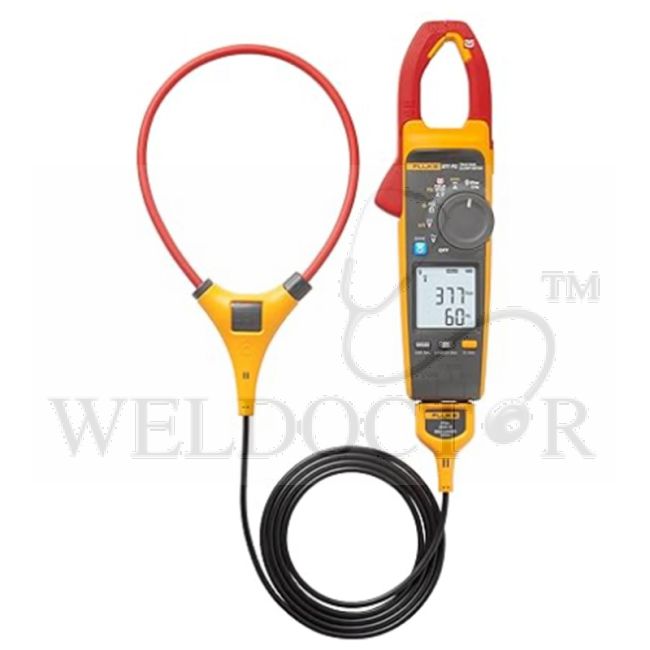

FLUKE 377 FC NON-CONTACT VOLTAGE TRUE-RMS AC/DC CLAMP METER WITH IFLEX

Voltage and current measurements with FieldSense™ technology The Fluke 377 FC true-rms clamp meter uses FieldSense™ technology to make testing faster and safer, all without contacting a live conductor. You get accurate voltage and current measurements through the clamp jaw. Simply clip the black test lead to any electrical ground, put the clamp jaw around the conductor and see reliable, accurate voltage and current values on the display. Measure extremely high current with iFlex® probe Use the included iFlex flexible current probe to measure ac current as high as 2500 A. The iFlex probe provides access to large conductors in tight spaces. Complete 3-phase measurements in quick, easy steps Complete 3-phase voltage and current tests in 3 easy steps Full set of phase-to-ground and phase-to-phase values calculated and shown on the meter Values are also displayed on your smart phone and saved to the cloud via Fluke Connect software Phase rotation auto-calculated and shown on the Fluke Connect software No more hand-written notes or complicated math.

Specifications:

• General Maximum Voltage between any Terminal and Earth Ground: 1000 V
• Battery: Type
• Automatic Power Off: 20 minutes
• Range: 999.9 A
• Resolution: 0.1 A
• Accuracy: 2 % ±5 digits (45 Hz to 66 Hz)
• Crest Factor (50/60 Hz): 3 @ 500 A
• Range: 2500 A
• Resolution: 1 A (≤2500 A) 0.1 A (≤999.9 A)
• Accuracy: 3 % ±5 digits (5 Hz to 500 Hz)
• Crest Factor (50/60Hz): 3.0 at 1100 A
• Flexible current probe: Distance from Optimum
• Accuracy: 2 % ±5 digits1
• Range: 1000 V
• Resolution: 1 V (≤1000V)
• Accuracy: ≤4/0 AWG
• Range: 600.0 V 1000 V
• Resolution: 0.1 V (≤600.0 V)
• Accuracy: 1 % ±5 digits (20 Hz to 500 Hz)
• Range: 600.0 V
• Accuracy: 1 % ±10 digits
• Range: 500.0 mV
• Resolution: 0.1 mV
• Accuracy: 1 % ±5 digits
• Range: 45 Hz to 66 Hz
• Resolution: 0.1 Hz
• Accuracy: 0.5 % ±5 digits
• Trigger Level: 5 Hz to 10 Hz, ≥10 A
• Range: 5.0 Hz to 500.0 Hz
• Trigger Level: 5 Hz to 20 Hz, ≥25 A
• Range: 60.00 kΩ
• Resolution: 0.1 Ω (≤600.0 Ω)
• Range: 1000 μF
• Resolution: 0.1 μF (≤100.0 μF)
• Accuracy: 1 % ±4 digits
• Size (L x W x H): 274 mm x 86 mm x 47 mm
• Weight (with Batteries): 463 g
• Jaw Opening: 34 mm
• Flexible Current Probe Diameter: 7.5 mm
• Flexible Current Probe Cable Length (head to electronics connector): 1.8 m
