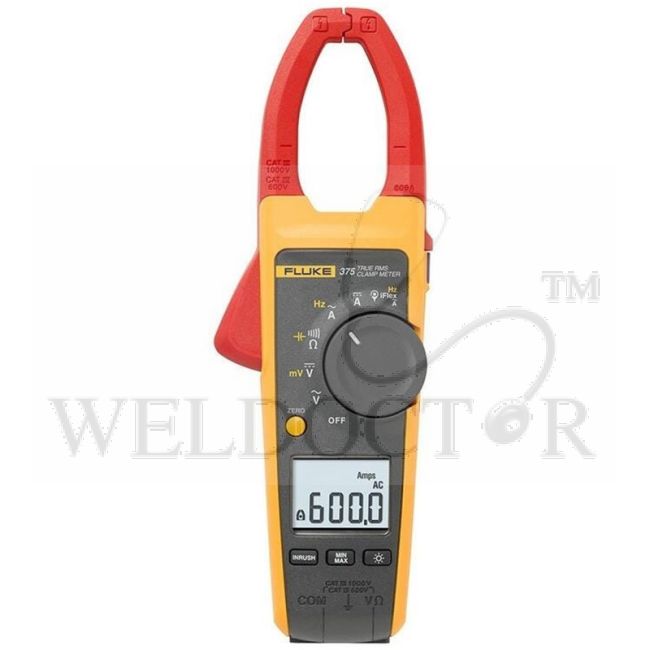

FLUKE 375 TRUE RMS AC/DC CLAMP METER

Fluke 375 True-RMS AC/CD Clamp Meter measures very low voltage and very high resistance The Fluke 375 delivers high performance features and ease of use. It features a VFD low-pass filter for accurate motor drive measurements. The 375 offers most of the features of the Fluke 376 including compatibility with the iFlex flexible current probe but, unlike the 376, it does not include the iFlex® probe in the package. You can measure AC and DC current to 600 A and voltage up to 1000 V with the fixed jaw clamp. Or connect an optional iFlex® flexible current probe to expand your measurement range to 2500 A AC. The large diameter and flexible design of the iFlex probe make it easier to measure around large conductors in tight spaces or to access individual wires. Versatile performance With True-RMS AC voltage and current measurements, the 375 enables you to accurately troubleshoot non-linear signals. And you can log and trend measurements to pinpoint intermittents while you are performing other tasks.

Specifications:

• Crest Factor (50/60 Hz): 3 @ 500 A (375 and 376 only)
• Resolution: 374 and 375
• Crest Factor (50/60Hz): 3.0 at 1100 A (375 and 376 only)
• Distance from Optimum: i2500-10 Flex
• A: 0.5 in (12.7 mm)
• B: 0.8 in (20.3 mm)
• C: 1.4 in (35.6 mm)
• Resolution: 374
• Flexible Current Probe Diameter: 7.5 mm
• Flexible Current Probe Cable Length: 1.8 m
• Operating Temperature: 10°C – +50°C
• Temperature Coefficients: Add 0.1 x specified accuracy for each
