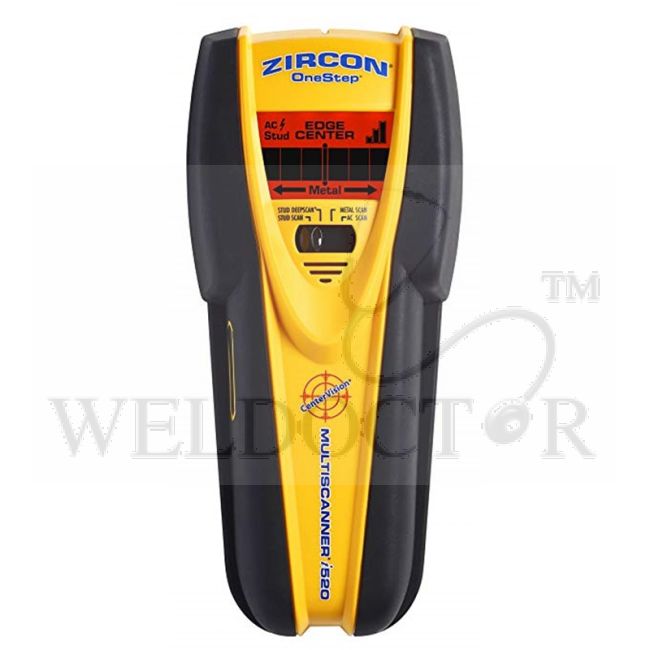

ZIRCON® PRO MULTI-SCANNER® MAX DEPTH 76MM I520 ONE STEP®

StudScan mode locates the edges and center of wood or metal studs up to 3⁄4 in. (19 mm) deep DeepScan® mode doubles the scanning depth to 11⁄2 in. (38 mm) AC Scan mode locates live, unshielded electrical wire up to 2 in. (51 mm) deep Metal Scan mode locates ferrous metal, such as rebar, up to 3 in. (76 mm) deep ACT™ (Auto Correcting Technology) automatically corrects common errors, such as when scanning begins over a stud

Specifications:

• Dimension: 7.28 in. H x 3.27 in. W x 1.43 in. D
• Weight: 6.5 oz. (184 g) without Battery
• Battery Type: 9V alkaline (Not included)
• Position Accuracy*: Up To a Depth of 3⁄4 in. (19 mm):
• Depth*: StudScan mode: Up To 3⁄4 in. (19 mm)
• WireWarning®: TypicAlly 90-250 V at 50-60 Hz within
• Accuracy*: Wire in drywall
• WireWarning®: In typical wall with Romex® wiring,
• Depth*: Wire can be detected Up To 2 in.
• Operating Temperature: 20° to 105°F (-7° to 41°C)
• Storage Temperature: -20° to 150°F (-29° to 66°C)
• Humidity: 5-90% RH (Non-condensing)
• Water Resistance: Splash and water Resistant, Not waterproof
• Name: File Type
• ZIRCON® PRO MULTI-SCANNER® MAX DEPTH 76MM I520 TDS: .pdf
• ZIRCON® PRO MULTI-SCANNER® MAX DEPTH 76MM I520 Instruction: .pdf
