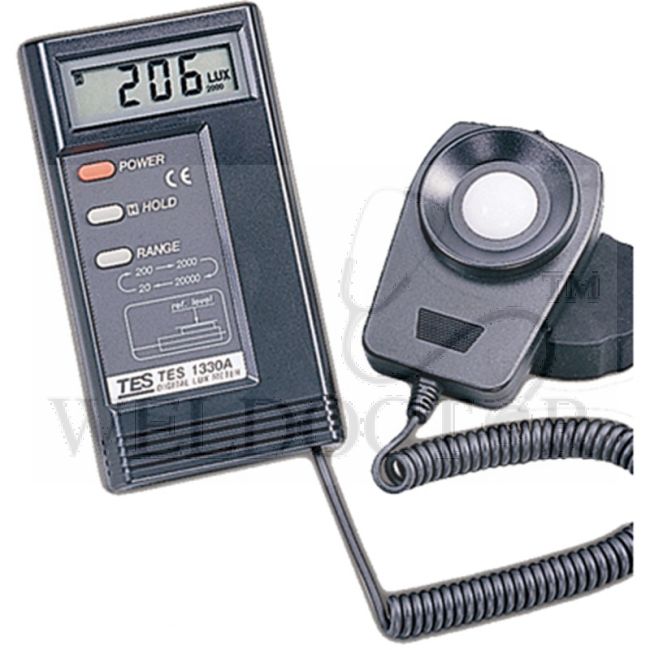

TES DIGITAL LUX METER (LIGHT METER) 1330A

Measuring Levels Ranging 0.01 Lux to 20,000 Lux Accurate and Instant response Data Hold function Spectral Sensitivity Close to CIE photopic Curve Cosine Angular corrected Analog output jack for recording CNS 5119 ClassII

Brand: 3M

Specifications:

• Display: 3 1/2 digit LCD
• Measuring Range: 20/200/2000/20000 Lux
• Overrange Display: Hghest digit of (1) is displayed
• Resolution: 0.01 Lux
• Accuracy: +-3% rdg +-0.5% f.s. (<10,000 Lux)
• Spectral Response: CIE PhoTopic. (CIE human eye rsponse curve).
• Spectral Accuracy: CIE function f'1 <=6%
• Cosine Response: f'2 <=2%
• Repeatability: +-2%
• Temperature Characteristics: +-0.1%/Deg C
• Measuring Rate: Approximately 2.0 Time/sec
• Photosensor: Silicon photodiodes
• Operating Temperature and Humidity: 0 DegC ~ 40 DegC
• Power Source: One 9V battry, NEDA 1604, JIS 006P or IEC 6F22
• Battery Life (Typical): 200 hours (Alkaline Battery)
• Photosensor: Lead Length: 150cm
• Photosensor Dimension: L100xW60xH27mm
• Dimension: L135xW72xH33mm
• Weight: 250g
