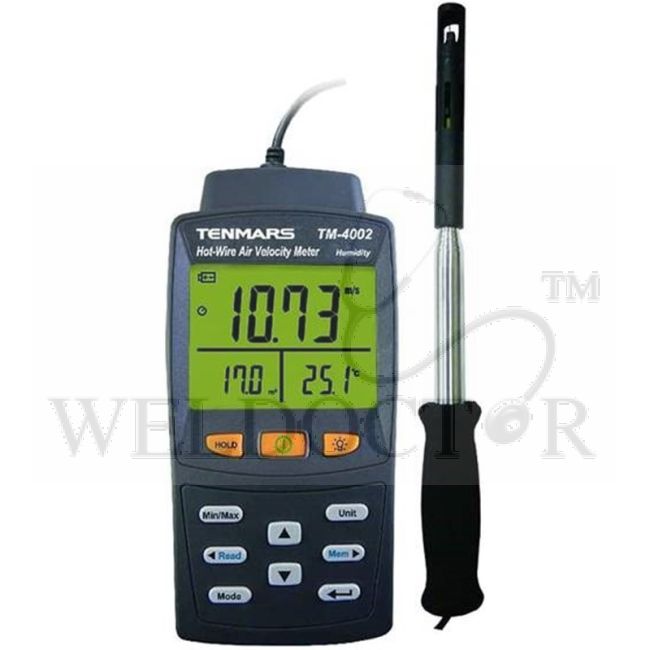

TENMARS HOT WIRE AIR VELOCITY ANEMOMETER TM-4002

The TM-4002 hot wire anemometer is used to undertake measurements of air velocity and air temperature / humidity in spaces where the vane anemometer cannot be used, typically in HVAC ducts.and vents. This instrument benefits from a LCD triple display, which can show both air speed and temperature, and the backlight makes this display easy to read in dimly lit areas. The TM-4002 is able to calculate both air velocity, and air volume and has a wide array of features designed to make testing simple and fast. The TM-4002 hot wire anemometer lends itself to many applications, including air balancing, fire matrix testing, paint booths, ventilation systems, and environmental testing. The probe is housed within a telescopic device for access to hard to reach areas. FEATURES • Fast response telescoping probe. • Air flow volume. • Large LCD display. • Displays air (wind) speed in meters/second,feet/minute, kilometers/hr, knots, and miles/hr. • Displays maximum and minimum readings and holds any reading. • Manual Data Memory and read fucntion (99 records). • Dew point, Wet Bulb calculation. • Many applications include: warehouses, factories, office buildings, restaurants, schools, library, hospitals, photographic, video, parking garages, museums, art galleries, stadiums, building security.

Brand: TM-4002

Specifications:

• NO BRAND: TM-4002
• Range: 0.01 ~ 25.00
• Resolution: 0.01
• Accuracy: +/-3% of reading +/- 1.6%FS
• Range: 0.02 ~ 90.0
• Resolution: 0.1
• Range: 0.12 ~ 55.90
• Range: 0.11 ~ 48.60
• Range: 0 ~ 4921.0
• Range: 1 ~ 10
• Resolution: 1
• Range: 0 ~ 9999
• Range: -20℃ ~ 50℃ / -4℉ ~ 122℉
• Resolution: 0.1℃ / 0.1℉
• Accuracy: +/- 1℃ / +/- 1.8℉
• Range: < 20% and > 80%
• Resolution: 0.10%
• Accurancy: +/- 5% Rh
• Range: 20% ~ 80%
• Accurancy: +/- 3.5% Rh
• Meter Size: 156x73x35 mm (LxWxH).
• Meter Weight: 250g (without batteries)
• Display: 60mm(W) x 47mm(L) monochrome LCD and bakclight.
• Wire length: 1500mm
• Wire Retractable length: 400mm to 1020mm
• Probe diameter of tip: 16mm
• Probe diameter of base: 32mm
• Probe Weight: 240g
• Internal Power: LR6 (AA) 1.5V x 6 Batteries
• Battery life: approx. 10 hours
• External Power: Power Adaptor AC/100-240V to DC 9V/0.5A
