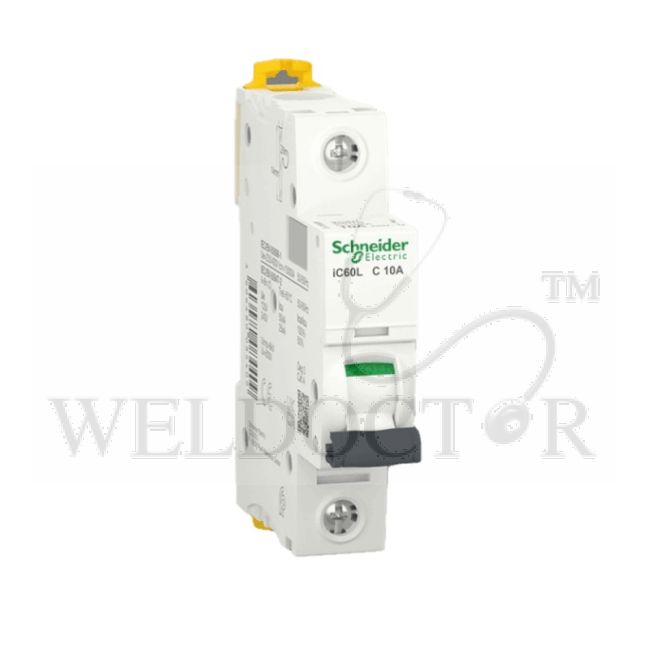

SCHNEIDER MINIATURE CIRCUIT-BREAKER (MCB), ACTI9 IC60L, 1P, C, 10A

iC60L Miniature circuit breaker 1P 10A C curve. Label : Acti 9 iC60 Device application : distribution [In] rated current : 10 A Network type : AC,DC Trip unit technology : thermal Magnetic Curve code : C Breaking capacity code : L Range : Acti 9 Breaking capacity : N/A, N/A, N/A, N/A, N/A, N/A Utilisation category : category A conforming to EN 60947-2, category A conforming to IEC 60947-2 Suitability for isolation : yes conforming to EN 60898-1, yes conforming to EN 60947-2, yes conforming to IEC 60898-1, yes conforming to IEC 60947-2 Range of product : iC60 Standards : IEC 60898-1,EN 60947-2,EN 60898-1,IEC 60947-2 Product name : Acti 9 iC60 Product or component type : miniature circuit-breaker Device short name : iC60L Poles description : 1P Number of protected poles : 1 Range Presentation : With exclusive features, the Acti 9 iC60 DIN rail MCB is definitely geared to absolute safety and improved continuity of service. VisiSafe : for safe operation and maintenance work on circuits. Class-2 insulation : continuous safety for operators and unqualified personnel. VisiTrip : detects faulty Miniature Circuit Breaker outgoers quickly and reduces intervention time. Add-on fully immune earth leakage protection devices : better continuity of service, especially in polluted environments and networks. Nominal current : 1 to 63 A Large choice of breaking capacities up to 100 kA and tripping curves : B, C, D, Compliance with standards IEC/EN 60898 or IEC/EN 60947-2, Full coordination with Acti 9 range Residual Current Devices (RCDs) and Compact NSX Moulded Case Circuit Breakers (MCCBs), Suitable for isolation in accordance with industrial standard IEC 60947 Operating voltage : up to 440 V AC, insulation voltage : 500 V Optional add-on earth leakage modules : iC60 Vigi, Optional auxiliaries : indication of state and tripping, shunt tripping, undervoltage tripping, overvoltage tripping, Range Benefits : The new reference in final distribution, Absolute safety of circuit protection with VisiSafe, Greater continuity of service with VisiTrip, Simple to choose with meaningful part numbers, Easy to install with quick, ergonomic & safe IP20B terminal shutters & robust connections (twice the standard tightening torque), Environmentally friendly with 100% recyclable & recoverable materials. Range Application Presentation : Low-voltage final distribution Protection of electrical circuits in all industrial and commercial buildings, All applications, especially in polluted environments and networks, Motor circuit protection, DC current circuit protection.

Specifications:

• Breaking Capacity: 15000 A Icn at 230 V AC 50/60 Hz conforming to EN/IEC 60898-1
• Breaking Capacity Code: L
• Contacts Type And Composition: 10 A
• Control Type: toggle
• Product Or Component Type: miniature circuit-breaker
• Range Of Product: iC60
• [Ie] Rated Operational Current: toggle
• [Ue] Rated Operational Voltage: 100...133 V AC 50/60 Hz
• Curve Code: C
• Device Short Name: iC60L
• EAN13: 3606480084409
• Mounting Support: DIN rail
• Network Type: AC
• Number Of Protected Poles: 1
• Range: Acti 9
• Range Name: Acti 9 iC60
• Suitability For Isolation: yes conforming to EN 60898-1
• Trip Unit Technology: thermal-magnetic
• Utilisation Category: category A conforming to EN 60947-2
• Communication Network Type: 100...133 V AC 50/60 Hz
• Current Transformer Type: L
• Interlocked Device: 15000 A Icn at 230 V AC 50/60 Hz conforming to EN/IEC 60898-1
• Product Name: Acti9 iC60
• [Ics] Rated Service Breaking Capacity: 12.5 kA 50 % conforming to EN 60947-2 - 220...240 V AC 50/60 Hz
• [In] Rated Current: 10 A
• 9 Mm Pitches: 2
• Colour: white
• Comb Busbar And Distribution Block Compatibility: top or bottom: YES
• Compatibility Code: iC60
• Connections - Terminals: single terminal (top or bottom) 1-16 mm² flexible
• Contact Position Indicator: yes
• Depth: 78.5 mm
• Device Application: distribution
• Earth-leakage Protection: without
• Electrical Durability: 10000 cycles
• Height: 85 mm
• Limitation Class: 3 conforming to EN 60898-1
• Local Signalling: trip indicator
• Magnetic Tripping Limit: 8 x In +/- 20 %
• Market Segment: residential
