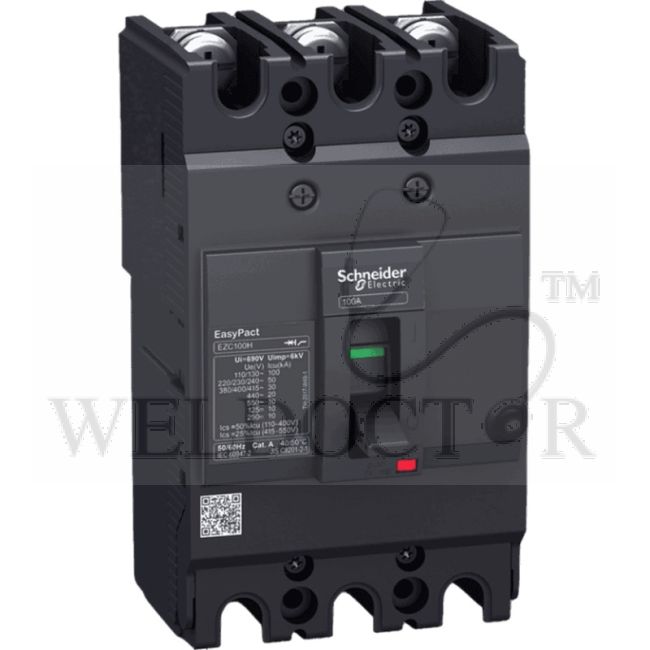

SCHNEIDER EASYPACT EZC100H MCCB BREAKER, 3P 3D, TMD 60A

Circuit breaker Easypact EZC100H TMD 60 A 3 poles 3d. Label : EasyPact Range : EasyPact Network type : AC,DC Network frequency : 50/60 Hz Range of product : EasyPact Breaking capacity code : H Utilisation category : category A Product name : EasyPact EZC Trip unit name : TM D Product or component type : circuit breaker Trip unit technology : thermal Magnetic Protection type : short-circuit protection,overload protection Device short name : Easypact EZC100H Circuit breaker name : Easypact EZC100H Device application : distribution-poles description : 3P Protected poles description : 3t Range Presentation : The EasyPact EZC system is the simple and universal solution to satisfy all low voltage protection needs. Easy to choose Easy to install Easy to use Range Benefits : It's so Easy and simple Safety and protection Simplicity Range Application Presentation : Protection of any electrical installation not exceeding 50kA/415V breaking capacity in particular for residential, buildings and industries

Specifications:

• Breaking Capacity: 10 kA Icu at 125 V DC 1P conforming to IEC 60947-2
• Breaking Capacity Code: H
• Contacts Type And Composition: 100 A at 40 °C
• Control Type: toggle
• Product Or Component Type: circuit breaker
• Range Of Product: EasyPact
• Trip Unit Name: TM-D
• [Ie] Rated Operational Current: toggle
• [Ue] Rated Operational Voltage: 250 V DC conforming to IEC 60947-2
• Circuit Breaker Name: Easypact EZC100H
• Device Short Name: Easypact EZC100H
• EAN13: 3303430301264
• Mounting Support: backplate
• Network Type: AC
• Protected Poles Description: 3t
• Range: EasyPact
• Range Name: EasyPact EZC
• Suitability For Isolation: yes conforming to IEC 60947-2
• Trip Unit Technology: thermal-magnetic
• Utilisation Category: category A
• Communication Network Type: 250 V DC conforming to IEC 60947-2
• Current Transformer Type: H
• Interlocked Device: 10 kA Icu at 125 V DC 1P conforming to IEC 60947-2
• Product Name: EasyPact EZC
• [Ics] Rated Service Breaking Capacity: 15 kA at 380 V AC 50/60 Hz conforming to IEC 60947-2
• [In] Rated Current: 100 A at 40 °C
• Compatibility Code: EZC100
• Connection Pitch: 25 mm
• Depth: 60 mm
• Device Application: distribution
• Downside Connection: front
• Earth-leakage Protection: without
• Electrical Durability: category A: 1500 cycles 415 V AC 50/60 Hz conforming to IEC 60947-2
• Height: 130 mm
• Local Signalling: positive contact indication
• Market Segment: small commercial
• Mechanical Durability: 8500 cycles
• Mounting Mode: fixed
• Network Frequency: 50/60 Hz
• Neutral Protection Setting: without protection
