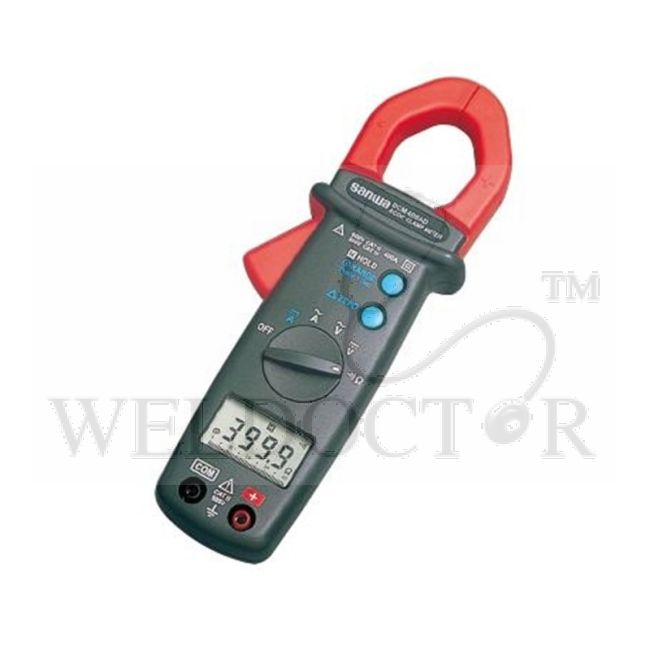

SANWA DIGITAL CLAMP METER DCM400AD

Able to measure current frequency 4000 count display Voltage frequency measurement range up to 10MHz To IEC1010 CATIII 300V, CATII 600V

Brand: 3M

Specifications:

• Absolute Maximum AC Current Measurement: 400A ac
• Absolute Maximum AC Voltage Measurement: 600V ac
• Absolute Maximum DC Voltage Measurement: 600V dc
• Absolute Maximum Resistance Measurement: 400Ω
• AC Current Measurement Resolution: 10mA ac
• AC Voltage Measurement Resolution: >0.1V ac
• Battery Type: AAA
• Best AC Current Accuracy: ±1.9% +5 digits
• Best AC Voltage Accuracy: ±1.5% + 5 Digits
• Best DC Voltage Accuracy: ±1% + 2 Digits
• Best Resistance Measurement Accuracy: ±1% + 2 Digits
• Clamp Meter Type: Continuity, Current, Frequency, Resistance, Voltage
• DC Voltage Measurement Resolution: 0.1V dc
• Dimension: 193 x 50 x 28mm
• Display Type: LCD
• Functions Measured: AC Current, AC Voltage, Continuity, DC Voltage, Frequency, Resistance
• Height: 28mm
• Jaw Capacity Busbars: 10 x 34mm
• Length: 193mm
• Maximum Conductor Size: 25mm
• Maximum Operating Temperature: +40°C
• MinimumOperating Temperature: 0°C
• Power Source: Battery
• Resistance Measurement Resolution: 0.1Ω
• Safety Category: CAT II 600 V, CAT III 300 V
• Safety Category Level: CAT II, CAT lll
• Safety Category Voltage: 300 V, 600 V
• Weight: 230g
• Width: 50mm
• Name: File Type
• SANWA DCM400AD MANUAL: .pdf
