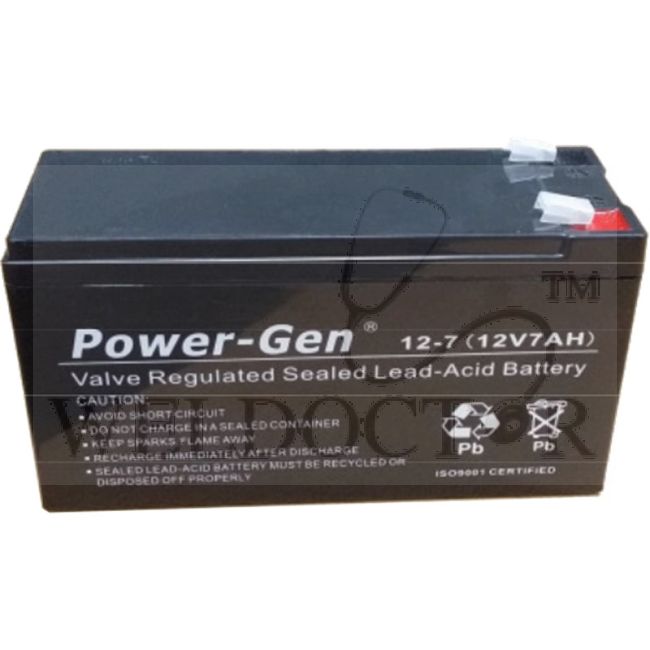

POWER-GEN LEAD ACID BATTERY (12V - 7.0AH) 152LX65WX100H (MM)

POWER-GEN LEAD ACID BATTERY 12V - 7.0AH Absorbent glass mat technology Recognized by RoHS & CE ABS container

Specifications:

• NoMinal Voltage: 12V
• Capacity (25°C): 20HR (5.25V)
• 10HR(5.25V): 6.6Ah
• 1HR(4.80V): 4.6AH
• Dimension: Length
• Width: 65 +-1mm (2.56inch)
• Height: 94 +-1mm (3.70inch)
• Total Height: 100 +-1mm (3.94inch)
• Approx. Weight: 2.22kgs (4.90lbs) +- 5%
• Terminal Type: T1/T2
• Internal reistance (Fully charged 25°C): Approx. 28m
• Capacity affected by Temperature (20HR): 40°C
• 25°C: 100%
• 0°C: 85%
• -15°C: 65%
• Self-discharge (25°C): 3 month
• NorMinal Operating Temperature: 25°C + 3°C (77F°F +- 5°F)
• Operating Temperature range: Discharge
• Charge: -10°C ~ 50°C (14°F ~ 122°F)
• Storage: -20°C ~ 50°C (-4°F ~ 122°F)
• Floating charging Voltage (25°C): 13.60 to 13.80V
• Cyclic charging Voltage (25°C): 14.50 to 14.90V
• Maximum charging Current: 2.1A
• Termainal Material: Copper
• Maximum discharge Current: 105A (5 sec)
• Designed floating life (20°C): 3~5 years
