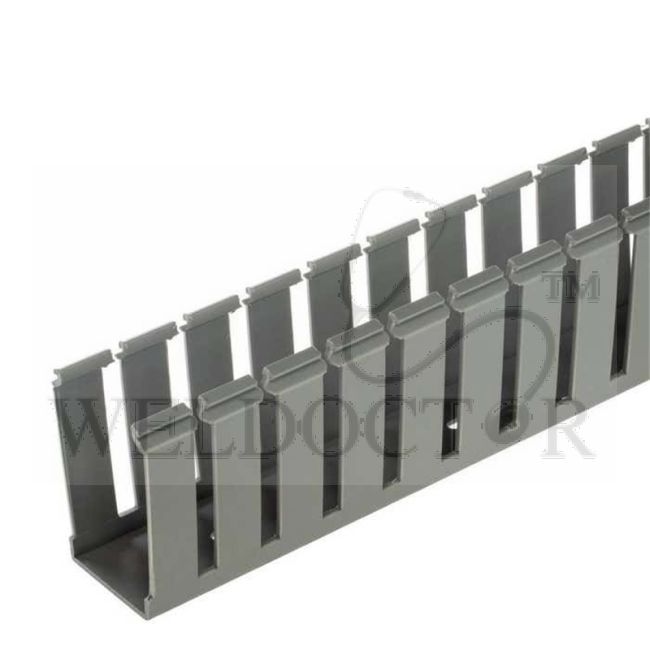

PANDUIT WIDE SLOT WIRING DUCT G3X3LG6, NO COVER

The G3X3LG6 Panduct Lead-Free PVC Wide Slot Wiring Duct feature a wide slot/finger design that provides greater sidewall rigidity and is suitable with a range of wire bundle sizes. UL 94 flame class of V-0 with a UL recognized continuous-use temperature up to 122°F (50°C). Mounting holes provided. Lead-free PVC. 3.12" x 3.25" (79.2 mm x 82.6 mm) and 6' (1.8 m) long. Cover sold separately. Color Light Gray.

Brand: Panduct® PANDUIT WIDE SLOT WIRING DUCT G3X3LG6, NO COVER

Specifications:

• Color: Light Gray
• Material: Lead-Free PVC
• Mount Method: Mounting Holes
• Product Type: Base Wiring Duct
• Wiring Duct Style: Wide Slot Wiring Duct
• Wiring Duct Type: G
• Application: Wide slot/finger design provides greater sidewall rigidity and can be used in a wide range of applications
• Cover Part Number: C3LG6
• Flammability Rating: UL94V-0
• Includes: Base Only
• Measurement System: Imperial
• Overall Height (In.): 3.12
• Overall Height (mm): 79.2
• Overall Length (ft.): 6
• Overall Length (m): 1.8
• Overall Width (In.): 3.25
• Overall Width (mm): 82.6
• Part Features: Wide finger and slot design provides greater rigidity and allows use with a wide range of wire and bundle sizes. Upper and lower scorelines allows easy finger and sidewall section removals.
• Slot Width (In.): 0.31
• Slot Width (mm): 7.9
• Standards Met: RoHS Compliant, UL Recognized, CE Compliant; CSA Approved
• Status: MATURE
• Sub Brand: Panduct®
