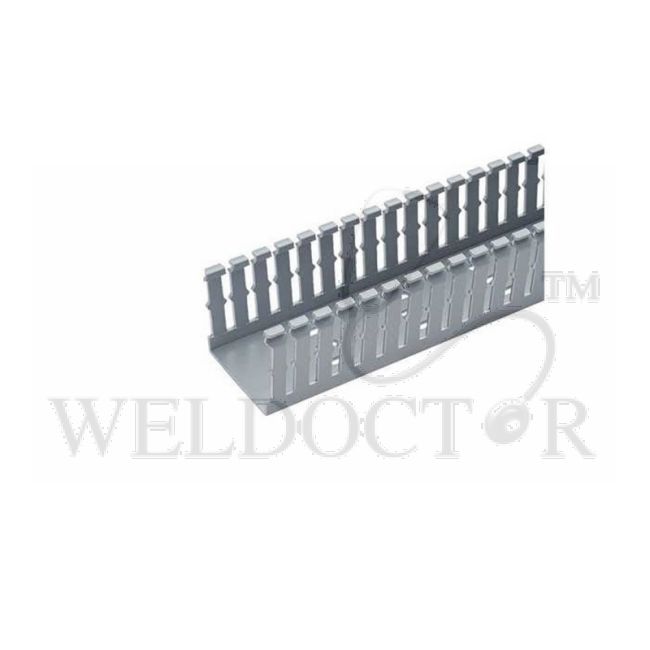

PANDUIT NARROW SLOT WIRING DUCT F1X2LG6, NO COVER

The F1X2LG6 Panduct Lead-Free PVC Narrow Slot Wiring Duct features a narrow slot/finger design that closely matches the spacing of high-density components. Upper and lower scorelines allow for easy finger/sidewall section removal. UL 94 flame class of V-0 with a UL recognized continuous-use temperature up to 122°F (50°C). Mounting holes provided. Lead-free PVC. 2.12" x 1.25" (53.8 mm x 31.8 mm) and 6' (1.83 m) long. Cover sold separately. Color Light Gray.

Brand: Panduct® PANDUIT NARROW SLOT WIRING DUCT F1X2LG6, NO COVER

Specifications:

• Color: Light Gray
• Material: Lead-Free PVC
• Mount Method: Mounting Holes
• Product Type: Base Wiring Duct
• Wiring Duct Style: Narrow Slot Wiring Duct
• Wiring Duct Type: F
• Application: Narrow slot/finger design provides more slots to fit the spacing of high-density terminal block applications
• Cover Part Number: C1LG6
• Flammability Rating: UL94V-0
• Includes: Base Only
• Measurement System: Imperial
• Overall Height (In.): 2.12
• Overall Height (mm): 53.8
• Overall Length (ft.): 6
• Overall Length (m): 1.8
• Overall Width (In.): 1.25
• Overall Width (mm): 32
• Part Features: Narrow finger and slot design closely matches the spacing of high-density compnents. Upper and lower scorelines allows easy finger and sidewall section removals. Double restricted slot design for retaining wires, eliminating hassle and saving time
• Slot Width (In.): 0.2
• Slot Width (mm): 5
• Standards Met: RoHS Compliant, UL Recognized, CE Compliant; CSA Approved
• Status: MATURE
• Sub Brand: Panduct®
