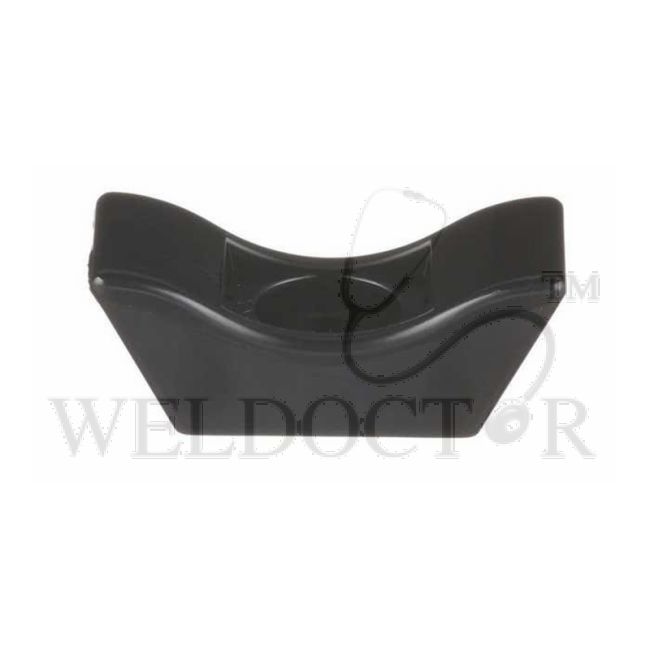

PANDUIT EXTRA HEAVY CABLE TIE MOUNT TMEH-S25-Q0, #1/4 100PCS/PKT

Panduit TMEH-S25-Q0 screw applied extra heavy cable tie mounts are designed for use with Panduit extra-heavy cross section cable ties for mounting cable, large wire bundles, or tubular shapes. Their unique cradle design provides maximum stability for cable bundling, routing and the support of large diameter and heavy cable bundles. Install with #1/4 (M6) screw. For outdoor use, made of Weather Resistant Nylon 6.6, are black in color and come in packages of 25.

Specifications:

• Color: Black
• Environment: Indoor/Outdoor
• Material: Weather Resistant Nylon 6.6
• Mount Method: Screw
• Product Type: Cable Tie Mount
• Resistance Properties: UV Resistant
• Application: Extra Heavy Cable Tie Mount Applied With a Screw for Outdoor Environment
• For Use With: Intermediate, Standard, Heavy, Extra Heavy Cross-Section Ties
• Maximum Operating Temperature (°C): 85
• Maximum Operating Temperature (°F): 185
• Minimum Operating Temperature (°C): -60
• Minimum Operating Temperature (°F): -76
• Overall Height (In.): 0.61
• Overall Height (mm): 15.5
• Overall Length (In.): 1.62
• Overall Length (mm): 41.1
• Overall Width (In.): 0.72
• Overall Width (mm): 50.3
• Standards Met: CE Compliant, UL Recognized:E136577, RoHS Compliant
• Status: MATURE
