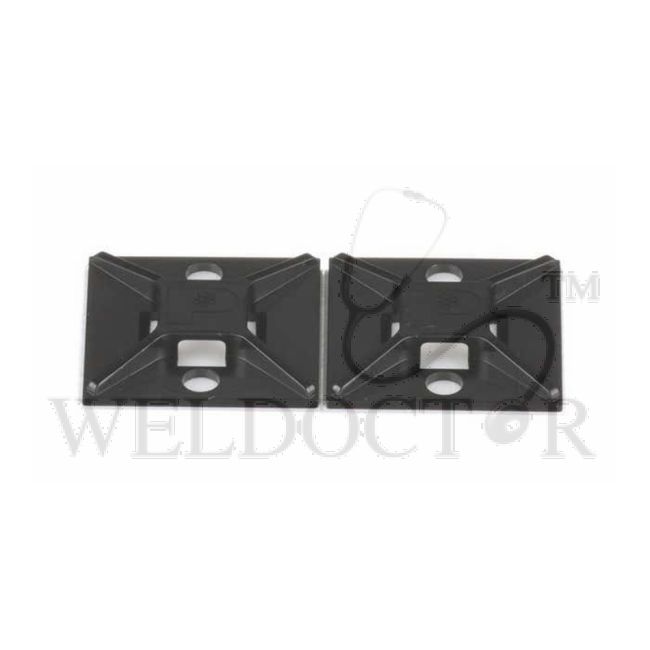

PANDUIT 4-WAY ADHESIVE BACKED CABLE TIE MOUNT ABM2S-AT-D0 100PCS/PKT

Panduit’s ABM2S-AT-D0 4-way acrylic-based adhesive backed cable tie mounts have been designed for fast installation and long-term performance and reliability. They are made of weather resistant ABS plastic. These mounts can be used with miniature, intermediate, and standard cable ties and are designed for outdoor, high-temperature environments. They are 1" x 1" (25.4mm x 25.4mm), supplied in strips of 2, are black in color and come in packages of 100.

Specifications:

• Color: Black
• Environment: Indoor/Outdoor
• Material: Weather Resistant ABS
• Mount Method: Acrylic Adhesive Tape
• Product Type: Cable Tie Mount
• Resistance Properties: UV Resistant
• Application: Used with Miniature, Intermediate, and Standard Cables Ties
• For Use With: Miniature, Intermediate, Standard Cross-Section Ties
• Maximum Compatible Panel Thickness (In.): 0.04
• Maximum Compatible Panel Thickness (mm): 1
• Maximum Operating Temperature (°C): 70
• Maximum Operating Temperature (°F): 158
• Minimum Operating Temperature (°C): -29
• Minimum Operating Temperature (°F): -20
• Mounting Hole Thread Size: 0.16
• Overall Height (In.): 0.2
• Overall Height (mm): 5.1
• Overall Length (In.): 1
• Overall Length (mm): 25.4
• Overall Width (In.): 1
• Overall Width (mm): 50.3
• Standards Met: CE Compliant, UL Recognized: E136577, RoHS Compliant
• Static Load Capacity (kg): 0.227
• Static Load Capacity (lb): 0.5
• Status: MATURE
