MAKITA UP100D CORDLESS PRUNING SHEARS SPARE PARTS

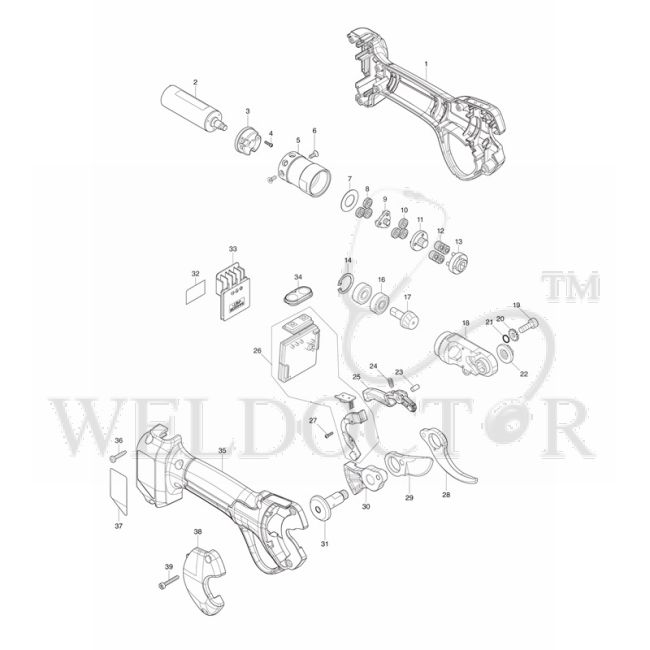

Spare Parts of Makita UP100D Cordless Pruning Shear Ref. No. Part Name & Number Price 001 MAKITA HOUSING SET FOR UP100D P/N:183Y33-1 Part No.: 183Y33-1 $24.53 Add To Cart 002 MAKITA DC MOTOR FOR UP100DSAX P/N:629C07-1 Part No.: 629C07-1 $1,029.18 Add To Cart 003 MAKITA MOTOR HOLDER FOR DUP180/UP100D P/N:312D98-2 Part No.: 312D98-2 $12.43 Add To Cart 004 MAKITA PAN HEAD SCREW M2X8 FOR UP100DSAX P/N:265D05-3 Part No.: 265D05-3 $0.11 Add To Cart 005 MAKITA INTERNAL GEAR 43 FOR UP100DSAX P/N:227A61-3 Part No.: 227A61-3 $67.91 Add To Cart 006 MAKITA C.H.SCREW M3X8 FOR 2516CSP P/N:912007-3 Part No.: 912007-3 $0.11 Add To Cart 007 MAKITA FLAT WASHER FOR HR4001C Part No.: 253084-9 $0.33 Add To Cart 008 MAKITA SPUR GEAR 17 FOR UP100DSAX P/N:227A64-7 Part No.: 227A64-7 $7.09 Add To Cart 009 MAKITA SPUR GEAR 8 B COMPLETE FOR UP100DSAX P/N:162C36-6 Part No.: 162C36-6 $19.08 Add To Cart 010 MAKITA SPUR GEAR 17 FOR UP100DSAX P/N:227A64-7 Part No.: 227A64-7 $7.09 Add To Cart 011 MAKITA SPUR GEAR 13 COMPLETE FOR UP100DSAX P/N:162C37-4 Part No.: 162C37-4 $19.84 Add To Cart 012 MAKITA SPUR GEAR 14 FOR UP100DSAX P/N:227A63-9 Part No.: 227A63-9 $7.09 Add To Cart 013 MAKITA SUPPORTER COMPLETE FOR UP100DSAX P/N:162C31-6 Part No.: 162C31-6 $32.81 Add To Cart 014 MAKITA RETAINING RING (INT) R-19 FOR UP100DSAX P/N:962059-4 Part No.: 962059-4 $0.22 Add To Cart 016 MAKITA BALL BEARING 607DDW FOR 9526B P/N:210017-7 Part No.: 210017-7 $2.73 Add To Cart 017 MAKITA ZEROL BEVEL GEAR 9 FOR UP100DSAX P/N:227A60-5 Part No.: 227A60-5 $9.48 Add To Cart 018 MAKITA GEAR HOUSING FOR UP100DSAX P/N:327B57-1 Part No.: 327B57-1 $154.56 Add To Cart 019 MAKITA HEX. SOCKET H. BOLT M5X14 FOR 4315 P/N:922217-4 Part No.: 922217-4 $0.33 Add To Cart 020 MAKITA LOCK PLATE FOR UP100DSAX P/N:253578-4 Part No.: 253578-4 $2.18 Add To Cart 021 MAKITA O RING 5 FOR LS1040 P/N:213021-5 Part No.: 213021-5 $0.11 Add To Cart 022 MAKITA HEX. NUT M8 FOR UP100DSAX P/N:252321-8 Part No.: 252321-8 $4.03 Add To Cart 023 MAKITA PIN 4 FOR HP2070 Part No.: 256251-5 $0.11 Add To Cart 024 MAKITA COMPRESSION SPRING 4 FOR UC3020A P/N:233033-2 Part No.: 233033-2 $0.22 Add To Cart 025 MAKITA TRIGGER COMPLETE FOR UP100DSAX P/N:162C32-4 Part No.: 162C32-4 $12.54 Add To Cart 026 MAKITA CONTROLLER FOR UP100DSAX P/N:620K67-4 Part No.: 620K67-4 $201.32 Add To Cart 027 MAKITA PAN HEAD SCREW M2X8 FOR UP100DSAX P/N:265D05-3 Part No.: 265D05-3 $0.11 Add To Cart 030 MAKITA BLADE HOLDER COMPLETE FOR UP100DSAX P/N:162C33-2 Part No.: 162C33-2 $27.14 Add To Cart 031 MAKITA SHOULDER SCREW M8 COMPLETE FOR UP100DSAX P/N:162C35-8 Part No.: 162C35-8 $18.09 Add To Cart 033 MAKITA TERMINAL FOR TD110D P/N:644813-5 Part No.: 644813-5 $2.73 Add To Cart 034 MAKITA SWITCH PLATE FOR DUP180/UP100D P/N:162C34-0 Part No.: 162C34-0 $3.60 Add To Cart 035 MAKITA HOUSING SET FOR UP100D P/N:183Y33-1 Part No.: 183Y33-1 $24.53 Add To Cart 036 MAKITA TAPPING SCREW BIND PT 3X16 FOR 6226DWE P/N:266130-9 Part No.: 266130-9 $0.11 Add To Cart 038 MAKITA HOUSING COVER COMPLETE FOR UP100D P/N:162C42-1 Part No.: 162C42-1 $4.03 Add To Cart 039 MAKITA HEX SOCKET HEAD BOLT M3X20 P/N:265633-0 Part No.: 265633-0 $0.33 Add To Cart

Brand: Makita

Specifications:

• Ref. No.: Part Name & Number
• 001: MAKITA HOUSING SET FOR UP100D P/N:183Y33-1 Part No.: 183Y33-1
• 002: MAKITA DC MOTOR FOR UP100DSAX P/N:629C07-1 Part No.: 629C07-1
• 003: MAKITA MOTOR HOLDER FOR DUP180/UP100D P/N:312D98-2 Part No.: 312D98-2
• 004: MAKITA PAN HEAD SCREW M2X8 FOR UP100DSAX P/N:265D05-3 Part No.: 265D05-3
• 005: MAKITA INTERNAL GEAR 43 FOR UP100DSAX P/N:227A61-3 Part No.: 227A61-3
• 006: MAKITA C.H.SCREW M3X8 FOR 2516CSP P/N:912007-3 Part No.: 912007-3
• 007: MAKITA FLAT WASHER FOR HR4001C Part No.: 253084-9
• 008: MAKITA SPUR GEAR 17 FOR UP100DSAX P/N:227A64-7 Part No.: 227A64-7
• 009: MAKITA SPUR GEAR 8 B COMPLETE FOR UP100DSAX P/N:162C36-6 Part No.: 162C36-6
• 010: MAKITA SPUR GEAR 17 FOR UP100DSAX P/N:227A64-7 Part No.: 227A64-7
• 011: MAKITA SPUR GEAR 13 COMPLETE FOR UP100DSAX P/N:162C37-4 Part No.: 162C37-4
• 012: MAKITA SPUR GEAR 14 FOR UP100DSAX P/N:227A63-9 Part No.: 227A63-9
• 013: MAKITA SUPPORTER COMPLETE FOR UP100DSAX P/N:162C31-6 Part No.: 162C31-6
• 014: MAKITA RETAINING RING (INT) R-19 FOR UP100DSAX P/N:962059-4 Part No.: 962059-4
• 016: MAKITA BALL BEARING 607DDW FOR 9526B P/N:210017-7 Part No.: 210017-7
• 017: MAKITA ZEROL BEVEL GEAR 9 FOR UP100DSAX P/N:227A60-5 Part No.: 227A60-5
• 018: MAKITA GEAR HOUSING FOR UP100DSAX P/N:327B57-1 Part No.: 327B57-1
• 019: MAKITA HEX. SOCKET H. BOLT M5X14 FOR 4315 P/N:922217-4 Part No.: 922217-4
• 020: MAKITA LOCK PLATE FOR UP100DSAX P/N:253578-4 Part No.: 253578-4
• 021: MAKITA O RING 5 FOR LS1040 P/N:213021-5 Part No.: 213021-5
• 022: MAKITA HEX. NUT M8 FOR UP100DSAX P/N:252321-8 Part No.: 252321-8
• 023: MAKITA PIN 4 FOR HP2070 Part No.: 256251-5
• 024: MAKITA COMPRESSION SPRING 4 FOR UC3020A P/N:233033-2 Part No.: 233033-2
• 025: MAKITA TRIGGER COMPLETE FOR UP100DSAX P/N:162C32-4 Part No.: 162C32-4
• 026: MAKITA CONTROLLER FOR UP100DSAX P/N:620K67-4 Part No.: 620K67-4
• 027: MAKITA PAN HEAD SCREW M2X8 FOR UP100DSAX P/N:265D05-3 Part No.: 265D05-3
• 030: MAKITA BLADE HOLDER COMPLETE FOR UP100DSAX P/N:162C33-2 Part No.: 162C33-2
• 031: MAKITA SHOULDER SCREW M8 COMPLETE FOR UP100DSAX P/N:162C35-8 Part No.: 162C35-8
• 033: MAKITA TERMINAL FOR TD110D P/N:644813-5 Part No.: 644813-5
• 034: MAKITA SWITCH PLATE FOR DUP180/UP100D P/N:162C34-0 Part No.: 162C34-0
• 035: MAKITA HOUSING SET FOR UP100D P/N:183Y33-1 Part No.: 183Y33-1
• 036: MAKITA TAPPING SCREW BIND PT 3X16 FOR 6226DWE P/N:266130-9 Part No.: 266130-9
• 038: MAKITA HOUSING COVER COMPLETE FOR UP100D P/N:162C42-1 Part No.: 162C42-1
• 039: MAKITA HEX SOCKET HEAD BOLT M3X20 P/N:265633-0 Part No.: 265633-0
