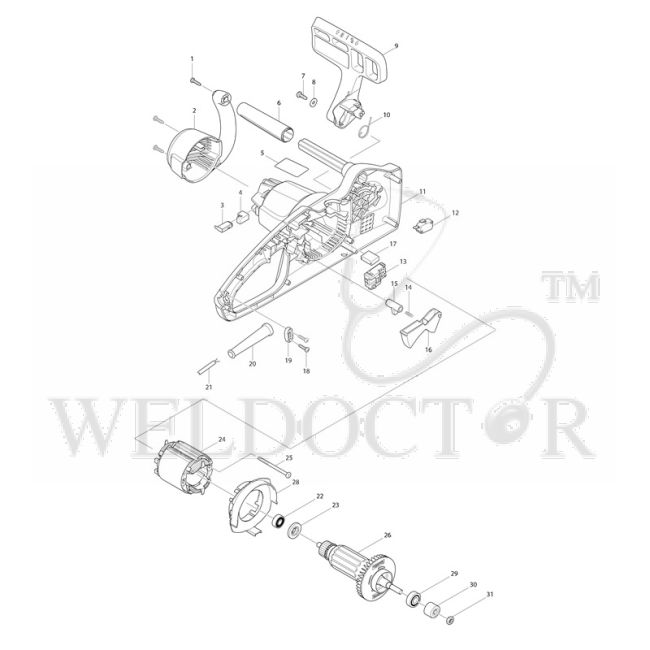

MAKITA UC3541A 350MM ELECTRIC CHAIN SAW SPARE PARTS

Spare Parts of Makita UC3541A Electric Chain Saw Ref. No. Part Name & Number Price 002 MAKITA REAR COVER FOR UC3041A P/N:454725-2 Part No.: 454725-2 $4.91 Add To Cart 004 MAKITA RUBBER SLEEVE FOR UC3020A P/N:682211-5 Part No.: 682211-5 $0.65 Add To Cart 007 MAKITA TAPPING SCREW 5X16 FOR UC3020A P/N:266388-0 Part No.: 266388-0 $0.33 Add To Cart 008 MAKITA FLAT WASHER 5 FOR 6095DWE P/N:253807-5 Part No.: 253807-5 $0.33 Add To Cart 009 MAKITA FRONT HAND GUARD COMPLETE FOR UC3041A P/N:142279-8 Part No.: 142279-8 $3.60 Add To Cart 010 MAKITA TORSION SPRING 20 P/N:231640-5 Part No.: 231640-5 $0.33 Add To Cart 011 MAKITA HOUSING SET FOR UC3041A P/N:187869-0 Part No.: 187869-0 $30.19 Add To Cart 012 MAKITA SWITCH FOR UC3530A P/N:650577-1 Part No.: 650577-1 $1.85 Add To Cart 013 MAKITA SWITCH TGC31B FOR UC3040A P/N:650716-3 Part No.: 650716-3 $9.16 Add To Cart 014 MAKITA COMPRESSION SPRING 4 FOR UC3020A P/N:233173-6 Part No.: 233173-6 $0.22 Add To Cart 015 MAKITA LOCK-OFF BUTTON P/N:416178-3 Part No.: 416178-3 $0.33 Add To Cart 016 MAKITA SWITCH LEVER FOR UC3541A/4041A P/N:455185-1 Part No.: 455185-1 $0.76 Add To Cart 019 MAKITA STRAIN RELIEF FOR DLM480/LM001G P/N:687124-5 Part No.: 687124-5 $0.33 Add To Cart 020 MAKITA CORD GUARD 9.3-90 FOR LS1040 P/N:682540-6 Part No.: 682540-6 $0.76 Add To Cart 022 MAKITA BALL BEARING 608ZZ P/N:210029-0 Part No.: 210029-0 $1.20 Add To Cart 023 MAKITA INSULATED WASHER FOR UB1100 P/N:681644-1 Part No.: 681644-1 $0.33 Add To Cart 026 MAKITA ARMATURE ASS'Y 220-240V FOR UC3040A P/N:513893-1 Part No.: 513893-1 $36.95 Add To Cart 028 MAKITA BAFFLE PLATE FOR UC3020A P/N:419238-0 Part No.: 419238-0 $0.65 Add To Cart 029 MAKITA BALL BEARING 6000LLB P/N:211061-7 Part No.: 211061-7 $3.05 Add To Cart 030 MAKITA SPUR GEAR 12 FOR UC3020A P/N:227153-2 Part No.: 227153-2 $1.20 Add To Cart 031 MAKITA HEX.NUT M8 FOR 9077 P/N:931403-6 Part No.: 931403-6 $0.44 Add To Cart 032 MAKITA TANK CAP CPL FOR UC3041A P/N:142282-9 Part No.: 142282-9 $3.60 Add To Cart 034 MAKITA OIL TANK FOR UC3041A P/N:454729-4 Part No.: 454729-4 $2.18 Add To Cart 037 MAKITA OIL TUBE FOR UC3041A P/N:424602-2 Part No.: 424602-2 $1.31 Add To Cart 038 MAKITA SPRING FOR UC3520A P/N:231975-4 Part No.: 231975-4 $0.33 Add To Cart 039 MAKITA CAP FOR UC3020A P/N:416274-7 Part No.: 416274-7 $0.33 Add To Cart 040 MAKITA PIN 5 FOR TW004G P/N:268238-5 Part No.: 268238-5 $0.44 Add To Cart 041 MAKITA LINK PLATE COMPLETE FOR UC4020A P/N:158047-9 Part No.: 158047-9 $2.94 Add To Cart 042 MAKITA COMPRESSION SPRING 9 UC4020A P/N:233175-2 Part No.: 233175-2 $0.44 Add To Cart 045 MAKITA FLAT WASHER 4 FOR UC4020A P/N:267195-4 Part No.: 267195-4 $0.33 Add To Cart 046 MAKITA BRAKE BAND FOR UC4020A P/N:168321-7 Part No.: 168321-7 $5.45 Add To Cart 047 MAKITA BRAKE RING FOR UC3041C P/N:346739-4 Part No.: 346739-4 $0.65 Add To Cart 048 MAKITA TENSION SPRING 5 FOR UC4020A P/N:231817-2 Part No.: 231817-2 $0.55 Add To Cart 049 MAKITA BEARING HOUSING FOR UC3041A P/N:454720-2 Part No.: 454720-2 $4.80 Add To Cart 050 MAKITA O RING 6 P/N:213017-6 Part No.: 213017-6 $0.22 Add To Cart 052 MAKITA CONNECTOR FOR UC3041A P/N:424601-4 Part No.: 424601-4 $1.31 Add To Cart 053 MAKITA SPUR GEAR 43 ASS'Y FOR UC3041A P/N:135615-5 Part No.: 135615-5 $13.84 Add To Cart 055 MAKITA BALL BEARING 6001LLB FOR GD0601 P/N:210106-8 Part No.: 210106-8 $1.85 Add To Cart 056 MAKITA RETAINING RING S-10 FOR HR3000C HR2810 P/N:961006-2 Part No.: 961006-2 $0.33 Add To Cart 058 MAKITA ROD FOR UC3041A P/N:326359-0 Part No.: 326359-0 $0.44 Add To Cart 061 MAKITA SPIKE BUMPER FOR UC3020A P/N:345651-5 Part No.: 345651-5 $0.87 Add To Cart 062 MAKITA HOUSING SET FOR UC3041A P/N:187869-0 Part No.: 187869-0 $30.19 Add To Cart 064 MAKITA SPROCKET FOR MUC351 P/N:221526-1 Part No.: 221526-1 $3.16 Add To Cart 065 MAKITA RETAINING RING E TYPE 8 P/N:259036-8 Part No.: 259036-8 $0.33 Add To Cart 066 MAKITA TAPPING SCREW BIND PT3X10 FOR BTW201 P/N:266007-8 Part No.: 266007-8 $0.11 Add To Cart 067 MAKITA TENSION COVER FOR UC4041A P/N:454727-8 Part No.: 454727-8 $0.76 Add To Cart 068 MAKITA DIAL 30 FOR UC3041A P/N:454726-0 Part No.: 454726-0 $0.44 Add To Cart 069 MAKITA SHAFT FOR UC4041A P/N:326360-5 Part No.: 326360-5 $1.09 Add To Cart 070 MAKITA BEVEL GEAR 14 FOR UC4030A Part No.: 227496-2 $1.20 Add To Cart 071 MAKITA BEVEL GEAR 14 FOR UC4030A Part No.: 227496-2 $1.20 Add To Cart 072 MAKITA ADJUST SCREW FOR UC3530A P/N:324620-9 Part No.: 324620-9 $0.44 Add To Cart 074 MAKITA GROMMET FOR UC3041A P/N:424603-0 Part No.: 424603-0 $0.33 Add To Cart 076 MAKITA WORM GEAR FOR DUC355/ UC4551A P/N:221427-3 Part No.: 221427-3 $2.62 Add To Cart 078 MAKITA TAPPING SCREW 4X12 FOR 5007NB P/N:266427-6 Part No.: 266427-6 $0.22 Add To Cart 079 MAKITA SPROCKET COVER COMPLETE FOR UC3041A P/N:142281-1 Part No.: 142281-1 $4.91 Add To Cart 080 MAKITA COVER FOR UC3041A P/N:454728-6 Part No.: 454728-6 $0.76 Add To Cart 081 MAKITA NUT COMPLETE FOR EA3601 P/N:142235-8 Part No.: 142235-8 $6.32 Add To Cart

Brand: Makita

Specifications:

• Ref. No.: Part Name & Number
• 002: MAKITA REAR COVER FOR UC3041A P/N:454725-2 Part No.: 454725-2
• 004: MAKITA RUBBER SLEEVE FOR UC3020A P/N:682211-5 Part No.: 682211-5
• 007: MAKITA TAPPING SCREW 5X16 FOR UC3020A P/N:266388-0 Part No.: 266388-0
• 008: MAKITA FLAT WASHER 5 FOR 6095DWE P/N:253807-5 Part No.: 253807-5
• 009: MAKITA FRONT HAND GUARD COMPLETE FOR UC3041A P/N:142279-8 Part No.: 142279-8
• 010: MAKITA TORSION SPRING 20 P/N:231640-5 Part No.: 231640-5
• 011: MAKITA HOUSING SET FOR UC3041A P/N:187869-0 Part No.: 187869-0
• 012: MAKITA SWITCH FOR UC3530A P/N:650577-1 Part No.: 650577-1
• 013: MAKITA SWITCH TGC31B FOR UC3040A P/N:650716-3 Part No.: 650716-3
• 014: MAKITA COMPRESSION SPRING 4 FOR UC3020A P/N:233173-6 Part No.: 233173-6
• 015: MAKITA LOCK-OFF BUTTON P/N:416178-3 Part No.: 416178-3
• 016: MAKITA SWITCH LEVER FOR UC3541A/4041A P/N:455185-1 Part No.: 455185-1
• 019: MAKITA STRAIN RELIEF FOR DLM480/LM001G P/N:687124-5 Part No.: 687124-5
• 020: MAKITA CORD GUARD 9.3-90 FOR LS1040 P/N:682540-6 Part No.: 682540-6
• 022: MAKITA BALL BEARING 608ZZ P/N:210029-0 Part No.: 210029-0
• 023: MAKITA INSULATED WASHER FOR UB1100 P/N:681644-1 Part No.: 681644-1
• 026: MAKITA ARMATURE ASS'Y 220-240V FOR UC3040A P/N:513893-1 Part No.: 513893-1
• 028: MAKITA BAFFLE PLATE FOR UC3020A P/N:419238-0 Part No.: 419238-0
• 029: MAKITA BALL BEARING 6000LLB P/N:211061-7 Part No.: 211061-7
• 030: MAKITA SPUR GEAR 12 FOR UC3020A P/N:227153-2 Part No.: 227153-2
• 031: MAKITA HEX.NUT M8 FOR 9077 P/N:931403-6 Part No.: 931403-6
• 032: MAKITA TANK CAP CPL FOR UC3041A P/N:142282-9 Part No.: 142282-9
• 034: MAKITA OIL TANK FOR UC3041A P/N:454729-4 Part No.: 454729-4
• 037: MAKITA OIL TUBE FOR UC3041A P/N:424602-2 Part No.: 424602-2
• 038: MAKITA SPRING FOR UC3520A P/N:231975-4 Part No.: 231975-4
• 039: MAKITA CAP FOR UC3020A P/N:416274-7 Part No.: 416274-7
• 040: MAKITA PIN 5 FOR TW004G P/N:268238-5 Part No.: 268238-5
• 041: MAKITA LINK PLATE COMPLETE FOR UC4020A P/N:158047-9 Part No.: 158047-9
• 042: MAKITA COMPRESSION SPRING 9 UC4020A P/N:233175-2 Part No.: 233175-2
• 045: MAKITA FLAT WASHER 4 FOR UC4020A P/N:267195-4 Part No.: 267195-4
• 046: MAKITA BRAKE BAND FOR UC4020A P/N:168321-7 Part No.: 168321-7
• 047: MAKITA BRAKE RING FOR UC3041C P/N:346739-4 Part No.: 346739-4
• 048: MAKITA TENSION SPRING 5 FOR UC4020A P/N:231817-2 Part No.: 231817-2
• 049: MAKITA BEARING HOUSING FOR UC3041A P/N:454720-2 Part No.: 454720-2
• 050: MAKITA O RING 6 P/N:213017-6 Part No.: 213017-6
• 052: MAKITA CONNECTOR FOR UC3041A P/N:424601-4 Part No.: 424601-4
• 053: MAKITA SPUR GEAR 43 ASS'Y FOR UC3041A P/N:135615-5 Part No.: 135615-5
• 055: MAKITA BALL BEARING 6001LLB FOR GD0601 P/N:210106-8 Part No.: 210106-8
• 056: MAKITA RETAINING RING S-10 FOR HR3000C HR2810 P/N:961006-2 Part No.: 961006-2
