MAKITA TD0101F IMPACT DRIVER SPARE PARTS

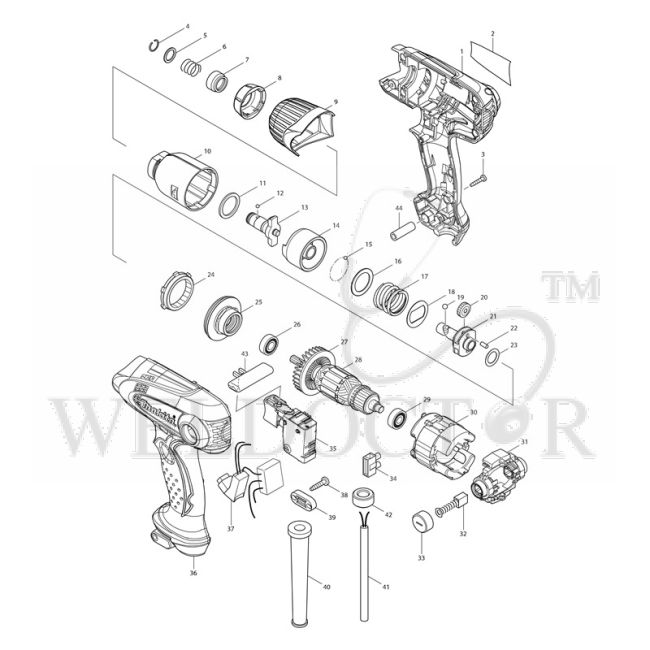

Spare Parts of Makita TD0101F Impact Driver Ref. No. Part Name & Number Price 001 MAKITA HOUSING SET FOR TD0101F P/N:188664-1 Part No.: 188664-1 $20.06 Add To Cart 003 MAKITA TAPPING SCREW PT M3X16 P/N:266429-2 Part No.: 266429-2 $0.22 Add To Cart 004 MAKITA RING SPRING 10 FOR TD020DW P/N:231965-7 Part No.: 231965-7 $0.22 Add To Cart 005 MAKITA FLAT WASHER 11 FOR TD020DW P/N:267143-3 Part No.: 267143-3 $0.33 Add To Cart 006 MAKITA COMPRESSION SPRING 13 FOR BTD120 6903VD P/N:233005-7 Part No.: 233005-7 $0.11 Add To Cart 007 MAKITA BIT SLEEVE FOR TD020SW P/N:324711-6 Part No.: 324711-6 $1.64 Add To Cart 008 MAKITA BUMPER FOR TD0101F P/N:424184-4 Part No.: 424184-4 $1.20 Add To Cart 010 MAKITA HAMMER CASE CPL FOR TD0101F P/N:158898-0 Part No.: 158898-0 $8.07 Add To Cart 011 MAKITA NYLON WASHER 20 FOR TD090 P/N:261140-1 Part No.: 261140-1 $0.33 Add To Cart 012 MAKITA STEEL BALL 3 FOR TD020SW P/N:216019-1 Part No.: 216019-1 $0.11 Add To Cart 014 MAKITA HAMMER FOR TD090 P/N:324894-2 Part No.: 324894-2 $7.63 Add To Cart 015 MAKITA STEEL BALL 3 FOR TD020SW P/N:216019-1 Part No.: 216019-1 $0.11 Add To Cart 016 MAKITA FLAT WASHER 20 FOR TD090 P/N:267380-9 Part No.: 267380-9 $0.33 Add To Cart 018 MAKITA WASHER 21 FOR TD090 P/N:267813-4 Part No.: 267813-4 $0.33 Add To Cart 019 MAKITA STEEL BALL 4.8 FOR 6910 P/N:216002-8 Part No.: 216002-8 $0.11 Add To Cart 020 MAKITA SPUR GEAR 17 FOR TD090 P/N:227213-0 Part No.: 227213-0 $0.55 Add To Cart 021 MAKITA SPINDLE FOR TD090 P/N:324897-6 Part No.: 324897-6 $5.78 Add To Cart 022 MAKITA PIN 3.5 FOR TD090 P/N:268217-3 Part No.: 268217-3 $0.33 Add To Cart 023 MAKITA FLAT WASHER 12 FOR 2702 P/N:253052-2 Part No.: 253052-2 $0.33 Add To Cart 024 MAKITA INTERNAL GEAR 43 FOR TD090DWE Part No.: 227215-6 $2.83 Add To Cart 025 MAKITA BEARING BOX COMPLETE FOR TD0100 P/N:158899-8 Part No.: 158899-8 $6.00 Add To Cart 026 MAKITA BALL BEARING 698VV FOR 6922NB P/N:210013-5 Part No.: 210013-5 $4.14 Add To Cart 028 MAKITA ARMATURE FOR TD0101F Part No.: 517654-1 $42.84 Add To Cart 029 MAKITA BALL BEARING 607ZZ FOR MT950 P/N:210062-2 Part No.: 210062-2 $0.98 Add To Cart 030 MAKITA FIELD COIL FOR TD0101F Part No.: 635109-5 $14.06 Add To Cart 031 MAKITA HOLDER ARM CPL FOR TD0101F P/N:638643-4 Part No.: 638643-4 $10.25 Add To Cart 033 MAKITA HOLDER CAP FOR 9523NB / 9526B Part No.: 643928-5 $0.87 Add To Cart 035 MAKITA SWITCH FOR TD0101F P/N:650613-3 Part No.: 650613-3 $20.82 Add To Cart 036 MAKITA HOUSING SET FOR TD0101F P/N:188664-1 Part No.: 188664-1 $20.06 Add To Cart 037 MAKITA LIGHT CIRCUIT TD010F P/N:631873-6 Part No.: 631873-6 $10.03 Add To Cart 039 MAKITA STRAIN RELIEF FOR DLM480/LM001G P/N:687124-5 Part No.: 687124-5 $0.33 Add To Cart 040 MAKITA CORD GUARD 10 FOR HR2020 P/N:682566-8 Part No.: 682566-8 $0.76 Add To Cart 041 MAKITA POWER S.CORD BS 1.0-2-2.5 P/N:692527-0 Part No.: 692527-0 $12.21 Add To Cart 043 MAKITA F/R CHANGE LEVER FOR BDF452 P/N:419250-0 Part No.: 419250-0 $0.44 Add To Cart

Brand: Makita

Specifications:

• Ref. No.: Part Name & Number
• 001: MAKITA HOUSING SET FOR TD0101F P/N:188664-1 Part No.: 188664-1
• 003: MAKITA TAPPING SCREW PT M3X16 P/N:266429-2 Part No.: 266429-2
• 004: MAKITA RING SPRING 10 FOR TD020DW P/N:231965-7 Part No.: 231965-7
• 005: MAKITA FLAT WASHER 11 FOR TD020DW P/N:267143-3 Part No.: 267143-3
• 006: MAKITA COMPRESSION SPRING 13 FOR BTD120 6903VD P/N:233005-7 Part No.: 233005-7
• 007: MAKITA BIT SLEEVE FOR TD020SW P/N:324711-6 Part No.: 324711-6
• 008: MAKITA BUMPER FOR TD0101F P/N:424184-4 Part No.: 424184-4
• 010: MAKITA HAMMER CASE CPL FOR TD0101F P/N:158898-0 Part No.: 158898-0
• 011: MAKITA NYLON WASHER 20 FOR TD090 P/N:261140-1 Part No.: 261140-1
• 012: MAKITA STEEL BALL 3 FOR TD020SW P/N:216019-1 Part No.: 216019-1
• 014: MAKITA HAMMER FOR TD090 P/N:324894-2 Part No.: 324894-2
• 015: MAKITA STEEL BALL 3 FOR TD020SW P/N:216019-1 Part No.: 216019-1
• 016: MAKITA FLAT WASHER 20 FOR TD090 P/N:267380-9 Part No.: 267380-9
• 018: MAKITA WASHER 21 FOR TD090 P/N:267813-4 Part No.: 267813-4
• 019: MAKITA STEEL BALL 4.8 FOR 6910 P/N:216002-8 Part No.: 216002-8
• 020: MAKITA SPUR GEAR 17 FOR TD090 P/N:227213-0 Part No.: 227213-0
• 021: MAKITA SPINDLE FOR TD090 P/N:324897-6 Part No.: 324897-6
• 022: MAKITA PIN 3.5 FOR TD090 P/N:268217-3 Part No.: 268217-3
• 023: MAKITA FLAT WASHER 12 FOR 2702 P/N:253052-2 Part No.: 253052-2
• 024: MAKITA INTERNAL GEAR 43 FOR TD090DWE Part No.: 227215-6
• 025: MAKITA BEARING BOX COMPLETE FOR TD0100 P/N:158899-8 Part No.: 158899-8
• 026: MAKITA BALL BEARING 698VV FOR 6922NB P/N:210013-5 Part No.: 210013-5
• 028: MAKITA ARMATURE FOR TD0101F Part No.: 517654-1
• 029: MAKITA BALL BEARING 607ZZ FOR MT950 P/N:210062-2 Part No.: 210062-2
• 030: MAKITA FIELD COIL FOR TD0101F Part No.: 635109-5
• 031: MAKITA HOLDER ARM CPL FOR TD0101F P/N:638643-4 Part No.: 638643-4
• 033: MAKITA HOLDER CAP FOR 9523NB / 9526B Part No.: 643928-5
• 035: MAKITA SWITCH FOR TD0101F P/N:650613-3 Part No.: 650613-3
• 036: MAKITA HOUSING SET FOR TD0101F P/N:188664-1 Part No.: 188664-1
• 037: MAKITA LIGHT CIRCUIT TD010F P/N:631873-6 Part No.: 631873-6
• 039: MAKITA STRAIN RELIEF FOR DLM480/LM001G P/N:687124-5 Part No.: 687124-5
• 040: MAKITA CORD GUARD 10 FOR HR2020 P/N:682566-8 Part No.: 682566-8
• 041: MAKITA POWER S.CORD BS 1.0-2-2.5 P/N:692527-0 Part No.: 692527-0
• 043: MAKITA F/R CHANGE LEVER FOR BDF452 P/N:419250-0 Part No.: 419250-0
