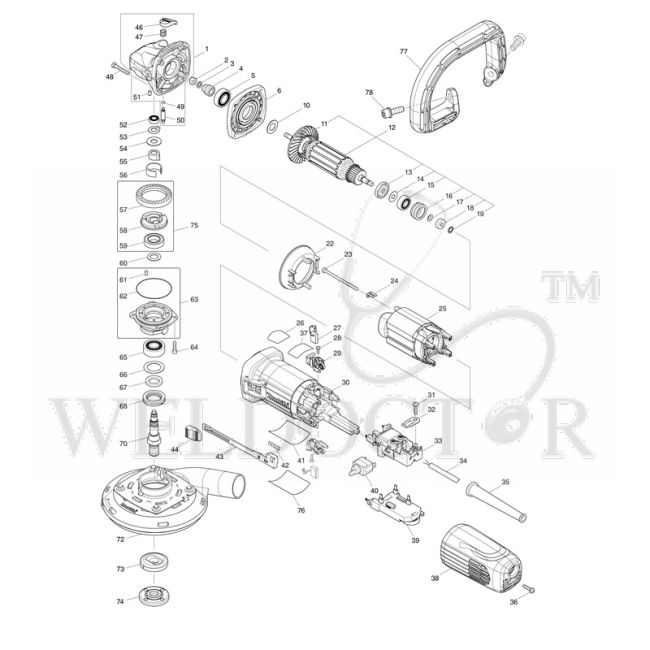

MAKITA PC5010C 125MM CONCRETE PLANER SPARE PARTS

Spare Parts of Makita PC5010C Concreate Planer Ref. No. Part Name & Number Price 001 MAKITA GEAR HOUSING FOR GA4040C/PC5010C P/N:136013-6 Part No.: 136013-6 $17.11 Add To Cart 002 MAKITA HEX. NUT M6 FOR DC/AC-GA P/N:252186-8 Part No.: 252186-8 $0.11 Add To Cart 003 MAKITA FLAT WASHER 6 FOR 4300BV P/N:253077-6 Part No.: 253077-6 $0.33 Add To Cart 004 MAKITA SPIRAL BEVEL GEAR 9 FOR PC5010C P/N:227593-4 Part No.: 227593-4 $6.87 Add To Cart 005 MAKITA *BALL BEARING 6001LLB F/GD0800C(211148-5 P/N:211142-7 Part No.: 211142-7 $3.60 Add To Cart 006 MAKITA GEAR HOUSING COVER COMPLETE FOR GA4040 P/N:141981-0 Part No.: 141981-0 $9.05 Add To Cart 010 MAKITA FLAT WASHER FOR HR4001C Part No.: 253084-9 $0.33 Add To Cart 013 MAKITA INSULATION WASHER FOR GD0800C HR2810 P/N:681656-4 Part No.: 681656-4 $0.55 Add To Cart 014 MAKITA FLAT WASHER 7 FOR LS1040 Part No.: 253823-7 $0.33 Add To Cart 015 MAKITA BALL BEARING 627DDW FOR GA4040 P/N:210027-4 Part No.: 210027-4 $3.49 Add To Cart 016 MAKITA LABYRINTH RUBBER RING 22 FOR 9565 P/N:421738-8 Part No.: 421738-8 $2.94 Add To Cart 017 MAKITA WAVE WASHER 6 FOR 4340CT P/N:267756-0 Part No.: 267756-0 $0.33 Add To Cart 018 MAKITA MAGNET SLEEVE FOR GD0800C P/N:688117-5 Part No.: 688117-5 $2.18 Add To Cart 019 MAKITA SELF LOOK 6 FOR GD0800C P/N:259039-2 Part No.: 259039-2 $0.22 Add To Cart 022 MAKITA BAFFLE PLATE FOR GA4040C P/N:453367-9 Part No.: 453367-9 $0.87 Add To Cart 023 MAKITA TAPPING SCREW 4X70 P/N:266258-3 Part No.: 266258-3 $0.76 Add To Cart 024 MAKITA RETAINER FOR HR2470 Part No.: 344871-8 $0.33 Add To Cart 025 MAKITA FIELD FOR GA4040C P/N:626653-3 Part No.: 626653-3 $28.89 Add To Cart 027 MAKITA CARBON BRUSH CB-318 Part No.: 191978-9 $8.25 Add To Cart 028 MAKITA TAPPING SCREW BIND PT3X10 FOR BTW201 P/N:266007-8 Part No.: 266007-8 $0.11 Add To Cart 029 MAKITA BRUSH HOLDER FOR GA4040C P/N:643770-4 Part No.: 643770-4 $1.64 Add To Cart 030 MAKITA MOTOR HOUSING FOR GA4040C P/N:453366-1 Part No.: 453366-1 $6.21 Add To Cart 032 MAKITA STRAIN RELIEF FOR HP1620 HR2810 P/N:687169-3 Part No.: 687169-3 $0.44 Add To Cart 033 MAKITA SWITCH BLOCK FOR GA4040C P/N:632K99-9 Part No.: 632K99-9 $6.87 Add To Cart 034 MAKITA POWER S.CORD BASEC CORD P/N:692021-2 Part No.: 692021-2 $9.92 Add To Cart 035 MAKITA CORD GUARD 8 FOR 6823/PV7000C P/N:682559-5 Part No.: 682559-5 $0.76 Add To Cart 040 MAKITA SWITCH ST115A-40 FOR HR4001C/9526B P/N:651418-4 Part No.: 651418-4 $2.73 Add To Cart 042 MAKITA COMPRESSION SPRING 4 FOR JN1601 P/N:233071-4 Part No.: 233071-4 $0.33 Add To Cart 043 MAKITA SWITCH LEVER FOR 9566CV P/N:453847-5 Part No.: 453847-5 $0.76 Add To Cart 044 MAKITA SWITCH KNOB FOR GA4040C P/N:453368-7 Part No.: 453368-7 $0.55 Add To Cart 046 MAKITA PIN CAP FOR GA4040 P/N:453369-5 Part No.: 453369-5 $0.55 Add To Cart 047 MAKITA COMPRESSION SPRING 7 FOR CA5000 P/N:234057-1 Part No.: 234057-1 $0.11 Add To Cart 048 MAKITA TAPPING SCREW 4X30 FOR 9556NB P/N:266361-0 Part No.: 266361-0 $0.33 Add To Cart 049 MAKITA O RING 4 P/N:213032-0 Part No.: 213032-0 $0.22 Add To Cart 050 MAKITA SHOULDER PIN 6 FOR GA4040 P/N:256535-1 Part No.: 256535-1 $0.76 Add To Cart 051 MAKITA RUBBER PIN 4 P/N:263002-9 Part No.: 263002-9 $0.11 Add To Cart 053 MAKITA RETAINING RING S-15 FOR 9067 P/N: 961005-4 Part No.: 961005-4 $0.33 Add To Cart 054 MAKITA FLAT WASHER 10 P/N:253180-3 Part No.: 253180-3 $0.44 Add To Cart 056 MAKITA C TYPE PLATE FOR GA4040C P/N:346556-2 Part No.: 346556-2 $2.40 Add To Cart 058 MAKITA COUPING FOR GA4040 P/N:313228-4 Part No.: 313228-4 $10.90 Add To Cart 059 MAKITA BALL BEARING 6903ZZ FOR GA4040 P/N:210302-8 Part No.: 210302-8 $7.52 Add To Cart 060 MAKITA FLAT WASHER 12 P/N:253744-3 Part No.: 253744-3 $0.33 Add To Cart 061 MAKITA RUBBER PIN 4 P/N:263002-9 Part No.: 263002-9 $0.11 Add To Cart 062 MAKITA O RING 51 FOR GA4040 P/N:213641-5 Part No.: 213641-5 $0.44 Add To Cart 063 MAKITA BEARING BOX FOR GA4040/PC5010C P/N:136012-8 Part No.: 136012-8 $4.58 Add To Cart 064 MAKITA HEX SOCKET HEAD BOLT M4X16 FOR HK1820 P/N:265490-6 Part No.: 265490-6 $0.44 Add To Cart 066 MAKITA FLAT WASHER 21 FOR HR2450T P/N:267279-8 Part No.: 267279-8 $0.33 Add To Cart 067 MAKITA FELT RING 17 FOR MT910 P/N:443124-3 Part No.: 443124-3 $0.44 Add To Cart 068 MAKITA BEARING RETAINER FOR GA4040 P/N:285854-8 Part No.: 285854-8 $1.31 Add To Cart 070 MAKITA SPINDLE FORGA5040C/GA4040/GA4540/GA5040 P/N:326130-2 Part No.: 326130-2 $5.78 Add To Cart 075 MAKITA COUPLING ASS'Y P/N:135556-5 Part No.: 135556-5 $27.69 Add To Cart 077 MAKITA LOOP HANDLE P/N:458690-7 Part No.: 458690-7 $14.17 Add To Cart 078 MAKITA HEX. SOCKET HEAD BOLT M8X25 P/N:922443-5 Part No.: 922443-5 $0.55 Add To Cart

Brand: Makita

Specifications:

• Ref. No.: Part Name & Number
• 001: MAKITA GEAR HOUSING FOR GA4040C/PC5010C P/N:136013-6 Part No.: 136013-6
• 002: MAKITA HEX. NUT M6 FOR DC/AC-GA P/N:252186-8 Part No.: 252186-8
• 003: MAKITA FLAT WASHER 6 FOR 4300BV P/N:253077-6 Part No.: 253077-6
• 004: MAKITA SPIRAL BEVEL GEAR 9 FOR PC5010C P/N:227593-4 Part No.: 227593-4
• 005: MAKITA *BALL BEARING 6001LLB F/GD0800C(211148-5 P/N:211142-7 Part No.: 211142-7
• 006: MAKITA GEAR HOUSING COVER COMPLETE FOR GA4040 P/N:141981-0 Part No.: 141981-0
• 010: MAKITA FLAT WASHER FOR HR4001C Part No.: 253084-9
• 013: MAKITA INSULATION WASHER FOR GD0800C HR2810 P/N:681656-4 Part No.: 681656-4
• 014: MAKITA FLAT WASHER 7 FOR LS1040 Part No.: 253823-7
• 015: MAKITA BALL BEARING 627DDW FOR GA4040 P/N:210027-4 Part No.: 210027-4
• 016: MAKITA LABYRINTH RUBBER RING 22 FOR 9565 P/N:421738-8 Part No.: 421738-8
• 017: MAKITA WAVE WASHER 6 FOR 4340CT P/N:267756-0 Part No.: 267756-0
• 018: MAKITA MAGNET SLEEVE FOR GD0800C P/N:688117-5 Part No.: 688117-5
• 019: MAKITA SELF LOOK 6 FOR GD0800C P/N:259039-2 Part No.: 259039-2
• 022: MAKITA BAFFLE PLATE FOR GA4040C P/N:453367-9 Part No.: 453367-9
• 023: MAKITA TAPPING SCREW 4X70 P/N:266258-3 Part No.: 266258-3
• 024: MAKITA RETAINER FOR HR2470 Part No.: 344871-8
• 025: MAKITA FIELD FOR GA4040C P/N:626653-3 Part No.: 626653-3
• 027: MAKITA CARBON BRUSH CB-318 Part No.: 191978-9
• 028: MAKITA TAPPING SCREW BIND PT3X10 FOR BTW201 P/N:266007-8 Part No.: 266007-8
• 029: MAKITA BRUSH HOLDER FOR GA4040C P/N:643770-4 Part No.: 643770-4
• 030: MAKITA MOTOR HOUSING FOR GA4040C P/N:453366-1 Part No.: 453366-1
• 032: MAKITA STRAIN RELIEF FOR HP1620 HR2810 P/N:687169-3 Part No.: 687169-3
• 033: MAKITA SWITCH BLOCK FOR GA4040C P/N:632K99-9 Part No.: 632K99-9
• 034: MAKITA POWER S.CORD BASEC CORD P/N:692021-2 Part No.: 692021-2
• 035: MAKITA CORD GUARD 8 FOR 6823/PV7000C P/N:682559-5 Part No.: 682559-5
• 040: MAKITA SWITCH ST115A-40 FOR HR4001C/9526B P/N:651418-4 Part No.: 651418-4
• 042: MAKITA COMPRESSION SPRING 4 FOR JN1601 P/N:233071-4 Part No.: 233071-4
• 043: MAKITA SWITCH LEVER FOR 9566CV P/N:453847-5 Part No.: 453847-5
• 044: MAKITA SWITCH KNOB FOR GA4040C P/N:453368-7 Part No.: 453368-7
• 046: MAKITA PIN CAP FOR GA4040 P/N:453369-5 Part No.: 453369-5
• 047: MAKITA COMPRESSION SPRING 7 FOR CA5000 P/N:234057-1 Part No.: 234057-1
• 048: MAKITA TAPPING SCREW 4X30 FOR 9556NB P/N:266361-0 Part No.: 266361-0
• 049: MAKITA O RING 4 P/N:213032-0 Part No.: 213032-0
• 050: MAKITA SHOULDER PIN 6 FOR GA4040 P/N:256535-1 Part No.: 256535-1
• 051: MAKITA RUBBER PIN 4 P/N:263002-9 Part No.: 263002-9
• 053: MAKITA RETAINING RING S-15 FOR 9067 P/N: 961005-4 Part No.: 961005-4
• 054: MAKITA FLAT WASHER 10 P/N:253180-3 Part No.: 253180-3
• 056: MAKITA C TYPE PLATE FOR GA4040C P/N:346556-2 Part No.: 346556-2
