MAKITA LC1230 METAL CUTTING SAW 305MM SPARE PARTS

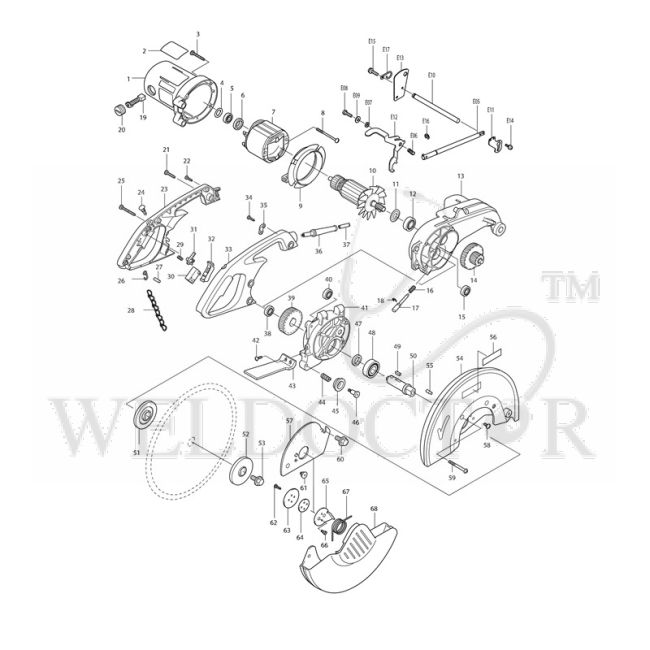

Spare Parts of Makita LC1230 Metal Cutting Saw Ref. No. Part Name & Number Price 004 MAKITA FLAT WASHER 16 FOR LC1210 P/N:253749-3 Part No.: 253749-3 $0.55 Add To Cart 008 MAKITA SELF-TAP FLANGE SCREW PT M5X75 FOR 2414B P/N:266059-9 Part No.: 266059-9 $0.87 Add To Cart 009 MAKITA BAFFLE PLATE FOR LC1210 P/N:415475-4 Part No.: 415475-4 $2.07 Add To Cart 011 MAKITA WASHER 15 FOR 2414B P/N:267714-6 Part No.: 267714-6 $0.44 Add To Cart 013 MAKITA GEAR HOUSING (L) FOR LC1210 P/N:316626-1 Part No.: 316626-1 $53.30 Add To Cart 014 MAKITA GEAR COMPLETE 16-44 FOR LC1210 P/N:226122-0 Part No.: 226122-0 $19.95 Add To Cart 015 MAKITA BALL BEARING 6000 FOR 2414NB P/N:211064-1 Part No.: 211064-1 $3.60 Add To Cart 016 MAKITA COMPRESSION SPRING 9 FOR LC1210 P/N:231418-6 Part No.: 231418-6 $0.33 Add To Cart 017 MAKITA SHAFT LOCK FOR LC1210 P/N:322678-2 Part No.: 322678-2 $1.64 Add To Cart 018 MAKITA STOP RING E-8 FOR LC1210 P/N:961014-3 Part No.: 961014-3 $0.33 Add To Cart 020 MAKITA BRUSH HOLDER CAP 7-18 FOR 9047/2414NB P/N:643700-5 Part No.: 643700-5 $0.76 Add To Cart 022 MAKITA TAPPING SCREW 4X18 P/N:265995-6 Part No.: 265995-6 $0.33 Add To Cart 023 MAKITA HANDLE SET FOR 2414B/2414NB Part No.: 182628-7 $13.63 Add To Cart 024 MAKITA SWITCH BUTTON FOR 2414NB P/N:411478-6 Part No.: 411478-6 $0.44 Add To Cart 029 MAKITA COMPRESSION SPRING 4 FOR 2414NB P/N:231397-8 Part No.: 231397-8 $0.11 Add To Cart 030 MAKITA SWITCH TG71B FOR 2414B/HR4000C P/N:651922-3 Part No.: 651922-3 $9.70 Add To Cart 031 MAKITA SWITCH LOCK FOR 2414B P/N:415366-9 Part No.: 415366-9 $0.44 Add To Cart 032 MAKITA SWITCH LEVER COMPLETE FOR 2414NB P/N:152463-7 Part No.: 152463-7 $0.98 Add To Cart 033 MAKITA HANDLE SET FOR 2414B/2414NB Part No.: 182628-7 $13.63 Add To Cart 034 MAKITA TAPPING SCREW 4X18 P/N:265995-6 Part No.: 265995-6 $0.33 Add To Cart 038 MAKITA BALL BEARING 6000 FOR 2414NB P/N:211064-1 Part No.: 211064-1 $3.60 Add To Cart 039 MAKITA HELICAL GEAR 38 FOR LC1210 P/N:226427-8 Part No.: 226427-8 $11.55 Add To Cart 040 MAKITA BALL BEARING 6000LLB P/N:211061-7 Part No.: 211061-7 $3.05 Add To Cart 041 MAKITA GEAR HOUSING FOR LC1230 P/N:317148-4 Part No.: 317148-4 $23.98 Add To Cart 042 MAKITA TAPPING SCREW CT M4X16 P/N : 266034-5 FOR 9520B Part No.: 266034-5 $0.33 Add To Cart 043 MAKITA PROTECTOR FOR LC1230 P/N:416869-6 Part No.: 416869-6 $5.89 Add To Cart 044 MAKITA COMPRESSION SPRING 11 FOR 2012NB P/N:231226-5 Part No.: 231226-5 $0.44 Add To Cart 045 MAKITA BLADE GUIDE FOR LC1210 P/N:415474-6 Part No.: 415474-6 $2.40 Add To Cart 047 MAKITA RING 20 FOR LC1210 P/N:257139-2 Part No.: 257139-2 $2.51 Add To Cart 049 MAKITA KEY 5 FOR HR4000C P/N:254229-2 Part No.: 254229-2 $0.87 Add To Cart 050 MAKITA SPINDLE FOR LC1210 P/N:323828-2 Part No.: 323828-2 $7.85 Add To Cart 051 MAKITA INNER FLANGE 69 P/N:224308-0 Part No.: 224308-0 $20.17 Add To Cart 053 MAKITA HEX. FLANGE HEAD BOLT M10X20 FOR LC1210 P/N:265414-2 Part No.: 265414-2 $3.38 Add To Cart 054 MAKITA BLADE CASE COMPLETE FOR LC1230 P/N:183089-4 Part No.: 183089-4 $25.72 Add To Cart 057 MAKITA CENTER COVER FOR LC1230 P/N:344737-2 Part No.: 344737-2 $5.78 Add To Cart 058 MAKITA TAPPING SCREW BIND CT 5X12 FOR 2702 P/N:266035-3 Part No.: 266035-3 $0.44 Add To Cart 059 MAKITA PAN HEAD SCREW M6X60 FOR LS1030 P/N:911383-2 Part No.: 911383-2 $0.65 Add To Cart 060 MAKITA HEX. FLANGE HEAD BOLT M10X20 FOR LC1210 P/N:265414-2 Part No.: 265414-2 $3.38 Add To Cart 062 MAKITA TAPPING SCREW CT M4X16 P/N : 266034-5 FOR 9520B Part No.: 266034-5 $0.33 Add To Cart 063 MAKITA CENTER SUPPORT FOR LC1230 P/N:344735-6 Part No.: 344735-6 $0.76 Add To Cart 064 MAKITA CENTER WASHER FOR LC1230 P/N:344734-8 Part No.: 344734-8 $0.55 Add To Cart 065 MAKITA CENTER PLATE FOR LC1230 P/N:344736-4 Part No.: 344736-4 $2.40 Add To Cart 066 MAKITA HEX. SOCKET HEAD BOLT M4X8 FOR 4323M P/N:922107-1 Part No.: 922107-1 $0.11 Add To Cart 067 MAKITA TORSION SPRING 38 FOR LC1230 P/N:231643-9 Part No.: 231643-9 $1.20 Add To Cart 068 MAKITA SAFETY COVER FOR LC1230 P/N:317152-3 Part No.: 317152-3 $38.15 Add To Cart 071 MAKITA FLAT WASHER 12 FOR 2040 P/N:253843-1 Part No.: 253843-1 $1.20 Add To Cart 072 MAKITA PAN HEAD SCREW M4X6 FOR 3601B P/N:911103-4 Part No.: 911103-4 $0.33 Add To Cart 073 MAKITA POINTER FOR LC1210 P/N:816128-2 Part No.: 816128-2 $0.44 Add To Cart 076 MAKITA COMPRESSION SPRING 45 FOR LC1210 P/N:233103-7 Part No.: 233103-7 $9.16 Add To Cart 077 MAKITA SPRING HOLDER FOR 2414NB Part No.: 165066-8 $1.53 Add To Cart 079 MAKITA TAPPING SCREW CT M4X16 P/N : 266034-5 FOR 9520B Part No.: 266034-5 $0.33 Add To Cart 081 MAKITA HEX. BOLT M16 FOR LC1210 P/N:265413-4 Part No.: 265413-4 $6.32 Add To Cart 082 MAKITA FLAT WASHER M16 FOR LS1020/1440 Part No.: 253771-0 $0.65 Add To Cart 083 MAKITA HEX NUT M16-24 FOR LS1020/1440 Part No.: 252044-8 $2.83 Add To Cart 086 MAKITA CUSHION FOR LC1230 P/N:421670-6 Part No.: 421670-6 $1.31 Add To Cart 087 MAKITA RING 8 FOR LC1230 P/N:257222-5 Part No.: 257222-5 $1.64 Add To Cart 088 MAKITA FLAT WASHER 8 FOR 2414B P/N:253731-2 Part No.: 253731-2 $0.33 Add To Cart 089 MAKITA PIN 16 FOR LC1230 P/N:268040-6 Part No.: 268040-6 $3.82 Add To Cart 090 MAKITA VICE PLATE FOR LC1210 P/N:344118-0 Part No.: 344118-0 $3.27 Add To Cart 094 MAKITA CSK HEAD SCREW M5X12 FOR 9045B Part No.: 912212-2 $0.22 Add To Cart 097 MAKITA TAPPING SCREW BIND CT 4X12 FOR 5806B P/N:266026-4 Part No.: 266026-4 $0.33 Add To Cart 098 MAKITA CAP 20 FOR LS1212 P/N:286212-1 Part No.: 286212-1 $0.44 Add To Cart 100 MAKITA CAP 16 FOR LS1211 P/N:286236-7 Part No.: 286236-7 $0.65 Add To Cart 101 MAKITA STOP RING E-8 FOR LC1210 P/N:961014-3 Part No.: 961014-3 $0.33 Add To Cart 103 MAKITA FLAT WASHER 10 FOR LS1212 P/N:253024-7 Part No.: 253024-7 $0.44 Add To Cart 106 MAKITA FLAT WASHER 6 FOR HM1302 P/N:941152-7 Part No.: 941152-7 $0.11 Add To Cart 108 MAKITA SPRING PIN 3-16 FOR LC1230 P/N:951063-8 Part No.: 951063-8 $0.33 Add To Cart 109 MAKITA VICE SCREW FOR LC1210 P/N:322679-0 Part No.: 322679-0 $8.07 Add To Cart 110 MAKITA VICE NUT FOR LS1510/2414NB P/N:322209-7 Part No.: 322209-7 $3.38 Add To Cart 111 MAKITA PAN HEAD SCREW M8X30 FOR 2414B P/N:911451-1 Part No.: 911451-1 $0.55 Add To Cart 112 MAKITA SCREW GUIDE FOR LC1210/2414NB P/N:311949-2 Part No.: 311949-2 $8.07 Add To Cart 114 MAKITA SPRING PIN 5-24 FOR LC1210 P/N:951166-8 Part No.: 951166-8 $0.44 Add To Cart 115 MAKITA RING 8 FOR LS1020 P/N:257157-0 Part No.: 257157-0 $1.20 Add To Cart

Brand: Makita

Specifications:

• Ref. No.: Part Name & Number
• 004: MAKITA FLAT WASHER 16 FOR LC1210 P/N:253749-3 Part No.: 253749-3
• 008: MAKITA SELF-TAP FLANGE SCREW PT M5X75 FOR 2414B P/N:266059-9 Part No.: 266059-9
• 009: MAKITA BAFFLE PLATE FOR LC1210 P/N:415475-4 Part No.: 415475-4
• 011: MAKITA WASHER 15 FOR 2414B P/N:267714-6 Part No.: 267714-6
• 013: MAKITA GEAR HOUSING (L) FOR LC1210 P/N:316626-1 Part No.: 316626-1
• 014: MAKITA GEAR COMPLETE 16-44 FOR LC1210 P/N:226122-0 Part No.: 226122-0
• 015: MAKITA BALL BEARING 6000 FOR 2414NB P/N:211064-1 Part No.: 211064-1
• 016: MAKITA COMPRESSION SPRING 9 FOR LC1210 P/N:231418-6 Part No.: 231418-6
• 017: MAKITA SHAFT LOCK FOR LC1210 P/N:322678-2 Part No.: 322678-2
• 018: MAKITA STOP RING E-8 FOR LC1210 P/N:961014-3 Part No.: 961014-3
• 020: MAKITA BRUSH HOLDER CAP 7-18 FOR 9047/2414NB P/N:643700-5 Part No.: 643700-5
• 022: MAKITA TAPPING SCREW 4X18 P/N:265995-6 Part No.: 265995-6
• 023: MAKITA HANDLE SET FOR 2414B/2414NB Part No.: 182628-7
• 024: MAKITA SWITCH BUTTON FOR 2414NB P/N:411478-6 Part No.: 411478-6
• 029: MAKITA COMPRESSION SPRING 4 FOR 2414NB P/N:231397-8 Part No.: 231397-8
• 030: MAKITA SWITCH TG71B FOR 2414B/HR4000C P/N:651922-3 Part No.: 651922-3
• 031: MAKITA SWITCH LOCK FOR 2414B P/N:415366-9 Part No.: 415366-9
• 032: MAKITA SWITCH LEVER COMPLETE FOR 2414NB P/N:152463-7 Part No.: 152463-7
• 033: MAKITA HANDLE SET FOR 2414B/2414NB Part No.: 182628-7
• 034: MAKITA TAPPING SCREW 4X18 P/N:265995-6 Part No.: 265995-6
• 038: MAKITA BALL BEARING 6000 FOR 2414NB P/N:211064-1 Part No.: 211064-1
• 039: MAKITA HELICAL GEAR 38 FOR LC1210 P/N:226427-8 Part No.: 226427-8
• 040: MAKITA BALL BEARING 6000LLB P/N:211061-7 Part No.: 211061-7
• 041: MAKITA GEAR HOUSING FOR LC1230 P/N:317148-4 Part No.: 317148-4
• 042: MAKITA TAPPING SCREW CT M4X16 P/N : 266034-5 FOR 9520B Part No.: 266034-5
• 043: MAKITA PROTECTOR FOR LC1230 P/N:416869-6 Part No.: 416869-6
• 044: MAKITA COMPRESSION SPRING 11 FOR 2012NB P/N:231226-5 Part No.: 231226-5
• 045: MAKITA BLADE GUIDE FOR LC1210 P/N:415474-6 Part No.: 415474-6
• 047: MAKITA RING 20 FOR LC1210 P/N:257139-2 Part No.: 257139-2
• 049: MAKITA KEY 5 FOR HR4000C P/N:254229-2 Part No.: 254229-2
• 050: MAKITA SPINDLE FOR LC1210 P/N:323828-2 Part No.: 323828-2
• 051: MAKITA INNER FLANGE 69 P/N:224308-0 Part No.: 224308-0
• 053: MAKITA HEX. FLANGE HEAD BOLT M10X20 FOR LC1210 P/N:265414-2 Part No.: 265414-2
• 054: MAKITA BLADE CASE COMPLETE FOR LC1230 P/N:183089-4 Part No.: 183089-4
• 057: MAKITA CENTER COVER FOR LC1230 P/N:344737-2 Part No.: 344737-2
• 058: MAKITA TAPPING SCREW BIND CT 5X12 FOR 2702 P/N:266035-3 Part No.: 266035-3
• 059: MAKITA PAN HEAD SCREW M6X60 FOR LS1030 P/N:911383-2 Part No.: 911383-2
• 060: MAKITA HEX. FLANGE HEAD BOLT M10X20 FOR LC1210 P/N:265414-2 Part No.: 265414-2
• 062: MAKITA TAPPING SCREW CT M4X16 P/N : 266034-5 FOR 9520B Part No.: 266034-5
