MAKITA JV101D CORDLESS JIG SAW SPARE PARTS

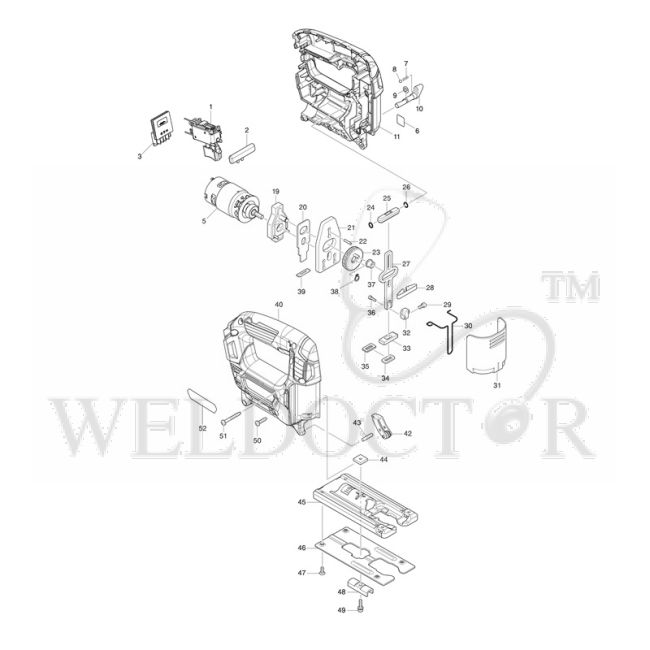

Spare Parts of Makita JV101D Jig Saw Ref. No. Part Name & Number Price 001 MAKITA SWITCH FOR JV101D P/N:632G54-7 Part No.: 632G54-7 $29.10 Add To Cart 002 MAKITA LOCK OFF BUTTON FOR JV143D P/N:454742-2 Part No.: 454742-2 $1.42 Add To Cart 003 MAKITA TERMINAL FOR TD110D P/N:644813-5 Part No.: 644813-5 $2.73 Add To Cart 005 MAKITA DC MOTOR FOR JV101D P/N:629211-4 Part No.: 629211-4 $25.83 Add To Cart 007 MAKITA COMPRESSION SPRING 4 FOR 4322 P/N:233151-6 Part No.: 233151-6 $0.22 Add To Cart 008 MAKITA STEEL BALL 4 FOR BTW201 / 4304 P/N:216008-6 Part No.: 216008-6 $0.22 Add To Cart 009 MAKITA STOP RING E-4 FOR HR3850 P/N:961011-9 Part No.: 961011-9 $0.11 Add To Cart 010 MAKITA LEVER 19 FOR MT431 P/N:272267-2 Part No.: 272267-2 $1.64 Add To Cart 011 MAKITA HOUSING SET FOR JV101D P/N:183E13-7 Part No.: 183E13-7 $23.87 Add To Cart 019 MAKITA BEARING CASE COMPLETE FOR 4324 P/N:152600-3 Part No.: 152600-3 $9.59 Add To Cart 020 MAKITA PUSH PLATE FOR 4322 P/N:344683-9 Part No.: 344683-9 $0.87 Add To Cart 021 MAKITA BALANCE PLATE FOR 4323M P/N:344614-8 Part No.: 344614-8 $3.71 Add To Cart 022 MAKITA PIN 3 FOR 4323M P/N:256254-9 Part No.: 256254-9 $0.33 Add To Cart 023 MAKITA GEAR FOR JV101D/M4301 P/N:153260-4 Part No.: 153260-4 $11.23 Add To Cart 024 MAKITA O RING 5 FOR 4323M P/N:213038-8 Part No.: 213038-8 $0.11 Add To Cart 025 MAKITA SLIDER GUIDE FOR 4323M P/N:313082-6 Part No.: 313082-6 $0.87 Add To Cart 026 MAKITA O RING 5 FOR 4323M P/N:213038-8 Part No.: 213038-8 $0.11 Add To Cart 027 MAKITA SLIDER FOR 4323M P/N:344613-0 Part No.: 344613-0 $3.05 Add To Cart 028 MAKITA LEAF SPRING FOR 4322 P/N:232183-0 Part No.: 232183-0 $0.44 Add To Cart 029 MAKITA HEX. SOCKET HEAD BOLT M4X8 FOR 4323M P/N:922107-1 Part No.: 922107-1 $0.11 Add To Cart 030 MAKITA SAFETY WIRE FOR 4323M P/N:323748-0 Part No.: 323748-0 $0.55 Add To Cart 031 MAKITA DUST COVER FOR 4323M P/N:416476-5 Part No.: 416476-5 $1.31 Add To Cart 032 MAKITA BLADE CLAMP FOR 4328 P/N:313140-8 Part No.: 313140-8 $3.05 Add To Cart 033 MAKITA SLIDER SUPPORT FOR 4322 P/N:313086-8 Part No.: 313086-8 $0.55 Add To Cart 034 MAKITA POLY URETANE SPONGE SEAL FOR 4323M P/N:423307-1 Part No.: 423307-1 $0.22 Add To Cart 035 MAKITA SEAL PLATE FOR 4322 P/N:344686-3 Part No.: 344686-3 $0.33 Add To Cart 036 MAKITA HEX. SOCKET HEAD BOLT M3X10 FOR 4323M P/N:266177-3 Part No.: 266177-3 $0.33 Add To Cart 037 MAKITA COLLAR SLEEVE FOR 4323M P/N:257683-9 Part No.: 257683-9 $0.33 Add To Cart 038 MAKITA RETAINING RING S-6 FOR 9523NB/9526B P/N:961002-0 Part No.: 961002-0 $0.11 Add To Cart 039 MAKITA DUST SEAL FOR 4322 P/N:416703-0 Part No.: 416703-0 $0.33 Add To Cart 040 MAKITA HOUSING SET FOR JV101D P/N:183E13-7 Part No.: 183E13-7 $23.87 Add To Cart 042 MAKITA RETAINER COMPLETE FOR 4329 P/N:158392-2 Part No.: 158392-2 $2.51 Add To Cart 043 MAKITA PIN 4 FOR 4340CT P/N:256117-9 Part No.: 256117-9 $0.33 Add To Cart 044 MAKITA HOLDER FOR 4323M/4320 P/N:343540-8 Part No.: 343540-8 $0.33 Add To Cart 045 MAKITA BASE FOR 4324 P/N:317796-9 Part No.: 317796-9 $6.54 Add To Cart 046 MAKITA BASE PLATE FOR DJV184/JV0600/JV103D P/N:345441-6 Part No.: 345441-6 $1.64 Add To Cart 047 MAKITA COUNTERSUNK HEAD SCREW M4X8 FOR 5740NB P/N:912107-9 Part No.: 912107-9 $0.11 Add To Cart 048 MAKITA CLAME PLATE FOR 4322 P/N:344685-5 Part No.: 344685-5 $0.76 Add To Cart 049 MAKITA HEX. SOCKET HEAD BOLT M4X16 P/N:922128-3 Part No.: 922128-3 $0.33 Add To Cart 051 MAKITA PAN HEAD SCREW M4X35 P/N:266351-3 Part No.: 266351-3 $0.33 Add To Cart

Brand: Makita

Specifications:

• Ref. No.: Part Name & Number
• 001: MAKITA SWITCH FOR JV101D P/N:632G54-7 Part No.: 632G54-7
• 002: MAKITA LOCK OFF BUTTON FOR JV143D P/N:454742-2 Part No.: 454742-2
• 003: MAKITA TERMINAL FOR TD110D P/N:644813-5 Part No.: 644813-5
• 005: MAKITA DC MOTOR FOR JV101D P/N:629211-4 Part No.: 629211-4
• 007: MAKITA COMPRESSION SPRING 4 FOR 4322 P/N:233151-6 Part No.: 233151-6
• 008: MAKITA STEEL BALL 4 FOR BTW201 / 4304 P/N:216008-6 Part No.: 216008-6
• 009: MAKITA STOP RING E-4 FOR HR3850 P/N:961011-9 Part No.: 961011-9
• 010: MAKITA LEVER 19 FOR MT431 P/N:272267-2 Part No.: 272267-2
• 011: MAKITA HOUSING SET FOR JV101D P/N:183E13-7 Part No.: 183E13-7
• 019: MAKITA BEARING CASE COMPLETE FOR 4324 P/N:152600-3 Part No.: 152600-3
• 020: MAKITA PUSH PLATE FOR 4322 P/N:344683-9 Part No.: 344683-9
• 021: MAKITA BALANCE PLATE FOR 4323M P/N:344614-8 Part No.: 344614-8
• 022: MAKITA PIN 3 FOR 4323M P/N:256254-9 Part No.: 256254-9
• 023: MAKITA GEAR FOR JV101D/M4301 P/N:153260-4 Part No.: 153260-4
• 024: MAKITA O RING 5 FOR 4323M P/N:213038-8 Part No.: 213038-8
• 025: MAKITA SLIDER GUIDE FOR 4323M P/N:313082-6 Part No.: 313082-6
• 026: MAKITA O RING 5 FOR 4323M P/N:213038-8 Part No.: 213038-8
• 027: MAKITA SLIDER FOR 4323M P/N:344613-0 Part No.: 344613-0
• 028: MAKITA LEAF SPRING FOR 4322 P/N:232183-0 Part No.: 232183-0
• 029: MAKITA HEX. SOCKET HEAD BOLT M4X8 FOR 4323M P/N:922107-1 Part No.: 922107-1
• 030: MAKITA SAFETY WIRE FOR 4323M P/N:323748-0 Part No.: 323748-0
• 031: MAKITA DUST COVER FOR 4323M P/N:416476-5 Part No.: 416476-5
• 032: MAKITA BLADE CLAMP FOR 4328 P/N:313140-8 Part No.: 313140-8
• 033: MAKITA SLIDER SUPPORT FOR 4322 P/N:313086-8 Part No.: 313086-8
• 034: MAKITA POLY URETANE SPONGE SEAL FOR 4323M P/N:423307-1 Part No.: 423307-1
• 035: MAKITA SEAL PLATE FOR 4322 P/N:344686-3 Part No.: 344686-3
• 036: MAKITA HEX. SOCKET HEAD BOLT M3X10 FOR 4323M P/N:266177-3 Part No.: 266177-3
• 037: MAKITA COLLAR SLEEVE FOR 4323M P/N:257683-9 Part No.: 257683-9
• 038: MAKITA RETAINING RING S-6 FOR 9523NB/9526B P/N:961002-0 Part No.: 961002-0
• 039: MAKITA DUST SEAL FOR 4322 P/N:416703-0 Part No.: 416703-0
• 040: MAKITA HOUSING SET FOR JV101D P/N:183E13-7 Part No.: 183E13-7
• 042: MAKITA RETAINER COMPLETE FOR 4329 P/N:158392-2 Part No.: 158392-2
• 043: MAKITA PIN 4 FOR 4340CT P/N:256117-9 Part No.: 256117-9
• 044: MAKITA HOLDER FOR 4323M/4320 P/N:343540-8 Part No.: 343540-8
• 045: MAKITA BASE FOR 4324 P/N:317796-9 Part No.: 317796-9
• 046: MAKITA BASE PLATE FOR DJV184/JV0600/JV103D P/N:345441-6 Part No.: 345441-6
• 047: MAKITA COUNTERSUNK HEAD SCREW M4X8 FOR 5740NB P/N:912107-9 Part No.: 912107-9
• 048: MAKITA CLAME PLATE FOR 4322 P/N:344685-5 Part No.: 344685-5
• 049: MAKITA HEX. SOCKET HEAD BOLT M4X16 P/N:922128-3 Part No.: 922128-3
