MAKITA JR103D CORDLESS RECIPRO SAW SPARE PARTS

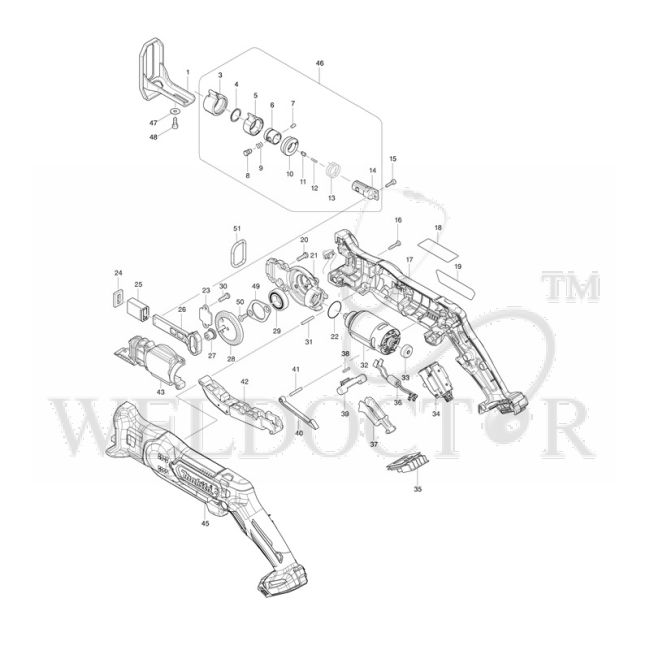

Spare Parts of Makita JR103D Recipro Saw Ref. No. Part Name & Number Price 001 MAKITA SHOE P/N:165740-8 Part No.: 165740-8 $5.01 Add To Cart 003 MAKITA PROTECTOR FOR JR100D P/N:424466-4 Part No.: 424466-4 $1.09 Add To Cart 004 MAKITA RETAINING RING (EXT) 16 FOR DJR183 P/N:257981-1 Part No.: 257981-1 $2.40 Add To Cart 005 MAKITA DRIVING SLEEVE FOR JR100D P/N:310496-0 Part No.: 310496-0 $10.57 Add To Cart 006 MAKITA GUIDE SLEEVE FOR JR100D P/N:331963-2 Part No.: 331963-2 $2.83 Add To Cart 007 MAKITA PIN 3 FOR DC/AC-JR P/N:268094-3 Part No.: 268094-3 $0.33 Add To Cart 009 MAKITA COMPRESSION SPRING 6 FOR JR3050T P/N:233345-3 Part No.: 233345-3 $0.11 Add To Cart 010 MAKITA CONNECTING SLEEVE FOR JR100D P/N:453071-0 Part No.: 453071-0 $0.76 Add To Cart 012 MAKITA COMPRESSION SPRING FOR 6702D Part No.: 233025-1 $0.33 Add To Cart 013 MAKITA TOPSION SPRING 17 FOR DC-JR P/N:233594-2 Part No.: 233594-2 $0.76 Add To Cart 014 MAKITA BLADE GUIDE FOR JR100D P/N:326113-2 Part No.: 326113-2 $8.94 Add To Cart 015 MAKITA HEX. SOCKET HEAD BOLT M3X12 FOR DJR183 P/N:265910-0 Part No.: 265910-0 $0.87 Add To Cart 016 MAKITA TAPPING SCREW PT M3X16 P/N:266429-2 Part No.: 266429-2 $0.22 Add To Cart 017 MAKITA HOUSING SET FOR JR103D P/N:183C31-3 Part No.: 183C31-3 $18.42 Add To Cart 021 MAKITA GEAR HOUSING FOR DJR183/JR105D P/N:319060-4 Part No.: 319060-4 $7.30 Add To Cart 022 MAKITA O RING 22 FOR UN001G P/N:213961-7 Part No.: 213961-7 $0.33 Add To Cart 024 MAKITA FELT SEAL P/N:443185-3 Part No.: 443185-3 $0.44 Add To Cart 025 MAKITA SLIDER GUIDE FOR JR100D P/N:313220-0 Part No.: 313220-0 $2.18 Add To Cart 026 MAKITA SLIDER FOR JR183D P/N:313271-3 Part No.: 313271-3 $5.01 Add To Cart 027 MAKITA COLLARDE SLEEVE 4 P/N:313270-5 Part No.: 313270-5 $1.53 Add To Cart 028 MAKITA GEAR HOUSING FOR DJR183/JR103D P/N:142284-5 Part No.: 142284-5 $14.61 Add To Cart 029 MAKITA BALL BEARING 6902ZZ FOR MT603 P/N:211242-3 Part No.: 211242-3 $1.74 Add To Cart 031 MAKITA PIN 3 FOR LS1045 Part No.: 256158-5 $0.33 Add To Cart 032 MAKITA DC MOTOR FOR JR103D P/N:629165-5 Part No.: 629165-5 $19.08 Add To Cart 034 MAKITA SWITCH UNIT FOR JR103D P/N:632F47-8 Part No.: 632F47-8 $39.79 Add To Cart 035 MAKITA TERMINAL FOR TD110D P/N:644813-5 Part No.: 644813-5 $2.73 Add To Cart 038 MAKITA SPRING 4 FOR DC-DF/HP P/N:233438-6 Part No.: 233438-6 $0.33 Add To Cart 039 MAKITA LOCK OFF LEVER R FOR JR183D P/N:454661-2 Part No.: 454661-2 $1.64 Add To Cart 040 MAKITA LINK FOR JR100D P/N:313219-5 Part No.: 313219-5 $1.53 Add To Cart 041 MAKITA PIN 3 FOR LS1045 Part No.: 256158-5 $0.33 Add To Cart 042 MAKITA SWITCH LEVER F CPL FOR JR100D P/N:141128-6 Part No.: 141128-6 $3.49 Add To Cart 043 MAKITA GEAR HOUSING COVER FOR DJR183/JR105D P/N:319061-2 Part No.: 319061-2 $5.78 Add To Cart 045 MAKITA HOUSING SET FOR JR103D P/N:183C31-3 Part No.: 183C31-3 $18.42 Add To Cart 046 MAKITA BLADE CLAMP ASSEMBLY P/N:126201-3 Part No.: 126201-3 $29.65 Add To Cart 049 MAKITA BEARING RETAINER 36 P/N:285738-0 Part No.: 285738-0 $0.87 Add To Cart 050 MAKITA CSK SCREW FOR 4304 Part No.: 265035-0 $0.44 Add To Cart 051 MAKITA RUBBER RING 23 P/N:424597-9 Part No.: 424597-9 $0.55 Add To Cart

Brand: Makita

Specifications:

• Ref. No.: Part Name & Number
• 001: MAKITA SHOE P/N:165740-8 Part No.: 165740-8
• 003: MAKITA PROTECTOR FOR JR100D P/N:424466-4 Part No.: 424466-4
• 004: MAKITA RETAINING RING (EXT) 16 FOR DJR183 P/N:257981-1 Part No.: 257981-1
• 005: MAKITA DRIVING SLEEVE FOR JR100D P/N:310496-0 Part No.: 310496-0
• 006: MAKITA GUIDE SLEEVE FOR JR100D P/N:331963-2 Part No.: 331963-2
• 007: MAKITA PIN 3 FOR DC/AC-JR P/N:268094-3 Part No.: 268094-3
• 009: MAKITA COMPRESSION SPRING 6 FOR JR3050T P/N:233345-3 Part No.: 233345-3
• 010: MAKITA CONNECTING SLEEVE FOR JR100D P/N:453071-0 Part No.: 453071-0
• 012: MAKITA COMPRESSION SPRING FOR 6702D Part No.: 233025-1
• 013: MAKITA TOPSION SPRING 17 FOR DC-JR P/N:233594-2 Part No.: 233594-2
• 014: MAKITA BLADE GUIDE FOR JR100D P/N:326113-2 Part No.: 326113-2
• 015: MAKITA HEX. SOCKET HEAD BOLT M3X12 FOR DJR183 P/N:265910-0 Part No.: 265910-0
• 016: MAKITA TAPPING SCREW PT M3X16 P/N:266429-2 Part No.: 266429-2
• 017: MAKITA HOUSING SET FOR JR103D P/N:183C31-3 Part No.: 183C31-3
• 021: MAKITA GEAR HOUSING FOR DJR183/JR105D P/N:319060-4 Part No.: 319060-4
• 022: MAKITA O RING 22 FOR UN001G P/N:213961-7 Part No.: 213961-7
• 024: MAKITA FELT SEAL P/N:443185-3 Part No.: 443185-3
• 025: MAKITA SLIDER GUIDE FOR JR100D P/N:313220-0 Part No.: 313220-0
• 026: MAKITA SLIDER FOR JR183D P/N:313271-3 Part No.: 313271-3
• 027: MAKITA COLLARDE SLEEVE 4 P/N:313270-5 Part No.: 313270-5
• 028: MAKITA GEAR HOUSING FOR DJR183/JR103D P/N:142284-5 Part No.: 142284-5
• 029: MAKITA BALL BEARING 6902ZZ FOR MT603 P/N:211242-3 Part No.: 211242-3
• 031: MAKITA PIN 3 FOR LS1045 Part No.: 256158-5
• 032: MAKITA DC MOTOR FOR JR103D P/N:629165-5 Part No.: 629165-5
• 034: MAKITA SWITCH UNIT FOR JR103D P/N:632F47-8 Part No.: 632F47-8
• 035: MAKITA TERMINAL FOR TD110D P/N:644813-5 Part No.: 644813-5
• 038: MAKITA SPRING 4 FOR DC-DF/HP P/N:233438-6 Part No.: 233438-6
• 039: MAKITA LOCK OFF LEVER R FOR JR183D P/N:454661-2 Part No.: 454661-2
• 040: MAKITA LINK FOR JR100D P/N:313219-5 Part No.: 313219-5
• 041: MAKITA PIN 3 FOR LS1045 Part No.: 256158-5
• 042: MAKITA SWITCH LEVER F CPL FOR JR100D P/N:141128-6 Part No.: 141128-6
• 043: MAKITA GEAR HOUSING COVER FOR DJR183/JR105D P/N:319061-2 Part No.: 319061-2
• 045: MAKITA HOUSING SET FOR JR103D P/N:183C31-3 Part No.: 183C31-3
• 046: MAKITA BLADE CLAMP ASSEMBLY P/N:126201-3 Part No.: 126201-3
• 049: MAKITA BEARING RETAINER 36 P/N:285738-0 Part No.: 285738-0
• 050: MAKITA CSK SCREW FOR 4304 Part No.: 265035-0
• 051: MAKITA RUBBER RING 23 P/N:424597-9 Part No.: 424597-9
