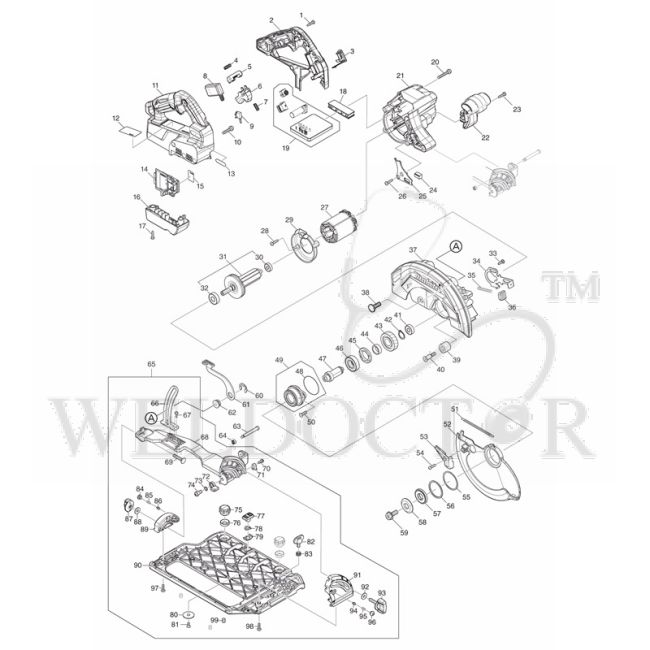

MAKITA HS004G 185MM CORDLESS CIRCULAR SAW SPARE PARTS

Spare Parts of Makita HS004G Cordless Circular Ssaw Ref. No. Part Name & Number Price 002 MAKITA HANDLE SET FOR HS003G P/N:183R15-1 Part No.: 183R15-1 $17.66 Add To Cart 003 MAKITA CAP COMPLETE P/N:140F99-0 Part No.: 140F99-0 $2.07 Add To Cart 004 MAKITA COMPRESSION SPRING 4 FOR 6019DWE P/N:231433-0 Part No.: 231433-0 $0.22 Add To Cart 005 MAKITA LOCK OFF BUTTON FOR DC TOOL P/N:419704-7 Part No.: 419704-7 $1.09 Add To Cart 006 MAKITA SWITCH LEVER FOR DC-HS/CS P/N:458594-3 Part No.: 458594-3 $0.76 Add To Cart 007 MAKITA COMPRESSION SPRING 4 FOR 6019DWE P/N:231433-0 Part No.: 231433-0 $0.22 Add To Cart 008 MAKITA SWITCH C3XA-1PSPM FOR DKP181 P/N:651083-9 Part No.: 651083-9 $18.42 Add To Cart 009 MAKITA SWITCH FOR HS003G/DHS783 P/N:632M92-5 Part No.: 632M92-5 $9.81 Add To Cart 010 MAKITA PAN HEAD SCREW M5X25 P/N:911243-8 Part No.: 911243-8 $0.33 Add To Cart 011 MAKITA HANDLE SET FOR HS003G P/N:183R15-1 Part No.: 183R15-1 $17.66 Add To Cart 014 MAKITA TERMINAL UNIT FOR XGT P/N:632P65-6 Part No.: 632P65-6 $8.50 Add To Cart 016 MAKITA TERMINAL HOUSING COM FOR HR003G P/N:140S46-9 Part No.: 140S46-9 $2.94 Add To Cart 018 MAKITA SPACER FOR DC-HS P/N:412480-2 Part No.: 412480-2 $0.87 Add To Cart 019 MAKITA CONTROLLER FOR HS003G P/N:620D01-2 Part No.: 620D01-2 $184.86 Add To Cart 020 MAKITA PAN HEAD SCREW M5X35 P/N:911258-5 Part No.: 911258-5 $0.33 Add To Cart 021 MAKITA MOTOR HOUSING FOR HS003G/ 004G P/N:458746-6 Part No.: 458746-6 $11.99 Add To Cart 022 MAKITA FRONT GRIP FOR HS003G P/N:458750-5 Part No.: 458750-5 $6.32 Add To Cart 024 MAKITA LED CIRCUIT FOR DC TOOL P/N:620936-3 Part No.: 620936-3 $8.72 Add To Cart 025 MAKITA LIGHT COVER FOR HS003G P/N:458751-3 Part No.: 458751-3 $0.76 Add To Cart 027 MAKITA STATOR FOR HS003G P/N:629479-2 Part No.: 629479-2 $48.51 Add To Cart 029 MAKITA BAFFLE PLATE FOR HS003G P/N:458749-0 Part No.: 458749-0 $1.31 Add To Cart 030 MAKITA BALL BEARING 6260DW FOR BHR200SF P/N:210022-4 Part No.: 210022-4 $2.73 Add To Cart 031 MAKITA ROTOR ASSY FOR HS003G P/N:519534-7 Part No.: 519534-7 $51.34 Add To Cart 033 MAKITA '+ PAN HEAD SCREW M4X14 P/N:251529-1 Part No.: 251529-1 $0.22 Add To Cart 034 MAKITA SHAFT LOCK FOR DC-HS P/N:347676-5 Part No.: 347676-5 $1.42 Add To Cart 035 MAKITA COMPRESSION SPRING 6 FOR CA5000 P/N:233084-5 Part No.: 233084-5 $0.33 Add To Cart 036 MAKITA CAP FOR HS003G P/N:286039-9 Part No.: 286039-9 $0.33 Add To Cart 037 MAKITA BLADE CASE COMPLETE P/N:140S43-5 Part No.: 140S43-5 $49.27 Add To Cart 038 MAKITA F.HEAD SQUARE NECK BOLT M8X24 P/N:266396-1 Part No.: 266396-1 $0.44 Add To Cart 039 MAKITA RUBBER SLEEVE 8 FOR HS003G P/N:262185-2 Part No.: 262185-2 $1.85 Add To Cart 040 MAKITA '+ COUNTERSUNK HEAD SCREW M6*30 P/N:251572-0 Part No.: 251572-0 $0.65 Add To Cart 041 MAKITA BALL BEARING 608ZZ P/N:210029-0 Part No.: 210029-0 $1.20 Add To Cart 042 MAKITA RETAINING RING S-17 P/N:961057-5 Part No.: 961057-5 $0.33 Add To Cart 043 MAKITA HELICAL GEAR 37 HS003G P/N:226838-7 Part No.: 226838-7 $5.23 Add To Cart 044 MAKITA RING 17 FOR HS003G P/N:257451-0 Part No.: 257451-0 $1.09 Add To Cart 045 MAKITA BEARING RETAINER 23-36 P/N:285809-3 Part No.: 285809-3 $1.20 Add To Cart 046 MAKITA BALL BEARING 6003DDW P/N:210301-0 Part No.: 210301-0 $5.34 Add To Cart 047 MAKITA SPINDLE FOR HS009G P/N:327192-3 Part No.: 327192-3 $3.27 Add To Cart 048 MAKITA O RING 42 FOR LS0714 P/N:213565-5 Part No.: 213565-5 $0.65 Add To Cart 049 MAKITA BEARING BOX ASSY FOR DHS780 P/N:136021-7 Part No.: 136021-7 $3.71 Add To Cart 050 MAKITA COUNTERSUNK HEAD SCREW M5X16 P/N:265034-2 Part No.: 265034-2 $0.33 Add To Cart 051 MAKITA TENSION SPRING 4 FOR DHS782 P/N:232467-6 Part No.: 232467-6 $0.65 Add To Cart 052 MAKITA SAFETY COVER FOR HS003G P/N:319970-5 Part No.: 319970-5 $27.58 Add To Cart 053 MAKITA LEVER 37 FOR HS782D P/N:271450-8 Part No.: 271450-8 $1.42 Add To Cart 054 MAKITA PAN HEAD SCREW M4*16 P/N:265178-8 Part No.: 265178-8 $0.22 Add To Cart 055 MAKITA FLAT WASHER 40 P/N:267337-0 Part No.: 267337-0 $0.87 Add To Cart 056 MAKITA RETAINING RING (EXT) WR-40 P/N:257452-8 Part No.: 257452-8 $0.98 Add To Cart 057 MAKITA INNER FLANGE 35 FOR SP/DHS/HS/DLS P/N:224593-5 Part No.: 224593-5 $1.74 Add To Cart 058 MAKITA OUTER FLANGE 35 FOR 5008MG P/N:224409-4 Part No.: 224409-4 $1.64 Add To Cart 059 MAKITA HEX. SOCKET HEX. BOLT M8X20 P/N:266283-4 Part No.: 266283-4 $0.55 Add To Cart 060 MAKITA BOW STOP RING E-12 FOR 5008MG P/N:257953-6 Part No.: 257953-6 $0.44 Add To Cart 061 MAKITA LEVER 90 FOR DC-CS/HS P/N:271460-5 Part No.: 271460-5 $1.64 Add To Cart 062 MAKITA COLLERED HEX. NUT M8 P/N:252262-8 Part No.: 252262-8 $0.98 Add To Cart 063 MAKITA '+PAN HEAD SCREW M5 FOR MT580 P/N:265118-6 Part No.: 265118-6 $0.44 Add To Cart 064 MAKITA HEX. LOCK NUT M5-8 P/N:252103-8 Part No.: 252103-8 $0.33 Add To Cart 065 MAKITA BASE ASSY P/N:136280-3 Part No.: 136280-3 $116.85 Add To Cart 066 MAKITA DEPTH GUIDE FOR HS782D P/N:347532-9 Part No.: 347532-9 $2.73 Add To Cart 067 MAKITA PAN HEAD SCREW M4X12 P/N:911516-9 Part No.: 911516-9 $0.55 Add To Cart 068 MAKITA FRAME P/N:319975-5 Part No.: 319975-5 $25.18 Add To Cart 069 MAKITA CAP SQUARE NECK BOLT M6X30 FOR N1923B P/N:251920-3 Part No.: 251920-3 $0.44 Add To Cart 070 MAKITA PAN HEAD SCREW M4X12 FOR BO4540 HR2810 P/N:911118-1 Part No.: 911118-1 $0.33 Add To Cart 072 MAKITA STOPPER P/N:319978-9 Part No.: 319978-9 $3.05 Add To Cart 073 MAKITA O RING 7 FOR GA7010C P/N:213026-5 Part No.: 213026-5 $0.33 Add To Cart 074 MAKITA '+PAN HEAD SCREW M6 FOR 3501N P/N:251267-5 Part No.: 251267-5 $0.44 Add To Cart 076 MAKITA BASE HOLDER SP6000/DSP600 P/N:419627-9 Part No.: 419627-9 $0.65 Add To Cart 077 MAKITA SLIDE LEVER P/N:458092-7 Part No.: 458092-7 $1.53 Add To Cart 078 MAKITA WAVE WASHER 10 FOR 2012NB P/N:253932-2 Part No.: 253932-2 $0.33 Add To Cart 081 MAKITA COUNTERSUNK HEAD SCREW M4X10 FOR 3700B P/N:912112-6 Part No.: 912112-6 $0.11 Add To Cart 082 MAKITA SCREW M6X14 P/N:265701-9 Part No.: 265701-9 $0.76 Add To Cart 083 MAKITA SPRING 8 FOR DC/AC-GA/HS P/N:233376-2 Part No.: 233376-2 $0.11 Add To Cart 086 MAKITA SHOULDER PIN 3-5 FOR HS782D P/N:263041-9 Part No.: 263041-9 $0.55 Add To Cart 087 MAKITA THUMB NUT M6 FOR HS782D P/N:252270-9 Part No.: 252270-9 $1.42 Add To Cart 088 MAKITA FLAT WASHER 6 FOR 5900B P/N:253111-2 Part No.: 253111-2 $0.33 Add To Cart 089 MAKITA REAR ANGULAR PLATE P/N:319977-1 Part No.: 319977-1 $13.41 Add To Cart 090 MAKITA BASE P/N:319974-7 Part No.: 319974-7 $41.86 Add To Cart 091 MAKITA FRONT ANGULAR PLATE P/N:319976-3 Part No.: 319976-3 $18.20 Add To Cart 092 MAKITA FLAT WASHER 6 FOR 5900B P/N:253111-2 Part No.: 253111-2 $0.33 Add To Cart 094 MAKITA SHOULDER PIN 3-5 FOR HS782D P/N:263041-9 Part No.: 263041-9 $0.55 Add To Cart 097 MAKITA '+TRUSS HEAD SCREW M4X16 FOR HS782D P/N:265174-6 Part No.: 265174-6 $0.22 Add To Cart 098 MAKITA '+TRUSS HEAD SCREW M4X16 FOR HS782D P/N:265174-6 Part No.: 265174-6 $0.22 Add To Cart

Brand: Makita

Specifications:

• Ref. No.: Part Name & Number
• 002: MAKITA HANDLE SET FOR HS003G P/N:183R15-1 Part No.: 183R15-1
• 003: MAKITA CAP COMPLETE P/N:140F99-0 Part No.: 140F99-0
• 004: MAKITA COMPRESSION SPRING 4 FOR 6019DWE P/N:231433-0 Part No.: 231433-0
• 005: MAKITA LOCK OFF BUTTON FOR DC TOOL P/N:419704-7 Part No.: 419704-7
• 006: MAKITA SWITCH LEVER FOR DC-HS/CS P/N:458594-3 Part No.: 458594-3
• 007: MAKITA COMPRESSION SPRING 4 FOR 6019DWE P/N:231433-0 Part No.: 231433-0
• 008: MAKITA SWITCH C3XA-1PSPM FOR DKP181 P/N:651083-9 Part No.: 651083-9
• 009: MAKITA SWITCH FOR HS003G/DHS783 P/N:632M92-5 Part No.: 632M92-5
• 010: MAKITA PAN HEAD SCREW M5X25 P/N:911243-8 Part No.: 911243-8
• 011: MAKITA HANDLE SET FOR HS003G P/N:183R15-1 Part No.: 183R15-1
• 014: MAKITA TERMINAL UNIT FOR XGT P/N:632P65-6 Part No.: 632P65-6
• 016: MAKITA TERMINAL HOUSING COM FOR HR003G P/N:140S46-9 Part No.: 140S46-9
• 018: MAKITA SPACER FOR DC-HS P/N:412480-2 Part No.: 412480-2
• 019: MAKITA CONTROLLER FOR HS003G P/N:620D01-2 Part No.: 620D01-2
• 020: MAKITA PAN HEAD SCREW M5X35 P/N:911258-5 Part No.: 911258-5
• 021: MAKITA MOTOR HOUSING FOR HS003G/ 004G P/N:458746-6 Part No.: 458746-6
• 022: MAKITA FRONT GRIP FOR HS003G P/N:458750-5 Part No.: 458750-5
• 024: MAKITA LED CIRCUIT FOR DC TOOL P/N:620936-3 Part No.: 620936-3
• 025: MAKITA LIGHT COVER FOR HS003G P/N:458751-3 Part No.: 458751-3
• 027: MAKITA STATOR FOR HS003G P/N:629479-2 Part No.: 629479-2
• 029: MAKITA BAFFLE PLATE FOR HS003G P/N:458749-0 Part No.: 458749-0
• 030: MAKITA BALL BEARING 6260DW FOR BHR200SF P/N:210022-4 Part No.: 210022-4
• 031: MAKITA ROTOR ASSY FOR HS003G P/N:519534-7 Part No.: 519534-7
• 033: MAKITA '+ PAN HEAD SCREW M4X14 P/N:251529-1 Part No.: 251529-1
• 034: MAKITA SHAFT LOCK FOR DC-HS P/N:347676-5 Part No.: 347676-5
• 035: MAKITA COMPRESSION SPRING 6 FOR CA5000 P/N:233084-5 Part No.: 233084-5
• 036: MAKITA CAP FOR HS003G P/N:286039-9 Part No.: 286039-9
• 037: MAKITA BLADE CASE COMPLETE P/N:140S43-5 Part No.: 140S43-5
• 038: MAKITA F.HEAD SQUARE NECK BOLT M8X24 P/N:266396-1 Part No.: 266396-1
• 039: MAKITA RUBBER SLEEVE 8 FOR HS003G P/N:262185-2 Part No.: 262185-2
• 040: MAKITA '+ COUNTERSUNK HEAD SCREW M6*30 P/N:251572-0 Part No.: 251572-0
• 041: MAKITA BALL BEARING 608ZZ P/N:210029-0 Part No.: 210029-0
• 042: MAKITA RETAINING RING S-17 P/N:961057-5 Part No.: 961057-5
• 043: MAKITA HELICAL GEAR 37 HS003G P/N:226838-7 Part No.: 226838-7
• 044: MAKITA RING 17 FOR HS003G P/N:257451-0 Part No.: 257451-0
• 045: MAKITA BEARING RETAINER 23-36 P/N:285809-3 Part No.: 285809-3
• 046: MAKITA BALL BEARING 6003DDW P/N:210301-0 Part No.: 210301-0
• 047: MAKITA SPINDLE FOR HS009G P/N:327192-3 Part No.: 327192-3
• 048: MAKITA O RING 42 FOR LS0714 P/N:213565-5 Part No.: 213565-5
