MAKITA HM1812 ELECTRIC BREAKER SPARE PARTS

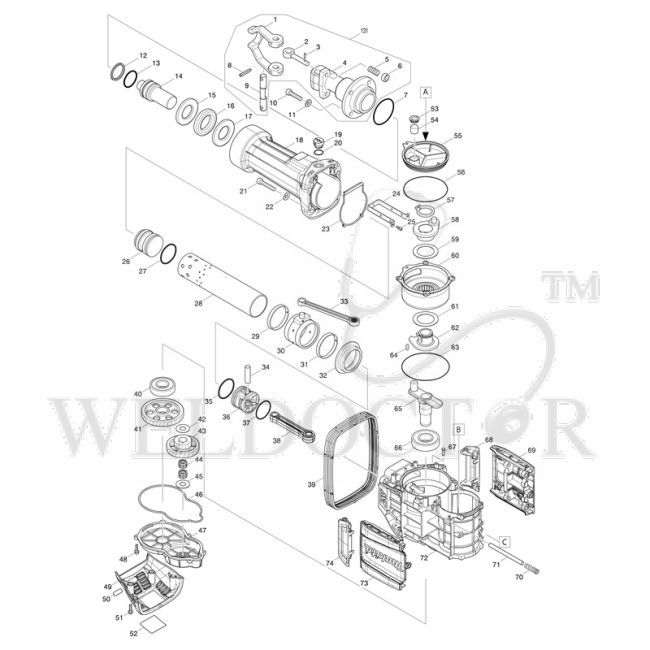

Spare Parts of Makita HM1812 Electric Breaker Ref. No. Part Name & Number Price 001 MAKITA TOOL RETAINER P/N:324236-0 Part No.: 324236-0 $197.18 Add To Cart 003 MAKITA PIN 4 FOR HM1500 Part No.: 256219-1 $0.44 Add To Cart 005 MAKITA COMPRESSION SPRING 12 P/N:233083-7 Part No.: 233083-7 $1.31 Add To Cart 006 MAKITA RETAINER RING FOR HM1301 P/N:322560-5 Part No.: 322560-5 $11.12 Add To Cart 008 MAKITA SPRING PIN 8-40 P/N:951272-9 Part No.: 951272-9 $0.87 Add To Cart 009 MAKITA TOOL RETAINER SHAFT FOR HM1801 P/N:324238-6 Part No.: 324238-6 $29.32 Add To Cart 010 MAKITA HEX. SOCKET BOLT M12X45 P/N:265989-1 Part No.: 265989-1 $2.07 Add To Cart 012 MAKITA X-RING 47 FOR HM1812 P/N:213797-4 Part No.: 213797-4 $7.09 Add To Cart 013 MAKITA O-RING 47 FOR HM1812 P/N:213798-2 Part No.: 213798-2 $5.45 Add To Cart 014 MAKITA IMPACT BOLT FOR HM1812 P/N:326469-3 Part No.: 326469-3 $31.39 Add To Cart 015 MAKITA WASHER 42 FOR HM1812 P/N:332127-1 Part No.: 332127-1 $7.74 Add To Cart 016 MAKITA RUBBER RING 47 FOR HM1812 P/N:262174-7 Part No.: 262174-7 $20.93 Add To Cart 017 MAKITA WASHER 42 FOR HM1812 P/N:332127-1 Part No.: 332127-1 $7.74 Add To Cart 018 MAKITA BARREL FOR HM1812 P/N:319218-5 Part No.: 319218-5 $187.15 Add To Cart 019 MAKITA CAP FOR HM1801 P/N:450347-6 Part No.: 450347-6 $7.63 Add To Cart 020 MAKITA O RING 24 FOR HR1830 P/N:213953-6 Part No.: 213953-6 $0.33 Add To Cart 021 MAKITA HEX.SOCKET BOLT M12X55 FOR HM1801 P/N:922677-0 Part No.: 922677-0 $1.96 Add To Cart 023 MAKITA SEAL RING A FOR HM1812 P/N:424666-6 Part No.: 424666-6 $3.05 Add To Cart 024 MAKITA PLATE FOR HM1812 P/N:346840-5 Part No.: 346840-5 $2.94 Add To Cart 025 MAKITA HEX. SOCKET HEAD BOLT M5X16 FOR 9067 P/N:266086-6 Part No.: 266086-6 $0.65 Add To Cart 026 MAKITA STRIKER FOR HM1812 P/N:326470-8 Part No.: 326470-8 $27.14 Add To Cart 027 MAKITA O-RING 56 FOR HM1812 P/N:213799-0 Part No.: 213799-0 $7.52 Add To Cart 028 MAKITA CYLINDER LINER 66 FOR HM1812 P/N:332130-2 Part No.: 332130-2 $411.37 Add To Cart 029 MAKITA SPACER 72 P/N:455492-2 Part No.: 455492-2 $1.31 Add To Cart 030 MAKITA BALLANCER ASSEMBLY FOR HM1812 P/N:123361-2 Part No.: 123361-2 $82.40 Add To Cart 031 MAKITA SPACER 72 P/N:455492-2 Part No.: 455492-2 $1.31 Add To Cart 032 MAKITA SPACER FOR HM1812 P/N:332131-0 Part No.: 332131-0 $15.91 Add To Cart 033 MAKITA CONNECTING ROD COMPLETE FOR HM1812 P/N:142922-9 Part No.: 142922-9 $26.92 Add To Cart 034 MAKITA PIN 15C FOR HM1812 P/N:268328-4 Part No.: 268328-4 $2.40 Add To Cart 035 MAKITA O-RING 56 FOR HM1812 P/N:213799-0 Part No.: 213799-0 $7.52 Add To Cart 036 MAKITA PISTON FOR HM1812 P/N:455509-1 Part No.: 455509-1 $6.32 Add To Cart 037 MAKITA O RING 55 FOR HM1810 P/N:213662-7 Part No.: 213662-7 $0.65 Add To Cart 038 MAKITA CONNECTING ROD FOR HM1812 P/N:455490-6 Part No.: 455490-6 $7.19 Add To Cart 039 MAKITA BELLOWS FOR HM1812 P/N:424669-0 Part No.: 424669-0 $16.24 Add To Cart 040 MAKITA BALL BEARING 6306LLB FOR HM1812 P/N:211151-6 Part No.: 211151-6 $21.04 Add To Cart 041 MAKITA HELICAL GEAR 57 FOR HM1812 P/N:227797-8 Part No.: 227797-8 $41.42 Add To Cart 042 MAKITA FLAT WASHER 18 FOR JR3050T P/N:267290-0 Part No.: 267290-0 $0.55 Add To Cart 043 MAKITA GEAR COMPLETE 23-59 FOR HM1812 P/N:226834-5 Part No.: 226834-5 $47.31 Add To Cart 044 MAKITA NEEDLE CAGE 1816 FOR HM1812 P/N:212099-5 Part No.: 212099-5 $11.12 Add To Cart 045 MAKITA FLAT WASHER 18 FOR JR3050T P/N:267290-0 Part No.: 267290-0 $0.55 Add To Cart 046 MAKITA SEAL RING B FOR HM1812 P/N:424667-4 Part No.: 424667-4 $3.49 Add To Cart 047 MAKITA GEAR COVER FOR HM1812 P/N:455491-4 Part No.: 455491-4 $11.88 Add To Cart 048 MAKITA H.S. HEAD BOLT M6X25 WITH GM FOR HM1812 P/N:266923-4 Part No.: 266923-4 $0.76 Add To Cart 049 MAKITA SIDE COVER B FOR HM1812 P/N:455500-9 Part No.: 455500-9 $11.34 Add To Cart 051 MAKITA H.S. HEAD BOLT M6X25 WITH GM FOR HM1812 P/N:266923-4 Part No.: 266923-4 $0.76 Add To Cart 053 MAKITA FILTER CAP FOR HM1812 P/N:424668-2 Part No.: 424668-2 $0.98 Add To Cart 054 MAKITA FILTER FOR HR4030C P/N:443127-7 Part No.: 443127-7 $0.87 Add To Cart 055 MAKITA STOPPER FOR HM1812 P/N:455493-0 Part No.: 455493-0 $7.30 Add To Cart 056 MAKITA O-RING 124 FOR HM1812 P/N:213810-8 Part No.: 213810-8 $4.36 Add To Cart 058 MAKITA CRANK COMPLETE FOR HM1812 P/N:142921-1 Part No.: 142921-1 $34.55 Add To Cart 059 MAKITA FLAT WASHER 50 FOR HM1812 P/N:267486-3 Part No.: 267486-3 $1.31 Add To Cart 060 MAKITA CRANK BOX COMPLETE FOR HM1812 P/N:142952-0 Part No.: 142952-0 $48.61 Add To Cart 061 MAKITA FLAT WASHER 50 FOR HM1812 P/N:267486-3 Part No.: 267486-3 $1.31 Add To Cart 062 MAKITA COUNTER SHAFT FOR HM1812 P/N:310619-0 Part No.: 310619-0 $21.04 Add To Cart 063 MAKITA O RING 135 FOR P400 P/N:213902-3 Part No.: 213902-3 $2.51 Add To Cart 064 MAKITA KEY 5 P/N:254220-0 Part No.: 254220-0 $1.42 Add To Cart 065 MAKITA CRANK SHAFT FOR HM1812 P/N:310618-2 Part No.: 310618-2 $42.73 Add To Cart 066 MAKITA BALL BEARING 6307LLU FOR HM1812 P/N:211500-7 Part No.: 211500-7 $28.12 Add To Cart 067 MAKITA FLAT FILLISTER HD PIN 6 FOR HM1812 P/N:256559-7 Part No.: 256559-7 $0.44 Add To Cart 068 MAKITA HANDLE C FOR HM1812 P/N:455506-7 Part No.: 455506-7 $3.82 Add To Cart 069 MAKITA CENTER COVER FOR HM1812 P/N:455503-3 Part No.: 455503-3 $26.60 Add To Cart 070 MAKITA COMPRESSION SPRING 12A FOR HM1812 P/N:234349-8 Part No.: 234349-8 $0.65 Add To Cart 071 MAKITA ROD FOR HM1812 P/N:326471-6 Part No.: 326471-6 $1.85 Add To Cart 072 MAKITA CRANK HOUSING COMPLETE FOR HM1812 P/N:142919-8 Part No.: 142919-8 $307.93 Add To Cart 073 MAKITA CENTER COVER FOR HM1812 P/N:455503-3 Part No.: 455503-3 $26.60 Add To Cart 074 MAKITA HANDLE C FOR HM1812 P/N:455506-7 Part No.: 455506-7 $3.82 Add To Cart 075 MAKITA TAPPING SCREW 4X18 P/N:265995-6 Part No.: 265995-6 $0.33 Add To Cart 076 MAKITA SIDE COVER A FOR HM1812 P/N:455499-8 Part No.: 455499-8 $10.68 Add To Cart 077 MAKITA H.S. HEAD BOLT M6X25 WITH GM FOR HM1812 P/N:266923-4 Part No.: 266923-4 $0.76 Add To Cart 078 MAKITA BRACKET FOR HM1812 P/N:455510-6 Part No.: 455510-6 $3.27 Add To Cart 079 MAKITA H.S. HEAD BOLT M6X25 WITH GM FOR HM1812 P/N:266923-4 Part No.: 266923-4 $0.76 Add To Cart 080 MAKITA TAPPING SCREW 4X18 P/N:265995-6 Part No.: 265995-6 $0.33 Add To Cart 081 MAKITA CAP COVER FOR HM1812 P/N:455495-6 Part No.: 455495-6 $6.10 Add To Cart 083 MAKITA LENS FOR HM1812 P/N:455514-8 Part No.: 455514-8 $1.42 Add To Cart 084 MAKITA LEAD UNIT FOR HM1812 P/N:632E02-4 Part No.: 632E02-4 $3.71 Add To Cart 085 MAKITA TERMINAL BLOCK 2P FOR TW1000/5008MG P/N:654531-7 Part No.: 654531-7 $0.98 Add To Cart 086 MAKITA CONTROLLER FOR HM1812 P/N:620365-0 Part No.: 620365-0 $71.40 Add To Cart 087 MAKITA TAPPING SCREW 4X18 P/N:265995-6 Part No.: 265995-6 $0.33 Add To Cart 088 MAKITA STRAIN RELIEF FOR HP1620 HR2810 P/N:687169-3 Part No.: 687169-3 $0.44 Add To Cart 089 MAKITA POWER SUPPLY CORD 1.5-2-4.0 P/N:692623-4 Part No.: 692623-4 $33.03 Add To Cart 090 MAKITA CORD GUARD 10 FOR HR3000C P/N:682560-0 Part No.: 682560-0 $1.64 Add To Cart 091 MAKITA H.S. HEAD BOLT M6X25 WITH GM FOR HM1812 P/N:266923-4 Part No.: 266923-4 $0.76 Add To Cart 092 MAKITA CRANK HOUSING CAP FOR HM1812 P/N:455494-8 Part No.: 455494-8 $11.55 Add To Cart 093 MAKITA H.S. HEAD BOLT M6X25 WITH GM FOR HM1812 P/N:266923-4 Part No.: 266923-4 $0.76 Add To Cart 094 MAKITA BEARING BOX FOR HM1812 P/N:319220-8 Part No.: 319220-8 $19.62 Add To Cart 095 MAKITA BRUSH HOLDER COVER FOR HM1812 P/N:455498-0 Part No.: 455498-0 $1.31 Add To Cart 096 MAKITA TAPPING SCREW 4X18 P/N:265995-6 Part No.: 265995-6 $0.33 Add To Cart 097 MAKITA TAPPING SCREW 4X18 P/N:265995-6 Part No.: 265995-6 $0.33 Add To Cart 098 MAKITA BRUSH HOLDER COVER FOR HM1812 P/N:455498-0 Part No.: 455498-0 $1.31 Add To Cart 099 MAKITA MOTOR HOUSING FOR HM1812 P/N:455496-4 Part No.: 455496-4 $21.15 Add To Cart 100 MAKITA CARBON BRUSH CB-218 Part No.: 197129-2 $5.01 Add To Cart 102 MAKITA FIELD 240V FOR HM1812 P/N:636409-6 Part No.: 636409-6 $84.48 Add To Cart 103 MAKITA BAFFLE PLATE FOR HM1812 P/N:455497-2 Part No.: 455497-2 $3.49 Add To Cart 104 MAKITA '+ HEX. BOLT M5X120 WITH GM FOR HM1812 P/N:266922-6 Part No.: 266922-6 $1.85 Add To Cart 105 MAKITA ARMATURE ASS'Y 240V FOR HM1812 P/N:517914-1 Part No.: 517914-1 $161.54 Add To Cart 106 MAKITA BALL BEARING 6200DDW FOR 3612BR P/N:211087-9 Part No.: 211087-9 $3.27 Add To Cart 107 MAKITA INSULATION WASHER FOR 9047 P/N:681630-2 Part No.: 681630-2 $0.44 Add To Cart 111 MAKITA SEALING SCREW FOR HM1802/HM1812 P/N:332129-7 Part No.: 332129-7 $4.80 Add To Cart 112 MAKITA H.S. HEAD BOLT M6X25 WITH GM FOR HM1812 P/N:266923-4 Part No.: 266923-4 $0.76 Add To Cart 113 MAKITA HANDLE A FOR HM1812 P/N:455504-1 Part No.: 455504-1 $20.71 Add To Cart 114 MAKITA SWITCH LEVER FOR HM1812 P/N:455508-3 Part No.: 455508-3 $2.51 Add To Cart 115 MAKITA SWITCH GUIDE FOR HM1812 P/N:455511-4 Part No.: 455511-4 $1.64 Add To Cart 116 MAKITA TAPPING SCREW 4X18 P/N:265995-6 Part No.: 265995-6 $0.33 Add To Cart 117 MAKITA SWITCH COVER FOR HM1812 P/N:455507-5 Part No.: 455507-5 $1.85 Add To Cart 118 MAKITA SWITCH C3JW-C-P FOR HM1812 P/N:650738-3 Part No.: 650738-3 $16.57 Add To Cart 119 MAKITA HANDLE BASE A FOR HM1812 P/N:455502-5 Part No.: 455502-5 $34.34 Add To Cart 120 MAKITA TAPPING SCREW M5X25 FOR GA5010 Part No.: 266041-8 $0.44 Add To Cart 121 MAKITA PIN 6 FOR 6922K P/N:256269-6 Part No.: 256269-6 $0.55 Add To Cart 122 MAKITA BASE FOR HM1812 P/N:319222-4 Part No.: 319222-4 $9.59 Add To Cart 123 MAKITA H.S. HEAD BOLT M6X25 WITH GM FOR HM1812 P/N:266923-4 Part No.: 266923-4 $0.76 Add To Cart 124 MAKITA HEAD COVER FOR HM1812 P/N:455501-7 Part No.: 455501-7 $13.95 Add To Cart 125 MAKITA TAPPING SCREW M5X25 FOR GA5010 Part No.: 266041-8 $0.44 Add To Cart 126 MAKITA HANDLE BASE B FOR HM1812 P/N:455512-2 Part No.: 455512-2 $34.23 Add To Cart 127 MAKITA TAPPING SCREW M5X25 FOR GA5010 Part No.: 266041-8 $0.44 Add To Cart 128 MAKITA H.S. HEAD BOLT M6X25 WITH GM FOR HM1812 P/N:266923-4 Part No.: 266923-4 $0.76 Add To Cart 129 MAKITA HANDLE B FOR HM1812 P/N:455505-9 Part No.: 455505-9 $21.36 Add To Cart 130 MAKITA RUBBER SHEET FOR HM1812 P/N:685756-2 Part No.: 685756-2 $0.76 Add To Cart 131 MAKITA TOOL HOLDER ASS'Y FOR HM1812 P/N:135669-2 Part No.: 135669-2 $755.26 Add To Cart 132 MAKITA GLASS CLOTH TUBE 3.5-45 FOR HM1812 P/N:684970-7 Part No.: 684970-7 $0.98 Add To Cart

Brand: Makita

Specifications:

• Ref. No.: Part Name & Number
• 001: MAKITA TOOL RETAINER P/N:324236-0 Part No.: 324236-0
• 003: MAKITA PIN 4 FOR HM1500 Part No.: 256219-1
• 005: MAKITA COMPRESSION SPRING 12 P/N:233083-7 Part No.: 233083-7
• 006: MAKITA RETAINER RING FOR HM1301 P/N:322560-5 Part No.: 322560-5
• 008: MAKITA SPRING PIN 8-40 P/N:951272-9 Part No.: 951272-9
• 009: MAKITA TOOL RETAINER SHAFT FOR HM1801 P/N:324238-6 Part No.: 324238-6
• 010: MAKITA HEX. SOCKET BOLT M12X45 P/N:265989-1 Part No.: 265989-1
• 012: MAKITA X-RING 47 FOR HM1812 P/N:213797-4 Part No.: 213797-4
• 013: MAKITA O-RING 47 FOR HM1812 P/N:213798-2 Part No.: 213798-2
• 014: MAKITA IMPACT BOLT FOR HM1812 P/N:326469-3 Part No.: 326469-3
• 015: MAKITA WASHER 42 FOR HM1812 P/N:332127-1 Part No.: 332127-1
• 016: MAKITA RUBBER RING 47 FOR HM1812 P/N:262174-7 Part No.: 262174-7
• 017: MAKITA WASHER 42 FOR HM1812 P/N:332127-1 Part No.: 332127-1
• 018: MAKITA BARREL FOR HM1812 P/N:319218-5 Part No.: 319218-5
• 019: MAKITA CAP FOR HM1801 P/N:450347-6 Part No.: 450347-6
• 020: MAKITA O RING 24 FOR HR1830 P/N:213953-6 Part No.: 213953-6
• 021: MAKITA HEX.SOCKET BOLT M12X55 FOR HM1801 P/N:922677-0 Part No.: 922677-0
• 023: MAKITA SEAL RING A FOR HM1812 P/N:424666-6 Part No.: 424666-6
• 024: MAKITA PLATE FOR HM1812 P/N:346840-5 Part No.: 346840-5
• 025: MAKITA HEX. SOCKET HEAD BOLT M5X16 FOR 9067 P/N:266086-6 Part No.: 266086-6
• 026: MAKITA STRIKER FOR HM1812 P/N:326470-8 Part No.: 326470-8
• 027: MAKITA O-RING 56 FOR HM1812 P/N:213799-0 Part No.: 213799-0
• 028: MAKITA CYLINDER LINER 66 FOR HM1812 P/N:332130-2 Part No.: 332130-2
• 029: MAKITA SPACER 72 P/N:455492-2 Part No.: 455492-2
• 030: MAKITA BALLANCER ASSEMBLY FOR HM1812 P/N:123361-2 Part No.: 123361-2
• 031: MAKITA SPACER 72 P/N:455492-2 Part No.: 455492-2
• 032: MAKITA SPACER FOR HM1812 P/N:332131-0 Part No.: 332131-0
• 033: MAKITA CONNECTING ROD COMPLETE FOR HM1812 P/N:142922-9 Part No.: 142922-9
• 034: MAKITA PIN 15C FOR HM1812 P/N:268328-4 Part No.: 268328-4
• 035: MAKITA O-RING 56 FOR HM1812 P/N:213799-0 Part No.: 213799-0
• 036: MAKITA PISTON FOR HM1812 P/N:455509-1 Part No.: 455509-1
• 037: MAKITA O RING 55 FOR HM1810 P/N:213662-7 Part No.: 213662-7
• 038: MAKITA CONNECTING ROD FOR HM1812 P/N:455490-6 Part No.: 455490-6
• 039: MAKITA BELLOWS FOR HM1812 P/N:424669-0 Part No.: 424669-0
• 040: MAKITA BALL BEARING 6306LLB FOR HM1812 P/N:211151-6 Part No.: 211151-6
• 041: MAKITA HELICAL GEAR 57 FOR HM1812 P/N:227797-8 Part No.: 227797-8
• 042: MAKITA FLAT WASHER 18 FOR JR3050T P/N:267290-0 Part No.: 267290-0
• 043: MAKITA GEAR COMPLETE 23-59 FOR HM1812 P/N:226834-5 Part No.: 226834-5
• 044: MAKITA NEEDLE CAGE 1816 FOR HM1812 P/N:212099-5 Part No.: 212099-5
