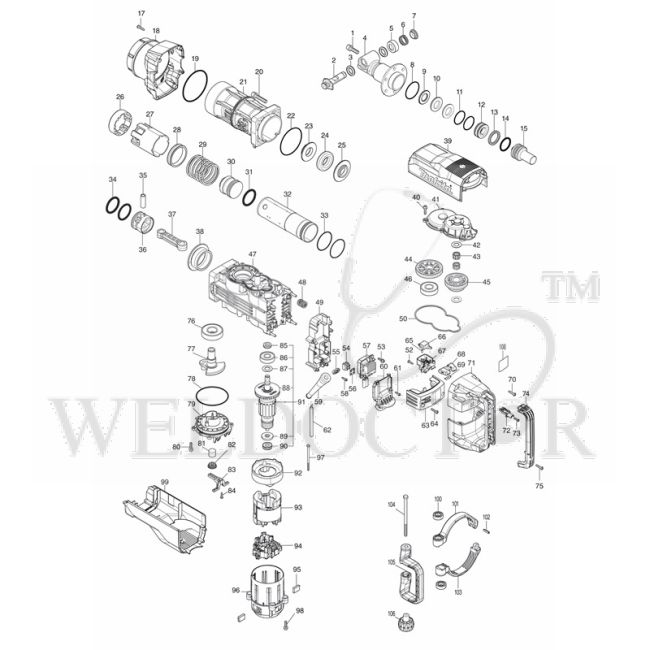

MAKITA HM1501 ELECTRIC BREAKER SPARE PARTS

Spare Parts of Makita HM1501 Electric Breaker Ref. No. Part Name & Number Price 001 MAKITA H.S HEAD BOLT M10X35 WM P/N:265B53-0 Part No.: 265B53-0 $1.85 Add To Cart 002 MAKITA TOOL RETAINER P/N:327671-1 Part No.: 327671-1 $49.81 Add To Cart 003 MAKITA RUBBER RING 20 P/N:262197-5 Part No.: 262197-5 $3.49 Add To Cart 004 MAKITA TOOL HOLDER A P/N:313322-2 Part No.: 313322-2 $93.63 Add To Cart 005 MAKITA SPRING BASE B P/N:327672-9 Part No.: 327672-9 $2.83 Add To Cart 006 MAKITA COMPRESSION SPRING 28 P/N:232641-6 Part No.: 232641-6 $2.07 Add To Cart 007 MAKITA RETAINER SLEEVE P/N:327670-3 Part No.: 327670-3 $11.88 Add To Cart 008 MAKITA O RING 58 FOR HM1202C P/N:213670-8 Part No.: 213670-8 $0.98 Add To Cart 009 MAKITA FLAT WASHER 26 P/N:253487-7 Part No.: 253487-7 $1.64 Add To Cart 010 MAKITA NYLON RING 26 P/N:262198-3 Part No.: 262198-3 $8.28 Add To Cart 011 MAKITA O RING 45 FOR HR3530 P/N:213569-7 Part No.: 213569-7 $0.65 Add To Cart 012 MAKITA RING 24 P/N:327674-5 Part No.: 327674-5 $7.09 Add To Cart 013 MAKITA X-RING 38 P/N:213911-2 Part No.: 213911-2 $7.74 Add To Cart 014 MAKITA O-RING 40 P/N:213912-0 Part No.: 213912-0 $2.83 Add To Cart 015 MAKITA IMPACT BOLT A P/N:327668-0 Part No.: 327668-0 $14.17 Add To Cart 017 MAKITA TAPPING SCREW M5X25 FOR GA5010 Part No.: 266041-8 $0.44 Add To Cart 018 MAKITA BARREL COVER P/N:412874-1 Part No.: 412874-1 $52.10 Add To Cart 019 MAKITA O-RING106 P/N:213916-2 Part No.: 213916-2 $2.07 Add To Cart 020 MAKITA H.S HEAD BOLT M10X50 WM P/N:265B55-6 Part No.: 265B55-6 $2.51 Add To Cart 021 MAKITA BARREL P/N:313324-8 Part No.: 313324-8 $194.57 Add To Cart 022 MAKITA O RING 90 FOR HM1500 Part No.: 213806-9 $1.09 Add To Cart 023 MAKITA SHOULDER RING 30 B P/N:327667-2 Part No.: 327667-2 $19.51 Add To Cart 024 MAKITA RUBBER RING 31 P/N:262196-7 Part No.: 262196-7 $17.88 Add To Cart 025 MAKITA SHOULDER RING 30 A P/N:327666-4 Part No.: 327666-4 $22.56 Add To Cart 026 MAKITA GUIDE RING P/N:313321-4 Part No.: 313321-4 $66.16 Add To Cart 027 MAKITA SLIDE SLEEVE FOR HM1511/1501 P/N:412859-7 Part No.: 412859-7 $33.68 Add To Cart 028 MAKITA SLEEVE 65 P/N:327664-8 Part No.: 327664-8 $5.01 Add To Cart 029 MAKITA COMPRESSION SPRING 66 P/N:232646-6 Part No.: 232646-6 $6.98 Add To Cart 030 MAKITA STRIKER P/N:327665-6 Part No.: 327665-6 $15.59 Add To Cart 031 MAKITA O-RING 48 P/N:213913-8 Part No.: 213913-8 $7.41 Add To Cart 032 MAKITA CYLINDER 59 P/N:327662-2 Part No.: 327662-2 $165.68 Add To Cart 033 MAKITA O RING 53 FOR HM1201 P/N:213656-2 Part No.: 213656-2 $0.33 Add To Cart 034 MAKITA O-RING 48 P/N:213913-8 Part No.: 213913-8 $7.41 Add To Cart 035 MAKITA PIPE 15 P/N:327663-0 Part No.: 327663-0 $2.07 Add To Cart 036 MAKITA PISTON P/N:412858-9 Part No.: 412858-9 $22.67 Add To Cart 037 MAKITA CONNECTING ROD P/N:412857-1 Part No.: 412857-1 $15.70 Add To Cart 038 MAKITA SPACER P/N:327661-4 Part No.: 327661-4 $13.41 Add To Cart 039 MAKITA TOP COVER P/N:412875-9 Part No.: 412875-9 $22.89 Add To Cart 040 MAKITA H.S. HEAD BOLT M6X25 WITH GM FOR HM1812 P/N:266923-4 Part No.: 266923-4 $0.76 Add To Cart 041 MAKITA GEAR COVER P/N:413211-2 Part No.: 413211-2 $16.35 Add To Cart 043 MAKITA NEEDLE CAGE 1715 P/N:212230-3 Part No.: 212230-3 $9.81 Add To Cart 044 MAKITA HELICAL GEAR 53 P/N:227832-2 Part No.: 227832-2 $15.91 Add To Cart 045 MAKITA GEAR COMPLETE31-45 P/N:227833-0 Part No.: 227833-0 $21.26 Add To Cart 046 MAKITA BALL BEARING 2216LLB P/N:210234-9 Part No.: 210234-9 $15.26 Add To Cart 047 MAKITA CRANK HOUSING B FOR HM1501 P/N:140W39-0 Part No.: 140W39-0 $302.37 Add To Cart 048 MAKITA COMPRESSION SPRING 16B P/N:232645-8 Part No.: 232645-8 $0.76 Add To Cart 049 MAKITA CONTROLLER CASE FOR HM1511 P/N:412868-6 Part No.: 412868-6 $9.16 Add To Cart 050 MAKITA SEAL RING P/N:422636-9 Part No.: 422636-9 $3.05 Add To Cart 052 MAKITA TAPPING SCREW 4X18 P/N:265995-6 Part No.: 265995-6 $0.33 Add To Cart 054 MAKITA TERMINAL BLOCK 2P FOR TW1000/5008MG P/N:654741-6 Part No.: 654741-6 $1.42 Add To Cart 055 MAKITA STRAIN RELIEF FOR JR3000V P/N:687053-2 Part No.: 687053-2 $0.33 Add To Cart 056 MAKITA RUBBER SHEET FOR HM1812 P/N:685756-2 Part No.: 685756-2 $0.76 Add To Cart 057 MAKITA CONTROLLER FOR HM1501 P/N:620E05-0 Part No.: 620E05-0 $80.66 Add To Cart 058 MAKITA TAPPING SCREW 4X18 P/N:265995-6 Part No.: 265995-6 $0.33 Add To Cart 059 MAKITA CORD GUARD 10 FOR HR3000C P/N:682560-0 Part No.: 682560-0 $1.64 Add To Cart 060 MAKITA CORD COVER P/N:412869-4 Part No.: 412869-4 $5.45 Add To Cart 061 MAKITA TAPPING SCREW 4X18 P/N:265995-6 Part No.: 265995-6 $0.33 Add To Cart 063 MAKITA CONTROLLER COVER FOR HM1511 P/N:140W49-7 Part No.: 140W49-7 $10.79 Add To Cart 064 MAKITA TAPPING SCREW M5X25 FOR GA5010 Part No.: 266041-8 $0.44 Add To Cart 066 MAKITA SWITCH FOR BO6050/DTM51/HM1205C P/N:651423-1 Part No.: 651423-1 $5.56 Add To Cart 067 MAKITA SWITCH HOLDER FOR HM1511/1501 P/N:412878-3 Part No.: 412878-3 $2.07 Add To Cart 068 MAKITA SLIDE LEVER P/N:451112-6 Part No.: 451112-6 $3.05 Add To Cart 069 MAKITA LEAF SPRING FOR HR4001C P/N:232209-8 Part No.: 232209-8 $0.33 Add To Cart 070 MAKITA TAPPING SCREW M5X25 FOR GA5010 Part No.: 266041-8 $0.44 Add To Cart 071 MAKITA HANDLE COMPLETE P/N:140W50-2 Part No.: 140W50-2 $34.01 Add To Cart 072 MAKITA SWITCH SUPPORT FOR HM1501/1511 P/N:412879-1 Part No.: 412879-1 $2.07 Add To Cart 073 MAKITA TAPPING SCREW 4X18 P/N:265995-6 Part No.: 265995-6 $0.33 Add To Cart 074 MAKITA HANDLE COVER FOR HM1511/1501 P/N:412880-6 Part No.: 412880-6 $13.84 Add To Cart 075 MAKITA TAPPING SCREW M5X25 FOR GA5010 Part No.: 266041-8 $0.44 Add To Cart 076 MAKITA BALL BEARING 2818LLU P/N:210233-1 Part No.: 210233-1 $32.92 Add To Cart 077 MAKITA CRANKSHAFT P/N:327660-6 Part No.: 327660-6 $12.86 Add To Cart 078 MAKITA O-RING 100 P/N:213914-6 Part No.: 213914-6 $1.96 Add To Cart 079 MAKITA CRANK CAP B P/N:412864-4 Part No.: 412864-4 $14.72 Add To Cart 080 MAKITA H.S. HEAD BOLT M6X25 WITH GM FOR HM1812 P/N:266923-4 Part No.: 266923-4 $0.76 Add To Cart 081 MAKITA FILTER FOR HR4030C P/N:443127-7 Part No.: 443127-7 $0.87 Add To Cart 082 MAKITA FILTER CAP FOR HM1812 P/N:424668-2 Part No.: 424668-2 $0.98 Add To Cart 083 MAKITA FILTER GUIDE FOR HM1501/1511 P/N:412867-8 Part No.: 412867-8 $2.62 Add To Cart 084 MAKITA TAPPING SCREW 4X18 P/N:265995-6 Part No.: 265995-6 $0.33 Add To Cart 085 MAKITA SEALING SCREW FOR HM1802/HM1812 P/N:332129-7 Part No.: 332129-7 $4.80 Add To Cart 089 MAKITA INSULATION WASHER FOR 9047 P/N:681630-2 Part No.: 681630-2 $0.44 Add To Cart 091 MAKITA ARMATURE ASSY 240V FOR HM1501/1511 P/N:515544-2 Part No.: 515544-2 $150.86 Add To Cart 092 MAKITA BUFFLE PLATE P/N:412861-0 Part No.: 412861-0 $3.82 Add To Cart 093 MAKITA FIELD 240V FOR HM1511/1501 P/N:634749-6 Part No.: 634749-6 $79.46 Add To Cart 094 MAKITA BRUSH HOLDER UNIT P/N:632R65-8 Part No.: 632R65-8 $14.93 Add To Cart 096 MAKITA MOTOR HOUSING FOR HM1501/1511 P/N:412860-2 Part No.: 412860-2 $28.56 Add To Cart 097 MAKITA '+ HEX BOLT M5X95 WITH GM P/N:265B54-8 Part No.: 265B54-8 $2.40 Add To Cart 098 MAKITA H.S. HEAD BOLT M6X25 WITH GM FOR HM1812 P/N:266923-4 Part No.: 266923-4 $0.76 Add To Cart 099 MAKITA REAR COVER B P/N:412886-4 Part No.: 412886-4 $16.02 Add To Cart 100 MAKITA SIDE HANDLE CAM FOR HM1202C P/N:417002-3 Part No.: 417002-3 $1.20 Add To Cart 101 MAKITA SIDE HANDLE BASE A P/N:312A28-5 Part No.: 312A28-5 $14.17 Add To Cart 102 MAKITA SPRING PIN 5-24 FOR LC1210 P/N:951166-8 Part No.: 951166-8 $0.44 Add To Cart 103 MAKITA SIDE HANDLE BASE B P/N:312A29-3 Part No.: 312A29-3 $12.10 Add To Cart 104 MAKITA HEX. BOLT M8X150 FOR HR4000C P/N:265439-6 Part No.: 265439-6 $2.83 Add To Cart 105 MAKITA SIDE HANDLE FOR HM1511/1501 P/N:412881-4 Part No.: 412881-4 $26.38 Add To Cart 106 MAKITA WING NUT M8 FOR HR4000C P/N:252640-2 Part No.: 252640-2 $5.45 Add To Cart

Brand: Makita

Specifications:

• Ref. No.: Part Name & Number
• 001: MAKITA H.S HEAD BOLT M10X35 WM P/N:265B53-0 Part No.: 265B53-0
• 002: MAKITA TOOL RETAINER P/N:327671-1 Part No.: 327671-1
• 003: MAKITA RUBBER RING 20 P/N:262197-5 Part No.: 262197-5
• 004: MAKITA TOOL HOLDER A P/N:313322-2 Part No.: 313322-2
• 005: MAKITA SPRING BASE B P/N:327672-9 Part No.: 327672-9
• 006: MAKITA COMPRESSION SPRING 28 P/N:232641-6 Part No.: 232641-6
• 007: MAKITA RETAINER SLEEVE P/N:327670-3 Part No.: 327670-3
• 008: MAKITA O RING 58 FOR HM1202C P/N:213670-8 Part No.: 213670-8
• 009: MAKITA FLAT WASHER 26 P/N:253487-7 Part No.: 253487-7
• 010: MAKITA NYLON RING 26 P/N:262198-3 Part No.: 262198-3
• 011: MAKITA O RING 45 FOR HR3530 P/N:213569-7 Part No.: 213569-7
• 012: MAKITA RING 24 P/N:327674-5 Part No.: 327674-5
• 013: MAKITA X-RING 38 P/N:213911-2 Part No.: 213911-2
• 014: MAKITA O-RING 40 P/N:213912-0 Part No.: 213912-0
• 015: MAKITA IMPACT BOLT A P/N:327668-0 Part No.: 327668-0
• 017: MAKITA TAPPING SCREW M5X25 FOR GA5010 Part No.: 266041-8
• 018: MAKITA BARREL COVER P/N:412874-1 Part No.: 412874-1
• 019: MAKITA O-RING106 P/N:213916-2 Part No.: 213916-2
• 020: MAKITA H.S HEAD BOLT M10X50 WM P/N:265B55-6 Part No.: 265B55-6
• 021: MAKITA BARREL P/N:313324-8 Part No.: 313324-8
• 022: MAKITA O RING 90 FOR HM1500 Part No.: 213806-9
• 023: MAKITA SHOULDER RING 30 B P/N:327667-2 Part No.: 327667-2
• 024: MAKITA RUBBER RING 31 P/N:262196-7 Part No.: 262196-7
• 025: MAKITA SHOULDER RING 30 A P/N:327666-4 Part No.: 327666-4
• 026: MAKITA GUIDE RING P/N:313321-4 Part No.: 313321-4
• 027: MAKITA SLIDE SLEEVE FOR HM1511/1501 P/N:412859-7 Part No.: 412859-7
• 028: MAKITA SLEEVE 65 P/N:327664-8 Part No.: 327664-8
• 029: MAKITA COMPRESSION SPRING 66 P/N:232646-6 Part No.: 232646-6
• 030: MAKITA STRIKER P/N:327665-6 Part No.: 327665-6
• 031: MAKITA O-RING 48 P/N:213913-8 Part No.: 213913-8
• 032: MAKITA CYLINDER 59 P/N:327662-2 Part No.: 327662-2
• 033: MAKITA O RING 53 FOR HM1201 P/N:213656-2 Part No.: 213656-2
• 034: MAKITA O-RING 48 P/N:213913-8 Part No.: 213913-8
• 035: MAKITA PIPE 15 P/N:327663-0 Part No.: 327663-0
• 036: MAKITA PISTON P/N:412858-9 Part No.: 412858-9
• 037: MAKITA CONNECTING ROD P/N:412857-1 Part No.: 412857-1
• 038: MAKITA SPACER P/N:327661-4 Part No.: 327661-4
• 039: MAKITA TOP COVER P/N:412875-9 Part No.: 412875-9
• 040: MAKITA H.S. HEAD BOLT M6X25 WITH GM FOR HM1812 P/N:266923-4 Part No.: 266923-4
