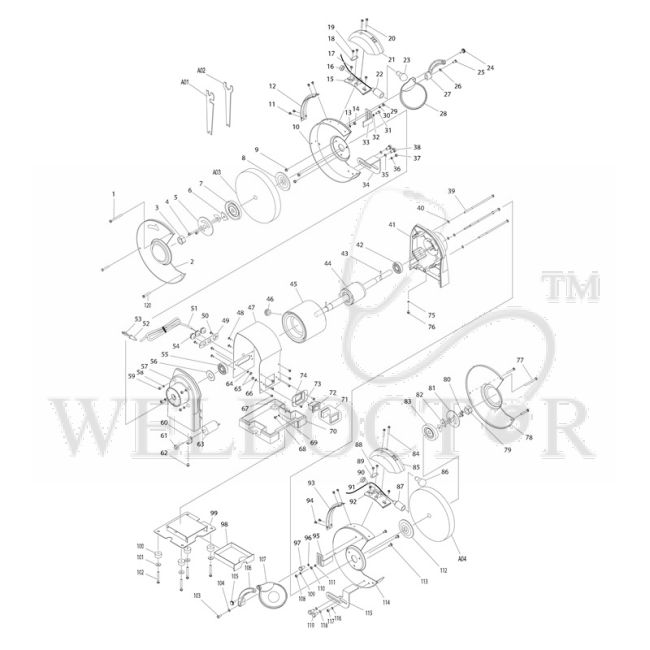

MAKITA GB801 BENCH GRINDER 205MM SPARE PARTS

Spare Parts of Makita GB801 Bench Grinder Ref. No. Part Name & Number Price 001 MAKITA PAN HEAD SCREW FOR 2412N Part No.: 911276-3 $0.55 Add To Cart 002 MAKITA WHEEL COVER L FOR GB801 P/N:AL00000057 Part No.: AL00000057 $16.79 Add To Cart 003 MAKITA HEX. NUT M16L FOR GB801 P/N:AL00000058 Part No.: AL00000058 $0.65 Add To Cart 004 MAKITA PAN HEAD SCREW M5X5 FOR GB801 P/N:AL00000059 Part No.: AL00000059 $0.22 Add To Cart 005 MAKITA BALANCE PLATE FOR GB801 P/N:AL00000060 Part No.: AL00000060 $0.87 Add To Cart 006 MAKITA BALANCE WEIGHT FOR GB801 P/N:AL00000061 Part No.: AL00000061 $0.65 Add To Cart 007 MAKITA OUTER FLANGE FOR GB801 P/N:AL00000062 Part No.: AL00000062 $2.07 Add To Cart 008 MAKITA INNER FLANGE FOR GB801 P/N:AL00000063 Part No.: AL00000063 $2.07 Add To Cart 009 MAKITA PAN HEAD SCREW M5X14MM 911211-1 Part No.: 911211-1 $0.33 Add To Cart 010 MAKITA WHEEL COVER L FOR GB801 P/N:AL00000064 Part No.: AL00000064 $20.71 Add To Cart 012 MAKITA CORD CLAMP FOR GB801 P/N:AL00000065 Part No.: AL00000065 $0.55 Add To Cart 013 MAKITA SPRING WASHER 5 FOR HM0810 P/N:942101-7 Part No.: 942101-7 $0.22 Add To Cart 014 MAKITA HEX NUT M5 P/N:931201-8 Part No.: 931201-8 $0.22 Add To Cart 015 MAKITA LAMP COVER BASE FOR GB801 P/N:AL00000194 Part No.: AL00000194 $2.29 Add To Cart 016 MAKITA NUT FOR GB602 P/N:AL00000009 Part No.: AL00000009 $0.22 Add To Cart 017 MAKITA PAN HEAD SCREW M4X10 FOR 3700B P/N:911113-1 Part No.: 911113-1 $0.22 Add To Cart 019 MAKITA PAN HEAD SCREW M4X12 FOR BO4540 HR2810 P/N:911118-1 Part No.: 911118-1 $0.33 Add To Cart 020 MAKITA PAN HEAD SCREW M4X30MM FOR 9201 Part No.: 911156-3 $0.33 Add To Cart 021 MAKITA LAMP COVER FOR GB601 P/N:AL00000011 Part No.: AL00000011 $2.94 Add To Cart 023 MAKITA BULB FOR GB602 P/N:AL00000013 Part No.: AL00000013 $1.09 Add To Cart 024 MAKITA ADJUSTABLE KNOB FOR GB602 P/N:AL00000014 Part No.: AL00000014 $0.33 Add To Cart 025 MAKITA HEX BOLT M6 X 30 P/N:921351-7 Part No.: 921351-7 $0.44 Add To Cart 026 MAKITA FLAT WASHER 6 FOR HM0810 P/N:941151-9 Part No.: 941151-9 $0.11 Add To Cart 027 MAKITA EYESHIELD MOUNTING ARM L FOR GB602 P/N:AL00000015 Part No.: AL00000015 $2.07 Add To Cart 028 MAKITA SAFETY EYE SHIELD FOR GB602 P/N:AL00000016 Part No.: AL00000016 $3.71 Add To Cart 029 MAKITA HEX NUT M5 P/N:931201-8 Part No.: 931201-8 $0.22 Add To Cart 030 MAKITA SPRING WASHER 5 FOR HM0810 P/N:942101-7 Part No.: 942101-7 $0.22 Add To Cart 032 MAKITA SPRING WASHER 5 FOR HM0810 P/N:942101-7 Part No.: 942101-7 $0.22 Add To Cart 033 MAKITA SPARK DEFLECTOR (LEFT) FOR GB801 P/N:AL00000066 Part No.: AL00000066 $1.53 Add To Cart 034 MAKITA WORK REST (LEFT) FOR GB801 P/N:AL00000067 Part No.: AL00000067 $3.05 Add To Cart 035 MAKITA FLAT WASHER 8 FOR UT1301 P/N:941202-8 Part No.: 941202-8 $0.22 Add To Cart 036 MAKITA SPRING WASHER 5 FOR HM0810 P/N:942101-7 Part No.: 942101-7 $0.22 Add To Cart 037 MAKITA HEX NUT M5 P/N:931201-8 Part No.: 931201-8 $0.22 Add To Cart 040 MAKITA FLAT WASHER 5 FOR N3701 P/N:941101-4 Part No.: 941101-4 $0.11 Add To Cart 041 MAKITA MOTOR HOUSING COVER R FOR GB801 P/N:AL00000069 Part No.: AL00000069 $24.42 Add To Cart 042 MAKITA BALL BEARING 6204LLB FOR 2412N P/N:211306-3 Part No.: 211306-3 $9.81 Add To Cart 043 MAKITA SPRING PIN 3-8 FOR 4301 P/N:951051-5 Part No.: 951051-5 $0.22 Add To Cart 046 MAKITA BUSH FOR GB602 P/N:AL00000022 Part No.: AL00000022 $0.33 Add To Cart 048 MAKITA PAN HEAD SCREW M4X10 FOR 3700B P/N:911113-1 Part No.: 911113-1 $0.22 Add To Cart 050 MAKITA PAN HEAD SCREW M4X10 FOR 3700B P/N:911113-1 Part No.: 911113-1 $0.22 Add To Cart 054 MAKITA CORD GUARD FOR GB602 P/N:AL00000026 Part No.: AL00000026 $0.33 Add To Cart 055 MAKITA BALL BEARING 6204LLB FOR 2412N P/N:211306-3 Part No.: 211306-3 $9.81 Add To Cart 057 MAKITA MOTOR HOUSING COVER L FOR GB801 P/N:AL00000074 Part No.: AL00000074 $24.42 Add To Cart 058 MAKITA SPRING WASHER 5 FOR HM0810 P/N:942101-7 Part No.: 942101-7 $0.22 Add To Cart 059 MAKITA HEX NUT M5 P/N:931201-8 Part No.: 931201-8 $0.22 Add To Cart 061 MAKITA HEX NUT M8 FOR 5008B Part No.: 931402-8 $0.33 Add To Cart 062 MAKITA PAN HEAD SCREW M4X10 FOR 3700B P/N:911113-1 Part No.: 911113-1 $0.22 Add To Cart 063 MAKITA CAPACITOR P/N:AL00000099 Part No.: AL00000099 $16.79 Add To Cart 065 MAKITA HEX. NUT M4 FOR 5900B P/N:931102-0 Part No.: 931102-0 $0.44 Add To Cart 067 MAKITA PAN HEAD SCREW M4X10 FOR 3700B P/N:911113-1 Part No.: 911113-1 $0.22 Add To Cart 068 MAKITA PAN HEAD SCREW M4X10 FOR 3700B P/N:911113-1 Part No.: 911113-1 $0.22 Add To Cart 073 MAKITA PAN HEAD SCREW M4X10 FOR 3700B P/N:911113-1 Part No.: 911113-1 $0.22 Add To Cart 074 MAKITA SWITCH BOARD FOR GB602 P/N:AL00000031 Part No.: AL00000031 $0.87 Add To Cart 076 MAKITA PAN HEAD SCREW M4X10 FOR 3700B P/N:911113-1 Part No.: 911113-1 $0.22 Add To Cart 079 MAKITA HEX NUT M16 P/N:AL00000078 Part No.: AL00000078 $0.65 Add To Cart 080 MAKITA PAN HEAD SCREW M5X5 FOR GB801 P/N:AL00000059 Part No.: AL00000059 $0.22 Add To Cart 081 MAKITA BALANCE PLATE FOR GB801 P/N:AL00000060 Part No.: AL00000060 $0.87 Add To Cart 082 MAKITA BALANCE WEIGHT FOR GB801 P/N:AL00000061 Part No.: AL00000061 $0.65 Add To Cart 083 MAKITA OUTER FLANGE FOR GB801 P/N:AL00000062 Part No.: AL00000062 $2.07 Add To Cart 084 MAKITA PAN HEAD SCREW M4X30MM FOR 9201 Part No.: 911156-3 $0.33 Add To Cart 085 MAKITA LAMP COVER FOR GB601 P/N:AL00000011 Part No.: AL00000011 $2.94 Add To Cart 086 MAKITA BULB FOR GB602 P/N:AL00000013 Part No.: AL00000013 $1.09 Add To Cart 088 MAKITA PAN HEAD SCREW M4X12 FOR BO4540 HR2810 P/N:911118-1 Part No.: 911118-1 $0.33 Add To Cart 090 MAKITA PAN HEAD SCREW M4X10 FOR 3700B P/N:911113-1 Part No.: 911113-1 $0.22 Add To Cart 091 MAKITA NUT FOR GB602 P/N:AL00000009 Part No.: AL00000009 $0.22 Add To Cart 092 MAKITA LAMP COVER BASE FOR GB801 P/N:AL00000194 Part No.: AL00000194 $2.29 Add To Cart 093 MAKITA CORD CLAMP FOR GB801 P/N:AL00000065 Part No.: AL00000065 $0.55 Add To Cart 095 MAKITA SPARK DEFLECTOR (RIGHT) FOR GB801 P/N:AL00000079 Part No.: AL00000079 $1.53 Add To Cart 096 MAKITA SPRING WASHER 5 FOR HM0810 P/N:942101-7 Part No.: 942101-7 $0.22 Add To Cart 101 MAKITA FLAT WASHER 5 FOR N3701 P/N:941101-4 Part No.: 941101-4 $0.11 Add To Cart 103 MAKITA HEX BOLT M6 X 30 P/N:921351-7 Part No.: 921351-7 $0.44 Add To Cart 104 MAKITA FLAT WASHER 6 FOR HM0810 P/N:941151-9 Part No.: 941151-9 $0.11 Add To Cart 105 MAKITA ADJUSTABLE KNOB FOR GB602 P/N:AL00000014 Part No.: AL00000014 $0.33 Add To Cart 106 MAKITA EYESHIELD MOUNTING ARM R FOR GB602 P/N:AL00000038 Part No.: AL00000038 $2.07 Add To Cart 107 MAKITA SAFETY EYE SHIELD WITH MAGNIFIYING GLASS P/N:AL00000037 Part No.: AL00000037 $3.95 Add To Cart 108 MAKITA HEX NUT M5 P/N:931201-8 Part No.: 931201-8 $0.22 Add To Cart 109 MAKITA SPRING WASHER 5 FOR HM0810 P/N:942101-7 Part No.: 942101-7 $0.22 Add To Cart 110 MAKITA HEX NUT M5 P/N:931201-8 Part No.: 931201-8 $0.22 Add To Cart 111 MAKITA SPRING WASHER 5 FOR HM0810 P/N:942101-7 Part No.: 942101-7 $0.22 Add To Cart 112 MAKITA INNER FLANGE FOR GB801 P/N:AL00000063 Part No.: AL00000063 $2.07 Add To Cart 113 MAKITA PAN HEAD SCREW M5X14MM 911211-1 Part No.: 911211-1 $0.33 Add To Cart 115 MAKITA WORK REST (RIGHT) FOR GB801 P/N:AL00000085 Part No.: AL00000085 $3.05 Add To Cart 116 MAKITA SPRING WASHER 5 FOR HM0810 P/N:942101-7 Part No.: 942101-7 $0.22 Add To Cart 117 MAKITA HEX NUT M5 P/N:931201-8 Part No.: 931201-8 $0.22 Add To Cart 118 MAKITA FLAT WASHER 8 FOR UT1301 P/N:941202-8 Part No.: 941202-8 $0.22 Add To Cart

Brand: Makita

Specifications:

• Ref. No.: Part Name & Number
• 001: MAKITA PAN HEAD SCREW FOR 2412N Part No.: 911276-3
• 002: MAKITA WHEEL COVER L FOR GB801 P/N:AL00000057 Part No.: AL00000057
• 003: MAKITA HEX. NUT M16L FOR GB801 P/N:AL00000058 Part No.: AL00000058
• 004: MAKITA PAN HEAD SCREW M5X5 FOR GB801 P/N:AL00000059 Part No.: AL00000059
• 005: MAKITA BALANCE PLATE FOR GB801 P/N:AL00000060 Part No.: AL00000060
• 006: MAKITA BALANCE WEIGHT FOR GB801 P/N:AL00000061 Part No.: AL00000061
• 007: MAKITA OUTER FLANGE FOR GB801 P/N:AL00000062 Part No.: AL00000062
• 008: MAKITA INNER FLANGE FOR GB801 P/N:AL00000063 Part No.: AL00000063
• 009: MAKITA PAN HEAD SCREW M5X14MM 911211-1 Part No.: 911211-1
• 010: MAKITA WHEEL COVER L FOR GB801 P/N:AL00000064 Part No.: AL00000064
• 012: MAKITA CORD CLAMP FOR GB801 P/N:AL00000065 Part No.: AL00000065
• 013: MAKITA SPRING WASHER 5 FOR HM0810 P/N:942101-7 Part No.: 942101-7
• 014: MAKITA HEX NUT M5 P/N:931201-8 Part No.: 931201-8
• 015: MAKITA LAMP COVER BASE FOR GB801 P/N:AL00000194 Part No.: AL00000194
• 016: MAKITA NUT FOR GB602 P/N:AL00000009 Part No.: AL00000009
• 017: MAKITA PAN HEAD SCREW M4X10 FOR 3700B P/N:911113-1 Part No.: 911113-1
• 019: MAKITA PAN HEAD SCREW M4X12 FOR BO4540 HR2810 P/N:911118-1 Part No.: 911118-1
• 020: MAKITA PAN HEAD SCREW M4X30MM FOR 9201 Part No.: 911156-3
• 021: MAKITA LAMP COVER FOR GB601 P/N:AL00000011 Part No.: AL00000011
• 023: MAKITA BULB FOR GB602 P/N:AL00000013 Part No.: AL00000013
• 024: MAKITA ADJUSTABLE KNOB FOR GB602 P/N:AL00000014 Part No.: AL00000014
• 025: MAKITA HEX BOLT M6 X 30 P/N:921351-7 Part No.: 921351-7
• 026: MAKITA FLAT WASHER 6 FOR HM0810 P/N:941151-9 Part No.: 941151-9
• 027: MAKITA EYESHIELD MOUNTING ARM L FOR GB602 P/N:AL00000015 Part No.: AL00000015
• 028: MAKITA SAFETY EYE SHIELD FOR GB602 P/N:AL00000016 Part No.: AL00000016
• 029: MAKITA HEX NUT M5 P/N:931201-8 Part No.: 931201-8
• 030: MAKITA SPRING WASHER 5 FOR HM0810 P/N:942101-7 Part No.: 942101-7
• 032: MAKITA SPRING WASHER 5 FOR HM0810 P/N:942101-7 Part No.: 942101-7
• 033: MAKITA SPARK DEFLECTOR (LEFT) FOR GB801 P/N:AL00000066 Part No.: AL00000066
• 034: MAKITA WORK REST (LEFT) FOR GB801 P/N:AL00000067 Part No.: AL00000067
• 035: MAKITA FLAT WASHER 8 FOR UT1301 P/N:941202-8 Part No.: 941202-8
• 036: MAKITA SPRING WASHER 5 FOR HM0810 P/N:942101-7 Part No.: 942101-7
• 037: MAKITA HEX NUT M5 P/N:931201-8 Part No.: 931201-8
• 040: MAKITA FLAT WASHER 5 FOR N3701 P/N:941101-4 Part No.: 941101-4
• 041: MAKITA MOTOR HOUSING COVER R FOR GB801 P/N:AL00000069 Part No.: AL00000069
• 042: MAKITA BALL BEARING 6204LLB FOR 2412N P/N:211306-3 Part No.: 211306-3
• 043: MAKITA SPRING PIN 3-8 FOR 4301 P/N:951051-5 Part No.: 951051-5
• 046: MAKITA BUSH FOR GB602 P/N:AL00000022 Part No.: AL00000022
• 048: MAKITA PAN HEAD SCREW M4X10 FOR 3700B P/N:911113-1 Part No.: 911113-1
